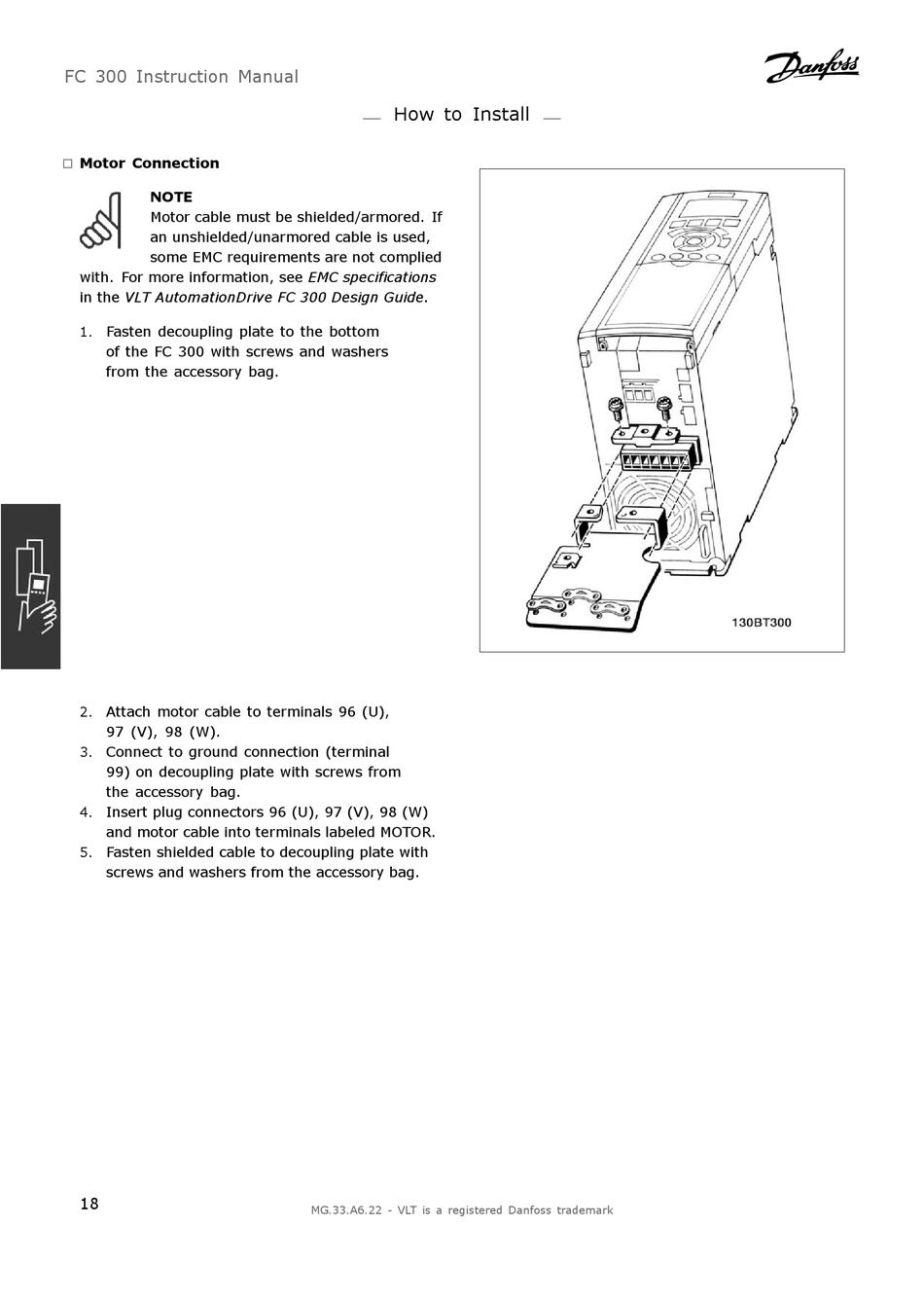

Motor Connection

"
NOTE
Motor cable must be shielded/armored. If
an unshielded/unarmored cable is used,
some EMC requirements are not complied
with. For more information, see EMC specifications
in the VLT AutomationDrive FC 300 Design Guide.
Fasten decoupling plate to the bottom
1.
of the FC 300 with screws and washers
from the accessory bag.
Attach motor cable to terminals 96 (U),
2.
97 (V), 98 (W).
Connect to ground connection (terminal
3.
99) on decoupling plate with screws from
the accessory bag.
4. Insert plug connectors 96 (U), 97 (V), 98 (W)
and motor cable into terminals labeled MOTOR.
Fasten shielded cable to decoupling plate with
5.
screws and washers from the accessory bag.
