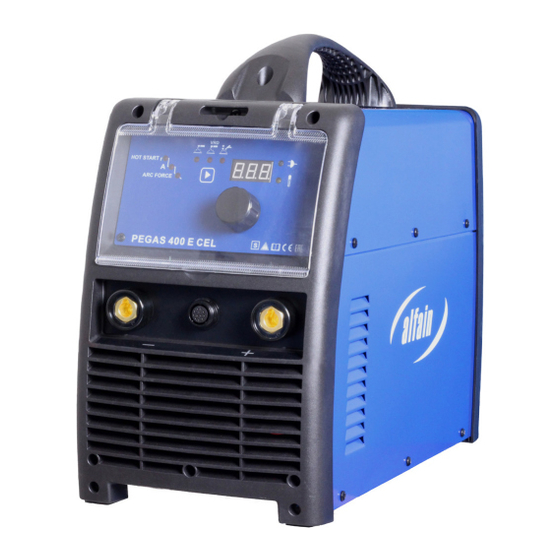

- Page 1 WELDING MACHINES PEGAS 400 E CEL PEGAS 500 E OPERATING MANUAL ALFA IN a.s. © www.alfain.eu PEGAS 400-500 E CEL manual EN 01...
-
Page 2: Table Of Contents
EQUIPMENT ..................- 7 - OPERATOR CONTROLS ..............- 8 - GETTING STARTED ................- 10 - ROUTINE MAINTENANCE & INSPECTION ........- 12 - STATEMENT OF WARRANTY ............- 12 - 10. DISPOSAL ..................- 13 - ALFA IN a.s. © www.alfain.eu... -
Page 3: Introduction
- 3 - 1. INTRODUCTION Dear consumer, Company ALFA IN a.s. thanks you for buying our product and believe that you will be satisfied with our machine. Welding inverters PEGAS 400 E CEL and PEGAS 500 E are designed for professional welding in MMA method (coated electrode) and in TIG method with function Lift Arc. -
Page 4: Safety Precautions
1. Before starting work with welding machine it is necessary to get familiar with applicable provisions of standards. 2. The welder must use protective equipment. 3. Before working on the electrical part, removing the cover or cleaning it is necessary to disconnect the device from the network. ALFA IN a.s. © www.alfain.eu... -
Page 5: Operating Conditions
4x2,5 mm . The machine can be operated on a three- phase electric generator 24 kVA – for PEGAS 400 E CEL (for PEGAS 500 E 35 kVA) (3x400V/50Hz) and more, which has ensured voltage stabilization ± 10%. Generators with lower power can damage the machine. -
Page 6: Technical Data
During operation, the device may be the source of interference. Caution We warn users , that they are responsible for possible interference from welding. 4. TECHNICAL DATA PEGAS 400 E CEL Method Mains voltage V/Hz 3x400/50-60 Welding current range 20 - 400... -
Page 7: Equipment
Cable with E holder 3 m 400 A 35- VM0185 5478 Gauging torch 500 A 5+10m 5.0139ST Remote CTRL 10 m PEGAS incl. ST Pressure Reducer FIXICONTROL 6008 Ar 2 manometers GCE 706.4037 TORCH SRT26 V 4m 35-50 ALFA IN a.s. © www.alfain.eu... -
Page 8: Operator Controls
6. OPERATOR CONTROLS Fig. 1 – Main parts Pos. Description Quick connector (-) Connector for remote control Welding method switch MMA electrode MMA VRD LED – HOT START function is selected LED – values in A ALFA IN a.s. © www.alfain.eu... - Page 9 MMA VRD – Voltage Reduction Device. If this mode is active and when the welding process is finished the VRD immediately reduces the open-circuit voltage to 14 V. Inverters PEGAS 400 E CEL generate the open-circuit voltage 95 V (MMA) and 14 V (TIG) and inverters PEGAS 500 E generate the open- circuit voltage 90 V, which is safe and is in compliance with the standard EN 60974-1.
-
Page 10: Getting Started
START and ARC FORCE. The appropriate LED A4 or A6 will shine. NOTE Prevent touching the electrode any metal material for in this mode the quick connectors A14 and A1 are under current. Insert the coated electrode ALFA IN a.s. © www.alfain.eu... - Page 11 5. By means of the button A3 switch to the position TIG 6. Connect the gas hose to the gas cylinder connector on the gas bottle. 7. By means of the encoder A13 set the welding current. ALFA IN a.s. © www.alfain.eu...
-
Page 12: Routine Maintenance & Inspection
3. ALFA IN will repair or replace, at its discretion, any warranted parts or components that fail due to defects in material or workmanship within the warranty period. -
Page 13: Disposal
NOTE Warranty repairs must be performed by either an ALFA IN Service Centre, an ALFA IN distributor or an Authorised Service Agent approved by the company ALFA IN. 8. As a warranty list serves proof of purchase (invoice) on which is the serial number of the machine.
