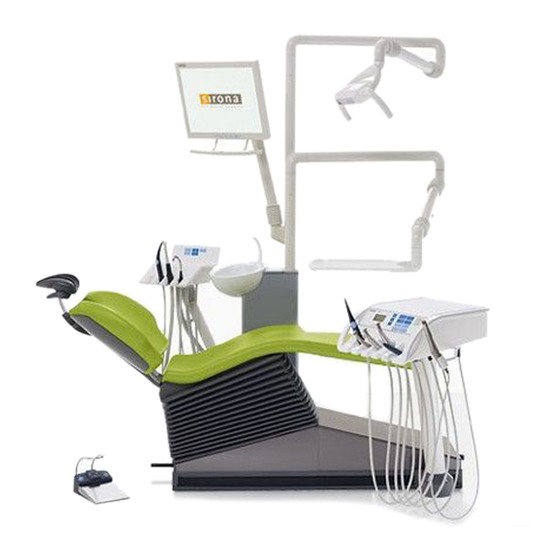

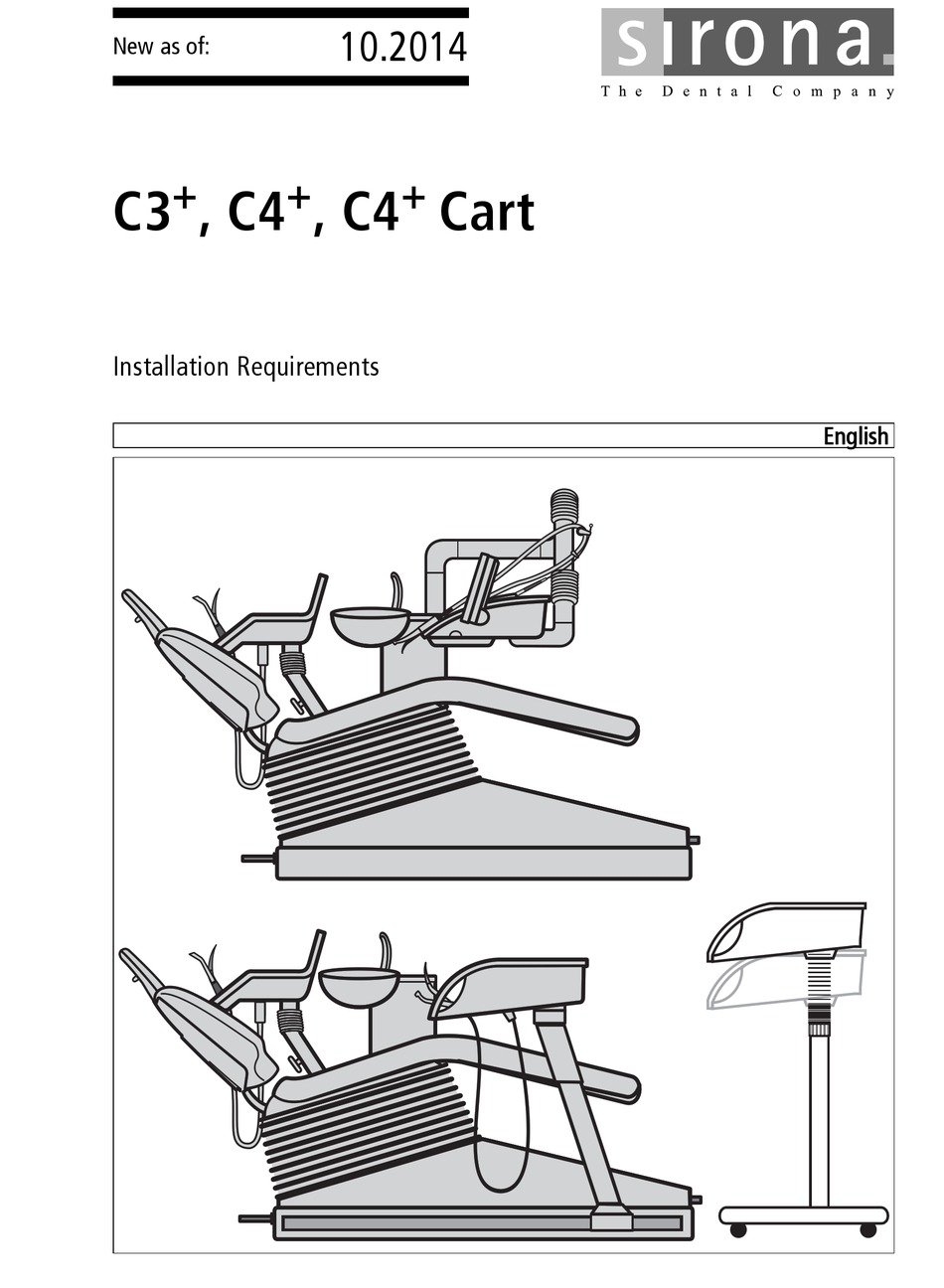

- Page 1 NMKOMNQ kÉï=~ë=çÑW I=`Q I=`Q `~êí fåëí~ää~íáçå=oÉèìáêÉãÉåíë= båÖäáëÜ...
- Page 2 General information Sirona Dental Systems GmbH Installation Requirements General information About this document This document describes the installation requirements for the C3 , C4 , C4 Cart dental treatment centers. The following sets of Installation Instructions describe the subsequent installation procedure: •...
-
Page 3: Table Of Contents
Sirona Dental Systems GmbH List of Contents Installation Requirements C3 , C4 , C4 Cart List of Contents Preparations.......................... Safety......................Connection to the public drinking water supply ........... Media quality....................Supply lines in the termination panel ............Underfloor installation of SIVISION connections ......... - Page 4 List of Contents Sirona Dental Systems GmbH Installation Requirements C3 , C4 , C4 Cart 60 27 945 D3382 D3382.021.02.12.02...
-
Page 5: Preparations
Preparations , C4 , C4 Cart 1.1 Safety ............................ 1.2 Connection to the public drinking water supply ..............1.3 Media quality ......................... 1.4 Supply lines in the termination panel ..................1.5 Underfloor installation of SIVISION connections ..............1.6 Mounting plates for equipment with fixed cuspidor ..............1.7 Mounting plates for equipment with swiveling cuspidor ............ -
Page 6: Safety
, C4 Cart 1.1 Safety Identification of the danger levels If any equipment not approved by Sirona is con- nected, it must comply with the applicable stan- To prevent personal injury and material damage, please dards, e.g.: observe the warning and safety information provided in the •... -
Page 7: Connection To The Public Drinking Water Supply
Sirona Dental Systems GmbH 1 Preparations Installation Requirements C3 , C4 , C4 Cart 1.2 Connection to the public drinking water supply Treatment center with isolation from public drinking water supply Provided it is equipped with a disinfection system, the treat- ment center fulfills the requirements of EN 1717 (free outlet with sections ≥... -
Page 8: Media Quality
1 Preparations Sirona Dental Systems GmbH Installation Requirements C3 , C4 , C4 Cart 1.3 Media quality Suction machine oil-free >80 µm Cold water (drinking water quality) Dilution hardness 1 bar = 100 kPa = 14.5 psi Water quality – Avoid long stub lines to the treatment center. -
Page 9: Supply Lines In The Termination Panel
Sirona Dental Systems GmbH 1 Preparations Installation Requirements C3 , C4 , C4 Cart 1.4 Supply lines in the termination panel Center base plate opening to floor Foot end 7, 6 3/8” min. 500mm max. max. max. 20” 5 mm... - Page 10 36.5mm!) recommend using an installation template. They can Water drain DN40 HT-PP DIN 19560 (polypro- be ordered from Sirona under REF 33 15 830. pylene, inner diameter 36.5mm!) If necessary, you can also prepare the template your- Installation pipe, DN40 HT-PP DIN 19560 self based on the above sketch (not true to scale!).
- Page 11 Sirona Dental Systems GmbH 1 Preparations Installation Requirements C3 , C4 , C4 Cart Supply lines in the termination panel 3 / 8 “ , 5 m Ø 3 6 < 6 < 2 8 “ Ø < 5 m 6 “...
-
Page 12: Underfloor Installation Of Sivision Connections
1 Preparations Sirona Dental Systems GmbH Installation Requirements C3 , C4 , C4 Cart 1.5 Underfloor installation of SIVISION connections SIVISION , C4 L15, L37, L38, Protective earth conductor Important information for the installer Bend the wire at the front end of cables L37 and L38 to form a hook. -
Page 13: Mounting Plates For Equipment With Fixed Cuspidor
Sirona Dental Systems GmbH 1 Preparations Installation Requirements C3 , C4 , C4 Cart 1.6 Mounting plates for equipment with fixed cuspidor Mounting plate REF 58 26 511 For especially uneven floor conditions, a steel mounting plate is available to compensate for the irregularities of the floor (REF 58 26 511). -
Page 14: Mounting Plates For Equipment With Swiveling Cuspidor
1 Preparations Sirona Dental Systems GmbH Installation Requirements C3 , C4 , C4 Cart 1.7 Mounting plates for equipment with swiveling cuspidor Mounting plate REF 58 71 913 For especially uneven floor conditions, a steel mounting plate is available to compensate for the irregularities of the floor (REF 58 71 913). -
Page 15: M1 Adapter Plate For Right-Handed Equipment With Swiveling Cuspidor
Sirona Dental Systems GmbH 1 Preparations Installation Requirements C3 , C4 , C4 Cart 1.8 M1 adapter plate for right-handed equipment with swiveling cuspidor Adapter plate REF 58 70 493 If the C3 or C4 is installed as a replacement for an M1 at this position, then an adapter plate, with the aid of which the existing mounting holes can be used, is available under the order number 58 70 493. - Page 16 1 Preparations Sirona Dental Systems GmbH Installation Requirements C3 , C4 , C4 Cart 60 27 945 D3382 D3382.021.02.12.02...
-
Page 17: Dimensions, Technical Data
Dimensions, technical data , C4 , C4 Cart 2.1 Dimensions of the C3 1:20 ....................2.2 Dimensions of the C4 1:20 ....................2.3 Dimensions of the C4 Cart 1:20 ................... 2.4 Technical data ........................2.5 Standards/Approvals ......................60 27 945 D3382 D3382.021.02.12.02... -
Page 18: Dimensions Of The C3 + 1:20
2 Dimensions, technical data Sirona Dental Systems GmbH Installation Requirements C3 , C4 , C4 Cart 2.1 Dimensions of the C3 1:20 1300 1200 51 3/16” 47 1/4” Recommended distances from cabinet or wall. 2500 98 7/16” Hazard warning: The here mounted lamp, the dentist element /... - Page 19 Sirona Dental Systems GmbH 2 Dimensions, technical data Installation Requirements C3 , C4 , C4 Cart LEDview SIROLUX FANTASTIC Height of lamp with SIVISION lamp support tube 1950 3 1/2” 76 3/4” 10 3/4” Height of lamp without SIVISION or...
- Page 20 2 Dimensions, technical data Sirona Dental Systems GmbH Installation Requirements C3 , C4 , C4 Cart 30 3/8” 29 1/2” 9 7/8” 7” 2070 +50** 81 1/2” +2“ ** 430 +15 17“ +5/8” max. 380 +15 Pos. 2 Pos. 1 *** 15“...
-
Page 21: Dimensions Of The C4 + 1:20
Sirona Dental Systems GmbH 2 Dimensions, technical data Installation Requirements C3 , C4 , C4 Cart 2.2 Dimensions of the C4 1:20 ** 1450 -1700 1300 57" - 67” 51 3/16” Depending on setting of support arm Recommended distances from cabinet or wall. - Page 22 2 Dimensions, technical data Sirona Dental Systems GmbH Installation Requirements C3 , C4 , C4 Cart LEDview SIROLUX FANTASTIC 10° Height of lamp with SIVISION lamp support tube 1950 3 1/2” 76 3/4” 65° 10 3/4” Height of lamp without SIVISION or with Swivellable 45°...
- Page 23 Sirona Dental Systems GmbH 2 Dimensions, technical data Installation Requirements C3 , C4 , C4 Cart 9 7/8” 30 3/8” 29 1/2” 90° 60° 7” 90° 90° 2070 +50** 81 1/2” +2“ ** 430 +15 17“ +5/8” Option max. 380 +15 max.
-
Page 24: Dimensions Of The C4 + Cart 1:20
2 Dimensions, technical data Sirona Dental Systems GmbH Installation Requirements C3 , C4 , C4 Cart 2.3 Dimensions of the C4 Cart 1:20 1700 1300 67” 51 3/16” Recommended distances from cabinet or wall. 2500 98 7/16” 9 7/8” 9 7/8”... - Page 25 Sirona Dental Systems GmbH 2 Dimensions, technical data Installation Requirements C3 , C4 , C4 Cart LEDview SIROLUX FANTASTIC 10° Height of lamp with SIVISION lamp support tube 1950 3 1/2” 76 3/4” 65° Height of lamp without SIVISION or with SIVISION on tray 45°...
- Page 26 2 Dimensions, technical data Sirona Dental Systems GmbH Installation Requirements C3 , C4 , C4 Cart 9 7/8” 30 3/8” 29 1/2” 90° 60° 7” 90° 90° 2070 +50** 81 1/2” +2“ ** 430 +15 17“ +5/8” max. 380 +15 15“...
-
Page 27: Technical Data
Sirona Dental Systems GmbH 2 Dimensions, technical data Installation Requirements C3 , C4 , C4 Cart 2.4 Technical data , C4 Cart Technical data Power supply line 100 V / 115 V / 230 VAC 50 / 60 Hz Nominal current 11.5 A... - Page 28 2 Dimensions, technical data Sirona Dental Systems GmbH Installation Requirements C3 , C4 , C4 Cart Dimensions of the packaging : Dentist element, assistant element, water 122cm x 63cm x 176cm unit : Dentist element, assistant element, 122cm x 63cm x 137cm...
-
Page 29: Standards/Approvals
Sirona Dental Systems GmbH 2 Dimensions, technical data Installation Requirements C3 , C4 , C4 Cart 2.5 Standards/Approvals Standards/Approvals The C3 , C4 , C4 Cart treatment center complies with the following standards, among others: • IEC 60601-1 (electrical and mechanical safety plus software reli- ability) •... - Page 30 Industrie Canada The modules meet the requirements of Industry Canada (RSS2210). IC: 7654A-nanoLOCAVR The current approvals for the foot control are listed on the rating label on the underside of the patient chair. ® is a registered trademark of Sirona Dental Systems GmbH. 60 27 945 D3382 D3382.021.02.12.02...
-
Page 31: Electromagnetic Compatibility
Electromagnetic compatibility , C4 , C4 Cart 3.1 Accessories ........................... 3.2 Electromagnetic emission ...................... 3.3 Immunity to interference ......................3.4 Working clearances ....................... 3.5 Foot control wireless interface ....................NOTE The C3 , C4 , C4 Cart fulfills all requirements for electromagnetic compatibility (EMC) compliant with IEC 60601-1-2. The C3 , C4 , C4... -
Page 32: Accessories
2nd protective ground wire 2,.5mm , 10m Sirona • The UNIT may be operated only with accessories and spare parts approved by Sirona. Unapproved accesso- ries and spare parts may lead to an increased emission of or a reduced immunity to interference. •... -
Page 33: Electromagnetic Emission
Sirona Dental Systems GmbH 3 Electromagnetic compatibility Installation Requirements C3 , C4 , C4 Cart 3.2 Electromagnetic emission The UNIT is intended for operation in the electromagnetic The customer or user of the UNIT should make sure that it environment specified below. -
Page 34: Immunity To Interference
3 Electromagnetic compatibility Sirona Dental Systems GmbH Installation Requirements C3 , C4 , C4 Cart 3.3 Immunity to interference The UNIT is intended for operation in the electromagnetic The customer or user of the UNIT should make sure that it environment specified below. - Page 35 Sirona Dental Systems GmbH 3 Electromagnetic compatibility Installation Requirements C3 , C4 , C4 Cart Immunity interfer- IEC 60601-1-2 test Conformance level Electromagnetic environment guidelines ence tests level Portable and mobile radio equipment must not be used within the recommended work-...
-
Page 36: Working Clearances
3 Electromagnetic compatibility Sirona Dental Systems GmbH Installation Requirements C3 , C4 , C4 Cart 3.4 Working clearances Recommended working clearances between por- table and mobile HF communication devices and the UNIT UNIT is intended for operation in an electromagnetic environment, where radiated HF interference is checked. -
Page 37: Foot Control Wireless Interface
Sirona Dental Systems GmbH 3 Electromagnetic compatibility Installation Requirements C3 , C4 , C4 Cart 3.5 Foot control wireless interface Insofar as the treatment center is equipped with a foot control, one wireless module each must be installed in the foot control and in the base of the chair of the treatment center. - Page 38 tÉ=êÉëÉêîÉ=íÜÉ=êáÖÜí=íç=ã~âÉ=~åó=~äíÉê~íáçåë=ïÜáÅÜ=ã~ó=ÄÉ=êÉèìáêÉÇ=ÇìÉ=íç=íÉÅÜåáÅ~ä=áãéêçîÉãÉåíëK «=páêçå~=aÉåí~ä=póëíÉãë=dãÄe=OMNQ péê~ÅÜÉW= ÉåÖäáëÅÜ= mêáåíÉÇ=áå=dÉêã~åó aPPUOKMONKMOKNOKMO===NMKOMNQ ûKJkêKW= NNV=MTQ fãéêáã¨=Éå=^ääÉã~ÖåÉ páêçå~=aÉåí~ä=póëíÉãë=dãÄe áå=íÜÉ=rp^W SM=OT=VQR=aPPUO c~Äêáâëíê~≈É=PN páêçå~=aÉåí~ä=póëíÉãë=ii` lêÇÉê=kç SQSOR=_ÉåëÜÉáã QUPR=páêçå~=aêáîÉI=pìáíÉ=NMM dÉêã~åó `Ü~êäçííÉI=k`=OUOTP ïïïKëáêçå~KÅçã...
