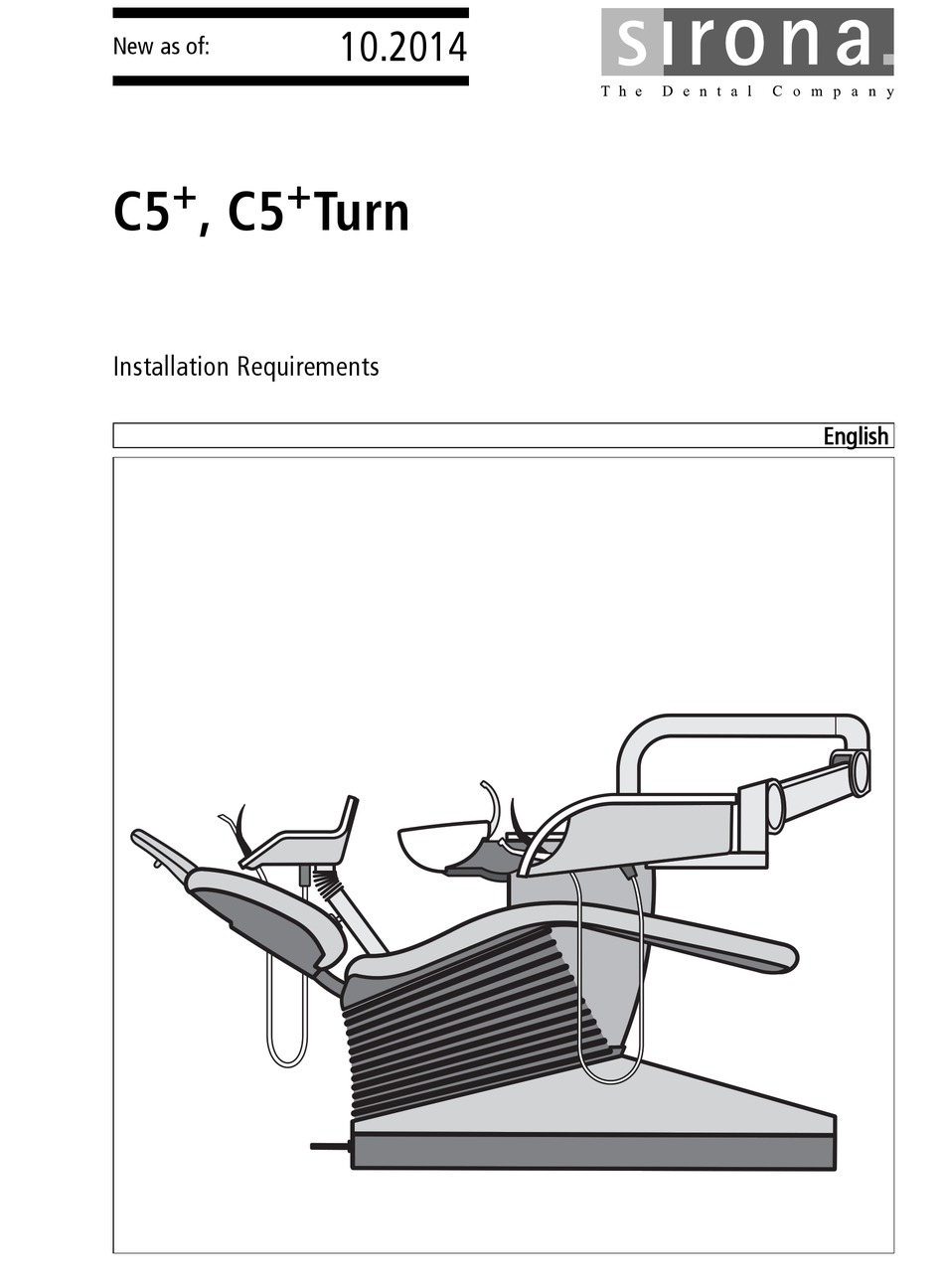

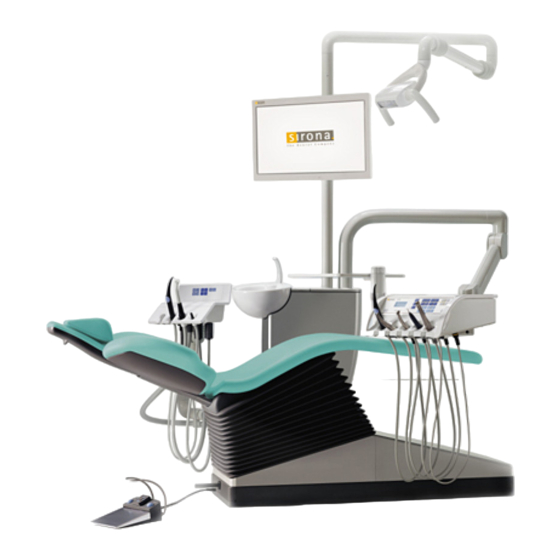

  • Page 1 NMKOMNQ kÉï=~ë=çÑW I=`R qìêå fåëí~ää~íáçå=oÉèìáêÉãÉåíë= båÖäáëÜ...
  • Page 2 General information Sirona Dental Systems GmbH Installation Requirements General information About this document This document describes the installation requirements for the C5 , C5 Turn dental treatment centers. The following sets of Installation Instructions describe the subsequent installation procedure: •...

  • Page 3: Table Of Contents

    Sirona Dental Systems GmbH List of Contents Installation Requirements C5 , C5 Turn List of Contents Preparations.......................... Safety......................Connection to the public drinking water supply ........... Media quality....................Supply lines in the termination panel ............Underfloor installation of SIVISION connections .........
  • Page 4 List of Contents Sirona Dental Systems GmbH Installation Requirements C5 , C5 Turn 60 27 978 D3415 D3415.021.03.08.02...

  • Page 5: Preparations

    Preparations , C5 Turn 1.1 Safety ............................ 1.2 Connection to the public drinking water supply ..............1.3 Media quality ......................... 1.4 Supply lines in the termination panel ..................1.5 Underfloor installation of SIVISION connections ..............1.6 Mounting plates for equipment with fixed cuspidor (not for C5 Turn) ........

  • Page 6: Safety

    1.1 Safety Identification of the danger levels sulting from the use of non-approved accessories. If any equipment not approved by Sirona is con- To prevent personal injury and material damage, please nected, it must comply with the applicable stan- observe the warning and safety information provided in the dards, e.g.:...

  • Page 7: Connection To The Public Drinking Water Supply

    Sirona Dental Systems GmbH 1 Preparations Installation Requirements C5 , C5 Turn 1.2 Connection to the public drinking water supply Treatment center with isolation from public drinking water supply Provided it is equipped with a disinfection system, the treat- ment center fulfills the requirements of EN 1717 (free outlet with sections ≥...

  • Page 8: Media Quality

    1 Preparations Sirona Dental Systems GmbH Installation Requirements C5 , C5 Turn 1.3 Media quality Suction machine oil-free >80 µm Cold water (drinking water quality) Dilution hardness 1 bar = 100 kPa = 14.5 psi Water quality – Avoid long stub lines to the treatment center.

  • Page 9: Supply Lines In The Termination Panel

    Sirona Dental Systems GmbH 1 Preparations Installation Requirements C5 , C5 Turn 1.4 Supply lines in the termination panel Center base plate opening to floor Foot end 7, 6 3/8” min. 500mm max. max. max. 20” 5 mm 60mm 5 mm 3/16”...
  • Page 10 36.5mm!) recommend using an installation template. They can Water drain DN40 HT-PP DIN 19560 (polypro- be ordered from Sirona under REF 33 15 830. pylene, inner diameter 36.5mm!) If necessary, you can also prepare the template your- Installation pipe, DN40 HT-PP DIN 19560 self based on the above sketch (not true to scale!).
  • Page 11 Sirona Dental Systems GmbH 1 Preparations Installation Requirements C5 , C5 Turn Supply lines in the termination panel 3 / 8 “ , 5 m Ø 3 6 < 6 < 2 8 “ Ø < 5 m 6 “...

  • Page 12: Underfloor Installation Of Sivision Connections

    1 Preparations Sirona Dental Systems GmbH Installation Requirements C5 , C5 Turn 1.5 Underfloor installation of SIVISION connections SIVISION L15, L37, L38, Protective earth conductor Important information for the installer Bend the wire at the front end of cables L37 and L38 to form a hook.

  • Page 13: Mounting Plates For Equipment With Fixed Cuspidor (Not For C5 + Turn)

    Sirona Dental Systems GmbH 1 Preparations Installation Requirements C5 , C5 Turn 1.6 Mounting plates for equipment with fixed cuspidor (not for C5 Turn) Mounting plate REF 58 26 511 For especially uneven floor conditions, a steel mounting plate is available to compensate for the irregularities of the floor (REF 58 26 511).

  • Page 14: Mounting Plates For Equipment With Swiveling Cuspidor (Not For C5 + Turn)

    1 Preparations Sirona Dental Systems GmbH Installation Requirements C5 , C5 Turn 1.7 Mounting plates for equipment with swiveling cuspidor (not for C5 Turn) Mounting plate REF 58 71 913 For especially uneven floor conditions, a steel mounting plate is available to com- pensate for the irregularities of the floor (REF 58 71 913).

  • Page 15: M1 Adapter Plate For Equipment With Swiveling Cuspidor (Not For C5 + Turn)

    Sirona Dental Systems GmbH 1 Preparations Installation Requirements C5 , C5 Turn 1.8 M1 adapter plate for equipment with swiveling cuspidor (not for C5 Turn) Adapter plate REF 58 70 493 If the C5 is installed as a replacement for an M1 at this position, then an adapter plate, with the aid of which the existing mounting holes can be used, is available under the REF 58 70 493.

  • Page 16: Demonstration Chair Plate C5 + Turn

    1 Preparations Sirona Dental Systems GmbH Installation Requirements C5 , C5 Turn 1.9 Demonstration chair plate C5 Turn Demonstration chair plate Turn REF 59 46 269 For floors which do not permit per- manent connection of the unit (e.g. demo operation at a fair), installa- tion on a steel demonstration chair plate is possible (REF 59 46,269).

  • Page 17: Dimensions, Technical Data

    Dimensions, technical data , C5 Turn 2.1 Dimensions of the C5 1:20 ....................2.2 Dimensions of the C5 Turn 1:20 ..................2.3 Technical data ........................2.4 Standards/Approvals ......................60 27 978 D3415 D3415.021.03.08.02...

  • Page 18: Dimensions Of The C5 + 1:20

    2 Dimensions, technical data Sirona Dental Systems GmbH Installation Requirements C5 , C5 Turn 2.1 Dimensions of the C5 1:20 Recommended distances from cabinet or wall. > 1100 > 1100 43 5/16” 43 5/16” 2500 98 7/16” Hazard warning: The here mounted lamp, the dentist element / with tray (option)
  • Page 19 Sirona Dental Systems GmbH 2 Dimensions, technical data Installation Requirements C5 , C5 Turn LEDview SIROLUX FANTASTIC 5 1/2” 1870 73 3/4” 11 3/4” with Swivellable cuspidor max. 1340 52 3/4” 1 3/4” min. 810 31 7/8” * max. 760 30”...
  • Page 20 2 Dimensions, technical data Sirona Dental Systems GmbH Installation Requirements C5 , C5 Turn 30 3/8” 29 1/2” 9 7/8” 7” 2070 +50** 81 1/2” +2“ ** 430 +15 17“ +5/8” max. 1515 59 5/8" Option Support arm, long max. 1200 max.

  • Page 21: Dimensions Of The C5 + Turn 1:20

    Sirona Dental Systems GmbH 2 Dimensions, technical data Installation Requirements C5 , C5 Turn 2.2 Dimensions of the C5 Turn 1:20 Recommended distances from cabinet or wall. 1600 1600 63” 63” 2500 98 7/16” Hazard warning: The here mounted lamp, the dentist element /...
  • Page 22 2 Dimensions, technical data Sirona Dental Systems GmbH Installation Requirements C5 , C5 Turn Minimum clearances for conversion of treatment center from right-handed to left-handed version an vice versa 2700x2650mm 1050 1050 41 3/8” 41 3/8” 1600 1600 63” 63”...
  • Page 23 Sirona Dental Systems GmbH 2 Dimensions, technical data Installation Requirements C5 , C5 Turn Minimum clearances for conversion of treatment center from right-handed to left-handed version an vice versa 3650x2350mm 1300 1050 51 1/8” 41 3/8” Storage space max. 900mm height 2034 80”...
  • Page 24 2 Dimensions, technical data Sirona Dental Systems GmbH Installation Requirements C5 , C5 Turn Equal working conditions for right-handers and left-handers: Position for right-handers 1050 1050 41 3/8” 41 3/8” 1600 1600 63” 63” 17° 1084 42 3/4” 2700 106 1/4”...
  • Page 25 Sirona Dental Systems GmbH 2 Dimensions, technical data Installation Requirements C5 , C5 Turn Equal working conditions for right-handers and left-handers: Position for left-handers 1050 1050 41 3/8” 41 3/8” 1600 1600 63” 63” 17° 1084 42 3/4” 2700 106 1/4”...
  • Page 26 2 Dimensions, technical data Sirona Dental Systems GmbH Installation Requirements C5 , C5 Turn LEDview SIROLUX FANTASTIC 11 3/4” 1870 73 3/4” max. 1340 52 3/4” 1 3/4” min. 810 31 7/8” * max. 775 30 1/2” min. 415 16 3/8”...
  • Page 27 Sirona Dental Systems GmbH 2 Dimensions, technical data Installation Requirements C5 , C5 Turn 30 3/8” 29 1/2” 9 7/8” 7” 2070 +50* 81 1/2” +2“ * 800 +50* 31 1/2” +2” 430 +15 17“ +5/8” max. 380 +15 15“ +5/8”...

  • Page 28: Technical Data

    2 Dimensions, technical data Sirona Dental Systems GmbH Installation Requirements C5 , C5 Turn 2.3 Technical data , C5 Turn Technical data Power supply line 100 V / 115 V / 230 VAC 50 / 60 Hz Nominal current 11.5 A...
  • Page 29 Sirona Dental Systems GmbH 2 Dimensions, technical data Installation Requirements C5 , C5 Turn Dimensions of the packaging C5 Dentist element, assistant element 120cm x 63cm x 110cm water unit 120cm x 63cm x 96cm Chair 157cm x 65cm x 83cm...

  • Page 30: Standards/Approvals

    2 Dimensions, technical data Sirona Dental Systems GmbH Installation Requirements C5 , C5 Turn 2.4 Standards/Approvals Standards/Approvals The C5 , C5 Turn treatment center complies with the following stan- dards, among others: • IEC 60601-1 (electrical and mechanical safety plus software reli- ability) •...
  • Page 31 Industrie Canada The modules meet the requirements of Industry Canada (RSS2210). IC: 7654A-nanoLOCAVR The current approvals for the foot control are listed on the rating label on the underside of the patient chair. ® is a registered trademark of Sirona Dental Systems GmbH. 60 27 978 D3415 D3415.021.03.08.02...
  • Page 32 2 Dimensions, technical data Sirona Dental Systems GmbH Installation Requirements C5 , C5 Turn 60 27 978 D3415 D3415.021.03.08.02...

  • Page 33: Electromagnetic Compatibility

    Electromagnetic compatibility , C5 Turn 3.1 Accessories ........................... 3.2 Electromagnetic emission ...................... 3.3 Immunity to interference ......................3.4 Working clearances ....................... 3.5 Foot control wireless interface ....................IMPORTANT The C5 , C5 Turn fulfills all requirements for electromagnetic compatibility (EMC) compliant with IEC 60601-1-2. The C5 , C5 Turn is referred to as "UNIT"...

  • Page 34: Accessories

    2nd protective ground wire, 2.5mm , 10m Sirona • The UNIT may be operated only with accessories and spare parts approved by Sirona. Unapproved accesso- ries and spare parts may lead to an increased emission of or a reduced immunity to interference. •...

  • Page 35: Electromagnetic Emission

    Sirona Dental Systems GmbH 3 Electromagnetic compatibility Installation Requirements C5 , C5 Turn 3.2 Electromagnetic emission The UNIT is intended for operation in the electromagnetic The customer or user of the UNIT should make sure that it environment specified below.

  • Page 36: Immunity To Interference

    3 Electromagnetic compatibility Sirona Dental Systems GmbH Installation Requirements C5 , C5 Turn 3.3 Immunity to interference The UNIT is intended for operation in the electromagnetic The customer or user of the UNIT should make sure that it environment specified below.
  • Page 37 Sirona Dental Systems GmbH 3 Electromagnetic compatibility Installation Requirements C5 , C5 Turn Immunity interfer- IEC 60601-1-2 test level Conformance level Electromagnetic environment ence tests guidelines Portable and mobile radio equipment must not be used within the recom- mended working clearance from the...

  • Page 38: Working Clearances

    3 Electromagnetic compatibility Sirona Dental Systems GmbH Installation Requirements C5 , C5 Turn 3.4 Working clearances Recommended working clearances between por- table and mobile HF communication devices and the UNIT UNIT is intended for operation in an electromagnetic environment, where radiated HF interference is checked.

  • Page 39: Foot Control Wireless Interface

    Sirona Dental Systems GmbH 3 Electromagnetic compatibility Installation Requirements C5 , C5 Turn 3.5 Foot control wireless interface Insofar as the treatment center is equipped with a foot control, one wireless module each must be installed in the foot control and in the base of the chair of the treatment center.
  • Page 40 tÉ=êÉëÉêîÉ=íÜÉ=êáÖÜí=íç=ã~âÉ=~åó=~äíÉê~íáçåë=ïÜáÅÜ=ã~ó=ÄÉ=êÉèìáêÉÇ=ÇìÉ=íç=íÉÅÜåáÅ~ä=áãéêçîÉãÉåíëK «=páêçå~=aÉåí~ä=póëíÉãë=dãÄe=OMMNJOMNQ péê~ÅÜÉW= ÉåÖäáëÅÜ= mêáåíÉÇ=áå=dÉêã~åó aPQNRKMONKMPKMUKMO===NMKOMNQ ûKJkêKW= NNV=MTQ fãéêáã¨=Éå=^ääÉã~ÖåÉ páêçå~=aÉåí~ä=póëíÉãë=dãÄe áå=íÜÉ=rp^W SM=OT=VTU=aPQNR c~Äêáâëíê~≈É=PN páêçå~=aÉåí~ä=póëíÉãë=ii` lêÇÉê=kç SQSOR=_ÉåëÜÉáã QUPR=páêçå~=aêáîÉI=pìáíÉ=NMM dÉêã~åó `Ü~êäçííÉI=k`=OUOTP ïïïKëáêçå~KÅçã...
