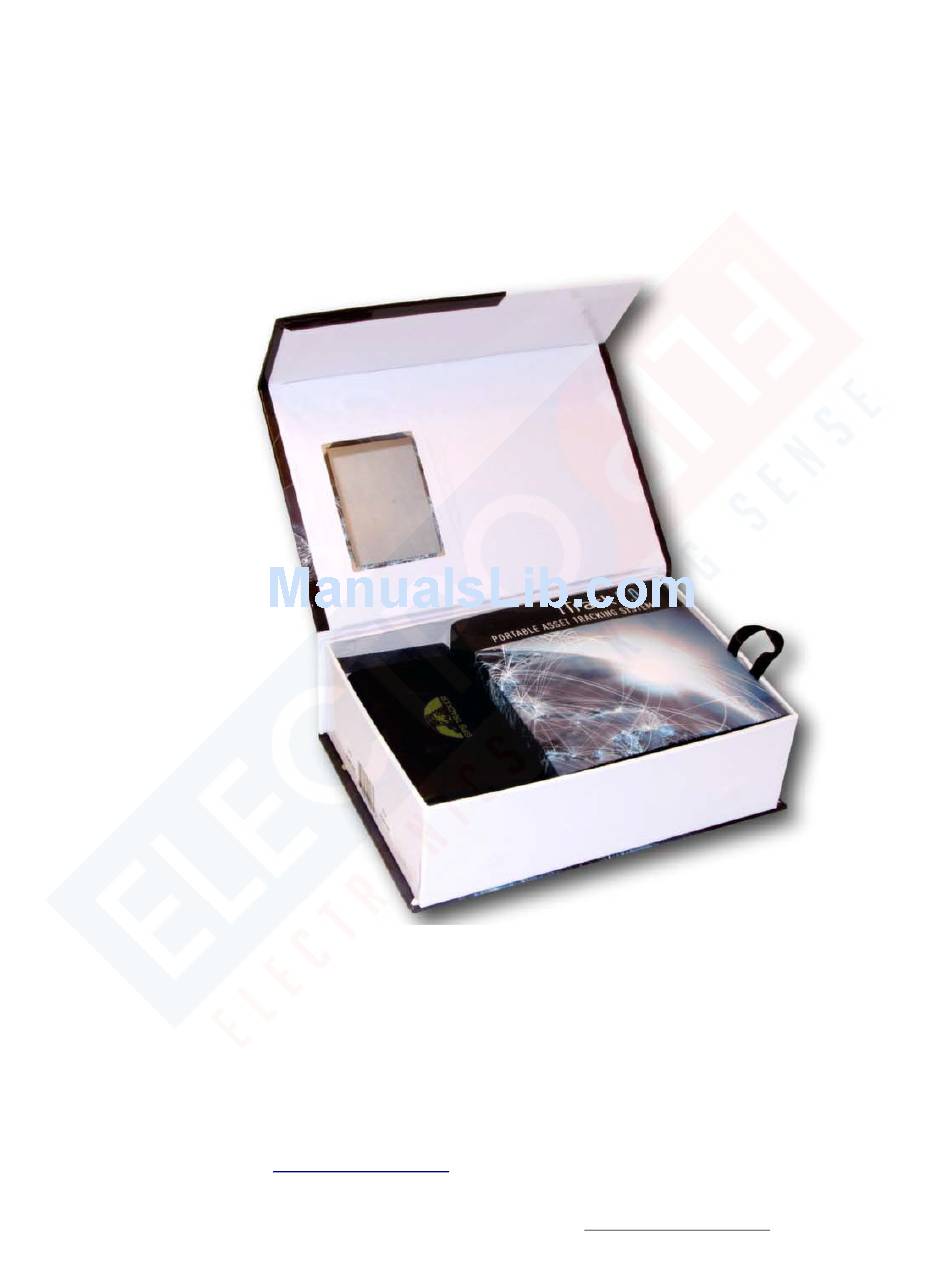

iTrack 2.0
User Guide
The iTrack 2.0 has many features designed to enhance your tracking experience. You can now take
advantage of this great, new technology in order to protect your family and valued assets 24 hours a day,
seven days a week.
All information and instructions included in this manual are current as of April 2017. However, due to the
fluid nature of advancing technology, some characteristics may change or need modifications in the
future. Should you encounter any problems or have any further questions about your purchase, please
visit our website
www.ElectroFlip.com
and contact us through our Contact Us page.
This document is a property of ElectroFlip LLC (www.ElectroFlip.com).
No unauthorized reproduction is allowed.
1

Advertisement

Table of Contents
loading

Summary of Contents for ElectroFlip iTrack 2.0

  • Page 1 2.0 User Guide The iTrack 2.0 has many features designed to enhance your tracking experience. You can now take advantage of this great, new technology in order to protect your family and valued assets 24 hours a day, seven days a week.

  • Page 2: Table Of Contents

    IP and Port Setup ............................ 21 Mode Switch ............................21 Less GPRS Traffic ............................22 LED Indicator Lights ..........................23 Basic Troubleshooting ..........................23 Appendix ............................. 24 Mapping Software ............................ 24 This document is a property of ElectroFlip LLC (www.ElectroFlip.com). No unauthorized reproduction is allowed.

  • Page 3: Safety Information

    Disassembling the Unit Do not attempt to disassemble the unit. Attempting to disassemble the unit can result in electrical hazard. If you experience problems with the unit, discontinue the use and contact us, ElectroFlip, for assistance. PRODUCT INFORMATION HARDWARE INFORMATION This document is a property of ElectroFlip LLC (www.ElectroFlip.com).
  • Page 4 NOTE: The USB port is simply a secondary charging port. This document is a property of ElectroFlip LLC (www.ElectroFlip.com). No unauthorized reproduction is allowed.

  • Page 5: Product Specification

    To check your areas T-Mobile network coverage visit: http://www.t-mobile.com/coverage-map.html You might find it easier to work with smaller third party network carriers found here: ElectroFlip SpeedTalk http://www.electroflip.com/unlocked-prepaid-gsm-sim-card USMobile https://www.usmobile.com/shop/product/Triple-Cut-GSM-SIM-Card Ting https://ting.com/rates Net10 http://www.net10wireless.com/#/plans/pay-as-you-go This document is a property of ElectroFlip LLC (www.ElectroFlip.com). No unauthorized reproduction is allowed.

  • Page 6: How To Install Sim Card

    Make sure to fully charge the battery of the device before using it. For the initial charge, make sure to charge the device for 15 hours to boost its power. First turn your iTrack 2.0 power OFF. For home charging, connect the 4-PIN plug or Micro-USB plug (depending on the model revision you have) to the device then connect the other end to the main supply.

  • Page 7: How To Connect The External Antennas

    You can then start configuring the advanced functions of the tracker. 4. Done. We’ve already pre-configured your iTrack 2.0 to last the longest on battery. If you proceed to the advanced functions section, please keep in mind activating any one of those features will draw significantly more power when enabled, than our current default out of the box configuration.

  • Page 8: Advanced Functions

    An authorized phone number can be used to track, control, setup alarms and configuring the settings of iTrack 2.0 GPS Tracker. You can only authorized up to 5 phone numbers including the master phone number. To add an authorized phone number, please follow the steps below.

  • Page 9: Single Locating

    20 seconds. Time is the unit which can be express in “s” for second, “m” for minute and “h” for hour. This document is a property of ElectroFlip LLC (www.ElectroFlip.com). No unauthorized reproduction is allowed.

  • Page 10: Automatic Update Positions When Vehicle Turns

    To activate, send text message containing: Message Format: angle+password+space+angle Text Message: angle123456 040 Reply: angle ok This document is a property of ElectroFlip LLC (www.ElectroFlip.com). No unauthorized reproduction is allowed.

  • Page 11: Receive Absolute Address

    When the tracker doesn’t receive valid GPS signals, the tracker will locate by LBS (location based service). The message includes the GPS coordinates of the last position in SMS mode and an LAC code which is the current position. This document is a property of ElectroFlip LLC (www.ElectroFlip.com). No unauthorized reproduction is allowed.

  • Page 12: Check Itrack2 Status

    To monitor the surrounding sounds to help identify what’s going on at the location it’s in, send a text message containing: Message Format: monitor+password Text Message/Command: monitor123456 Reply: monitor ok This document is a property of ElectroFlip LLC (www.ElectroFlip.com). No unauthorized reproduction is allowed.

  • Page 13: Data Logging

    Message Format: save+intervals+time+***n+password Text Message: save030s***n123456 Reply: save ok To clear the logs, send a text message containing: Message Format: clear+password Text Message: clear123456 Reply: clear ok This document is a property of ElectroFlip LLC (www.ElectroFlip.com). No unauthorized reproduction is allowed.

  • Page 14: Data Loading (Gprs Mode Only)

    To activate this mode, send a text message containing: Message Format: sleep+password+space+time Text Message: sleep123456 time Reply: sleep time ok This document is a property of ElectroFlip LLC (www.ElectroFlip.com). No unauthorized reproduction is allowed.
  • Page 15 Text Message: noschedule123456  No Sleep Mode To turn off sleep mode, send a text message containing: Message Format: sleep+password+space+off Text Message: sleep123456 off Reply: sleep off ok This document is a property of ElectroFlip LLC (www.ElectroFlip.com). No unauthorized reproduction is allowed.

  • Page 16: Setup Monitor Center Number

    ‘-‘ before the digits. The first latitude and longitude is the coordinate of the top left corner of the geo-fence while the second latitude and longitude is the coordinate of the bottom right corner. This document is a property of ElectroFlip LLC (www.ElectroFlip.com). No unauthorized reproduction is allowed.

  • Page 17: Multi-Area Management

    “areaname+latitude & longitude” to all authorized phone number and sends text message when it goes out of the preset area.  Deactivate Multi-Area Management Message Format: area+password+space+off Text Message: area123456 off Reply: area off ok This document is a property of ElectroFlip LLC (www.ElectroFlip.com). No unauthorized reproduction is allowed.

  • Page 18: Movement Alarm

    NOTE: The recommended speed should not be less than 30 km/h. For below recommended speed, the accuracy will be affected by GPS signals drift and others This document is a property of ElectroFlip LLC (www.ElectroFlip.com). No unauthorized reproduction is allowed.

  • Page 19: Shock Sensor Alarm

     Third Level: Alarm will be triggered after the device detects vibration 25 times in 5 seconds. To activate, send text message containing: Message Format: sensitivity+password+space+3 Text Message: sensitivity123456 3 This document is a property of ElectroFlip LLC (www.ElectroFlip.com). No unauthorized reproduction is allowed.

  • Page 20: Sos (Optional)

    Talk, Text and Data plan for your GSM SIM card. To find out the costs/rates for the GPRS service please contact your network provider. You would need to subscribe to a GPRS server as well. This document is a property of ElectroFlip LLC (www.ElectroFlip.com). No unauthorized reproduction is allowed.

  • Page 21: Apn Setup

    NOTE: 123456 is the tracking device's password, 202.105.135.50 is the IP and 9000 is the port. MODE SWITCH (SMS AND GPRS) The default mode of iTrack 2.0 GPS Tracker is SMS. To change the mode from SMS to GPRS, send a text message containing: This document is a property of ElectroFlip LLC (www.ElectroFlip.com).

  • Page 22: Less Gprs Traffic

    Reply: less gprs on ok To deactivate this mode, send text message containing: Message Format: less gprs+password+space+off Text Message: less gprs123456 off Reply: less gprs off ok This document is a property of ElectroFlip LLC (www.ElectroFlip.com). No unauthorized reproduction is allowed.

  • Page 23: Led Indicator Lights

    FAQ section (http://help.electroflip.com/index.php) you can contact us through our website, www.ElectroFlip.com, and go to our Contact Us page. You may also give us a call at our Customer Support number 1-877-686-7495.

  • Page 24: Appendix

    Just enter your latitude and longitude numbers then click go as seen below: The 123.456764, -45.456543 are the latitude and longitude numbers respectively. This document is a property of ElectroFlip LLC (www.ElectroFlip.com). No unauthorized reproduction is allowed.
  • Page 25 Should you encounter any problems or have any further questions about your purchase, please visit our website www.ElectroFlip.com and contact us through our Contact Us page. This document is a property of ElectroFlip LLC (www.ElectroFlip.com). No unauthorized reproduction is allowed.
