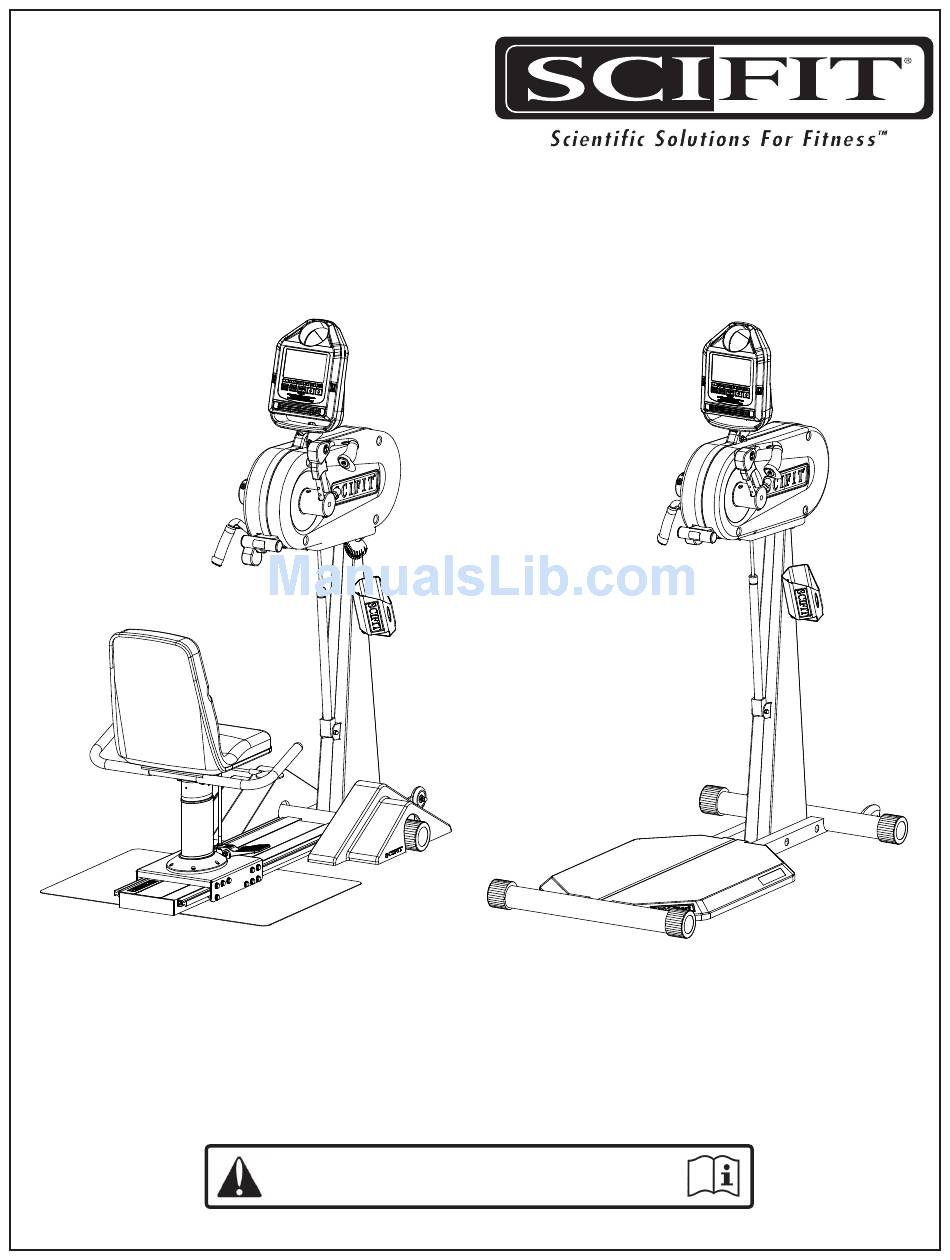

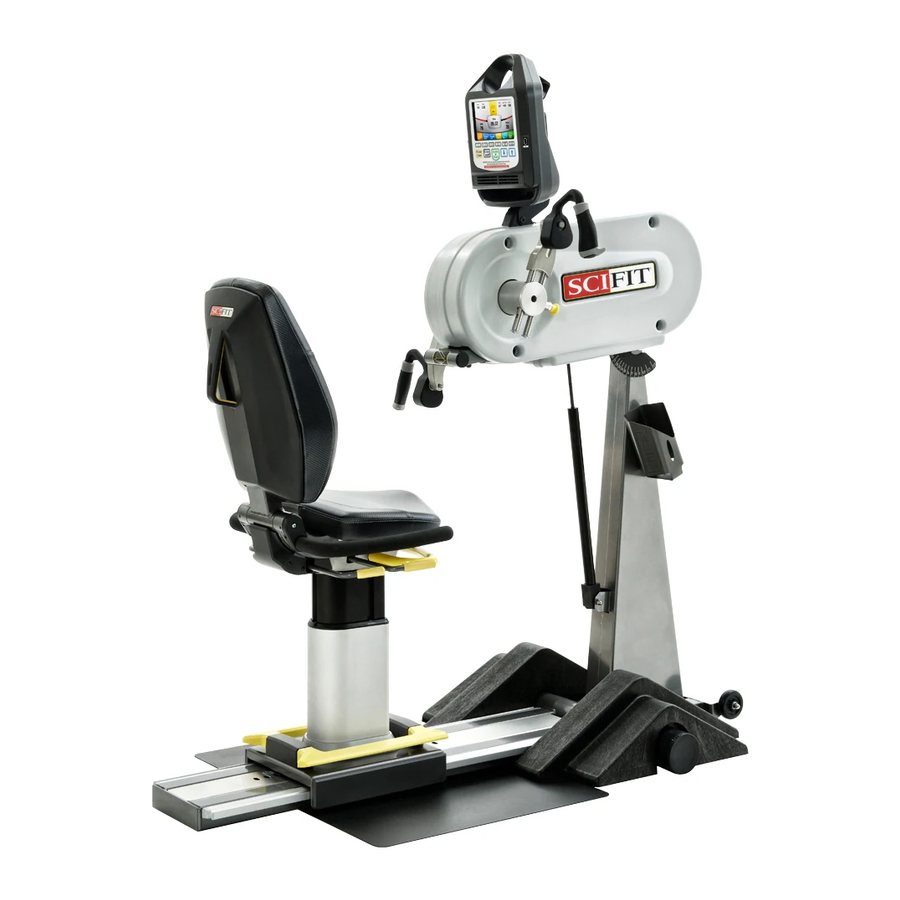

  • Page 1 Owner’s Operation Manual PRO1 Adjustable Position Upper Body Exerciser Before Using this product, read this manual and follow all safety rules and operating instructions.
  • Page 2 Start WARNING! Heart rate monitoring systems may be inaccurate. Over exercise may result in serious injury. If you feel faint or pain stop exercising immediately SCIFIT • Scientific Solutions for Fitness • SCIFIT • Scientific Solutions for Fitness • SCIFIT...
  • Page 3: Table Of Contents

    ADJUSTMENTS 18-19 ACCESSORIES 20-21 HEART RATE TRANSMITTER STRAP PROGRAM INSTRUCTIONS 23-32 MAINTENANCE & SERVICE WARRANTY 34-38 CERTIFICATIONS WARRANTY CARD Order on line 24/7 at www.SCIFIT.com SCIFIT • Scientific Solutions for Fitness • SCIFIT • Scientific Solutions for Fitness • SCIFIT...
  • Page 4: Safety Information

    Never drop or insert any object into any opening. Do not use outdoors or in a harsh environment where water is present (i.e. pool or spa areas). SCIFIT • Scientific Solutions for Fitness • SCIFIT • Scientific Solutions for Fitness • SCIFIT...
  • Page 5: Introduction

    Injuries to health may result from incorrect or excessive training. Failure to stop exercising can result in injury or death to yourself. SCIFIT • Scientific Solutions for Fitness • SCIFIT • Scientific Solutions for Fitness • SCIFIT...
  • Page 6: Specifications

    Within U.S. & Canada 3 years parts, 1 year labor Outside U.S. 3 years parts, no labor 60” 1524 mm 30” (762 mm) 67” 1702 mm SCIFIT • Scientific Solutions for Fitness • SCIFIT • Scientific Solutions for Fitness • SCIFIT...
  • Page 7: Specifications

    Within U.S. & Canada 3 years parts, 1 year labor Outside U.S. 3 years parts, no labor 60” 1524 mm 30” (762 mm) 74” 1880 mm SCIFIT • Scientific Solutions for Fitness • SCIFIT • Scientific Solutions for Fitness • SCIFIT...
  • Page 8: Set-Up & Installation

    To promote a healthy environment, wipe any sweat off of unit with a commercially manufactured wipe designed for the fitness industry, or a damp cloth. SCIFIT • Scientific Solutions for Fitness • SCIFIT • Scientific Solutions for Fitness • SCIFIT...
  • Page 9: Assembly

    Monocoque Frame is top heavy. Two people are required to position frame in place. Failure to support frame properly may result in injury to yourself and/ or others. SCIFIT • Scientific Solutions for Fitness • SCIFIT • Scientific Solutions for Fitness • SCIFIT...
  • Page 10 5/16-18 x 1 Socket Flat Head Screw Item #2 (x4) 5/16 Flat Washer Item #3 (x4) 5/16 Split Washer Item #4 (x4) 5/16 Flat Nut SCIFIT • Scientific Solutions for Fitness • SCIFIT • Scientific Solutions for Fitness • SCIFIT...
  • Page 11 5/16-18 x 1 Hex Head Screw Rear seat plate mounting holes Seat Mount Plate Item #3 (x2) 5/16 Split Washer Item #4 (x4) 5/16 Flat Washer SCIFIT SCIFIT • Scientific Solutions for Fitness • SCIFIT • Scientific Solutions for Fitness • SCIFIT...
  • Page 12 Align holes of seat with these holes on the fixed seat mount Tools Required: 1/2” (13mm) Wrench or socket Front Item #1 (x4) 5/16-18 x 1.25 Serrated Screw Rear SCIFIT • Scientific Solutions for Fitness • SCIFIT • Scientific Solutions for Fitness • SCIFIT...
  • Page 13 1/2” (13mm) Wrench or socket Item #1 (x 2) 5/16-18 x 1.25 Serrated Screw (Item #1) x 4 Align bottom seat pad holes with these four hole locations SCIFIT • Scientific Solutions for Fitness • SCIFIT • Scientific Solutions for Fitness • SCIFIT...
  • Page 14 480 in/lbs, reinsert the set screw removed in step 1 into the crank hub and TIGHTEN to the 480 in/lb setting on the wrench. Step 4: Repeat steps 1 thru 3 for the left side. SCIFIT • Scientific Solutions for Fitness • SCIFIT • Scientific Solutions for Fitness • SCIFIT...
  • Page 15 With the flat horizontal surface of the wheelchair platform flush against the base frame square tube. Protective Pad (C) Tighten the four bolts. Repeat the process for the opposite side SCIFIT • Scientific Solutions for Fitness • SCIFIT • Scientific Solutions for Fitness • SCIFIT...
  • Page 16: Assembly

    Take the second platform and postion it over the machine frame with the SCIFIT decal pointing toward the rear. Step 6: Repeat steps 2 thru 4. SCIFIT DECAL SCIFIT • Scientific Solutions for Fitness • SCIFIT • Scientific Solutions for Fitness • SCIFIT...
  • Page 17: Product Overview

    Adjustable crank arm (Right side reversible) Water Bottle Holder Fixed or adjustable swivel seat. (Swivel shown) Adjustment lever Transport wheels Wheelchair Leveling base platform endcaps Molded footrest SCIFIT • Scientific Solutions for Fitness • SCIFIT • Scientific Solutions for Fitness • SCIFIT...
  • Page 18: Product Overview

    PRODUCT OVERVIEW PRO1 SPORT Adjustable display & Intelli-Fit console Adjustable crank arm (Right side reversible) Water Bottle Holder Adjustment lever Transport wheels Preformed Platform Leveling endcaps SCIFIT • Scientific Solutions for Fitness • SCIFIT • Scientific Solutions for Fitness • SCIFIT...
  • Page 19: Keypad Functions

    (see Program Instructions) workout parameters. SCIFIT • Scientific Solutions for Fitness • SCIFIT • Scientific Solutions for Fitness • SCIFIT Quick Start: This key provides a one-touch “Quick Start” into a workout with preset parameters.
  • Page 20: Biomechanical Positioning

    Always follow medical professionals guidelines to reduce the risk of personal injury. Failure to follow 4th hole position their directions may result in injury to yourself. SCIFIT • Scientific Solutions for Fitness • SCIFIT • Scientific Solutions for Fitness • SCIFIT...
  • Page 21: Adjustments

    PRO1 Main Body Adjustment To achieve the optimal workout position and also to work different muscle groups, the PRO1 main body can be adjusted up or down by pulling on the small locking tab located in the front.
  • Page 22: Adjustments

    The seat will lock into place at each 90 degree position. Fig. A Fig. C Swivel REPLACE REMOVE Fig. B Fig. D Fixed REPLACE REMOVE SCIFIT • Scientific Solutions for Fitness • SCIFIT • Scientific Solutions for Fitness • SCIFIT...
  • Page 23: Accessories

    Consult your therapist for setup and range of motion. wheelchair position during exercise routine. The foot rest must be removed to access the tie down anchors. Order online 24/7 at www.SCIFIT.com SCIFIT • Scientific Solutions for Fitness • SCIFIT • Scientific Solutions for Fitness • SCIFIT...
  • Page 24 A good option for individuals who have spasticity, A wireless chest strap that transmits heart rate signals weakness or tremors in their upper extremities. directly to the console . SCIFIT • Scientific Solutions for Fitness • SCIFIT • Scientific Solutions for Fitness • SCIFIT...
  • Page 25: Heart Rate Transmitter Strap

    WARNING Heart Rate monitoring systems may be inaccurate. If you feel faint, stop exercising immediately. Over exercising may result in serious injury or death. SCIFIT • Scientific Solutions for Fitness • SCIFIT • Scientific Solutions for Fitness • SCIFIT...
  • Page 26: Program Instructions

    Work loads and duration are preset within the Set-Up mode. 15:00 Time (mm:ss) Level Weight (lbs) Fit-Quik Press Then Enter the workout duration with keys then press SCIFIT • Scientific Solutions for Fitness • SCIFIT • Scientific Solutions for Fitness • SCIFIT...
  • Page 27 Adjust the target watts with keys then press Time (mm:ss) 15:00 Target Watts Weight (lbs) Enter the user weight with keys then press to begin the workout SCIFIT • Scientific Solutions for Fitness • SCIFIT • Scientific Solutions for Fitness • SCIFIT...
  • Page 28 Target RPM Time (mm:ss) 15:00 Weight (lbs) Level Adjust the target RPM with keys Select 1 of 7 profiles with keys then press then press SCIFIT • Scientific Solutions for Fitness • SCIFIT • Scientific Solutions for Fitness • SCIFIT...
  • Page 29 Enter the user weight Target Heart Rate with keys then press Weight (lbs) to begin the workout. Enter the workout duration with keys then press SCIFIT • Scientific Solutions for Fitness • SCIFIT • Scientific Solutions for Fitness • SCIFIT...
  • Page 30 Stess Test First Target (Watts) with keys then press Stress Test Increments (Watts) Stress Test Interval (mm:ss) 5:00 to begin the workout. Select target wattage with keys then press SCIFIT • Scientific Solutions for Fitness • SCIFIT • Scientific Solutions for Fitness • SCIFIT...
  • Page 31 Select a random profile with keys to begin the workout. then press Profile Random Time (mm:ss) 15:00 Level Enter the workout duration with keys then press SCIFIT • Scientific Solutions for Fitness • SCIFIT • Scientific Solutions for Fitness • SCIFIT...
  • Page 32 TEST Press Then Program to begin workout Level Beginner Weight (lbs) Enter the user weight with keys then press to begin the workout. SCIFIT • Scientific Solutions for Fitness • SCIFIT • Scientific Solutions for Fitness • SCIFIT...
  • Page 33 Level Beginner Weight (lbs) Program Weight (lbs) Select 1 of 4 levels with keys Select 1 of 3 programs with keys then press then press SCIFIT • Scientific Solutions for Fitness • SCIFIT • Scientific Solutions for Fitness • SCIFIT...
  • Page 34: Additional Key Features

    This duration can be increased or decreased in the “Set-up” mode. SCIFIT • Scientific Solutions for Fitness • SCIFIT • Scientific Solutions for Fitness • SCIFIT...
  • Page 35 PROGRAM INSTRUCTIONS LCD Dimming Feature Both the PRO1 and PRO1 Sport machines have a special dimming feature that can help save battery power when cranking below 25 RPMs. This feature has been activated and can be disabled or enabled in the “Set-Up”...
  • Page 36: Maintenance & Service

    PLEASE USE USA CONTACT NUMBERS* Nuts and Bolts Tighten When Bimonthly Club Maintenance Necessary Base Roller Guide Track Damp Cloth Monthly Club Maintenance Order online 24/7 at www.SCIFIT.com SCIFIT • Scientific Solutions for Fitness • SCIFIT • Scientific Solutions for Fitness • SCIFIT...
  • Page 37: Warranty

    WARRANTY It is very important that your SCIFIT machine is registered. This can be done online at http://www.SCIFIT.com/warrantyregistration.shtml or fill out and mail the registration form at the back of this manual. SCIFIT Statement of Warranty SCIFIT warranties new products against defective workmanship and/or materials under normal and proper use subject to the following limitations: (a) SCIFIT’s obligation to the original purchaser shall apply to:...
  • Page 38 12 months Assist gloves 90 days USB keys and Lanyards 90 days (f) Fires, floods, and acts of God, are not covered under this warranty. SCIFIT • Scientific Solutions for Fitness • SCIFIT • Scientific Solutions for Fitness • SCIFIT...
  • Page 39 INSPECT MERCHANDISE THOROUGHLY NOTING ANY DAMAGE ON RECEIVING PAPERWORK PRIOR TO SIGNING”. SCIFIT is not responsible for the repair or replacement of any unit or part damaged during transit or installation. The customer is responsible for inspection of each unit and part for shipping damage at time of delivery or installation, and prior to signing receiving paperwork.
  • Page 40 Detailed description of symptoms encountered Installation SCIFIT is not responsible for the repair or replacement of any unit or part damaged during installation. The customer is responsible for inspection of each unit and part for damage at the time of installation. The customer is responsible for pursuing all damage claims with the installer.
  • Page 41 Thank you in advance for your assistance! When requested by SCIFIT, defective parts must be returned to the SCIFIT factory within 20 days of receipt of replacement part. Otherwise SCIFIT will expect payment on the parts invoice net 30 days.
  • Page 42: Certifications

    HEAD OFFICE. Det Norske Veritas AS, Veritasveien 1, 1322 Hovik, Norway. Tel: +47 67 57 99 00 Fax: +47 67 57 99 11 - www.dnv.com SCIFIT • Scientific Solutions for Fitness • SCIFIT • Scientific Solutions for Fitness • SCIFIT...
  • Page 43: Warranty Card
