Contec IPC-PT/L600S(PCW)P User Manual

Pc-pt/x600x(pcw)-hmu seriies
Hide thumbs
Table of Contents

Advertisement

Quick Links

Celeron CPU loading PANECON-PC
IPC-PT/x600x(PCW)-HMU
User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IPC-PT/L600S(PCW)P and is the answer not in the manual?

Questions and answers

Related Manuals for Contec IPC-PT/L600S(PCW)P

Summary of Contents for Contec IPC-PT/L600S(PCW)P

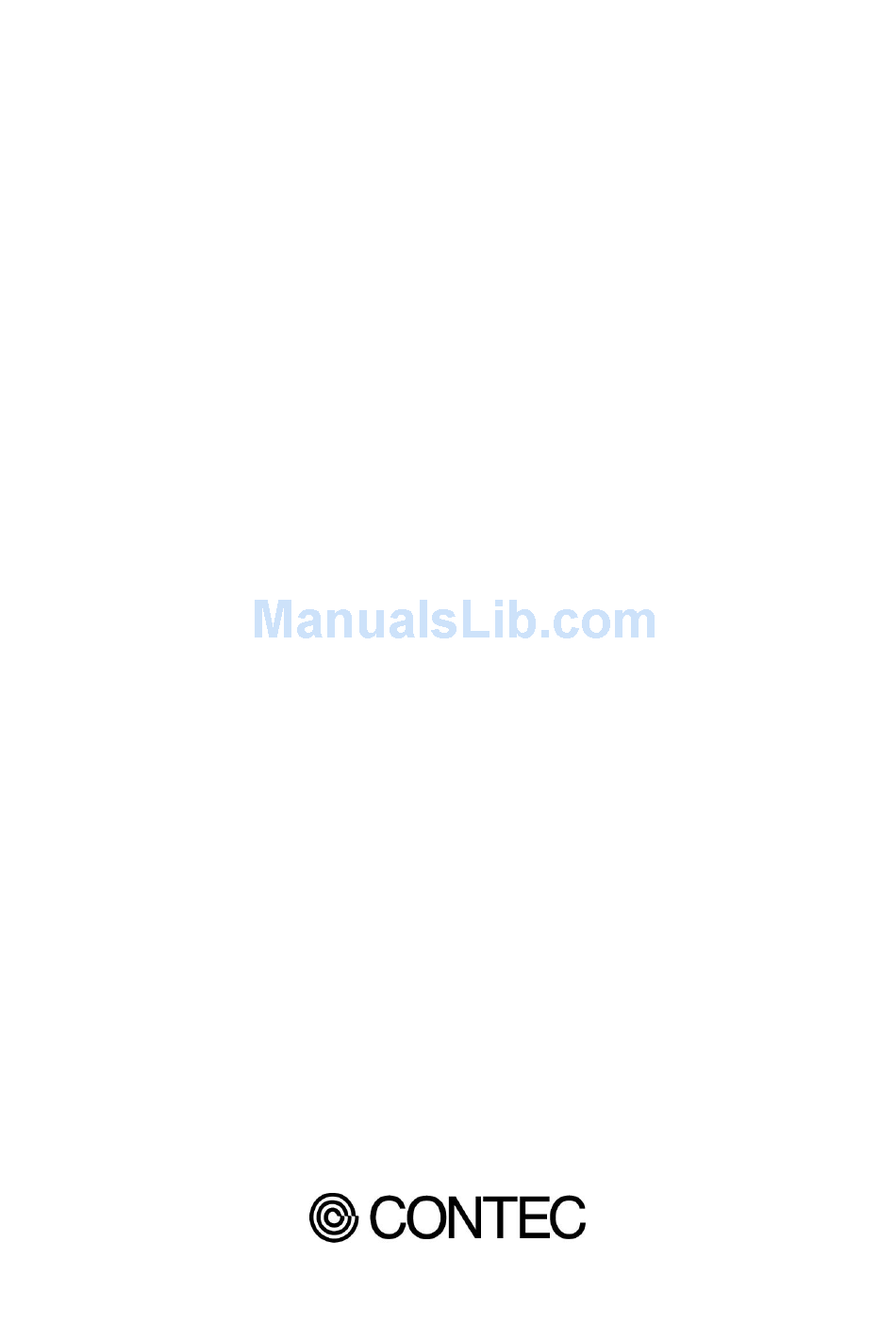

  • Page 1 Celeron CPU loading PANECON-PC IPC-PT/x600x(PCW)-HMU User’s Manual...

  • Page 2: Trademarks

    Copyright 2001 CONTEC CO., LTD. ALL RIGHTS RESERVED No part of this document may be copied or reproduced in any form by any means without prior written consent of CONTEC CO., LTD. CONTEC CO., LTD. makes no commitment to update or keep current the information contained in this document.

  • Page 3: Table Of Contents

    Installing the Hard Disk ..........20 Installing the Main Memory (DIMM) ......21 Fastening the Power Cable ........23 Installation Procedure ..........24 Installation Requirements .........25 4. BIOS Setup ............27 BIOS Setup..............27 Starting the Setup Screen ..........27 Keystrokes..............28 Main Menu ..............29 IPC-PT/L600S(PCW)C, IPC-PT/L600S(PCW)P, IPC-PT/H600X(PCW)C, IPC-PT/H600X(PCW)P...
  • Page 4 USB Ports..............76 Ethernet ..............77 IDE Interface ..............79 Expansion Slots (P Model)..........81 6. Touch Panel ............85 Touch panel serial interface ........85 7. Appendix ..............87 Memory Map ..............87 I/O Port Addresses ............88 Interrupt Level List ............89 IPC-PT/L600S(PCW)C, IPC-PT/L600S(PCW)P, IPC-PT/H600X(PCW)C, IPC-PT/H600X(PCW)P...
  • Page 5 Figure 3.9. AC Cord in Clamped State ........23 Figure 3.10. Panel Opening Dimensions........24 Figure 3.11. Assembling Method ..........24 Figure 3.12. Distances between the PANECON-PC and Its Vicinity.............. 25 Figure 4.1. Initial Screen ............27 IPC-PT/L600S(PCW)C, IPC-PT/L600S(PCW)P, IPC-PT/H600X(PCW)C, IPC-PT/H600X(PCW)P...
  • Page 6 Register B: Counter Clock Output Control ..... 67 Figure 5.9. Alarm Out Output Control Port (4001h) ....68 Figure 5.10. WDT Control Port (4002h)........68 Figure 5.11. WDT Counter Port (4003h) ........69 Figure 5.12. Event Output Control Port (4004h)......69 IPC-PT/L600S(PCW)C, IPC-PT/L600S(PCW)P, IPC-PT/H600X(PCW)C, IPC-PT/H600X(PCW)P...
  • Page 7 Figure 5.27. Installation of an Expansion Board ......83 Figure 5.28. Attaching the PCB Brace........83 Figure 5.29. Adjusting to Use the ISA Card ......83 Figure 5.30. Replacing the Top Cover ........84 Figure 7.1. Memory Map............87 IPC-PT/L600S(PCW)C, IPC-PT/L600S(PCW)P, IPC-PT/H600X(PCW)C, IPC-PT/H600X(PCW)P...
  • Page 8 Table 2.1. Functional Specifications < 1 / 2 > ......7 Table 2.1. Functional Specifications < 2 / 2 > ......8 Table 2.2. Installation Environment Requirements ...... 8 Table 2.3. IPC-PT/L600S(PCW)C, IPC-PT/L600S(PCW)P ..9 Table 2.4. IPC-PT/H600X(PCW)C, IPC-PT/H600X(PCW)P ..9 Table 3.1. Jumper List ............... 19 Table 3.2.
  • Page 9 Table 5.29. Expansion Slots............81 Table 6.1. Touch panel specifications ........85 Table 6.2. SERIAL C I/O Addresses and IRQ ......86 Table 7.1. I/O Port Addresses ............ 88 Table 7.2. Hardware Interrupt Levels (Factory Settings).... 89 viii IPC-PT/L600S(PCW)C, IPC-PT/L600S(PCW)P, IPC-PT/H600X(PCW)C, IPC-PT/H600X(PCW)P...

  • Page 10: Introduction

    Recent years have seen an increasing number of users who embrace FA and LA utilizing personal computers. In response to this trend, CONTEC has developed and marketed FA computers (the IPC series) and a variety of interface boards.

  • Page 11: Compatible Operating Systems

    Please obtain a Return Merchandise Authorization Number (RMA) from the CONTEC group office where you purchased before returning any product. * No product will be accepted by CONTEC group without the RMA number. Liability The obligation of the warrantor is solely to repair or replace the product.

  • Page 12: Handling Precautions

    - Before installing or uninstalling an expansion board (the P model) or connecting or disconnecting a connector, be sure to unplug the power cable from the wall outlet. - CONTEC reserves the right to refuse to service a product modified by the user. IPC-PT/L600S(PCW)C, IPC-PT/L600S(PCW)P, IPC-PT/H600X(PCW)C, IPC-PT/H600X(PCW)P...
  • Page 13 Note that it is shortened depending on the operating temperature (high temperature). (2) Battery: A lithium-ion primary battery is used to back up the internal clock/calendar and CMOS RAM. The deenergized backup time at 25°C is 10 years or more. IPC-PT/L600S(PCW)C, IPC-PT/L600S(PCW)P, IPC-PT/H600X(PCW)C, IPC-PT/H600X(PCW)P...
  • Page 14 (as tested by mechanical touching under 300 g of force at a rate of two presses per second). * CONTEC accepts your request for replacing each consumable in the PANECON-PC as a request for repair (at an additional cost).

  • Page 15: About The Manual

    This manual consists of the following chapters : Chapter 1 Introduction Chapter 2 Overview Chapter 3 Hardware Setup Chapter 4 BIOS Setup Chapter 5 Each Component Function Chapter 6 Touch Panel Chapter 7 Appendix Chapter 8 List of Options IPC-PT/L600S(PCW)C, IPC-PT/L600S(PCW)P, IPC-PT/H600X(PCW)C, IPC-PT/H600X(PCW)P...

  • Page 16: Overview

    Lithium ion battery backup. Battery life: 10 years min. RTC/CMOS *1 No all of these functions can be used at the same time because the number of interrupt resources is limited. *2 Cannot be started from ATA card. IPC-PT/L600S(PCW)C, IPC-PT/L600S(PCW)P, IPC-PT/H600X(PCW)C, IPC-PT/H600X(PCW)P...

  • Page 17: Table 2.1. Functional Specifications < 2 / 2

    10G, half-sine shock for 11 ms in x, y, and z directions (JIS C0041-compliant, IEC68-2-27-compliant) Grounding Class D grounding (previous class 3 grounding) *1 When a floppy disk is not in use. *2 When the HDD and FDD are not in use. IPC-PT/L600S(PCW)C, IPC-PT/L600S(PCW)P, IPC-PT/H600X(PCW)C, IPC-PT/H600X(PCW)P...

  • Page 18: Display Optical Specifications

    Overview Display Optical Specifications Table 2.3. IPC-PT/L600S(PCW)C, IPC-PT/L600S(PCW)P Condition Parameter Min. Typical φ = 180° 20deg 35deg View angle (Vertical) φ = 0° 50deg 65deg Display. CR≥10 Monochrome φ = +90° 40deg 60deg View angle (Horizontal) φ = -90° 40deg 60deg Display.

  • Page 19: System Configuration

    Expansion bus adapter PCI and ISA * Not all devices shown in the figure half-size boards can be used simultaneously due to FA-PAC(PC) a limit on the number of interrupt series resources. Figure 2.2. System Configuration IPC-PT/L600S(PCW)C, IPC-PT/L600S(PCW)P, IPC-PT/H600X(PCW)C, IPC-PT/H600X(PCW)P...

  • Page 20: External Dimensions

    Overview External Dimensions IPC-PT/L600S(PCW)C 12-M4 STUD 24 2.4 4 - R4 37.3 [mm] Figure 2.3. External Dimensions of the IPC-PT/L600S(PCW)C IPC-PT/L600S(PCW)C, IPC-PT/L600S(PCW)P, IPC-PT/H600X(PCW)C, IPC-PT/H600X(PCW)P...

  • Page 21: Figure 2.4. External Dimensions Of Theipc-Pt/L600S(Pcw)P

    Overview IPC-PT/L600S(PCW)P 12-M4 STUD 4 - R4 37.3 [mm] Figure 2.4. External Dimensions of the IPC-PT/L600S(PCW)P Note! The panel link interface and PC card connector are not installed on the IPC-PT/L600S(PCW)P. IPC-PT/L600S(PCW)C, IPC-PT/L600S(PCW)P, IPC-PT/H600X(PCW)C, IPC-PT/H600X(PCW)P...
  • Page 22 Overview IPC-PT/H600X(PCW)C 12-M4 STUD 309.1 4 - R4 37.3 [mm] Figure 2.5. External Dimensions of the IPC-PT/H600X(PCW)C IPC-PT/L600S(PCW)C, IPC-PT/L600S(PCW)P, IPC-PT/H600X(PCW)C, IPC-PT/H600X(PCW)P...

  • Page 23: Figure 2.6. External Dimensions Of Theipc-Pt/H600X(Pcw)P

    Overview IPC-PT/H600X(PCW)P 12-M4 STUD 309.1 4-R4 37.3 [mm] Figure 2.6. External Dimensions of the IPC-PT/H600X(PCW)P Note! The panel link interface and PC card connector are not installed on the IPC-PT/H600X(PCW)P. IPC-PT/L600S(PCW)C, IPC-PT/L600S(PCW)P, IPC-PT/H600X(PCW)C, IPC-PT/H600X(PCW)P...

  • Page 24: Hardware Setup

    SETUP DEFAULTS" to initialize the BIOS settings to their default values. (See Chapter 4, "Main Menu.") Note! If Windows is pre-installed, always connect the keyboard and mouse before turning on the power for the first time. IPC-PT/L600S(PCW)C, IPC-PT/L600S(PCW)P, IPC-PT/H600X(PCW)C, IPC-PT/H600X(PCW)P...

  • Page 25: Hardware Setup

    - Before you start, be sure that the power is turned off. - Remove only those screws that are explained. Do not move any other screw. (1) Remove the top cover. Figure 3.1. Removing the Top Cover IPC-PT/L600S(PCW)C, IPC-PT/L600S(PCW)P, IPC-PT/H600X(PCW)C, IPC-PT/H600X(PCW)P...

  • Page 26: Figure 3.2. Removing The Hdd Bracket

    Hardware Setup (2) Remove the hard disk bracket. Figure 3.2. Removing the HDD Bracket IPC-PT/L600S(PCW)C, IPC-PT/L600S(PCW)P, IPC-PT/H600X(PCW)C, IPC-PT/H600X(PCW)P...

  • Page 27: Locations And Settings Of Internal Connectors And Jumpers

    * The position of the jumpers mounted changes with kinds (A, B) of substrate. JP1 is not mounted by A type. Figure 3.3. Locations and Settings of Jumpers, Connectors, and Switches inside the Top Cover (IPC-PT/L600S(PCW)C, IPC-PT/L600S(PCW)P, IPC-PT/H600X(PCW)C, IPC-PT/H600X(PCW)P) IPC-PT/L600S(PCW)C, IPC-PT/L600S(PCW)P, IPC-PT/H600X(PCW)C, IPC-PT/H600X(PCW)P...

  • Page 28: Table 3.1. Jumper List

    2, 3, 4, 5, 6, 7 2, 3, 6, 7 than bit 2 factor-set. details will be saved. Table 3.2. Internal Connector List Function Connector Reference page CN15 Primary IDE connector (44pin, pin header) Expansion memory set (3.3V, 144pin SO-DIMM) IPC-PT/L600S(PCW)C, IPC-PT/L600S(PCW)P, IPC-PT/H600X(PCW)C, IPC-PT/H600X(PCW)P...

  • Page 29: Installing The Hard Disk

    (The figure below shows an example that uses the inner screw hole.) (3) Connect the HDD cable to CN15 on the unit and fasten the hard disk bracket to the unit using four screws. IPC-PT/L600S(PCW)C, IPC-PT/L600S(PCW)P, IPC-PT/H600X(PCW)C, IPC-PT/H600X(PCW)P...

  • Page 30: Installing The Main Memory (Dimm)

    - Capacity : 64MB / 128MB - Type : SDRAM - Optional memories * : 64MB : PC-MSD64-144H 128MB : PC-MSD128-144H * Operation is not guaranteed if memory parts other than CONTEC option products are used. IPC-PT/L600S(PCW)C, IPC-PT/L600S(PCW)P, IPC-PT/H600X(PCW)C, IPC-PT/H600X(PCW)P...

  • Page 31: Figure 3.5. Installing The Dimm

    DIMM socket Figure 3.5. Installing the DIMM DIMM Disconnection Procedure Open the levers on both sides slightly to the left and right. DIMM You should be able to remove the DIMM. Figure 3.6. Uninstalling the DIMM IPC-PT/L600S(PCW)C, IPC-PT/L600S(PCW)P, IPC-PT/H600X(PCW)C, IPC-PT/H600X(PCW)P...

  • Page 32: Fastening The Power Cable

    The “AC cord metal brace” is attached to the main case. Stick Figure 3.8. Installing the Metal Figure 3.9. AC Cord Brace and the Clamp in Clamped State IPC-PT/L600S(PCW)C, IPC-PT/L600S(PCW)P, IPC-PT/H600X(PCW)C, IPC-PT/H600X(PCW)P...

  • Page 33: Installation Procedure

    Figure 3.10. Panel Opening Dimensions (2) Insert the supplied gasket between the panel and display and fasten them together with M4 nuts as shown below. Panel M4 washter Gasket M4 Spring washer M4 nut Figure 3.11. Assembling Method IPC-PT/L600S(PCW)C, IPC-PT/L600S(PCW)P, IPC-PT/H600X(PCW)C, IPC-PT/H600X(PCW)P...

  • Page 34: Installation Requirements

    50mm for the bottom and sides. Side view Panel 100mm or more (above) 50mm or more (bottom) 100mm or more (back) Bottom view 50mm or more (side) Connectors Panel Figure 3.12. Distances between the PANECON-PC and Its Vicinity IPC-PT/L600S(PCW)C, IPC-PT/L600S(PCW)P, IPC-PT/H600X(PCW)C, IPC-PT/H600X(PCW)P...
  • Page 35 Hardware Setup IPC-PT/L600S(PCW)C, IPC-PT/L600S(PCW)P, IPC-PT/H600X(PCW)C, IPC-PT/H600X(PCW)P...

  • Page 36: Bios Setup

    SETUP" if the system is normal. Press the <F2> key on the keyboard. Phoenix BIOS 4.0 Release 6.0 Copyright 1985-2000 Phoenix Technologies Ltd. All Rights Reserved Copyright 2000, CONTEC Co., Ltd. BX/M600(PCW), Px/x600(PCW) sereies BIOS ver.1.00. CPU = Intel(R) Mobile Celeron(TM) processer 400MHz...

  • Page 37: Keystrokes

    Changes details to be set. Functions the same as <Spacebar>. Changes in the direction opposite to the + key. <Enter> Opens submenus. <Esc> Moves to the Exit window. <F9> Resets all to defaults. <F10> Saves set values and exits setup. IPC-PT/L600S(PCW)C, IPC-PT/L600S(PCW)P, IPC-PT/H600X(PCW)C, IPC-PT/H600X(PCW)P...

  • Page 38: Main Menu

    "Disabled." Do not set to "2.88MB" since it is not supported. Diskette B : Connection not allowed. Set to "Disabled." Floppy Drive Swap : Set to "Disabled." 3 Mode floppy : Set to "Disabled." IPC-PT/L600S(PCW)C, IPC-PT/L600S(PCW)P, IPC-PT/H600X(PCW)C, IPC-PT/H600X(PCW)P...

  • Page 39: Ide Adapter Window

    Change Values Setup Defaults ←→ Select Menu Esc Exit Enter Select Sub-Menu F10 Save and Exit Figure 4.3. IDE Adapter Window (Factory Settings) Type Set to "Auto" to use the primary master. Otherwise set to "None." IPC-PT/L600S(PCW)C, IPC-PT/L600S(PCW)P, IPC-PT/H600X(PCW)C, IPC-PT/H600X(PCW)P...

  • Page 40: Embedded Window

    Set the system clock. Normally, set to "100.3/33.43." However if you are concerned with heat dissipation, for example, set to "66.8/33.40." Spread Spectrum Modulation : Set to Enable. CRT/FPD : Use the default option "AUTO Select". DOC Address : Set to "Disabled". IPC-PT/L600S(PCW)C, IPC-PT/L600S(PCW)P, IPC-PT/H600X(PCW)C, IPC-PT/H600X(PCW)P...
  • Page 41 Enable: Sets the RAS connector's PO2/WDT(12) signal to Alarm Out. Alarm out status at BIOS startup should be set with the submenu. PCIC Irq Mode : Set to "Continous". Push switch function : Set to "Reset". IPC-PT/L600S(PCW)C, IPC-PT/L600S(PCW)P, IPC-PT/H600X(PCW)C, IPC-PT/H600X(PCW)P...

  • Page 42: Advanced Window

    : Allows resources to be reserved for legacy devices. Cache Memory : Specify whether to enable or disable cache memory. Legacy USB Support : Set to "Disabled." I/O Device Configuration: Set COM/LPT. Large Disk Access Mode : Normally, set to "DOS." IPC-PT/L600S(PCW)C, IPC-PT/L600S(PCW)P, IPC-PT/H600X(PCW)C, IPC-PT/H600X(PCW)P...
  • Page 43 IDE controller. ATA card boot cannot be used in Windows, for example. * As to the local bus IDE adapter and the PCMCIA ATA DISK, a combined total of two units can be used at maximum. IPC-PT/L600S(PCW)C, IPC-PT/L600S(PCW)P, IPC-PT/H600X(PCW)C, IPC-PT/H600X(PCW)P...

  • Page 44: Pci Configuration Window

    Reserved. Set the IRQ which you have specified manually by selecting Enable in the I/O Device Configuration window to Available. In addition, set one IRQ which a PCI device will be using to Available. (See the Note below) IPC-PT/L600S(PCW)C, IPC-PT/L600S(PCW)P, IPC-PT/H600X(PCW)C, IPC-PT/H600X(PCW)P...

  • Page 45: Cache Memory Window

    Cache E000 - E3FF: [Disabled] ↓ Select Item Help Change Values Setup Defaults ←→ Select Menu Esc Exit Enter Select Sub-Menu F10 Save and Exit Figure 4.7. Cache Memory Window (Factory Settings) Keep the factory settings. IPC-PT/L600S(PCW)C, IPC-PT/L600S(PCW)P, IPC-PT/H600X(PCW)C, IPC-PT/H600X(PCW)P...

  • Page 46: I/O Device Configuration Window

    Serial port D : This setting is for RS-422/485 of the RAS connector on the equipment connector plane. When the port is set to "Enable," it defaults to the following: Base I/O address [2E8] Interrupt [IRQ5] IPC-PT/L600S(PCW)C, IPC-PT/L600S(PCW)P, IPC-PT/H600X(PCW)C, IPC-PT/H600X(PCW)P...
  • Page 47 PnP OS is started. Mode*: Set to parallel port's operating mode. DMA channel*: This is the DMA channel setting used when ECP is selected during parallel- port mode setting. * A menu exclusive to the parallel port. IPC-PT/L600S(PCW)C, IPC-PT/L600S(PCW)P, IPC-PT/H600X(PCW)C, IPC-PT/H600X(PCW)P...
  • Page 48 [Enable] ← An asterisk (*) is displayed * Serial port D: Base I/O address: [2E8] → Set to “Available” in the PCI Interrupt: [IRQ5] Configuration window. PCI/PnP ISA Reserve Exclusion → Change to [Available]. * IRQ5: [Reserved] IPC-PT/L600S(PCW)C, IPC-PT/L600S(PCW)P, IPC-PT/H600X(PCW)C, IPC-PT/H600X(PCW)P...

  • Page 49: Security Window

    Clear All Password : Both passwords can be erased by Supervisor. Note! Once a password is registered, even the password function itself cannot be cancelled without the password. Passwords should be handled with great care. IPC-PT/L600S(PCW)C, IPC-PT/L600S(PCW)P, IPC-PT/H600X(PCW)C, IPC-PT/H600X(PCW)P...

  • Page 50: Power Window

    IDE DRIVE 0 Monitoring : IDE DRIVE 1 Monitoring : Specify whether or not to use IDE DRIVE 2 Monitoring : a device as an idle timer reset event. IDE DRIVE 3 Monitoring : PCI Bus Monitoring IPC-PT/L600S(PCW)C, IPC-PT/L600S(PCW)P, IPC-PT/H600X(PCW)C, IPC-PT/H600X(PCW)P...

  • Page 51: Boot Window

    : Devices that are not removable, such as the hard disk drive and silicon disk drive. ATAPI CD-ROM Drive : Optional CD-ROM drive (IDE connection) Network Boot : This item is not available. The items are displayed on the menu in priority order. IPC-PT/L600S(PCW)C, IPC-PT/L600S(PCW)P, IPC-PT/H600X(PCW)C, IPC-PT/H600X(PCW)P...

  • Page 52: Exit Window

    CMOS (EEPROM *1). Load Setup Defaults : Sets default values that are in the possession of BIOS. Discard Changes : Loads values that are currently in the possession of CMOS(EEPROM *1). IPC-PT/L600S(PCW)C, IPC-PT/L600S(PCW)P, IPC-PT/H600X(PCW)C, IPC-PT/H600X(PCW)P...

  • Page 53: Figure 4.13. S1 Factory Setting

    Normally, set to ON (use CMOS). ON: Uses the CMOS as the location to save and load setup details. (factory settings) OFF: Uses the EEPROM as the location to save and load setup details. Figure 4.13. S1 Factory Setting IPC-PT/L600S(PCW)C, IPC-PT/L600S(PCW)P, IPC-PT/H600X(PCW)C, IPC-PT/H600X(PCW)P...

  • Page 54: Each Component Function

    Each Component Function 5. Each Component Function Component Locations IPC-PT/L600S(PCW)C, IPC-PT/H600X(PCW)C AC inlet Power SW SERIAL2 SERIAL1 Not available to LCD PCMCIA slots 1 and 2 Printer UTP(Ethernet) Mouse Keyboard LED, Touch panel Power LED Secondary IDE connector IPC-PT/L600S(PCW)C, IPC-PT/L600S(PCW)P, IPC-PT/H600X(PCW)C, IPC-PT/H600X(PCW)P...

  • Page 55: Figure 5.1. Component Locations

    AC inlet Power SW SERIAL2 SERIAL1 Not available to LCD and PCMCIA slots 1 and 2 Expansion slot (PCI/ISA) x 2 Printer UTP(Ethernet) Mouse LED, Touch panel Power LED Keyboard Secondary IDE connector Figure 5.1. Component Locations IPC-PT/L600S(PCW)C, IPC-PT/L600S(PCW)P, IPC-PT/H600X(PCW)C, IPC-PT/H600X(PCW)P...

  • Page 56: Table 5.1. Component Functions

    PCI/ISA expansion board slot x 2 <P model> POWER LED Power ON indicator HDD LED Internal hard disk access lamp POWER SW Power switch AC INLET AC power supply input connector SECONDARY IDE Secondary IDE connector (dedicated 40pin half-pitch connector) IPC-PT/L600S(PCW)C, IPC-PT/L600S(PCW)P, IPC-PT/H600X(PCW)C, IPC-PT/H600X(PCW)P...

  • Page 57: Keyboard Interface

    The PANECON-PC is equipped with a mouse connector named MOUSE (MINI-DIN 6P). Table 5.3. Mouse Connector Connector type Equivalent to the MD-DS12300-14S-14 (JST) Pin No. Signal Pin No. Signal +MOUSE DATA +MOUSE CLK N.C. N.C. SHIELD +5.0V DC IPC-PT/L600S(PCW)C, IPC-PT/L600S(PCW)P, IPC-PT/H600X(PCW)C, IPC-PT/H600X(PCW)P...

  • Page 58: Floppy Disk Interface

    TRK0 Input ----- ----- ----- WGATE Output ----- ----- WDATA Output ----- DENSEL Output STEP Output DENSEL Output Output N.C. ----- MTR_ON Output DRV_SEL Output N.C. ----- ----- DSKCHG Input ----- N.C. ----- INDEX Input ----- IPC-PT/L600S(PCW)C, IPC-PT/L600S(PCW)P, IPC-PT/H600X(PCW)C, IPC-PT/H600X(PCW)P...
  • Page 59 10126-6000EL (AWG#28 for pressure welding) Shell : 3M, P/N 10326-3210-000 Plug connector : 3M, P/N 10126-3000VE (AWG#24-#30 provided with solder) Shell system : 3M, P/N 10326-52F0-008 (Non-shield shell kit) Cable Length Use within a maximum cable length of 60cm. IPC-PT/L600S(PCW)C, IPC-PT/L600S(PCW)P, IPC-PT/H600X(PCW)C, IPC-PT/H600X(PCW)P...

  • Page 60: Serial Port Interface

    Pin No. Signal Meaning Direction Carrier detect Input Received data Input Transmitted data Output Data terminal ready Output Signal ground ----- Data set ready Input Request to send Output Clear to send Input Ring indicator Input IPC-PT/L600S(PCW)C, IPC-PT/L600S(PCW)P, IPC-PT/H600X(PCW)C, IPC-PT/H600X(PCW)P...

  • Page 61: Table 5.7. Serial Port D I/O Addresses And Interrupts

    Meaning Pin No. Signal TX + Transmitted data + TX - Transmitted data - RX + Received data + RX - Received data - For more information on the RAS connector see Table 5.17., "RAS connector." IPC-PT/L600S(PCW)C, IPC-PT/L600S(PCW)P, IPC-PT/H600X(PCW)C, IPC-PT/H600X(PCW)P...

  • Page 62: Figure 5.2. Terminal Resistor Settings

    422/485 (Serial port D). For more information see section, "General-purpose I/O and Remote Reset" in Chapter 5. Modem control register (Set I/O address +4H) bit 1: 0 … RTS is High. (Disable transmission) 1 … RTS is Low. (Enable transmission) IPC-PT/L600S(PCW)C, IPC-PT/L600S(PCW)P, IPC-PT/H600X(PCW)C, IPC-PT/H600X(PCW)P...

  • Page 63: Table 5.9. I/O Addresses

    Interrupt ID register 03FBH Line control register 03FCH Modem control register 03FDH Line status register 03FEH Modem status register 03FFH Scratch register DLAB (Divisor Latch Access Bit) : The value in bit 7 of the line control register IPC-PT/L600S(PCW)C, IPC-PT/L600S(PCW)P, IPC-PT/H600X(PCW)C, IPC-PT/H600X(PCW)P...

  • Page 64: Table 5.10. Function Of Each Register < 1 / 4

    IER: Interrupt Enable Register [DLAB=0] EMS ELSI ETHREI ERDAI Received data Interrupt enable Received data register empty Interrupt enable Receiver line status Interrupt enable Modem status interrupt enable [Always used at 0.] 1: Enable interrupt 0: Disable interrupt IPC-PT/L600S(PCW)C, IPC-PT/L600S(PCW)P, IPC-PT/H600X(PCW)C, IPC-PT/H600X(PCW)P...

  • Page 65: Table 5.10. Function Of Each Register < 2 / 4

    0 : Break signal off 1 : Send break signal DLAB (Divisor Latch Access Bit) In order to access the divisor latch register, you need to set the bit to 1. To access another register, set the bit to 0. IPC-PT/L600S(PCW)C, IPC-PT/L600S(PCW)P, IPC-PT/H600X(PCW)C, IPC-PT/H600X(PCW)P...

  • Page 66: Table 5.10. Function Of Each Register < 3 / 4

    Framing error (1 for occurrence of an error) Break interrupt (1 for detection of break state) Transmitter holding register empty (1 for transmission buffer being empty) Transmitter empty (Set to 1 when both transmitter holding register and transmitter shift register are empty.) IPC-PT/L600S(PCW)C, IPC-PT/L600S(PCW)P, IPC-PT/H600X(PCW)C, IPC-PT/H600X(PCW)P...

  • Page 67: Table 5.10. Function Of Each Register < 4 / 4

    1047 0.026 134.5 0.058 1200 1800 2000 0.69 2400 3600 4800 7200 9600 19200 Example: To set 9,600 bps, write "00" to the (MSB) divisor latch register and "12 (decimal)" to the (LSB) divisor latch register. IPC-PT/L600S(PCW)C, IPC-PT/L600S(PCW)P, IPC-PT/H600X(PCW)C, IPC-PT/H600X(PCW)P...

  • Page 68: Crt Interface

    N.C. Display Driver The display driver compatible with each OS is downloadable from the CONTEC website or can be purchased separately as an option. Set of optional driver software and utility software : IPC-SLIB-01 (provided on a CD-ROM) (Windows 98 Second Edition, Windows NT 4.0, Windows 2000 Professional) Table 5.13.

  • Page 69: Pcmcia Slots (C Model)

    Note! A type III card should be inserted into slot 2. Attaching the Metal Brace to Keep the Card in Place Hook the Tips. Figure 5.4. Attaching the Metal Brace to Keep the Card in Place IPC-PT/L600S(PCW)C, IPC-PT/L600S(PCW)P, IPC-PT/H600X(PCW)C, IPC-PT/H600X(PCW)P...

  • Page 70: Printer Port Interface

    The connector is named PRINTER. Table 5.15. Printer Ports and I/O Addresses LPT I/O address Interrupt 3BCh-3BFh IRQ 5 378h-37Fh IRQ 7 278h-27Fh The BIOS defaults to the following factory settings: Parallel port : Disable IPC-PT/L600S(PCW)C, IPC-PT/L600S(PCW)P, IPC-PT/H600X(PCW)C, IPC-PT/H600X(PCW)P...

  • Page 71: Table 5.16. Printer Port Connector

    Data bit 7 Output Ground ----- Ready to accept data Ground ----- -ACK Input BUSY Busy Input Ground ----- Out of paper Input Ground ----- ----- Select state Input SELECT Fastening screw: No. 4-40 UNC inch thread IPC-PT/L600S(PCW)C, IPC-PT/L600S(PCW)P, IPC-PT/H600X(PCW)C, IPC-PT/H600X(PCW)P...

  • Page 72: Ras Functions

    *Fastening screw: No. 4-40UNC inch thread RAS port address: 4000h~4001h Note! Pin 4 NCOM (minus common dedicated to PO2) and pin 6 NCOM (minus common shared by PO0 and PO1) are electrically separated from each other. IPC-PT/L600S(PCW)C, IPC-PT/L600S(PCW)P, IPC-PT/H600X(PCW)C, IPC-PT/H600X(PCW)P...

  • Page 73: Watchdog Timer

    (Port setting). - External alarm output: Photocoupler insulated open-collector output (the output status is set by software). For more information, see the general-purpose I/O specifications. - I/O addresses: 4000h through 4007h (RAS port) 0070h, 0071h (RTC) IPC-PT/L600S(PCW)C, IPC-PT/L600S(PCW)P, IPC-PT/H600X(PCW)C, IPC-PT/H600X(PCW)P...

  • Page 74: Figure 5.5. How To Use The Watchdog Timer

    : Set the counter clock index register to register A. In 0071h : Read register A to view rsv bit status. Out 0071h 2Dh : Set counter clock frequency to 250 msec. : (Do not change the rsv bit.) IPC-PT/L600S(PCW)C, IPC-PT/L600S(PCW)P, IPC-PT/H600X(PCW)C, IPC-PT/H600X(PCW)P...

  • Page 75: Figure 5.6. Index Register Port

    0071h. Table 5.18. Index Register Settings Register to be set at 0071h AD7 AD6 AD5 AD4 AD3 AD2 AD1 AD0 Data (HEX) Register A Register B * Do not set values other than shown above. IPC-PT/L600S(PCW)C, IPC-PT/L600S(PCW)P, IPC-PT/H600X(PCW)C, IPC-PT/H600X(PCW)P...

  • Page 76: Figure 5.7. Register A: Counter Clock Frequency Setting

    CLKE: Enable setting for the clock to be input to the counter 1 : Enabled 0 : Disabled * Do not change the rsv bits since they are used by the system. After reading the same port, manipulate bits to write data one more time. IPC-PT/L600S(PCW)C, IPC-PT/L600S(PCW)P, IPC-PT/H600X(PCW)C, IPC-PT/H600X(PCW)P...

  • Page 77: Figure 5.9. Alarm Out Output Control Port (4001H)

    *1: For information on the external alarm output setting at BIOS startup, see Chapter 4, BIOS Setup. * 4002h: WDT control Figure 5.10. WDT Control Port (4002h) Cancels WDT stop/alarm. Read data is undefined. Start and clear the WDT Write A5h to start and clear the WDT. IPC-PT/L600S(PCW)C, IPC-PT/L600S(PCW)P, IPC-PT/H600X(PCW)C, IPC-PT/H600X(PCW)P...

  • Page 78: Figure 5.11. Wdt Counter Port (4003H)

    Inhibits RESET output when time expires on the WDT. Allows RESET output when time expires on the WDT. Note! When time expires on WDT, the alarm-out is output irrelevant to the settings of the port for controlling event output. IPC-PT/L600S(PCW)C, IPC-PT/L600S(PCW)P, IPC-PT/H600X(PCW)C, IPC-PT/H600X(PCW)P...

  • Page 79: Figure 5.13. Ras Status Port (4005H)

    WDT: WDT status This is the WDT status bit. This bit is cleared when the WDT stops (read port 4002h). 0 : The WDT is either stopped or counting. 1 : The time set on the WDT expired. IPC-PT/L600S(PCW)C, IPC-PT/L600S(PCW)P, IPC-PT/H600X(PCW)C, IPC-PT/H600X(PCW)P...

  • Page 80: General-Purpose I/O And Remote Reset

    How to Use General-purpose I/O and Remote Reset Event output Output data to port 4001h to set PI0, PI2 or PO2 mode. control Implement input and output with port 4000h. Figure 5.14. How to Use General-purpose I/O and Remote Reset IPC-PT/L600S(PCW)C, IPC-PT/L600S(PCW)P, IPC-PT/H600X(PCW)C, IPC-PT/H600X(PCW)P...

  • Page 81: Figure 5.15. General-Purpose Input Port (4000H)

    Inhibit the remote reset input function of the RAS connector's PI2/IRQ (14) signal. Use as the remote reset input function of the RAS connector's PI2/IRQ (14) signal. Note! A bit indicated with "rsv" is used by the system. Do not modify the bit. IPC-PT/L600S(PCW)C, IPC-PT/L600S(PCW)P, IPC-PT/H600X(PCW)C, IPC-PT/H600X(PCW)P...

  • Page 82: Figure 5.17. Index Address Setting Port (4006H)

    1 : RS-485 transmission Disable RE_GATE RS-485 reception enable signal. 0 : RS-485 reception Enable (factory setting) 1 : RS-485 reception Disable Note! A bit indicated with "rsv" is used by the system. Do not modify the bit. IPC-PT/L600S(PCW)C, IPC-PT/L600S(PCW)P, IPC-PT/H600X(PCW)C, IPC-PT/H600X(PCW)P...

  • Page 83: Figure 5.19. Half-Duplex Connection Method

    6.2k Ω 6.2kΩ 47k Ω Figure 5.20. Full-Duplex Connection Method External I/O Circuit (External circuit) (PCOM) 4.7kΩ 4.7k Ω (IN) 1/4W PC817 External power (12V-24VDC) Internal reset Input (PI 0~2) contact RAS connector Figure 5.21. Input Circuit IPC-PT/L600S(PCW)C, IPC-PT/L600S(PCW)P, IPC-PT/H600X(PCW)C, IPC-PT/H600X(PCW)P...

  • Page 84: Reset Switch

    Reset Switch The PANECON-PC is equipped with a hardware reset switch. To prevent it from being pressed by mistake, the switch is designed to be difficult to press. Use a pointed object to push the switch with. IPC-PT/L600S(PCW)C, IPC-PT/L600S(PCW)P, IPC-PT/H600X(PCW)C, IPC-PT/H600X(PCW)P...

  • Page 85: Usb Ports

    USB Ports The PANECON-PC is equipped with two USB interface channels. Table 5.25. USB Connector Signal Signal Pin No. Pin No. USB0 Vcc USB1 Vcc USB0 -Data USB1 -Data USB0 +Data USB1 +Data USB0 GND USB1 GND IPC-PT/L600S(PCW)C, IPC-PT/L600S(PCW)P, IPC-PT/H600X(PCW)C, IPC-PT/H600X(PCW)P...

  • Page 86: Ethernet

    Not connected LEDs for display of network statuses: LINK : Normal connection indicator : Full-duplex mode indicator 100M : 100M-operation indicator Reference For more information on the LAN drivers, see Table 5.13. “Drivers for Each OS”. IPC-PT/L600S(PCW)C, IPC-PT/L600S(PCW)P, IPC-PT/H600X(PCW)C, IPC-PT/H600X(PCW)P...
  • Page 87 Prepare a formatted FD and copy all the files in the [\x600PCW\Drivers\LAN\NT40] directory in IPC-SLIB-01 to the FD. Run Setup from the FD. (You cannot run Setup directly from the CD-ROM.) The standard LAN driver provided with Windows NT 4.0 cannot be used. IPC-PT/L600S(PCW)C, IPC-PT/L600S(PCW)P, IPC-PT/H600X(PCW)C, IPC-PT/H600X(PCW)P...

  • Page 88: Ide Interface

    DDRQ Input ------- DIOW- Output ------- DIOR- Output ------- IOCHRDY DALE Output Input DDACK- Output ------- N.C. ------- INTRQ Input N.C. Output Output Output Output CSI- Output CS3- ------- DACT- Output ------- ------- ------- ------- N.C. IPC-PT/L600S(PCW)C, IPC-PT/L600S(PCW)P, IPC-PT/H600X(PCW)C, IPC-PT/H600X(PCW)P...

  • Page 89: Table 5.28. Secondary Ide Connector (Cn2)

    Use the dedicated option cable to connect the option CD-ROM drive. The cable is not intended to connect devices (such as hard disks) other than CONTEC option products. Table 5.28. Secondary IDE Connector (CN2) Connector in use 40pin, half-pitch type (1.27mm pitch) Pin No.

  • Page 90: Expansion Slots (P Model)

    Table 5.29. Expansion Slots Voltage Current capacity (Max.) +12V 0.3A -12V 80mA Not supplied Note! Make sure that the total current consumption by the boards installed in the expansion slots does not exceed the above current capacity. IPC-PT/L600S(PCW)C, IPC-PT/L600S(PCW)P, IPC-PT/H600X(PCW)C, IPC-PT/H600X(PCW)P...

  • Page 91: Figure 5.25. Removing The Top Cover

    Figure 5.25. Removing the Top Cover (3) Remove the brace that holds the printed circuit board (PCB) down. Remove the screws on the brace. The brace will separate toward you. Figure 5.26. Removing the PCB Brace 2 IPC-PT/L600S(PCW)C, IPC-PT/L600S(PCW)P, IPC-PT/H600X(PCW)C, IPC-PT/H600X(PCW)P...

  • Page 92: Figure 5.27. Installation Of An Expansion Board

    To use it with the ISA card, rotate the claws and reinstall them. To use it with the ISA card, rotate the claws and reinstall them. Figure 5.28. Attaching the Figure 5.29. Adjusting to PCB Brace Use the ISA Card IPC-PT/L600S(PCW)C, IPC-PT/L600S(PCW)P, IPC-PT/H600X(PCW)C, IPC-PT/H600X(PCW)P...

  • Page 93: Figure 5.30. Replacing The Top Cover

    Each Component Function (6) Replace the expansion slot cover. Figure 5.30. Replacing the Top Cover IPC-PT/L600S(PCW)C, IPC-PT/L600S(PCW)P, IPC-PT/H600X(PCW)C, IPC-PT/H600X(PCW)P...

  • Page 94: Touch Panel

    When installing touch panel driver software (downloaded from the home page or purchased separately), specify the values registered during Setup. Option driver software and utility software set: IPC-SLIB-01 (supplied on CD-ROM) (For Windows 98 Second Edition, Windows NT 4.0, Windows 2000 Professional) IPC-PT/L600S(PCW)C, IPC-PT/L600S(PCW)P, IPC-PT/H600X(PCW)C, IPC-PT/H600X(PCW)P...

  • Page 95: Table 6.2. Serial C I/O Addresses And Irq

    IPC-PT/H600X(PCW) or 800x600 for the IPC-PT/L600S(PCW)?) Check the above two points, then copy the DISK1 and DISK2 subdirectories of the \x600PCW\Touch_Panel\Tpbks directory on the option CD-ROM to separate floppy disks. Run the installation from the DISK1 floppy disk. IPC-PT/L600S(PCW)C, IPC-PT/L600S(PCW)P, IPC-PT/H600X(PCW)C, IPC-PT/H600X(PCW)P...

  • Page 96: Appendix

    Expansion ROM area (Free to the user) 00D0000 00CFFFF Reserved for BIOS 00CC000 00CBFFF VGA BIOS (48KB) 00C0000 00BFFFF Video RAM area (128KB) 00A 0000 009FFFF (640KB) 0 00 0 00 0 Figure 7.1. Memory Map IPC-PT/L600S(PCW)C, IPC-PT/L600S(PCW)P, IPC-PT/H600X(PCW)C, IPC-PT/H600X(PCW)P...

  • Page 97: I/O Port Addresses

    COM3 (Touch panel, Default factory setting) 3F0-3F7 FD controller 3F8-3FF Serial port COM1 4D0-4DF Reserved for system CF0-CFF Reserved for system 4000-4007 RAS functions 4008-400F Reserved for system 46E8 Reserved for system 83D0-B3D3 Reserved for system IPC-PT/L600S(PCW)C, IPC-PT/L600S(PCW)P, IPC-PT/H600X(PCW)C, IPC-PT/H600X(PCW)P...

  • Page 98: Interrupt Level List

    Serial port A (COM1) IRQ5 " Not in use Available to user ↓ IRQ6 " Reserved for floppy disk IRQ7 " Serial port C (touch panel) Touch panel (Default factory setting) * Do not use for ISA devices. IPC-PT/L600S(PCW)C, IPC-PT/L600S(PCW)P, IPC-PT/H600X(PCW)C, IPC-PT/H600X(PCW)P...
