Product installation

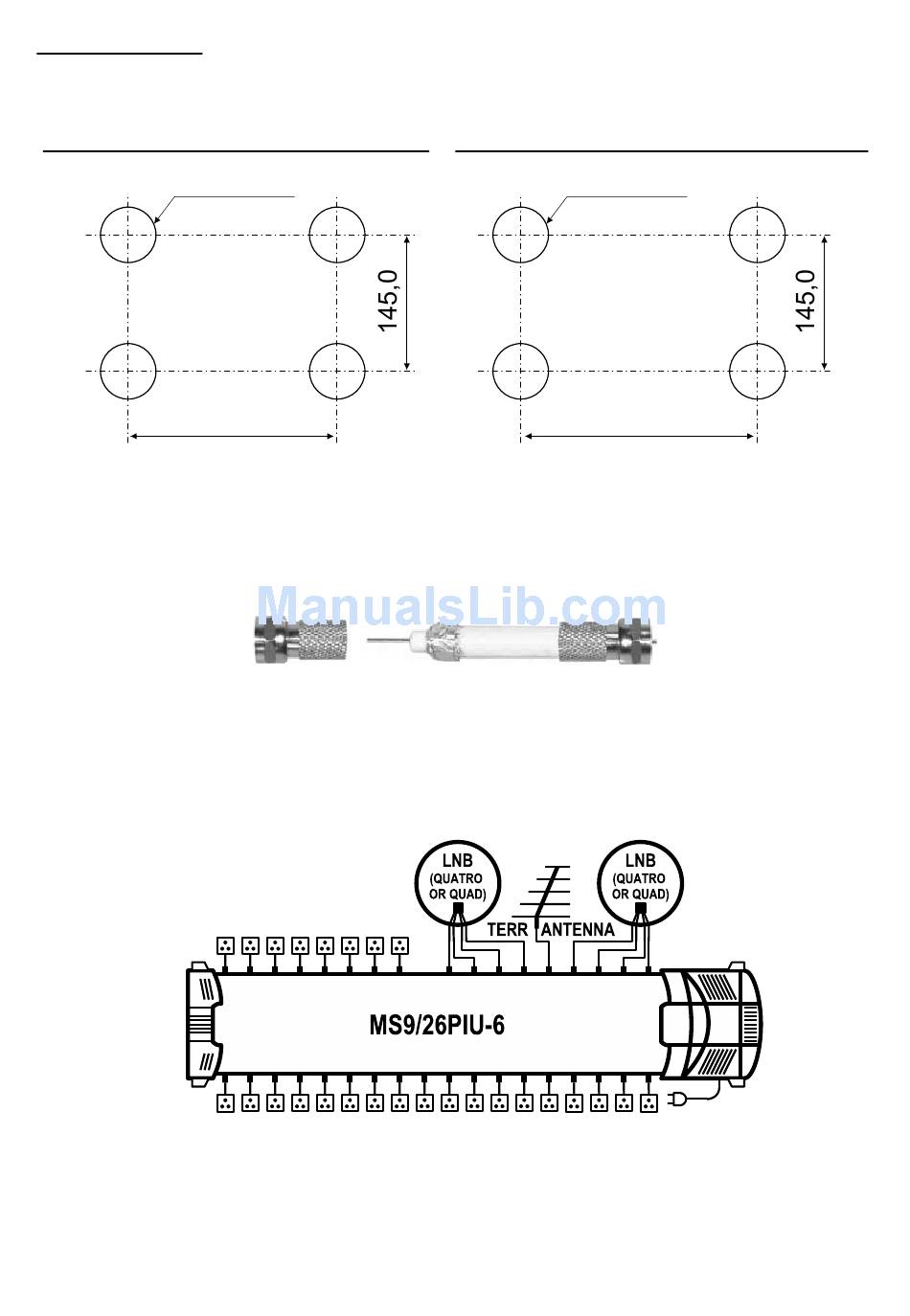

Use the enclosed screws and dowels for installation. Drill holes for the screws as shown in the
drawing:
MS9/4PIU-5, MS9/6PIU-5, MS9/6PIU-5, MS9/10PIU-5
4 x Ø 5,0
296,0
To connect the product inputs and outputs use high-quality coaxial cable designed for satellite
reception and F connectors. Use a high-shielding coaxial cable, min. 90dB. If F connectors are
not attached onto the cables, remove first the outer cable sheath in the length of approx. 15 mm.
Then roll up the metal shielding braid and the shielding foil underneath and cut the shielding with
scissors to ca. 5 mm. Then remove ca. 10 mm of the inner plastic insulation so that ca. 5 mm of
the insulation remains in place.
Then carefully screw on the F connector on the cable end until the plastic insulation levels with
the connector opening. Prevent short circuit between the inside conductor and the shielding. The
short circuit prevents reception, it is difficult to identify and in extreme cases it may even damage
the product or satellite receiver! The coaxial cables shall not be broken, the minimum bending
radius shall be 5 cm.
Use the following or similar connection diagram to install the product.
Connect the cables from the antennas and satellite converters (LNB) to the multiswitch connec-
tors identified with LNB symbols. When making connections pay close attention to identifica-
tion of converters connectors!
• Connect the input marked 13 V / 0 kHz (LNB A) with the output of Vertical converter in case of
the Twin or Dual converter, or with the output of Vertical Low in case of the Quatro converter.
• Connect the input marked 18 V / 0 kHz (LNB B) with the output of Horizontal converter in
MS9/12PIU-6, MS9/16PIU-6, MS9/20PIU-6, MS9/26PIU-6
4 x Ø 5,0
416,0
