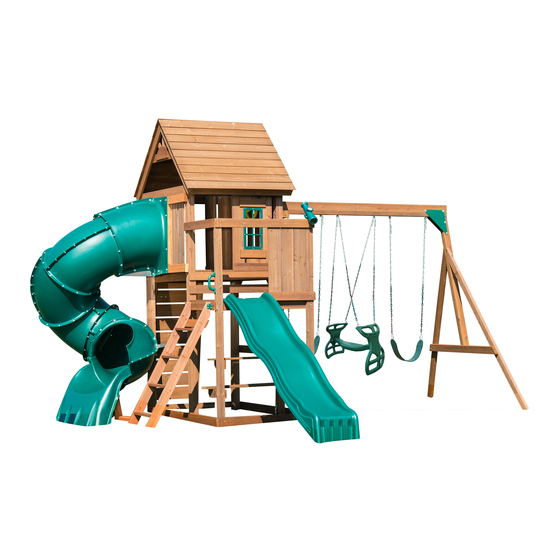

WS 8345
IMPORTANT!!
PLEASE READ BEFORE BEGINNING ASSEMBLY!!
Please make sure all lumber, hardware and accessory parts are accounted for.
If you are missing anything, please DO NOT RETURN to the store where purchased.
Please call our Customer Service Department at the number below.
ASSEMBLY INSTRUCTIONS
Swing•N•Slide • 166 Etowah Industrial Ct. • Canton, GA 30114
Email us at: playsupport@backyardproducts.com or call us at 1-800-882-0272
LDR 03-07-2022
© Swing-N-Slide Inc.
Printed in USA
LA 8411
