Vega VEGAPULS 69 Operating Instructions Manual

Radar sensor for continuous level measurement of bulk solids
Hide thumbs Also See for VEGAPULS 69:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Operating Instructions Manual

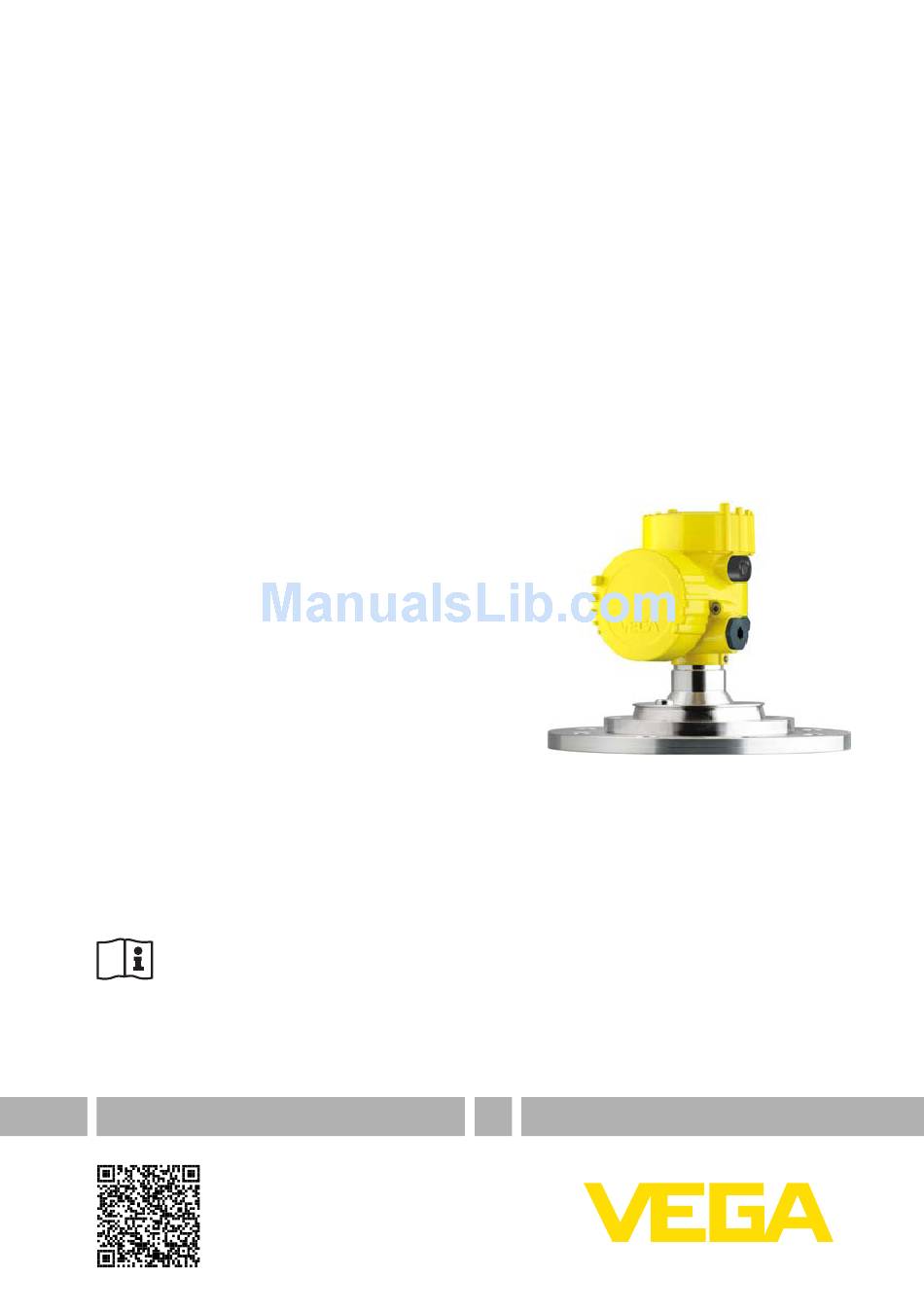

Operating Instructions
Radar sensor for continuous level
measurement of bulk solids
VEGAPULS 69
HART and accumulator pack
Document ID: 47248

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VEGAPULS 69 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vega VEGAPULS 69

Summary of Contents for Vega VEGAPULS 69

  • Page 1 Operating Instructions Radar sensor for continuous level measurement of bulk solids VEGAPULS 69 HART and accumulator pack Document ID: 47248...

  • Page 2: Table Of Contents

    Saving the parameterisation data ................... 51 Set up with other systems ....................52 DD adjustment programs ....................52 Field Communicator 375, 475 ..................52 Diagnosis, asset management and service ................ 53 Maintenance ........................53 VEGAPULS 69 • HART and accumulator pack...
  • Page 3 11.5 Trademark ........................82 Safety instructions for Ex areas Take note of the Ex specific safety instructions for Ex applications. These instructions are attached as documents to each instrument with Ex approval and are part of the operating instructions manual. Editing status: 2018-06-25 VEGAPULS 69 • HART and accumulator pack...

  • Page 4: About This Document

    Symbols used Document ID This symbol on the front page of this instruction refers to the Docu- ment ID. By entering the Document ID on www.vega.com you will reach the document download. Information, tip, note This symbol indicates helpful additional information.

  • Page 5: For Your Safety

    During work on and with the device the required personal protective equipment must always be worn. Appropriate use The VEGAPULS 69 is a sensor for continuous level measurement. Due to the integrated accumulator the instrument is particularly suitable as a portable measuring system or test sensor for special applications.

  • Page 6: Eu Conformity

    The instrument must be stationary mounted and the antenna directed vertically downward • The instrument may only be used outside closed vessels in the version with G1½ or 1½ NPT thread with integrated horn antenna. VEGAPULS 69 • HART and accumulator pack...

  • Page 7: Radio License For Usa

    Operation is subject to the following conditions: • This device may not cause interference, and • This device must accept any interference, including interference that may cause undesired operation of the device VEGAPULS 69 • HART and accumulator pack...
  • Page 8 Cet appareil est homologué pour une utilisation dans les cuves fer- mées et les environnements ouverts avec les restrictions suivantes : VEGAPULS 69 • HART and accumulator pack...

  • Page 9: Environmental Instructions

    Protection of the environment is one of our most important duties. That is why we have introduced an environment management system with the goal of continuously improving company environmental pro- tection. The environment management system is certified according to DIN EN ISO 14001. Please help us fulfil this obligation by observing the environmental instructions in this manual: VEGAPULS 69 • HART and accumulator pack...
  • Page 10 2 For your safety • Chapter "Packaging, transport and storage" • Chapter "Disposal" VEGAPULS 69 • HART and accumulator pack...

  • Page 11: Product Description

    Go to "www.vega.com", "Instrument search (serial number)". Enter the serial number. Alternatively, you can access the data via your smartphone: • Download the VEGA Tools app from the "Apple App Store" or the "Google Play Store" VEGAPULS 69 • HART and accumulator pack...

  • Page 12: Principle Of Operation

    Principle of operation Application area The VEGAPULS 69 is a radar sensor for continuous level measure- ment of bulk solids under different process conditions. It is ideal for level measurement in very high silos, large bunkers and segmented vessels. The very good signal focussing ensures a simple setup and reliable measurement.

  • Page 13: Packaging, Transport And Storage

    Technical data - Ambient conditions" • Relative humidity 20 … 85 % Lifting and carrying With instrument weights of more than 18 kg (39.68 lbs) suitable and approved equipment must be used for lifting and carrying. VEGAPULS 69 • HART and accumulator pack...

  • Page 14: Accessories And Replacement Parts

    Supplementary electron- The supplementary electronics "Power pack" is a replacement part for ics for power pack sensors with integrated accumulator. You can find further information in the operating instructions "Sup- plementary electronics for 4 … 20 mA/HART and power pack" (Document-ID 41033). VEGAPULS 69 • HART and accumulator pack...

  • Page 15: Mounting

    The optional mounting strap allows simple mounting of the instrument on a wall, ceiling or boom. Especially in the case of open vessels, this is a simple and effective way to align the sensor to the surface of the bulk solid material. The following versions are available: VEGAPULS 69 • HART and accumulator pack...
  • Page 16 This allows swivelling the sensor up to 180° for optimal orientation and rotating for optimal connection. Fig. 3: Ceiling mounting via the mounting strap with length 300 mm As an alternative the strap mounting is carried out horizontally or Mounting strap - Wall mounting obliquely. > 200 mm (7.87") Fig. 4: Wall mounting horizontally via the mounting strap with length 170 mm VEGAPULS 69 • HART and accumulator pack...
  • Page 17 DN 80, ASME 3" and JIS 80. It comes not sealed against the radar sensor and can thus only be used unpressurized. It can be retrofitted on instruments with single chamber housing, retrofitting to a double chamber housing is not possible. Fig. 6: Combi compression flange 1 Combi compression flange Adapter flange The adapter flange is available from DN 100, ASME 4" and JIS 100. It is permanently connected with the radar sensor and sealed. VEGAPULS 69 • HART and accumulator pack...

  • Page 18: Mounting Preparations, Mounting Strap

    • Single chamber housing – Angle of inclination in three steps 0°, 90° and 180° – Angle of inclination 180°, infinitely variable • Double chamber housing – Angle of inclination in two steps 0° and 90° – Angle of inclination 90°, infinitely variable VEGAPULS 69 • HART and accumulator pack...

  • Page 19: Mounting Instructions

    In such cases, we recommend repeating the false signal suppression at a later date with existing buildup. Inflowing medium The instrument should not be mounted too close to the inflowing medium, as the radar signal could be disrupted. Silo with filling from top The optimal mounting position is opposite the filling aperture. To avoid heavy soiling, the distance to any filter or dust exhauster should be as large as possible. VEGAPULS 69 • HART and accumulator pack...
  • Page 20 4 Mounting Fig. 11: Mounting of the radar sensor with inflowing medium Silo with lateral filling In bulk solids silos with lateral pneumatic filling the instrument should not be mounted above the filling stream, as the radar signal will be disrupted. The optimal mounting position is to the side of the filling aperture. To avoid heavy soiling, the distance to any filter or dust exhauster should be as large as possible. VEGAPULS 69 • HART and accumulator pack...
  • Page 21 For socket mounting, the socket should be as short as possible and its end rounded. This reduces false reflections from the socket. With threaded connection, the antenna end should protrude at least 5 mm (0.2 in) out of the socket. Fig. 13: Recommended socket mounting with different versions of VEGAPULS Metal-jacketed lens antenna Plastic horn antenna Thread with integrated horn antenna VEGAPULS 69 • HART and accumulator pack...
  • Page 22 4 Mounting If the reflective properties of the medium are good, you can mount VEGAPULS 69 on sockets longer than the antenna. The socket end should be smooth and burr-free, if possible also rounded. Note: When mounting on longer sockets, we recommend carrying out a false signal suppression (see chapter "Parameter adjustment").
  • Page 23 With the help of an optional swivelling holder, the sensor can be easily aligned to the vessel centre. The necessary angle of inclination depends on the vessel dimensions. It can be easily checked with a suitable bubble tube or mechanic's level on the sensor. VEGAPULS 69 • HART and accumulator pack...
  • Page 24 4 Mounting Fig. 16: Proposal for installation after orientation VEGAPULS 69 The following table shows the necessary angle of inclination. It depends on the measuring distance and the distance "a" between vessel centre and installation position. Distance d 2° 4°...
  • Page 25 Proceed as follows to adjust the angle of inclination with the swivelling holder: 1. Loosen the terminal screws of the swivel holder by one turn. Use a hexagon socket wrench, size 5. Fig. 17: VEGAPULS 69 with swivelling holder Terminal screws (6 pcs.) 2. Align the sensor, check angle of inclination Note: The max.
  • Page 26 4 Mounting Fig. 18: VEGAPULS 69 with swivelling holder on tall, slender sockets Vessel installations The mounting location of the radar sensor should be a place where no other equipment or fixtures cross the path of the radar signals. Vessel installations, such as e.g. ladders, limit switches, heating spi- rals, struts, etc., can cause false echoes and impair the useful echo.
  • Page 27 Vessel insulation Mounting in multiple The walls of multiple-chamber silos are often made of profile material, chamber silo e.g. profile sheeting, to ensure the required stability. If the radar sen- sor is mounted very close to a heavily structured vessel wall, substan- tial interfering reflections can be generated. Thus the sensor should be mounted at the largest possible distance from the separating wall. VEGAPULS 69 • HART and accumulator pack...
  • Page 28 To protect the sensor against buildup, particularly in case of strong condensation, air rinsing is recommended. Metal-jacketed lens antenna The VEGAPULS 69 with metal-jacketed lens antenna is equipped with a rinsing air connection as a standard feature, see following graphics.
  • Page 29 4 Mounting Fig. 24: Rinsing air connection on metal-jacketed lens antenna Plastic horn antenna The VEGAPULS 69 with plastic horn antenna is optionally available with a rinsing air connection. The mechanical configuration differs according to the flange version, see following graphics. Fig. 25: Rinsing air connection with compression flange Fig. 26: Rinsing air connection with adapter flange You can find details on the rinsing air connection in chapter "Technical data". VEGAPULS 69 • HART and accumulator pack...

  • Page 30: Connecting To Power Supply

    Fig. 27: Position of the power supply and electronics compartment Supply room (accumulator) Electronics compartment Electronics compartment 4...20mA 6 7 8 Fig. 28: Electronics compartment - double chamber housing Internal connection to the terminal compartment 2 Contact pins for the display and adjustment module VEGAPULS 69 • HART and accumulator pack...

  • Page 31: Switch-On Phase

    After pressing the key or changing the mode the yellow LED shows the accumulator status for approximately 10 s as follows: • LED lights = accumulator is full • LED flashes = accumulator should be charged • LED off = accumulator is empty Switch-on phase The instrument is switched on and off by means of a button outside on the housing. VEGAPULS 69 • HART and accumulator pack...
  • Page 32 Indication of a status message, e.g. "F 105 Determine measured value" on the display Then the actual measured value is outputted to the signal cable. The value takes into account settings that have already been carried out, e.g. default setting. VEGAPULS 69 • HART and accumulator pack...

  • Page 33: Set Up With The Display And Adjustment Module

    The display and adjustment module is powered by the sensor, an ad- ditional connection is not necessary. Fig. 31: Insertion of the display and adjustment module Note: If you intend to retrofit the instrument with a display and adjustment module for continuous measured value indication, a higher lid with an inspection glass is required. VEGAPULS 69 • HART and accumulator pack...

  • Page 34: Adjustment System

    The pen oper- ates the four keys of the display and adjustment module right through the closed lid (with inspection window) of the sensor housing. VEGAPULS 69 • HART and accumulator pack...

  • Page 35: Measured Value Indication - Selection Of National Language

    This menu item is used to select the national language for further pa- Selection of national language rameter adjustment. You can change the selection via the menu item "Setup - Display, Menu language". VEGAPULS 69 • HART and accumulator pack...

  • Page 36: Parameter Adjustment - Quick Setup

    Further settings: Instrument unit, false signal suppression, linearisa- tion curve, reset, date/time, reset, copy function Info: Instrument name, hardware and software version, date of manu- facture, instrument features VEGAPULS 69 • HART and accumulator pack...
  • Page 37 With this menu item, the sensor can be adapted to the applications. The adjustment possibilities depend on the selection "Liquid" or "Bulk solid" under "Medium". The following options are available when "Liquid" is selected: VEGAPULS 69 • HART and accumulator pack...
  • Page 38 – Overfilling possible • Properties, sensor: – Low sensitivity to sporadic false echoes – Stable and reliable measured values through averaging – High accuracy, because not set for max. speed – False signal suppression recommended VEGAPULS 69 • HART and accumulator pack...
  • Page 39 – Sporadic false echoes are suppressed – False signal suppression recommended Standpipe: • Medium speed: very fast filling and emptying • Vessel: – Vent hole – Joins like flanges, weld joints – Shifting of the running time in the tube • Process/measurement conditions: – Condensation VEGAPULS 69 • HART and accumulator pack...
  • Page 40 Transportable plastic tank: • Vessel: – Material and thickness different – Measurement through the vessel top • Process/measurement conditions: – Measured value jump with vessel change • Properties, sensor: – Quick adaptation to changing reflection conditions due to ves- sel change – False signal suppression required VEGAPULS 69 • HART and accumulator pack...
  • Page 41 – Sensor accepts all measured value changes within the measur- ing range immediately – High sensitivity to interference, because virtually no averaging Caution: If liquids with different dielectric constants separate in the vessel, for example through condensation, the radar sensor can detect under certain circumstances only the medium with the higher dielectric VEGAPULS 69 • HART and accumulator pack...
  • Page 42 To perform the adjustment, enter the distance with full and empty ves- sel, see the following example: VEGAPULS 69 • HART and accumulator pack...
  • Page 43 2. Edit the percentage value with [OK] and set the cursor to the requested position with [->]. 3. Set the requested percentage value with [+] and save with [OK]. The cursor jumps now to the distance value. VEGAPULS 69 • HART and accumulator pack...
  • Page 44 Measurement reliability equals signal strength minus noise. The higher the value, the more reliable the measurement. A well function- ing measurement normally has a value > 10 dB. VEGAPULS 69 • HART and accumulator pack...
  • Page 45 Additional settings - False The following circumstances cause interfering reflections and can signal suppression influence the measurement: • High mounting sockets • Vessel internals such as struts • Agitators • Buildup or welded joints on vessel walls VEGAPULS 69 • HART and accumulator pack...
  • Page 46 "Extend", the distance to the product surface of the created false signal suppression is displayed. This value can now be changed and the false signal suppression can be extended to this range. Additional settings - Lin- A linearization is necessary for all vessels in which the vessel volume earization does not increase linearly with the level - e.g. a horizontal cylindri- VEGAPULS 69 • HART and accumulator pack...
  • Page 47 Caution: For the duration of the reset, the set trouble signal is outputted via the current output. Within the context of the asset management function, the message "Maintenance" is outputted. VEGAPULS 69 • HART and accumulator pack...
  • Page 48 Output characteristics: 4 … 20 mA mode Fault mode: < 3.6 mA ▼ Current output - Min. current: 3.8 mA Min./Max. Max. current: 20.5 mA Display Displayed value 1 Filling height Displayed value 2 Temperature Backlight Switched off VEGAPULS 69 • HART and accumulator pack...

  • Page 49: Saving The Parameterisation Data

    In the display and adjust- If the instrument is equipped with a display and adjustment module, ment module the parameter adjustment data can be saved therein. The procedure is described in menu item "Copy device settings". VEGAPULS 69 • HART and accumulator pack...

  • Page 50: Setup With Pactware

    Further setup steps are described in the operating instructions manu- al "DTM Collection/PACTware" attached to each DTM Collection and which can also be downloaded from the Internet. Detailed descrip- tions are available in the online help of PACTware and the DTMs. VEGAPULS 69 • HART and accumulator pack...

  • Page 51: Saving The Parameterisation Data

    The standard version is available as a download under www.vega.com/downloads and "Software". The full version is avail- able on CD from the agency serving you. Saving the parameterisation data We recommend documenting or saving the parameterisation data via PACTware.

  • Page 52: Set Up With Other Systems

    This software is updated via the Internet and new EDDs are automatically accepted into the device catalogue of this software after they are released by the manufacturer. They can then be transferred to a Field Communicator. VEGAPULS 69 • HART and accumulator pack...

  • Page 53: Diagnosis, Asset Management And Service

    (non-deletable). Each entry contains date/time, event type, event description and value. Event types are for example: • Modification of a parameter • Switch-on and switch-off times • Status messages (according to NE 107) • Error messages (according to NE 107) VEGAPULS 69 • HART and accumulator pack...

  • Page 54: Asset Management Function

    Failure: Due to a malfunction in the instrument, a fault message is outputted. This status message is always active. It cannot be deactivated by the user. Function check: The instrument is being worked on, the measured value is temporarily invalid (for example during simulation). VEGAPULS 69 • HART and accumulator pack...
  • Page 55 • • F125 Temperature of the electronics Check ambient temperature Bit 7 of Byte 0 … 5 • in the non-specified range Insulate electronics Impermissible elec- • Use instrument with higher tronics temperature temperature range VEGAPULS 69 • HART and accumulator pack...
  • Page 56 The data could not be restored Repeat reset Bit 0 of • during the reset to delivery Load XML file with sensor data Byte 14 … 24 Error during the re- status into the sensor set "delivery status" VEGAPULS 69 • HART and accumulator pack...

  • Page 57: Rectify Faults

    Treatment of measure- The below tables show typical examples of application-related ment errors with bulk measurement errors with bulk solids. A distinction is made between solids measurement errors during: • Constant level VEGAPULS 69 • HART and accumulator pack...
  • Page 58 Amplitude or position of a false signal has Determine the reason for the changed changed (e.g. condensation, buildup); false signals, carry out false signal sup- false signal suppression no longer pression, e.g. with condensation time matches actual conditions VEGAPULS 69 • HART and accumulator pack...
  • Page 59 Carry out false signal suppression or jumps sporadically on the antenna increase false signal suppression in the towards 100 % dur- close range by editing • ing emptying With bulk solids use radar sensor with purging air connection or flexible antenna cover time VEGAPULS 69 • HART and accumulator pack...

  • Page 60: Exchanging The Electronics Module

    24 hour service hotline Should these measures not be successful, please call in urgent cases the VEGA service hotline under the phone no. +49 1805 858550. The hotline is also available outside normal working hours, seven days a week around the clock.

  • Page 61: Software Update

    You can find an instrument return form as well as detailed informa- tion about the procedure in the download area of our homepage: www.vega.com. By doing this you help us carry out the repair quickly and without having to call back for needed information. In case of repair, proceed as follows: •...

  • Page 62: Dismount

    Unscrew the cover of the supply room • Loosen the plug connector • Loosen the fixing screws • Pull out the complete insert by means of the plastic strap Correct disposal avoids negative effects on humans and the environ- ment and ensures recycling of useful raw materials. VEGAPULS 69 • HART and accumulator pack...

  • Page 63: Supplement

    Ʋ Mounting strap 316L Ʋ Fixing screws, mounting strap 316L Ʋ Fixing screws, adapter flange Ʋ Plastic housing Plastic PBT (Polyester) Housing Ʋ Aluminium die-cast housing Aluminium die-casting AlSi10Mg, powder-coated (Basis: Polyester) Ʋ Stainless steel housing 316L VEGAPULS 69 • HART and accumulator pack...
  • Page 64 Input variable Measured variable The measured quantity is the distance between the end of the sensor antenna and the product surface. The reference plane for the measurement is the lower side of the flange. VEGAPULS 69 • HART and accumulator pack...
  • Page 65 Biggest false signal, 20 dB smaller than the useful signal Deviation with liquids ≤ 5 mm (meas. distance > 1.0 m/3.280 ft) Non-repeatability ≤ 1 mm Deviation with bulk solids The values depend to a great extent on the application. Binding specifications are thus not possible. Already included in the meas. deviation VEGAPULS 69 • HART and accumulator pack...
  • Page 66 Ʋ Max. power density at a distance of < 3 µW/cm² Depending of the reflective properties of the measured media. Time span (after a sudden measuring distance change of max. 2 m in bulk solids applications) until the output signal has taken on 90 % of the final value for the first time (IEC 61298-2). Outside the specified beam angle, the energy level of the radar signal is 50% (-3 dB) less. EIRP: Equivalent Isotropic Radiated Power VEGAPULS 69 • HART and accumulator pack...
  • Page 67 0°C / 32°F -40°C 50°C 80°C 100°C 130°C -40°F 122°F 176°F 212°F 266°F -40°C / -40°F Fig. 49: Derating, ambient temperature, metal-jacketed lens antenna up to +130 °C (+266 °F) Ambient temperature Process temperature Aluminium housing Plastic housing Stainless steel housing (precision casting) Stainless steel housing (electropolished) VEGAPULS 69 • HART and accumulator pack...
  • Page 68 Stainless steel housing (electropolished) 80 °C (176 °F) 0 °C (32 °F) 80 °C -40 °C (176 °F) (-104 °F) -40 °C (-104 °F) Fig. 51: Derating, ambient temperature, plastic horn antenna Ambient temperature Process temperature VEGAPULS 69 • HART and accumulator pack...
  • Page 69 -40°C 50°C 80°C 100°C 150°C 200°C -40°F 122°F 176°F 212°F 302°F 392°F -40°C / -40°F Fig. 53: Derating, ambient temperature, thread G1½ with integrated horn antenna up to +200 °C (+392 °F) Ambient temperature Process temperature Aluminium housing Plastic housing Stainless steel housing (precision casting) Stainless steel housing (electropolished) VEGAPULS 69 • HART and accumulator pack...
  • Page 70 SIL non-reactive Display and adjustment elements, power pack Display elements Ʋ Green LED in the supply room Indication of the charging process Ʋ Yellow LED in the supply room Indication of the charging condition VEGAPULS 69 • HART and accumulator pack...
  • Page 71 Operating time after 10 minutes charging > 3 h of 0 % Operating time in mode 4 (sensor per- > 60 h manently on) with completely charged accumulator Galvanic separation between electronics and metal housing parts VEGAPULS 69 • HART and accumulator pack...

  • Page 72: Radio Astronomy Stations

    Protection rating (IEC 61010-1) 11.2 Radio astronomy stations Certain restrictions on the use of VEGAPULS 69 outside closed vessels result from the radio license. You can find these restrictions in chapter "Radio license for Europe". Some of these restric- tions have to do radio astronomy stations. The following table states the geographic positions of...
  • Page 73 Fig. 54: Dimensions of housing - with integrated display and adjustment module the housing is 9 mm/0.35 inches higher Plastic housing Aluminium/Stainless steel housing VEGAPULS 69, metal-jacketed lens antenna G 1/8" x 8mm ø 98 mm (3.86") Fig. 55: VEGAPULS 69, metal-jacketed lens antenna. Flange thickness acc. to drawing, flange dimensions acc. to DIN/ASME/JIS. Version up to 130 °C (266 °F) Version up to 200 °C (392 °F) VEGAPULS 69 • HART and accumulator pack...
  • Page 74 (1.69") 35 mm (1.38") Fig. 56: VEGAPULS 69, metal-jacketed lens antenna in flange version with rinsing connection Version up to 130 °C (266 °F) Version up to 200 °C (392 °F) Blind plug 90° angle joint Reflux valve VEGAPULS 69, metal-jacketed lens antenna with swivelling holder Fig. 57: VEGAPULS 69, metal-jacketed lens antenna and swivelling holder Version up to 130 °C (266 °F) Version up to 200 °C (392 °F) VEGAPULS 69 • HART and accumulator pack...
  • Page 75 11 Supplement VEGAPULS 69, metal-jacketed lens antenna with swivelling holder and rinsing connection Fig. 58: VEGAPULS 69, metal-jacketed lens antenna with swivelling holder and rinsing connection Version up to 130 °C (266 °F) Version up to 200 °C (392 °F) Blind plug 90° angle joint Reflux valve VEGAPULS 69 • HART and accumulator pack...
  • Page 76 11 Supplement VEGAPULS 69, plastic horn antenna with compression flange ø 107 mm ø 21 mm (4.21") (0.83") ø 75 mm (2.95") ø 115 mm (4.53") ø 156 mm (6.14") ø 200 mm (7.87") Fig. 59: VEGAPULS 69 with compression flange suitable for flanges 3" 150 lbs, DN 80 PN 16 Compression flange VEGAPULS 69 • HART and accumulator pack...
  • Page 77 11 Supplement VEGAPULS 69, plastic horn antenna with compression flange and rinsing connection ø 107 mm ø 21 mm (4.21") (0.83") ø 75 mm (2.95") ø 156 mm (6.14") ø 200 mm (7.87") Fig. 60: VEGAPULS 69 with compression flange suitable for flanges 3" 150 lbs, DN 80 PN 16 and rinsing connec- tion Compression flange Reflux valve Rinsing connection VEGAPULS 69 • HART and accumulator pack...
  • Page 78 11 Supplement VEGAPULS 69, plastic horn antenna with adapter flange ø 75 mm (2.95") ø 98 mm (3.86") ø 180 mm (7.09") ø 220 mm (8.66") Fig. 61: VEGAPULS 69 with adapter flange DN 100 PN 16 Adapter flange Process seal VEGAPULS 69 • HART and accumulator pack...
  • Page 79 11 Supplement VEGAPULS 69, plastic horn antenna mit adapter flange und rinsing connection ø 75 mm (2.95") ø 98 mm (3.86") ø 180 mm (7.09") ø 220 mm (8.66") Fig. 62: VEGAPULS 69, adapter flange DN 100 PN 16 and rinsing connection Air flushing ring Reflux valve Adapter flange VEGAPULS 69 • HART and accumulator pack...
  • Page 80 ø 75 mm (2.95") ø 107 mm (4.21") 9 mm (0.35") ø 115 mm (4.53") 12 mm (0.47") Fig. 63: VEGAPULS 69, plastic antenna and mounting strap in 170 or 300 mm length VEGAPULS 69 • HART and accumulator pack...
  • Page 81 11 Supplement VEGAPULS 69, thread with integrated horn antenna Fig. 64: VEGAPULS 69, thread with integrated horn antenna TC G1½ (DIN 3852-A) TD 1½ NPT (ASME B1.20.1) Version up to 130 °C (266 °F) Version up to 200 °C (392 °F) VEGAPULS 69 • HART and accumulator pack...

  • Page 82: Industrial Property Rights

    Les lignes de produits VEGA sont globalement protégées par des droits de propriété intellec- tuelle. Pour plus d'informations, on pourra se référer au site www.vega.com. VEGA lineas de productos están protegidas por los derechos en el campo de la propiedad indus- trial. Para mayor información revise la pagina web www.vega.com.
  • Page 83 – Flange 17 – Strap 15 Mounting socket 21 NAMUR NE 107 54, 55, 56 Overfill protection according to WHG 47 Peak value indicator 44 Polarisation 19 Reflection properties, medium 37 Repair 61 Replacement parts – Supplementary electronics for power pack Reset 47 VEGAPULS 69 • HART and accumulator pack...
  • Page 84 Subject to change without prior notice © VEGA Grieshaber KG, Schiltach/Germany 2018 VEGA Grieshaber KG Phone +49 7836 50-0 Am Hohenstein 113...
