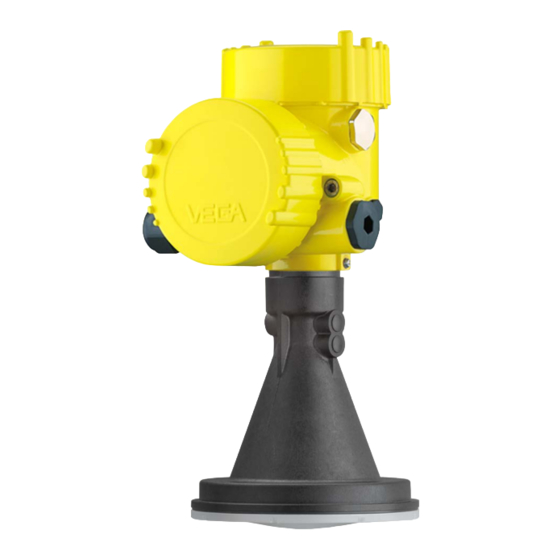

Vega VEGAPULS 69 Quick Setup Manual
Radar sensor for continuous level measurement of bulk solids
Hide thumbs
Also See for VEGAPULS 69:
- Operating instructions manual (104 pages) ,
- Quick setup manual (25 pages) ,
- Mounting instructions (24 pages)
Related Manuals for Vega VEGAPULS 69
Summary of Contents for Vega VEGAPULS 69
-

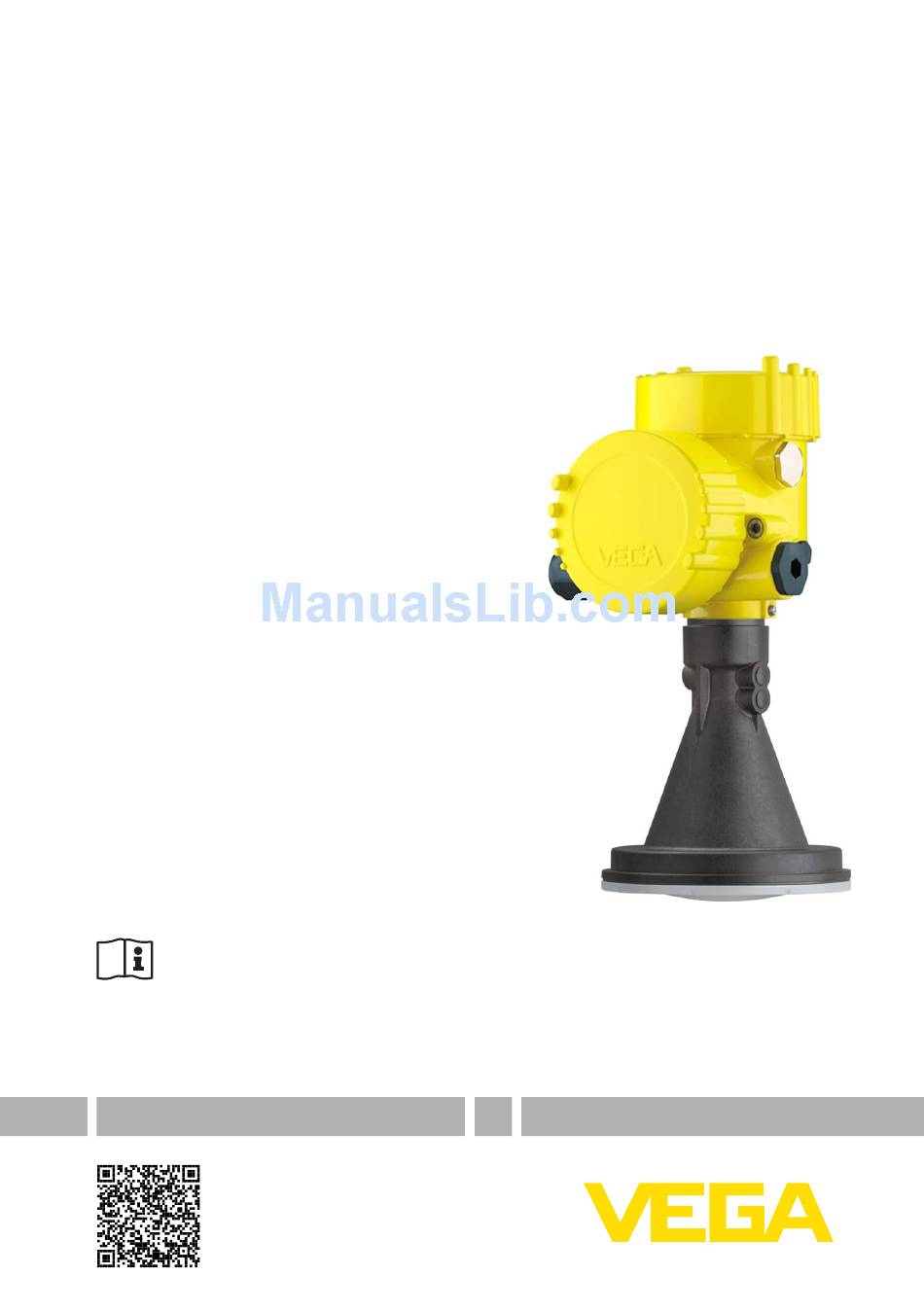

Page 1: Quick Setup Guide
Quick setup guide Radar sensor for continuous level measurement of bulk solids VEGAPULS 69 4 … 20 mA/HART - four-wire Document ID: 47255... -
Page 2: Table Of Contents
You can find supplementary information in the corresponding, more detailed Operating Instructions Manual as well as the Safety Manual that comes with instruments with SIL qualification. These manuals are available on the supplied DVD or in the download area of "www.vega. com". Operating instructions VEGAPULS 69 - 4 … 20 mA/HART - four- wire: Document-ID 47249 Editing status of the quick setup guide: 2014-07-29 VEGAPULS 69 •... -
Page 3: For Your Safety
During work on and with the device the required personal protective equipment must always be worn. Appropriate use VEGAPULS 69 is a sensor for continuous level measurement. You can find detailed information about the area of application in chapter "Product description". Operational reliability is ensured only if the instrument is properly used according to the specifications in the operating instructions manual as well as possible supplementary instructions. -
Page 4: Ce Conformity
Protection of the environment is one of our most important duties. That is why we have introduced an environment management system with the goal of continuously improving company environmental pro- tection. The environment management system is certified according to DIN EN ISO 14001. VEGAPULS 69 • 4 … 20 mA/HART - four-wire... - Page 5 1 For your safety Please help us fulfill this obligation by observing the environmental instructions in this manual: • Chapter "Packaging, transport and storage" • Chapter "Disposal" VEGAPULS 69 • 4 … 20 mA/HART - four-wire...
-
Page 6: Product Description
Operating instructions and quick setup guide at the time of ship- ment (PDF) • Order-specific sensor data for an electronics exchange (XML) • Test certificate (PDF) - optional Go to www.vega.com, "VEGA Tools" and "Instrument search". Enter the serial number. Alternatively, you can access the data via your smartphone: VEGAPULS 69 • 4 … 20 mA/HART - four-wire... - Page 7 Download the smartphone app "VEGA Tools" from the "Apple App Store" or the "Google Play Store" • Scan the Data Matrix code on the type label of the instrument or • Enter the serial number manually in the app VEGAPULS 69 • 4 … 20 mA/HART - four-wire...
-
Page 8: Mounting
Nose for marking the direction of polarisation Information: When the housing is rotated, the direction of polarization changes and hence the influence of the false echo on the measured value. Please keep this in mind when mounting or making changes later. Installation position Mount the sensor at least 200 mm (7.874 in) away from the vessel wall. VEGAPULS 69 • 4 … 20 mA/HART - four-wire... - Page 9 This applies particularly if buildup on the vessel wall is expected. In such cases, we recommend repeating the false signal storage at a later date with existing buildup. VEGAPULS 69 • 4 … 20 mA/HART - four-wire...
-
Page 10: Connecting To Power Supply
When the screwdriver is released, the terminal closes again. 6. Check the hold of the wires in the terminals by lightly pulling on them VEGAPULS 69 • 4 … 20 mA/HART - four-wire... -
Page 11: Wiring Plan, Double Chamber Housing
Terminal Function Polarity Voltage supply Voltage supply 4 … 20 mA output (active) 4 … 20 mA output (passive) Mass - output Function ground with installa- tion according to CSA VEGAPULS 69 • 4 … 20 mA/HART - four-wire... - Page 12 Fig. 6: Connection compartment with double chamber housing with low voltage Terminal Function Polarity Voltage supply Voltage supply 4 … 20 mA output (active) 4 … 20 mA output (passive) Mass - output Function ground with installa- tion according to CSA VEGAPULS 69 • 4 … 20 mA/HART - four-wire...
-
Page 13: Set Up With The Display And Adjustment Module
Parameter adjustment - Quick setup To quickly and easily adapt the sensor to the application, select the menu item "Quick setup" in the start graphic on the display and adjustment module. VEGAPULS 69 • 4 … 20 mA/HART - four-wire... - Page 14 5. Max. adjustment In this menu item you carry out the max. adjustment. Enter the measuring distance for 100 % filling. 6. Min. adjustment In this menu item you carry out the min. adjustment. Enter the measuring distance for 0 % filling. VEGAPULS 69 • 4 … 20 mA/HART - four-wire...
-
Page 15: Parameter Adjustment - Extended Adjustment
These settings can be made ahead of time without the instrument having to be installed. Diagnostics - Echo curve The function "Setup" allows the echo curve to be saved at the time of memory setup. VEGAPULS 69 • 4 … 20 mA/HART - four-wire... - Page 16 This should be done with a low level so that all potential interfering reflections can be detected. Proceed as follows: 1. Select with [->] the menu item "False signal suppression" and confirm with [OK]. 2. Confirm again with [OK]. 3. Confirm again with [OK]. VEGAPULS 69 • 4 … 20 mA/HART - four-wire...
- Page 17 "Extend", the distance to the product surface of the created false signal suppression is displayed. This value can now be changed and the false signal suppression can be extended to this range. VEGAPULS 69 • 4 … 20 mA/HART - four-wire...
-
Page 18: Supplement
0.2 … 1.5 mm² (AWG 24 … 16) Voltage supply Operating voltage Ʋ Version for low voltage 9.6 … 48 V DC, 20 … 42 V AC, 50/60 Hz Ʋ Version for mains voltage 90 … 253 V AC, 50/60 Hz Reverse voltage protection Integrated Max. power consumption 4 VA; 2.1 W VEGAPULS 69 • 4 … 20 mA/HART - four-wire... - Page 19 Notes VEGAPULS 69 • 4 … 20 mA/HART - four-wire...
-
Page 20: Information
Subject to change without prior notice © VEGA Grieshaber KG, Schiltach/Germany 2014 VEGA Grieshaber KG Phone +49 7836 50-0 Am Hohenstein 113...
