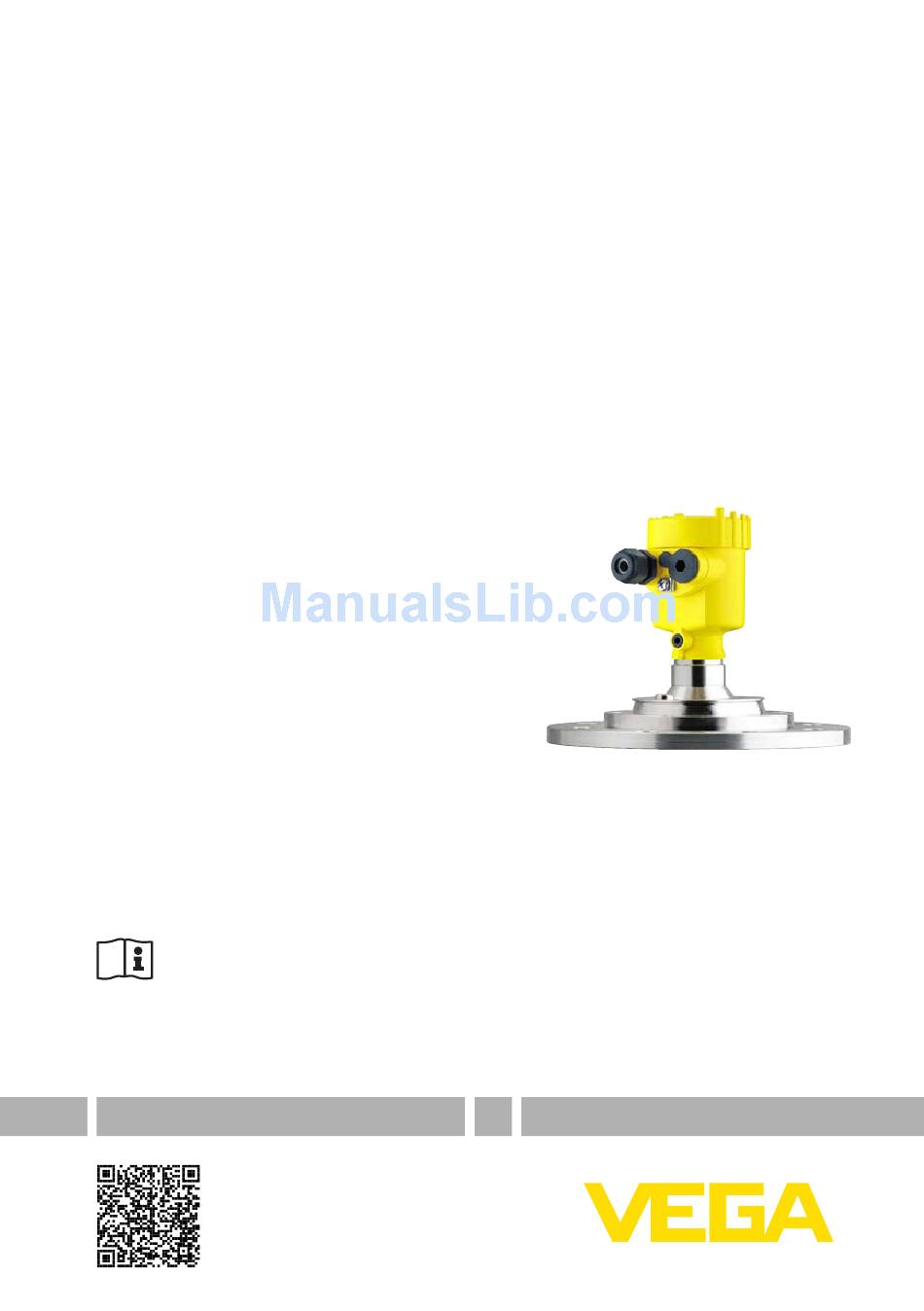

Operating Instructions

Radar sensor for continuous level
measurement of bulk solids
VEGAPULS 69
Foundation Fieldbus
Document ID: 47251

Advertisement

Table of Contents
loading

Related Manuals for Vega VEGAPULS 69

Summary of Contents for Vega VEGAPULS 69

  • Page 1: Operating Instructions

    Operating Instructions Radar sensor for continuous level measurement of bulk solids VEGAPULS 69 Foundation Fieldbus Document ID: 47251...

  • Page 2: Table Of Contents

    Saving the parameter adjustment data ................52 Setup with PACTware Connect the PC ......................53 Parameter adjustment ....................53 Saving the parameter adjustment data ................54 Set up with other systems DD adjustment programs ....................55 VEGAPULS 69 • Foundation Fieldbus...
  • Page 3 11.5 Industrial property rights ....................95 11.6 Trademark ........................95 Safety instructions for Ex areas Take note of the Ex specific safety instructions for Ex applications. These instructions are attached as documents to each instrument with Ex approval and are part of the operating instructions manual. Editing status: 2016-08-10 VEGAPULS 69 • Foundation Fieldbus...

  • Page 4: About This Document

    Action This arrow indicates a single action. Sequence of actions Numbers set in front indicate successive steps in a procedure. Battery disposal This symbol indicates special information about the disposal of bat- teries and accumulators. VEGAPULS 69 • Foundation Fieldbus...

  • Page 5: For Your Safety

    During work on and with the device the required personal protective equipment must always be worn. Appropriate use VEGAPULS 69 is a sensor for continuous level measurement. You can find detailed information about the area of application in chapter "Product description". Operational reliability is ensured only if the instrument is properly used according to the specifications in the operating instructions manual as well as possible supplementary instructions.

  • Page 6: Ce Conformity

    The instrument should be preferably mounted on top of the vessel with antenna orientation downward • The instrument must only be installed and maintained by appropri- ately qualified staff For operation outside of closed vessels, the following conditions must be fulfilled: • The installation must be carried out by trained qualified personnel VEGAPULS 69 • Foundation Fieldbus...

  • Page 7: Radio License For Usa

    • This device must accept any interference, including interference that may cause undesired operation of the device • Installation of LPR device shall be done by trained installers, in strict compliance with the manufacturer’s instructions VEGAPULS 69 • Foundation Fieldbus...

  • Page 8: Environmental Instructions

    That is why we have introduced an environment management system with the goal of continuously improving company environmental pro- tection. The environment management system is certified according to DIN EN ISO 14001. Please help us fulfil this obligation by observing the environmental instructions in this manual: • Chapter "Packaging, transport and storage" • Chapter "Disposal" VEGAPULS 69 • Foundation Fieldbus...

  • Page 9: Product Description

    Test certificate (PDF) - optional Go to "www.vega.com", "VEGA Tools" and "Instrument search". Enter the serial number. Alternatively, you can access the data via your smartphone: • Download the smartphone app "VEGA Tools" from the "Apple App Store" or the "Google Play Store" VEGAPULS 69 • Foundation Fieldbus...

  • Page 10: Principle Of Operation

    In this operating instructions manual, the optional instrument features are described. The respective scope of delivery results from the order specification. Principle of operation Application area The VEGAPULS 69 is a radar sensor for continuous level measure- ment of bulk solids even under the most difficult process conditions and in very large measuring ranges. It is ideal for use in high, slender silos with poorly reflecting bulk solids such as fly-ash, plastic granules or wood chips as well as internal installations that cause strong false echoes.

  • Page 11: Packaging, Transport And Storage

    The interface adapter VEGACONNECT enables the connection of communication-capable instruments to the USB interface of a PC. For parameter adjustment of these instruments, the adjustment software PACTware with VEGA-DTM is required. You can find further information in the operating instructions "Interface adapter VEGACONNECT" (Document-ID 32628). VEGAPULS 69 • Foundation Fieldbus...
  • Page 12 3 Product description The VEGADIS 81 is an external display and adjustment unit for VEGA VEGADIS 81 plics sensors. ® For sensors with double chamber housing the interface adapter "DISADAPT" is also required for VEGADIS 81. You can find further information in the operating instructions "VE- GADIS 81" (Document-ID 43814).
  • Page 13 You can find further information in the operating instructions "Elec- tronics module VEGAPULS series 60" (Document-ID 36801). Supplementary elec- The supplementary electronics is a replacement part for sensors with tronics for Foundation Foundation Fieldbus and double chamber housing. Fieldbus You can find further information in the operating instructions "Supple- mentary electronics for Foundation Fieldbus" (Document-ID 45111). VEGAPULS 69 • Foundation Fieldbus...

  • Page 14: Mounting

    The mounting position and orientation of the sensor must take into ac- Radio license for USA/ Canada count the limitations in chapter "For your safety", "Radio approval for USA" "Radio approval for Canada" of this operating instructions. VEGAPULS 69 • Foundation Fieldbus...

  • Page 15: Mounting Versions, Plastic Horn Antenna

    This allows swivelling the sensor up to 180° for optimal orientation and rotating for optimal connection. Fig. 2: Ceiling mounting via the mounting strap with length 300 mm As an alternative the strap mounting is carried out horizontally or Mounting strap - Wall mounting obliquely. > 200 mm (7.87") Fig. 3: Wall mounting horizontally via the mounting strap with length 170 mm VEGAPULS 69 • Foundation Fieldbus...
  • Page 16 DN 80, ASME 3" and JIS 80. It comes not sealed against the radar sensor and can thus only be used unpressurized. It can be retrofitted on instruments with single chamber housing, retrofitting to a double chamber housing is not possible. Fig. 5: Combi compression flange 1 Combi compression flange Adapter flange The adapter flange is available from DN 100, ASME 4" and JIS 100. It is permanently connected with the radar sensor and sealed. VEGAPULS 69 • Foundation Fieldbus...

  • Page 17: Mounting Preparations, Mounting Strap

    Depending on the selected variant, the sensor can be rotated in the strap: • Single chamber housing – Angle of inclination in three steps 0°, 90° and 180° – Angle of inclination 180°, infinitely variable • Double chamber housing – Angle of inclination in two steps 0° and 90° – Angle of inclination 90°, infinitely variable VEGAPULS 69 • Foundation Fieldbus...

  • Page 18: Mounting Instructions

    In such cases, we recommend repeating the false signal suppression at a later date with existing buildup. Inflowing medium The instrument should not be mounted too close to the inflowing medium, as the radar signal could be disrupted. Silo with filling from top The optimal mounting position is opposite the filling aperture. To avoid heavy soiling, the distance to any filter or dust exhauster should be as large as possible. VEGAPULS 69 • Foundation Fieldbus...
  • Page 19 4 Mounting Fig. 10: Mounting of the radar sensor with inflowing medium Silo with lateral filling In bulk solids silos with lateral pneumatic filling the instrument should not be mounted above the filling stream, as the radar signal will be disrupted. The optimal mounting position is to the side of the filling aperture. To avoid heavy soiling, the distance to any filter or dust exhauster should be as large as possible. VEGAPULS 69 • Foundation Fieldbus...
  • Page 20 This reduces false echoes from the vessel mounting socket. Fig. 12: Recommended socket mounting If the medium has good reflective properties, you can also mount the VEGAPULS 69 on longer sockets. Approximate socket heights are shown in the following illustration. Information: When mounting on longer sockets, we recommend carrying out a false signal suppression (see chapter "Parameter adjustment").
  • Page 21 In a cylindrical silo with conical outlet, the sensor is mounted anywhere from one third to one half of the vessel radius from the outside wall (see following drawing). VEGAPULS 69 • Foundation Fieldbus...
  • Page 22 With the help of an optional swivelling holder, the sensor can be easily aligned to the vessel centre. The necessary angle of inclination depends on the vessel dimensions. It can be easily checked with a suitable bubble tube or mechanic's level on the sensor. VEGAPULS 69 • Foundation Fieldbus...
  • Page 23 Fig. 15: Proposal for installation after orientation VEGAPULS 69 The following table shows the necessary angle of inclination. It depends on the measuring distance and the distance "a" between vessel centre and installation position. Distance d 2° 4° 6° 8° 10° 10.5 12.2 VEGAPULS 69 • Foundation Fieldbus...
  • Page 24 In case of existing vessel installations, a false signal suppression should be carried out during setup. If large vessel installations such as struts or supports cause false echoes, these can be attenuated through supplementary measures. Small, inclined sheet metal baffles above the installations scatter the radar signals and prevent direct interfering reflections. VEGAPULS 69 • Foundation Fieldbus...
  • Page 25 Information: The spacer may only be incorporated up to a maximum of 50 mm into the vessel insulation. Only then is a reliable temperature decoupling guaranteed. VEGAPULS 69 • Foundation Fieldbus...
  • Page 26 The best mounting location is on the outer wall of the silo, with the sensor pointing towards the discharge opening in the silo centre. This can be accomplished, for example, with the mounting strap. Fig. 20: Installation and orientation in multiple chamber silos VEGAPULS 69 • Foundation Fieldbus...
  • Page 27 Fig. 22: Rinsing air connection on metal-jacketed lens antenna Plastic horn antenna The VEGAPULS 69 with plastic horn antenna is optionally available with a rinsing air connection. The mechanical configuration differs according to the flange version, see following graphics. VEGAPULS 69 • Foundation Fieldbus...
  • Page 28 4 Mounting Fig. 23: Rinsing air connection with compression flange Fig. 24: Rinsing air connection with adapter flange You can find details on the rinsing air connection in chapter "Technical data". VEGAPULS 69 • Foundation Fieldbus...

  • Page 29: Connecting To The Bus System

    In systems with potential equalisation, connect the cable screen directly to ground potential at the power supply unit, in the connection box and at the sensor. The screen in the sensor must be connected VEGAPULS 69 • Foundation Fieldbus...

  • Page 30: Connecting

    4. Remove approx. 10 cm (4 in) of the cable mantle, strip approx. 1 cm (0.4 in) of insulation from the ends of the individual wires 5. Insert the cable into the sensor through the cable entry Fig. 25: Connection steps 5 and 6 - Single chamber housing VEGAPULS 69 • Foundation Fieldbus...
  • Page 31 9. Tighten the compression nut of the cable entry gland. The seal ring must completely encircle the cable 10. Reinsert the display and adjustment module, if one was installed 11. Screw the housing lid back on The electrical connection is finished. VEGAPULS 69 • Foundation Fieldbus...

  • Page 32: Wiring Plan, Single Chamber Housing

    For external display and adjustment unit 5 Ground terminal for connection of the cable screen Wiring plan, double chamber housing Electronics compartment 6 7 8 Fig. 28: Electronics compartment, double chamber housing Internal connection to the terminal compartment 2 Contact pins for the display and adjustment module or interface adapter Simulation switch ("1" = mode for simulation release) VEGAPULS 69 • Foundation Fieldbus...
  • Page 33 Parallel use of an external display and adjustment unit and a display and adjustment module in the terminal compartment is not supported. Terminal compartment - Radio module PLICS- MOBILE Status SIM-Card Test Fig. 30: Terminal compartment - Radio module PLICSMOBILE Voltage supply You can find detailed information on connection in the supplementary instructions "PLICSMOBILE GSM/GPRS radio module". VEGAPULS 69 • Foundation Fieldbus...

  • Page 34: Double Chamber Housing With Disadapt

    Pin 3 Blue Pin 4 Black Switch-on phase After VEGAPULS 69 is connected to the bus system, the instrument carries out a self-test for approx. 30 seconds. The following steps are carried out: • Internal check of the electronics •...
  • Page 35 5 Connecting to the bus system Then the actual measured value is outputted to the signal cable. The value takes into account settings that have already been carried out, e.g. default setting. VEGAPULS 69 • Foundation Fieldbus...

  • Page 36: Set Up With The Display And Adjustment Module

    The display and adjustment module is powered by the sensor, an ad- ditional connection is not necessary. Fig. 33: Installing the display and adjustment module in the electronics compart- ment of the single chamber housing VEGAPULS 69 • Foundation Fieldbus...

  • Page 37: Adjustment System

    In the terminal compartment Note: If you intend to retrofit the instrument with a display and adjustment module for continuous measured value indication, a higher lid with an inspection glass is required. Adjustment system Fig. 35: Display and adjustment elements 1 LC display Adjustment keys • Key functions [OK] key: VEGAPULS 69 • Foundation Fieldbus...

  • Page 38: Measured Value Indication - Selection National Language

    In the third view, the selected measured value as well as a second se- lectable value, e.g. the temperature of the electronics, are displayed. During the initial setup of an instrument shipped Ex works, use the "OK" key to get to the menu "National language". VEGAPULS 69 • Foundation Fieldbus...

  • Page 39: Parameter Adjustment - Quick Setup

    Display: Language setting, settings for the measured value indication as well as lighting Diagnosis: Information, e.g. on instrument status, pointer, measure- ment certainty, simulation, echo curve Further settings: e.g. instrument units, unit SV2, false signal sup- pression, linearization, date/time, reset, copy sensor data VEGAPULS 69 • Foundation Fieldbus...
  • Page 40 Vessel height/Measuring range: The VEGAPULS 69 is a bulk solids radar sensor for high, slender vessels. It covers a measuring range up to 120 m. This menu item lets you limit the active measuring range in which the instrument searches for level echoes.
  • Page 41 Detection of the heap profile • Height detection during filling • Process/measurement conditions: The instrument recognizes if a manual false signal suppression was carried out with empty vessel and high system noise. An automatic false signal sup- pression is then carried out if a product echo was detected at the beginning of the filling process. VEGAPULS 69 • Foundation Fieldbus...
  • Page 42 To perform the adjustment, enter the distance with full and empty ves- sel, see the following example: VEGAPULS 69 • Foundation Fieldbus...
  • Page 43 2. Prepare the percentage value for editing with [OK] and set the cursor to the requested position with [->]. 3. Set the requested percentage value with [+] and save with [OK]. The cursor jumps now to the distance value. VEGAPULS 69 • Foundation Fieldbus...
  • Page 44 The default setting is a damping of 0 s. Lock/unlock setup - Ad- In the menu item "Lock/unlock adjustment" you safeguard the sensor justment parameters against unauthorized or unintentional modifications. With active PIN, only the following adjustment functions are possible without entering a PIN: VEGAPULS 69 • Foundation Fieldbus...
  • Page 45 • Polish • Czech • Turkish In the delivery status, the VEGAPULS 69 is set to the ordered national language. Display - Displayed val- In the menu item "Display" you can define which measured value ues 1 and 2 should be presented on the display. The sensor delivers the following measured values: •...
  • Page 46 The "Echo curve" shows the signal strength of the echoes over the tion measuring range in dB. The signal strength enables an evaluation of the quality of the measurement. The selected curve is continuously updated. A submenu with zoom functions is opened with the [OK] key: • "X-Zoom": Zoom function for the meas. distance • "Y-Zoom": 1, 2, 5 and 10x signal magnification in "dB" • "Unzoom": Reset the presentation to the nominal measuring range without magnification VEGAPULS 69 • Foundation Fieldbus...
  • Page 47 With the adjustment software PACTware and the PC, the stored echo curves can be displayed with high resolution and used to recognize signal changes over time. In addition, the echo curve saved during setup can also be displayed in the echo curve window and compared with the current echo curve. VEGAPULS 69 • Foundation Fieldbus...
  • Page 48 Order-related settings are not taken over into the current parameters after this reset. The following table shows the scope of the reset function and the default values of the instrument: VEGAPULS 69 • Foundation Fieldbus...
  • Page 49 If the data do not match, a fault message is outputted or the function is blocked. The data are saved only after release. Additional adjustments - The following circumstances cause interfering reflections and can False signal suppression influence the measurement: VEGAPULS 69 • Foundation Fieldbus...
  • Page 50 (too large) value is entered, the existing level will be saved as a false signal. The level would then no longer be detectable in this area. If a false signal suppression has already been saved in the sensor, the following menu window appears when selecting "False signal suppression": VEGAPULS 69 • Foundation Fieldbus...
  • Page 51 In this menu item, the date of factory calibration of the sensor as well date as the date of the last change of sensor parameters are displayed via the display and adjustment module or via the PC. VEGAPULS 69 • Foundation Fieldbus...

  • Page 52: Saving The Parameter Adjustment Data

    If it is necessary to exchange a sensor, the display and adjustment module is inserted into the replacement instrument and the data are likewise written into the sensor via the menu item "Copy device settings". VEGAPULS 69 • Foundation Fieldbus...

  • Page 53: Setup With Pactware

    Further setup steps are described in the operating instructions manu- al "DTM Collection/PACTware" attached to each DTM Collection and which can also be downloaded from the Internet. Detailed descrip- tions are available in the online help of PACTware and the DTMs. VEGAPULS 69 • Foundation Fieldbus...

  • Page 54: Saving The Parameter Adjustment Data

    The standard version is available as a download under www.vega.com/downloads and "Software". The full version is avail- able on CD from the agency serving you. Saving the parameter adjustment data We recommend documenting or saving the parameter adjustment data via PACTware.

  • Page 55: Set Up With Other Systems

    This software is updated via the Internet and new EDDs are automatically taken over into the device catalogue of this software after they are released by the manufacturer. They can then be transferred to a Field Communicator. VEGAPULS 69 • Foundation Fieldbus...

  • Page 56: Diagnosis, Asset Management And Service

    The memory is divided into two sections: Echo curve of the setup: This is used as reference echo curve for the measurement conditions during setup. Changes in the measure- ment conditions during operation or buildup on the sensor can thus be recognized. The echo curve of the setup is stored via: VEGAPULS 69 • Foundation Fieldbus...

  • Page 57: Asset Management Function

    This status message is inactive by default. It can be activated by the user via PACTware/DTM or EDD. Out of specification: The measured value is unstable because the instrument specification is exceeded (e.g. electronics temperature). This status message is inactive by default. It can be activated by the user via PACTware/DTM or EDD. Maintenance: Due to external influences, the instrument function is limited. The measurement is affected, but the measured value is VEGAPULS 69 • Foundation Fieldbus...
  • Page 58 3 min. F113 – Error in the internal – Disconnect operating Bit 12 instrument communica- voltage briefly Communication error tion – Send instrument for repair VEGAPULS 69 • Foundation Fieldbus...
  • Page 59 DevSpec State Diagno- sis Bits Text message S600 – Temperature of the – Check ambient tem- Bit 23 electronics in the non- perature Impermissible electronics specified range – Isolate electronics temperature – Use instrument with higher temperature range VEGAPULS 69 • Foundation Fieldbus...
  • Page 60 – Antenna dirty or defec- – Remove possible false tive echoes – Optimize sensor position and orientation M506 – Error during setup – Check or correct instal- Bit 21 lation and/or parameter Installation/Setup error adjustment VEGAPULS 69 • Foundation Fieldbus...

  • Page 61: Rectify Faults

    "Hold value" • If the level indication is too low, the reason could be a line resist- ance that is too high VEGAPULS 69 • Foundation Fieldbus...
  • Page 62 100 % during filling signal suppression with con- densation/contamination in the close range by editing time – With bulk solids use radar sen- sor with purging air connection or flexible antenna cover VEGAPULS 69 • Foundation Fieldbus...

  • Page 63: Exchanging The Electronics Module

    24 hour service hotline Should these measures not be successful, please call in urgent cases the VEGA service hotline under the phone no. +49 1805 858550. The hotline is also available outside normal working hours, seven days a week around the clock.

  • Page 64: Software Update

    If a repair is necessary, please proceed as follows: • Print and fill out one form per instrument • Clean the instrument and pack it damage-proof • Attach the completed form and, if need be, also a safety data sheet outside on the packaging VEGAPULS 69 • Foundation Fieldbus...
  • Page 65 9 Diagnosis, asset management and service • Please contact the agency serving you to get the address for the return shipment. You can find the agency on our home page www.vega.com. VEGAPULS 69 • Foundation Fieldbus...

  • Page 66: Dismount

    Pass the instrument directly on to a spe- cialised recycling company and do not use the municipal collecting points. These may be used only for privately used products according to the WEEE directive. VEGAPULS 69 • Foundation Fieldbus...

  • Page 67: Supplement

    PBT-GF 30 Ʋ Focussing lense Material, wetted parts rinsing air connection Ʋ Rinsing air connection PP-GFK Ʋ Seal FKM (COG VI500), EPDM (COG AP310) Materials, non-wetted parts Ʋ Compression flange PP-GF30 black Ʋ Mounting strap 316L VEGAPULS 69 • Foundation Fieldbus...
  • Page 68 Max. measuring range 120 m (393,7 ft) Output variable Output Ʋ Signal digital output signal, Foundation Fieldbus protocol Ʋ Physical layer according to IEC 61158-2 Damping (63 % of the input variable) 0 … 999 s, adjustable VEGAPULS 69 • Foundation Fieldbus...
  • Page 69 - 30 mm (- 1.181 in) Fig. 50: Deviation under reference conditions Reference plane Recommended min. distance Measuring range end Repeatability ≤ ±1 mm Deviation with bulk solids The values depend to a great extent on the application. Binding specifications are thus not possible. VEGAPULS 69 • Foundation Fieldbus...
  • Page 70 -40 … +80 °C (-40 … +176 °F) Ambient temperature - Process temperature Time span (after a sudden measuring distance change of max. 2 m in bulk solids applications) until the output signal has taken on 90 % of the final value for the first time (IEC 61298-2). Outside the specified beam angle, the energy level of the radar signal is 50% (-3 dB) less. EIRP: Equivalent Isotropic Radiated Power. VEGAPULS 69 • Foundation Fieldbus...
  • Page 71 35°C / 95°F 0°C / 32°F -40°C 50°C 80°C 100°C 130°C -40°F 122°F 176°F 212°F 266°F -40°C / -40°F Fig. 52: Ambient temperature - Process temperature, metal-jacketed lens antenna up to +130 °C (266 °F) Ambient temperature Process temperature Aluminium housing Plastic housing Stainless steel housing, precision casting Stainless steel housing, electropolished VEGAPULS 69 • Foundation Fieldbus...
  • Page 72 Ʋ with mounting strap 1 g at 5 … 200 Hz according to EN 60068-2-6 (vibration with resonance) Shock resistance 100 g, 6 ms according to EN 60068-2-27 (mechanical shock) Data on rinsing air connection Recommended max. pressure with con- 1 bar (14.50 psig) tinuous rinsing VEGAPULS 69 • Foundation Fieldbus...
  • Page 73 Ʋ Seal with metal jacketed lens antenna Threaded plug of 316Ti Reflux valve - (optional, is absolutely necessary for Ex applications) Ʋ Material 316Ti Ʋ Thread G⅛ Ʋ Seal FKM (SHS FPM 70C3 GLT), EPDM (COG AP310) Ʋ For connection G⅛ Ʋ Opening pressure 0.5 bar (7.25 psig) Ʋ Nominal pressure stage PN 250 VEGAPULS 69 • Foundation Fieldbus...
  • Page 74 Ʋ Colour - Ex-version Blue Display and adjustment module Display element Display with backlight Measured value indication Ʋ Number of digits Ʋ Size of digits W x H = 7 x 13 mm Adjustment elements 4 keys VEGAPULS 69 • Foundation Fieldbus...
  • Page 75 Ʋ Ex-ia instrument - Power supply 9 … 24 V DC ENTITY model Ʋ Ex-d-ia instrument 16 … 32 V DC Operating voltage U - illuminated display and adjustment module Ʋ Non-Ex instrument 13.5 … 32 V DC VEGAPULS 69 • Foundation Fieldbus...

  • Page 76: Radio Astronomy Stations

    "Instrument search" as well as in the download area. 11.2 Radio astronomy stations Certain restrictions on the use of VEGAPULS 69 outside closed vessels result from the radio license. You can find these restrictions in chapter "Radio license for Europe". Some of these restric- tions have to do radio astronomy stations. The following table states the geographic positions of...

  • Page 77: Supplementary Information Foundation Fieldbus

    Transducer Block (TB) Standard Block (AI) Execution Time 30 mS Advanced Function Blocks Discret Input (DI) PID Control Output Splitter (OS) Signal Characterizer (SC) Integrator Input Selector (IS) Arithmetic (AR) Diagnostics Standard Advanced Performance Function Blocks Instantiable VEGAPULS 69 • Foundation Fieldbus...
  • Page 78 Fig. 55: Schematic presentation function block Analog Input (AI) Function block Discret Input (DI) The function block "Discret Input (DI)" takes the original measured value selected by a Channel Number and makes it available to additional function blocks on its output. VEGAPULS 69 • Foundation Fieldbus...
  • Page 79 A retrograde calculation function is realised by using the linear imaging function inversely. A cascading of several Output Splitters is supported by an integrated decision table for the combinability of inputs and outputs. Fig. 58: Schematic presentation function block Output Splitter VEGAPULS 69 • Foundation Fieldbus...
  • Page 80 When these default values are reached, digital output signals will be outputted. The integration func- tion is carried out upwardly starting with zero and downwards with a default value. Two flow values are also available so that the net flow volume can be calculated and integrated. This can be used for calculation of volume and mass changes in the vessel or for optimisation of flow controls. Fig. 60: Schematic presentation function block Integrator Function block Input Selector The function block "Input Selector" offers selection possibilities for up to four inputs and generates VEGAPULS 69 • Foundation Fieldbus...
  • Page 81 Flow compensation, approximate • BTU flow • Traditional Multiply Divide • Average • Traditional Summer • Fourth order polynomial • Simple HTG compensated level • Fourth order Polynomial Based on PV Fig. 62: Schematic presentation function block Arithmetic VEGAPULS 69 • Foundation Fieldbus...
  • Page 82 Day, month and year FIRMWARE_VERSION_ASCII Software version HW_VERSION_ASCII Hardware version ADJUSTMENT_DATA Min./max.-adjustment physical, percent and offset FIRMWARE_VERSION_MAIN Firmware versions major, minor, revision and build PHYSICAL_VALUES Distance, distance unit, distance status, level and status DEVICE_UNITS Distance and temperature units of the instrument VEGAPULS 69 • Foundation Fieldbus...
  • Page 83 Echo selection criteria, fault signal on loss of echo, delay on fault signal on loss of echo DISPLAY_SETTINGS Indication value, menu language, lightning SIL_MODE EDENVELOPE_CURVE_FIL- Parameters of envelope curve filter, activation of smooth raw value curve EDDETECTION_CURVE_FIL- Parameters of the detection filter, offset threshold value curve EDECHO_COMBINATION Parameters for echo combination, function combine echoes, amplitude difference of combined echoes, position difference of combined echoes VEGAPULS 69 • Foundation Fieldbus...

  • Page 84: Dimensions

    System noise treatment ECHO_MEM_SAVE_CURVE_ TYPE ECHO_MEM_STATE Busy, curve type, error code 11.4 Dimensions The following dimensional drawings represent only an extract of all possible versions. Detailed dimensional drawings can be downloaded at www.vega.com/downloads under "Drawings". VEGAPULS 69 • Foundation Fieldbus...
  • Page 85 Double chamber version Aluminium housing ~ 116 mm ~ 87 mm (4.57") (3.43") ø 86 mm ø 86 mm (3.39") (3.39") M16x1,5 M20x1,5 M20x1,5/ ½ NPT M20x1,5/ ½ NPT Fig. 64: Housing versions with protection rating IP 66/IP 68 (0.2 bar) - with integrated display and adjustment module the housing is 9 mm/0.35 in higher Single chamber version Double chamber version VEGAPULS 69 • Foundation Fieldbus...
  • Page 86 ø 80 mm ø 79 mm (3.39") (3.15") (3.11") M16x1,5 M20x1,5/ ½ NPT M20x1,5/ M20x1,5/ ½ NPT ½ NPT Fig. 66: Housing versions with protection rating IP 66/IP 68 (0.2 bar) - with integrated display and adjustment module the housing is 9 mm/0.35 in higher Single chamber version, electropolished Single chamber version, precision casting Double chamber version, precision casting VEGAPULS 69 • Foundation Fieldbus...
  • Page 87 Single chamber version, precision casting Double chamber version, precision casting VEGAPULS 69, plastic horn antenna with compression flange ø 107 mm ø 21 mm (4.21") (0.83") ø 75 mm (2.95") ø 115 mm (4.53") ø 156 mm (6.14") ø 200 mm (7.87") Fig. 68: Radar sensor with compression flange suitable for flanges 3" 150 lbs, DN 80 PN 16 Compression flange VEGAPULS 69 • Foundation Fieldbus...
  • Page 88 11 Supplement VEGAPULS 69, plastic horn antenna with compression flange and rinsing connection ø 107 mm ø 21 mm (4.21") (0.83") ø 75 mm (2.95") ø 156 mm (6.14") ø 200 mm (7.87") Fig. 69: Radar sensor with compression flange suitable for flanges 3" 150 lbs, DN 80 PN 16 Compression flange Reflux valve Rinsing connection VEGAPULS 69 • Foundation Fieldbus...
  • Page 89 11 Supplement VEGAPULS 69, plastic horn antenna with adapter flange ø 75 mm (2.95") ø 98 mm (3.86") ø 180 mm (7.09") ø 220 mm (8.66") Fig. 70: Radar sensor with adapter flange DN 100 PN 6 Adapter flange Process seal VEGAPULS 69 • Foundation Fieldbus...
  • Page 90 11 Supplement VEGAPULS 69, plastic horn antenna mit adapter flange und rinsing connection ø 75 mm (2.95") ø 98 mm (3.86") ø 180 mm (7.09") ø 220 mm (8.66") Fig. 71: VEGAPULS 69, adapter flange DN 100 PN 6 and rinsing connection Rinsing air connection Reflux valve Adapter flange VEGAPULS 69 • Foundation Fieldbus...
  • Page 91 11 Supplement VEGAPULS 69, plastic horn antenna with mounting strap 125 mm (4.92") 2,5 mm (0.10") ø 75 mm (2.95") ø 107 mm (4.21") 9 mm (0.35") ø 115 mm (4.53") 12 mm (0.47") Fig. 72: VEGAPULS 69, plastic horn antenna, mounting strap in 170 or 300 mm length VEGAPULS 69 • Foundation Fieldbus...
  • Page 92 11 Supplement VEGAPULS 69, metal-jacketed lens antenna G 1/8" x 8mm ø 98 mm (3.86") Fig. 73: VEGAPULS 69, metal-jacketed lens antenna. Flange thickness acc. to drawing, flange dimensions acc. to DIN/ASME/JIS. Version up to 130 °C (266 °F) Version up to 200 °C (392 °F) VEGAPULS 69, metal-jacketed lens antenna with rinsing connection 43 mm (1.69") 35 mm (1.38") 43 mm (1.69") 35 mm (1.38") Fig. 74: VEGAPULS 69, metal-jacketed lens antenna with rinsing connection Version up to 130 °C (266 °F)
  • Page 93 11 Supplement VEGAPULS 69, metal-jacketed lens antenna with swivelling holder Fig. 75: VEGAPULS 69, metal-jacketed lens antenna and swivelling holder Version up to 130 °C (266 °F) Version up to 200 °C (392 °F) VEGAPULS 69 • Foundation Fieldbus...
  • Page 94 11 Supplement VEGAPULS 69, metal-jacketed lens antenna with swivelling holder and rinsing connection Fig. 76: VEGAPULS 69, metal-jacketed lens antenna with swivelling holder and rinsing connection Version up to 130 °C (266 °F) Version up to 200 °C (392 °F) Blind plug 90° angle joint Reflux valve VEGAPULS 69 • Foundation Fieldbus...

  • Page 95: Industrial Property Rights

    Les lignes de produits VEGA sont globalement protégées par des droits de propriété intellec- tuelle. Pour plus d'informations, on pourra se référer au site www.vega.com. VEGA lineas de productos están protegidas por los derechos en el campo de la propiedad indus- trial. Para mayor información revise la pagina web www.vega.com.
  • Page 96 – Discret Input (AI) 78 – Input Selector 80 – Integrator 80 – Output Splitter 79 – PID Control 79 – Signal Characterizer 80 – Transducer Block (TB) 78 Linearization 51 Main menu 39 Measured value memory 56 Mounting VEGAPULS 69 • Foundation Fieldbus...
  • Page 97 Notes VEGAPULS 69 • Foundation Fieldbus...
  • Page 98 Notes VEGAPULS 69 • Foundation Fieldbus...
  • Page 99 Notes VEGAPULS 69 • Foundation Fieldbus...
  • Page 100 Subject to change without prior notice © VEGA Grieshaber KG, Schiltach/Germany 2016 VEGA Grieshaber KG Phone +49 7836 50-0 Am Hohenstein 113...
