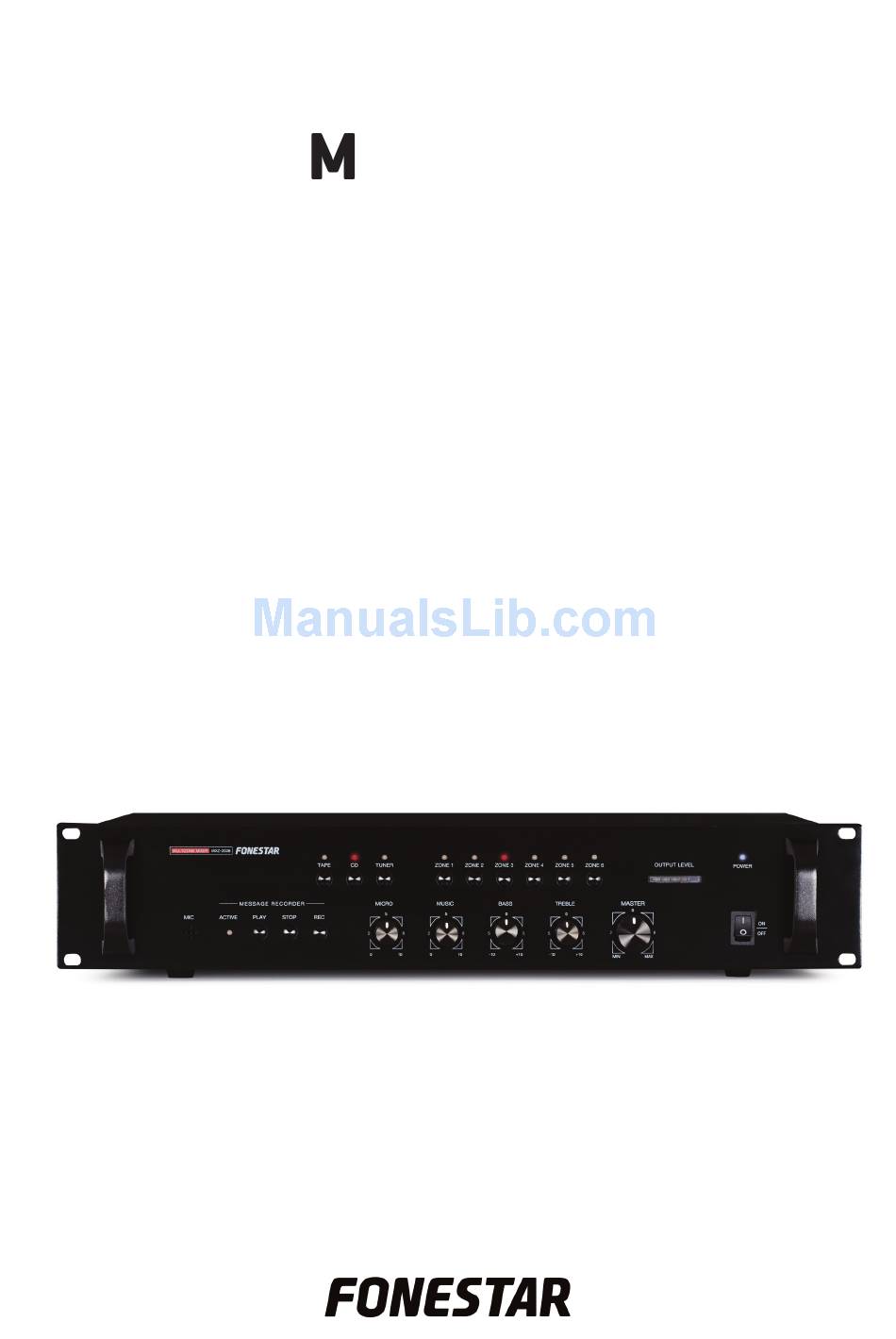

- Page 1 XZ-2036 MULTIZONE MIXER/PREAMPLIFIER INSTRUCTION MANUAL...
- Page 2 We take this opportunity to thank you for buying this product. We recommend you read the instruction manual before switching on the machine and follow the instructions that are given. Keep the manual for future reference. SECURITY AND THE ENVIRONMENT ELECTRICAL SECURITY Check that the current in the mains connection where the machine is to be installed corresponds to the power supply of the machine.
-
Page 3: Exemption Of Liability
The characteristics of the equipment and the content of the manual can change without forewarning. FONESTAR, S.A. does not assume responsibilities regarding the inappropriate use of the equipment or the information supplied in this instruction manual, and specifically disclaims any implied liability for marketability or fitness for any other use. -
Page 4: Controls And Functions Front Panel

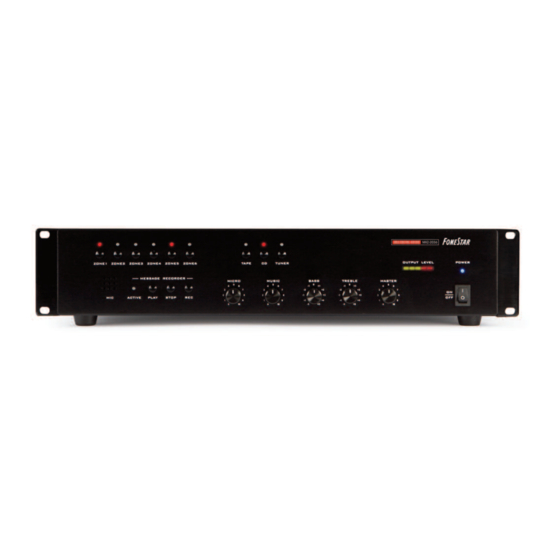

DESCRIPTION - 2-channel multizone mixer/preamplifier with 6 output zones. - Two operating modes: as an auxiliary line switching unit or as a 100 V line switching unit with one amplifier for background music and another for paging in all the zones. - Message recorder/player with selectable playback mode. -
Page 5: Rear Panel
REAR PANEL 1.- AC socket: for the connection of AC power supply cable. 2.- RELE ZONE CONSOL OUT: output control relay. During the sending of messages from the microphone mod. M-203 a 24 V DC tension will be activated between the negative terminal and the active zones (1 to 6). 3.- MIX MUSIC-PAGE OUT: background music and paging combined line output. -
Page 6: Input Priority
For the connection of microphone mod. M-203 a Cat.5 type cable is used. This cable is connected to the CONSOL output of the mixer mod. MXZ-2036 and to the LINE IN input of the first microphone mod. M-203. In the event of having more than one microphone they should be connected in cascade from the LINK OUT output of the first to the LINE IN input of the second and so on. - Page 7 CONNECTION Make the connections with the amplifier and all the components of the audio system switched off and disconnected from the power supply. The system can operate as an auxiliary line switching unit, which requires one amplifier per zone, or as a 100 V line switching unit, with one amplifier for background music and another one for paging.
- Page 8 EXAMPLE OF CONNECTION AS AUXILIARY LINE SWITCHING UNIT In this configuration one amplifier per zone is required. The power of each amplifier must be the same as the power of the loudspeakers installed in each respective zone. - 8 -...
-
Page 9: Block Diagram
BLOCK DIAGRAM - 9 -... -
Page 10: Technical Specifications
TECHNICAL SPECIFICATIONS MXZ-2036 CHARACTERISTICS Multizone mixer/preamplifier. 6 selectable output zones. Recorder/player for 3 pre-recorded messages. Remote paging and pre-recorded messages through the optional M-203 microphone. Connection of up to 6 microphones with M-203 zone selector. Phantom, chimes and priority. INPUTS 1 balanced mic., XLR 600 Ω... -
Page 11: Warranty
This product has been tested and has passed the corresponding quality control prior to being put on the market. FONESTAR guarantees the suitability of the product for its specified use during a period of 2 years from the delivery date and commits itself to repair or substitute the goods as expressed in the Spanish law “La Ley General para la Defensa de los... - Page 12 www.fonestar.com...
