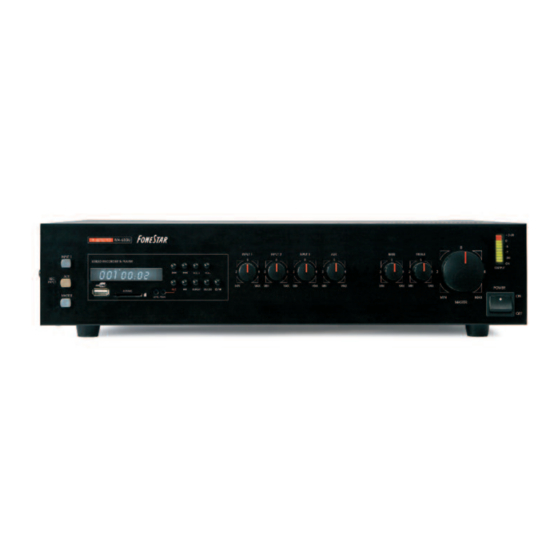

- Page 1 MA-65GU AMPLIFIER WITH USB/SD/MP3 RECORDER N Instruction Manual...
- Page 2 We take this opportunity to thank you for buying this product. We recommend you read the instruction manual before switching on the machine and follow the instructions that are given. Keep the manual for future reference. SECURITY AND THE ENVIRONMENT ELECTRICAL SECURITY Check that the current in the mains connection where the machine is to be installed corresponds to the power supply of the machine.
-
Page 3: Exemption Of Liability
The characteristics of the equipment and the content of the manual can change without forewarning. FONESTAR, S.A. does not assume responsibilities regarding the inappropriate use of the equipment or the information supplied in this instruction manual, and specifically disclaims any implied liability for marketability or fitness for any other use. -
Page 4: Controls And Functions Front Panel
DESCRIPTION - P.A. Amplifier. - USB/SD/MP3 player. - Phantom power. - Paging priority. CONTROLS AND FUNCTIONS FRONT PANEL 1.- REC INPUT: recording selector for choosing the audio source to be recorded. Press the INPUT 1 button to record from the audio source connected to INPUT 1, press the AUX button to record from the audio source connected to the auxiliary input, or press the MASTER button if you want to record from all the inputs at the same time. -
Page 5: Back Panel
- Press the REC button once. - Select the recording destination (memory card or USB storage device) by pressing the SD/USB button. - Press the REC button again and this word will flash on the display, this is the moment when recording starts. - Page 6 MIC position, as the voltage in pins 2 and 3 of the XLR connector can damage the microphones. If in any doubt, speak to your supplier or the FONESTAR technical service. Examples of balanced and unbalanced line connection.
- Page 7 Note: when the amplifier is used with 24 V DC, the power is reduced approximately 20%. 12.- OUTPUT: output for speakers. For connecting loudspeakers in low impedance 4 Ω and 100/70/25 V high impedance lines. Connect the loudspeaker line between the COM terminal and the impedance or line V desired.
- Page 8 CONNECTION Make the connections with the amplifier and all the audio system components switched off and disconnected from the power supply. Firstly, connect the audio sources to the inputs. Connect the loudspeakers to the loudspeaker output. Use the low impedance 4 Ω output or the high impedance 100, 70 or 25 V line output, depending on the type of loudspeakers that you are going to connect.
-
Page 9: Block Diagram
BLOCK DIAGRAM - 9 -... -
Page 10: Specifications
SPECIFICATIONS MA-65GU CHARACTERISTICS P. A. amplifier. USB/SD/MP3 recorder/player. Phantom power. Priority paging. POWER 90 W maximum, 60 W RMS RESPONSE 80-16 000 Hz ±3 dB DISTORTION Harmonic: < 1% INPUTS 3 balanced mics./ lines, combo (XLR and 6.3 mm jack) 600 Ω 2 mV and 47,000 Ω... -
Page 11: Declaration Of Conformity
This product has been tested and has passed the corresponding quality control prior to being put on the market. FONESTAR guarantees the suitability of the product for its specified use during a period of 2 years from the delivery date and commits itself to repair or substitute the goods as expressed in the Spanish law ‘La Ley General para la Defensa de los...
