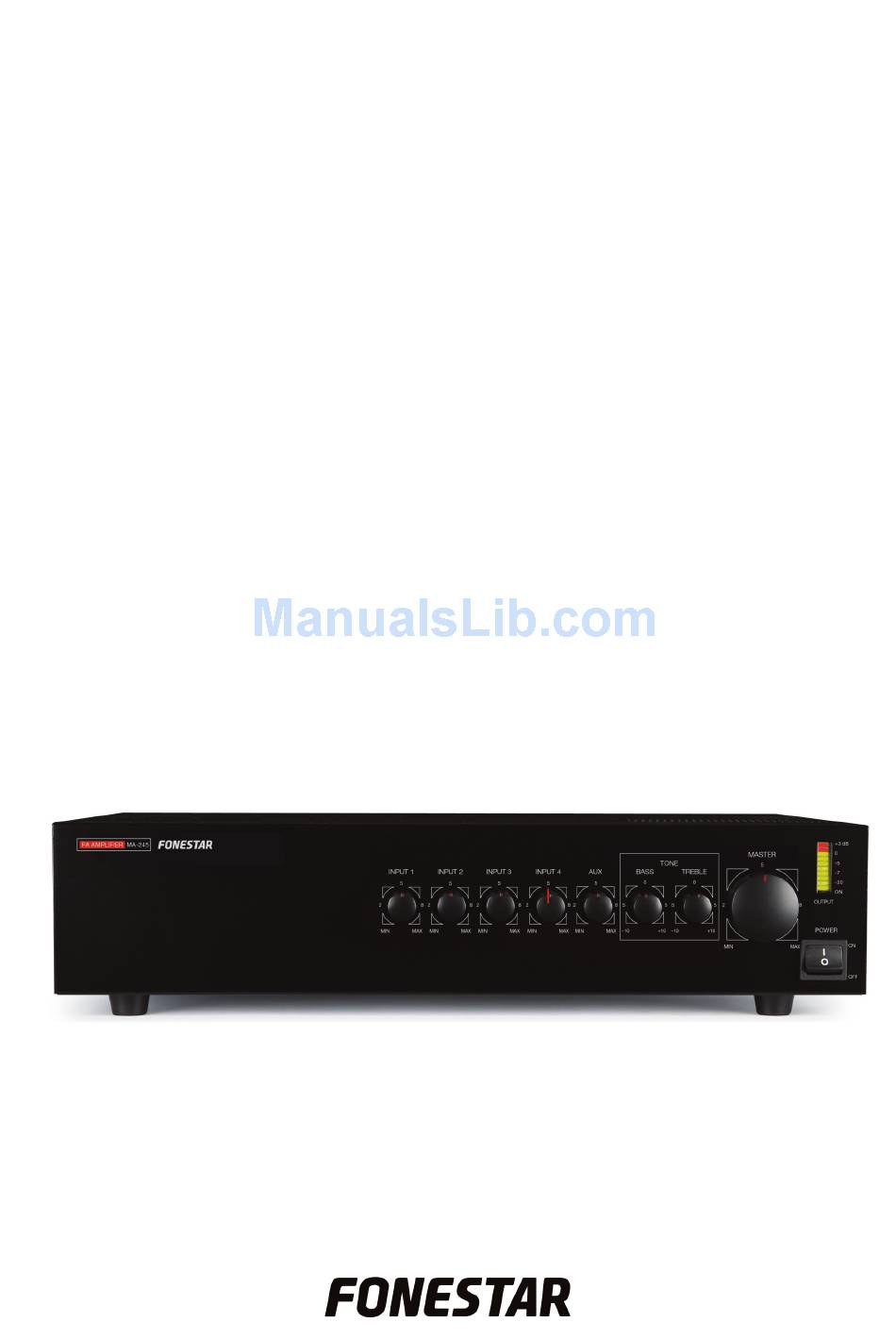

- Page 1 MA-125, MA-245 PA AMPLIFIER INSTRUCTION MANUAL...
- Page 2 We take this opportunity to thank you for buying this product. We recommend you read the instruction manual before switching on the machine and follow the instructions that are given. Keep the manual for future reference. SECURITY AND THE ENVIRONMENT ELECTRICAL SECURITY Check that the current in the mains connection where the machine is to be installed corresponds to the power supply of the machine.
-
Page 3: Exemption Of Liability
The characteristics of the equipment and the content of the manual can change without forewarning. FONESTAR, S.A. does not assume responsibilities regarding the inappropriate use of the equipment or the information supplied in this instruction manual, and specifically disclaims any implied liability for marketability or fitness for any other use. -

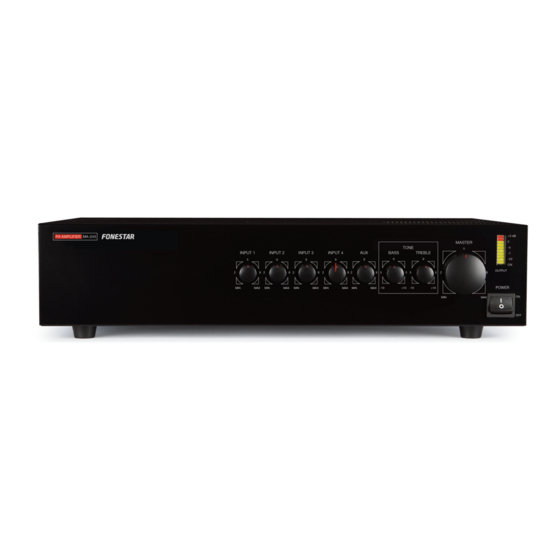

Page 4: Controls And Functions Front Panel
DESCRIPTION - PA amplifier. - With phantom power supply and priority. CONTROLS AND FUNCTIONS FRONT PANEL 1.- INPUT 1-4 and AUX: controls which regulate the volume of inputs 1 to 4 and the aux input. 2.- BASS: reinforces or attenuates bass frequencies ±10 dB. 3.- TREBLE: reinforces or attenuates treble frequencies ±10 dB. - Page 5 MIC position, as the voltage present in pins 2 and 3 of the XLR connector could damage the microphones. If in doubt, please consult your supplier or the FONESTAR technical service. 15.- OUTPUT: loudspeaker output. For the connection of loudspeakers in low impedance 4 Ω and in high impedance 100/70/25 V lines.
- Page 6 CONNECTION Make the connections with the amplifier and all the components of the audio system switched off and disconnected from the power supply. Firstly, connect the audio sources to the inputs. Connect the loudspeakers to the loudspeaker outputs. Use the 4 Ω low impedance output or the 100, 70 or 25 V high impedance lines, according to the type of loudspeakers you are going to connect.
-
Page 7: Technical Specifications
TECHNICAL SPECIFICATIONS MA-125 MA-245 CHARACTERISTICS PA amplifier. Phantom power supply. Priority paging. POWER 180 W maximum, 120 W RMS 360 W maximum, 240 W RMS RESPONSE 80-16 000 Hz ±3 dB DISTORTION Harmonic: < 1 % at 1 kHz INPUTS 4 balanced mics./lines, combo (XLR and 6.3 mm jack) 600 Ω... -
Page 8: Block Diagram
BLOCK DIAGRAM - 8 -... - Page 9 - 9 -...
- Page 10 - 10 -...
-
Page 11: Warranty
This product has been tested and has passed the corresponding quality control prior to being put on the market. FONESTAR guarantees the suitability of the product for its specified use during a period of 2 years from the delivery date and commits itself to repair or substitute the goods as expressed in the Spanish law ‘La Ley General para la Defensa de los Consumidores y Usuarios, Real Decreto Legislativo 1/2007 16 Noviembre. - Page 12 www.fonestar.com...
