- Page 1 M -25T PA AMPLIFIER INSTRUCTION MANUAL...
- Page 2 We take this opportunity to thank you for buying this product. We recommend you read the instruction manual before switching on the machine and follow the instructions that are given. Keep the manual for future reference. SECURITY AND THE ENVIRONMENT ELECTRICAL SECURITY Check that the current in the mains connection where the machine is to be installed corresponds to the power supply of the machine.
- Page 3 The characteristics of the equipment and the content of the manual can change without forewarning. FONESTAR, S.A. does not assume responsibilities regarding the inappropriate use of the equipment or the information supplied in this instruction manual, and specifically disclaims any implied liability for marketability or fitness for any other use.

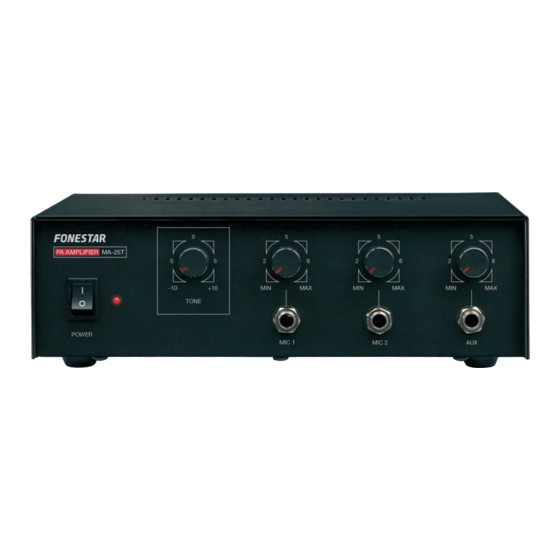

- Page 4 DESCRIPTION PA amplifier, 30 W maximum, 15 W RMS. Desktop and vehicle assembly. CONTROLS AND FUNCTIONS FRONT PANEL 1.- TONE: bass/treble tone control. 2.- MIC 1: microphone 1 input volume control. 3.- MIC 2: microphone 2 input volume control. 4.- AUX: aux input volume control. 5.- POWER: amplifier on/off switch.
- Page 5 CONNECTION Connect the loudspeakers to the speaker output on the amplifier. Use the low impedance output or the 100 V line output, depending on the type of loudspeakers to be used. Both types of outputs cannot be used at the same time. If using the low impedance output, you must connect the loudspeakers in a series/parallel circuit so that the load impedance of the loudspeakers is the same as the amplifier output impedance and the power supplied by the amplifier does not exceed that withstood by the loudspeakers.
- Page 6 TECHNICAL SPECIFICATIONS MA-25T CHARACTERISTICS PA amplifier. Desktop and vehicle assembly. POWER 30 W maximum, 15 W RMS RESPONSE 50-15,000 Hz ±3 dB DISTORTION Harmonic: < 2% at 1 kHz INPUTS 2 unbalanced mics., 6.3 mm jack 600-20,000 Ω 5 mV 1 mono aux, 6.3 mm jack 10-50,000 Ω...
- Page 7 2 months after being conscious of the problem. It is only necessary to contact FONESTAR if it is impossible or imposes an undue burden for them to solve it. To benefit from this warranty it is necessary to show the proof of purchase with the date clearly visible, with no corrections or crossing out.
- Page 8 www.fonestar.com...
