- Page 1 X-865 PROFESSIONAL 7-CHANNEL MIXER/PREAMPLIFIER WITH 2 OUTPUT ZONES INSTRUCTION MANUAL...
- Page 2 We take this opportunity to thank you for buying this product. We recommend you read the instruction manual before switching on the machine and follow the instructions that are given. Keep the manual for future reference. SECURITY AND THE ENVIRONMENT ELECTRICAL SECURITY Check that the current in the mains connection where the machine is to be installed corresponds to the power supply of the machine.
-
Page 3: Exemption Of Liability
The characteristics of the equipment and the content of the manual can change without forewarning. FONESTAR, S.A. does not assume responsibilities regarding the inappropriate use of the equipment or the information supplied in this instruction manual, and specifically disclaims any implied liability for marketability or fitness for any other use. -
Page 4: Controls And Functions Front Panel

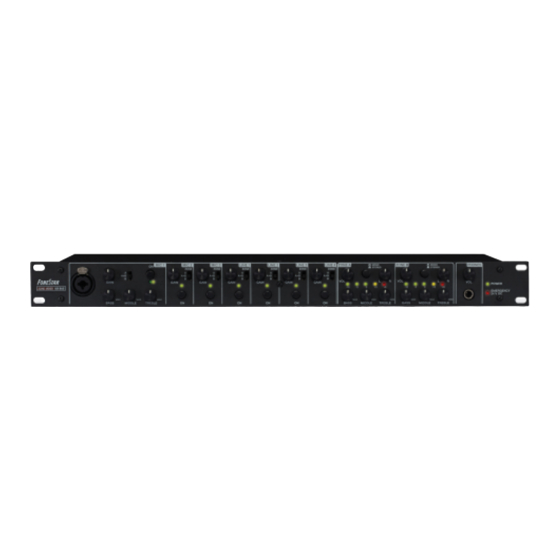

DESCRIPTION The model MX-865 is a mixer with 7 channels which are individually assignable to 2 output zones with independent volume control and 3-band equalizer. It has 3 microphone and 4 line inputs available, phantom power supply with individual selector, priority function per level in inputs MIC 1-3 and emergency input. -
Page 5: Rear Panel
10.-LINE 1-4: set of controls for LINE 1-4 inputs. GAIN: gain control for the input signal. A, A+B, B: selector which allows you to choose the output or outputs that the signal is going to be sent LED input channel on indicator. ON: push button which lets you activate or deactivate the input channel. -
Page 6: Installation And Connection
15.- PHANTOM: switches which let you activate or deactivate the phantom power supply for inputs MIC 1- 3 independently. The mixer supplies 15 V DC in the XLR terminals corresponding to the activated input. 16.- MIC 2: microphone input with combo connector (XLR and 6.3 mm stereo jack). Balanced and unbalanced microphone signals and dynamic or condenser microphones can be connected. -
Page 7: Block Diagram
BLOCK DIAGRAM - 7 -... -
Page 8: Technical Specifications
TECHNICAL SPECIFICATIONS MX-865 CHARACTERISTICS Mixer/preamplifier 7 channels: 3 microphone and 4 auxiliary lines. 2 output zones with independent volume control. Input channels individually assignable to output zones. MIC 1-3 with priority depending on the level, selectable. Phantom power supply. Emergency input with priority. - Page 9 - 9 -...
- Page 10 - 10 -...
- Page 11 2 months after being conscious of the problem. It is only necessary to contact FONESTAR if it is impossible or imposes an undue burden for them to solve it. To benefit from this warranty it is necessary to show the proof of purchase with the date clearly visible, with no corrections or crossing out.
- Page 12 www.fonestar.com...
