- Page 1 MAZ-4480 MULTIZONE AMPLIFIER WITH 4 OUTPUT ZONES N Instruction Manual...
- Page 2 We take this opportunity to thank you for buying this product. We recommend you read the instruction manual before switching on the machine and follow the instructions that are given. Keep the manual for future reference. SECURITY AND THE ENVIRONMENT ELECTRICAL SECURITY Check that the current in the mains connection where the machine is to be installed corresponds to the power supply of the machine.
-
Page 3: Exemption Of Liability
The characteristics of the equipment and the content of the manual can change without forewarning. FONESTAR, S.A. does not assume responsibilities regarding the inappropriate use of the equipment or the information supplied in this instruction manual, and specifically disclaims any implied liability for marketability or fitness for any other use. -
Page 4: Controls And Functions Front Panel

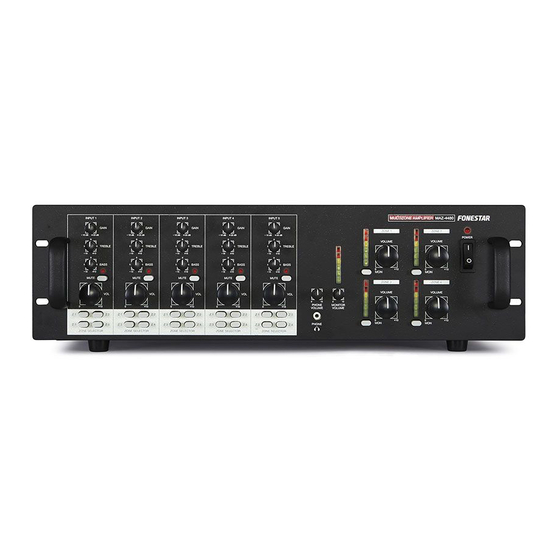

DESCRIPTION The MAZ-4480 model is a multizone amplifier with an allocation matrix with 5 input channels and 4 output channels with independent volume control. 4 x 135 W max., 4 x 120 W RMS output power, 4-8 Ω speaker output and 100, 75 and 25 V high impedance lines and line level. Suitable for P.A. systems with different speaker zones which need an independent volume control. -
Page 5: Back Panel
6. - PHONE: headphone output to monitor the output channels assigned to MONITOR. 7. - MONITOR VOLUME: MONITOR output level adjustment. 8. - On/off switch. BACK PANEL 1. - 115 V/230 V: power supply voltage selector. 2. - MONITOR (LINE OUT): line level output to monitor the output. 3. - Page 6 MIC position as the voltage in pins 2 and 3 of the XLR connector can damage the microphones. If in doubt, please consult your supplier or FONESTAR technician. CONNECTION Make the connections with the amplifier and all the audio system components switched off and disconnected...
- Page 7 Example of connection to a 100 V high impedance line To increase the power in a certain zone, connect the line output for the chosen zone to a power amp input, for example, model FS-2601E. Use the 100 V high impedance line output from the power amp to connect the speakers as shown in the following diagram: Example connection of a zone line output to the power amp FS-2601E - 7 -...
- Page 8 INSTRUCTIONS FOR USE ON AND OFF Before switching the amplifier on check that the output volume controls are at their minimum. Switch on the rest of the audio system, leaving the amplifier till last and then adjust the output volume. To switch the audio system off, adjust the output volume from the amplifier to its minimum and switch it off.
- Page 9 Jumper to select the priority in CH 1 depending on signal level In this way, with the jumper in the ON position, when a signal is detected in the tel. paging or CH 1 input the rest of the inputs (CH2 to CH 5) will be weakened. NOTE: By default the jumper is supplied in the OFF position.
-
Page 10: Block Diagram
BLOCK DIAGRAM - 10 -... -
Page 11: Specifications
SPECIFICATIONS MAZ-4480 CHARACTERISTICS Multizone amplifier. Allocation matrix of 5 input channels to 4 output zones. 4 zones with independent volume control and line output. Phantom power supply. Priority paging. POWER 4 x 135 W maximum, 4 x 120 W RMS RESPONSE 60-17 000 Hz ±3 dB... -
Page 12: Declaration Of Conformity
This product has been tested and has passed the corresponding quality control prior to being put on the market. FONESTAR guarantees the suitability of the product for its specified use during a period of 2 years from the delivery date and commits itself to repair or substitute the goods as expressed in the Spanish law ‘La Ley General para la Defensa de los...
