DISCO-B5-MAGNET H

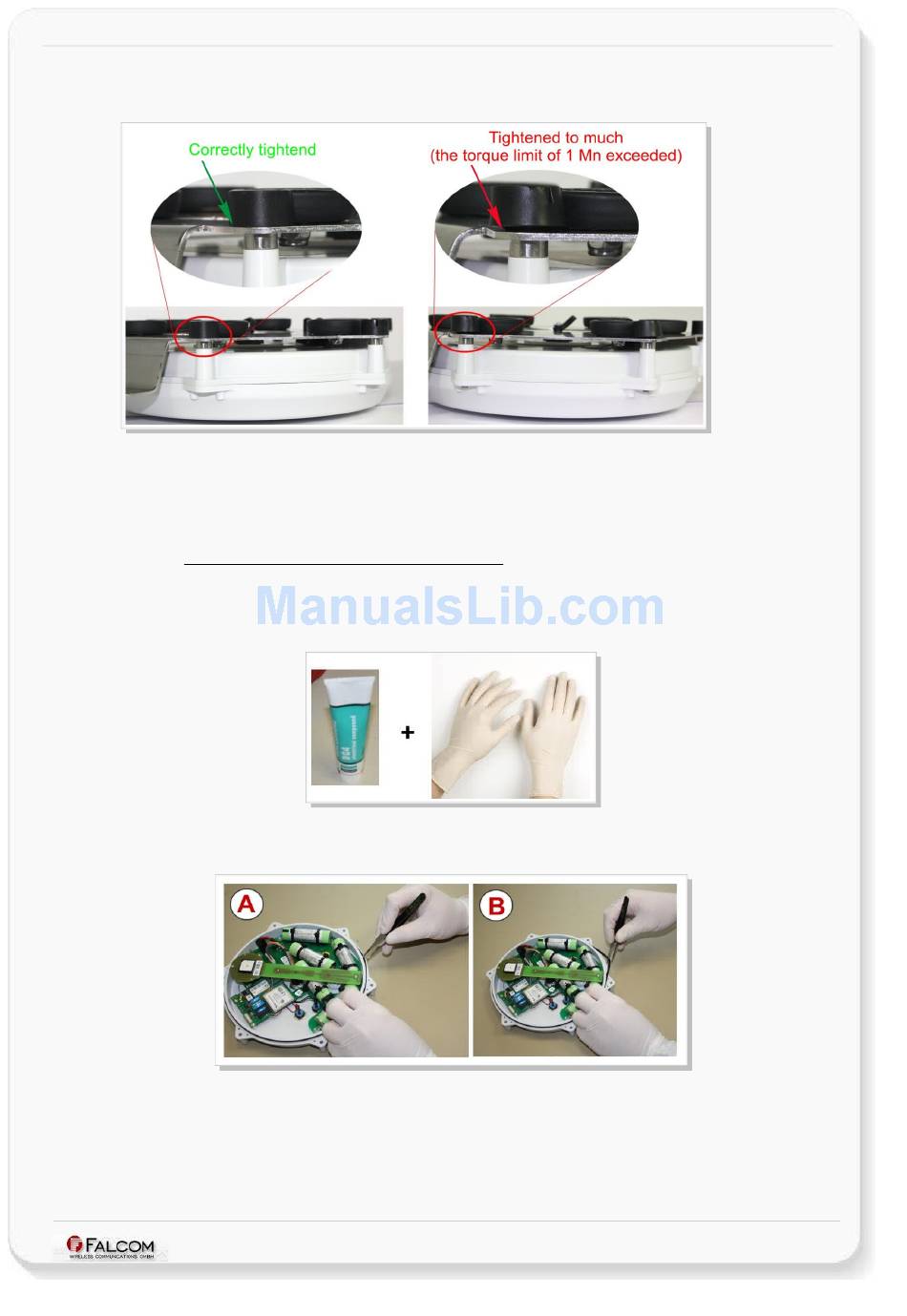

Hint: The tightening of the screws should be done using an alternating cross over tightening pattern.
Applying too much force during tightening may deform the rubber feet as shown in figure below.
Figure 15:
Now you are ready to enter the PIN of the SIM card and perform the configuration - refer to
the chapter 7.2.

7.1.1 Procedure for greasing the O-ring

To grease the O-ring you need: Silicone DC4 and Rubber gloves (both items are not included)
The Silicone DC4
http://cpc.farnell.com/1/1/42871-silicone-compond-dc4-2793695-dow-corning.html
Picture 16: Needed
Remove the old O-ring using standard tweezers (not included) as shown below.

This confidential document is a property of FALCOM and may not be copied or circulated without previous permission.

M
ARDWARE ANUAL
ightening of the screws
T
can be purchased, for instance, from
V 1.0.1
ERSION
Farnell website:
Page 29 of 35
