Operating Guide

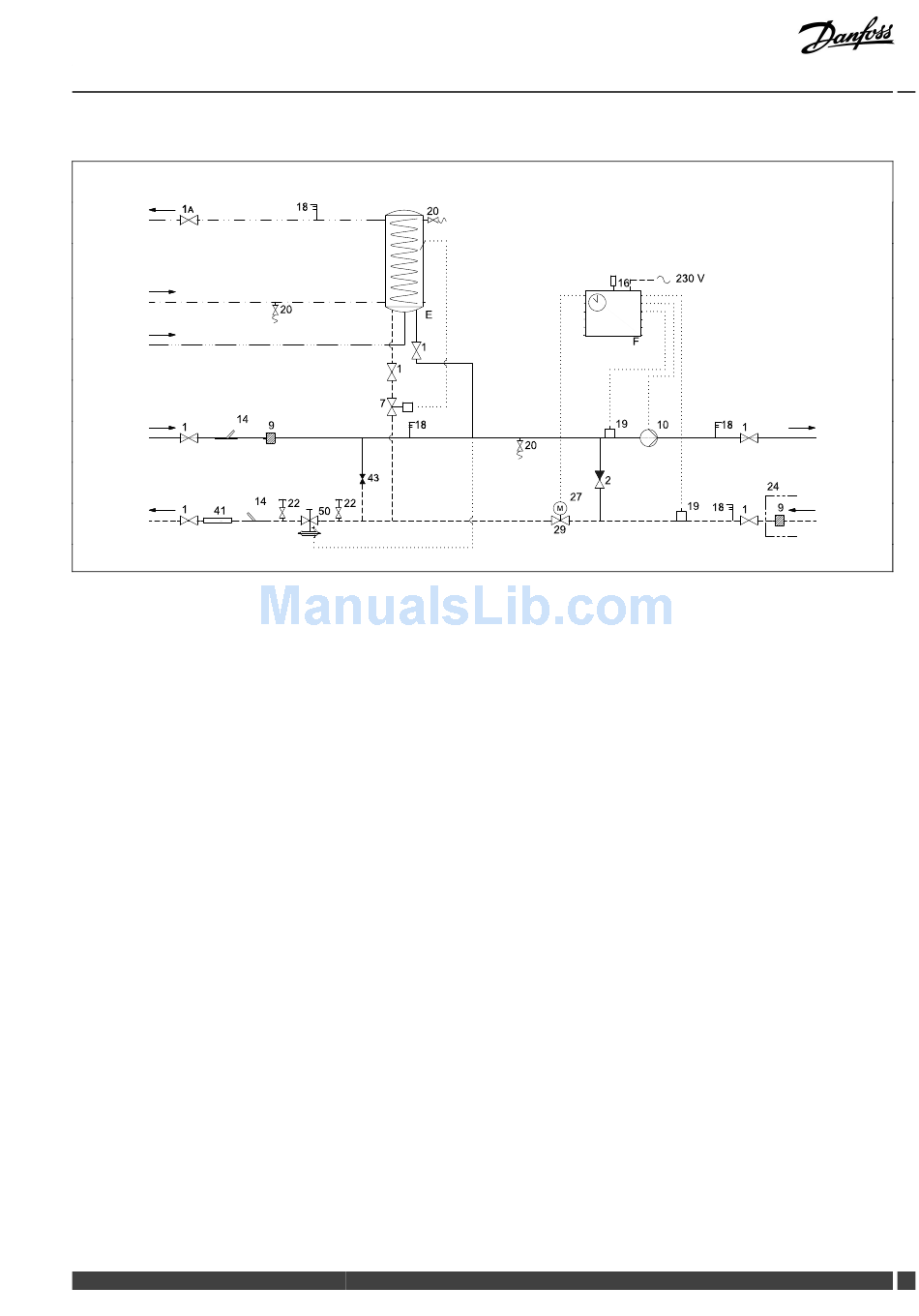

5.2 Schematic diagram

DHW
DCW
HWC
DH
Supply
DH
Return
Your substation might look different than the schematic diagram shown.
Schematic description
E Hot water tank with coil
F Electronic controller
1 Ball valve
1A Ball valve, DVGW
Single check valve
2
7 Thermostatic valve, DHW
9 Strainer
DHW: Domestic Hot Water
DCW: Domestic Cold Water
HWC:
Hot Water Circulation
DH Supply: District Heating Supply
DH Return: District Heating Return
HE Supply: Heating Supply
HE Return: Heating Return
5.2.1 Technical parameters
Technical parameters
Nominal pressure:
Max. DH supply temperature:
Danfoss District Energy
Termix BTD RO MIX
10 Circulator pump
14 Sensor pocket, energy meter
16 Outdoor sensor
18 Thermometer
19 Surface sensor
20 Filling/drain valve
22 Test connection
PN 10 (PN 16 versions are available on enquiry)
T–max = 120 °C
VI.HE.F2.02 / LUK40661
24 Delivered loose with unit
27 Actuator, HE
29 2-way motorized valve
41 Fitting piece, energy meter
43 Ball valve closed
50 Diff. pressure controller with flow limiter
HE
Supply
HE
Return
DEN-GT 9
