Installation Guide

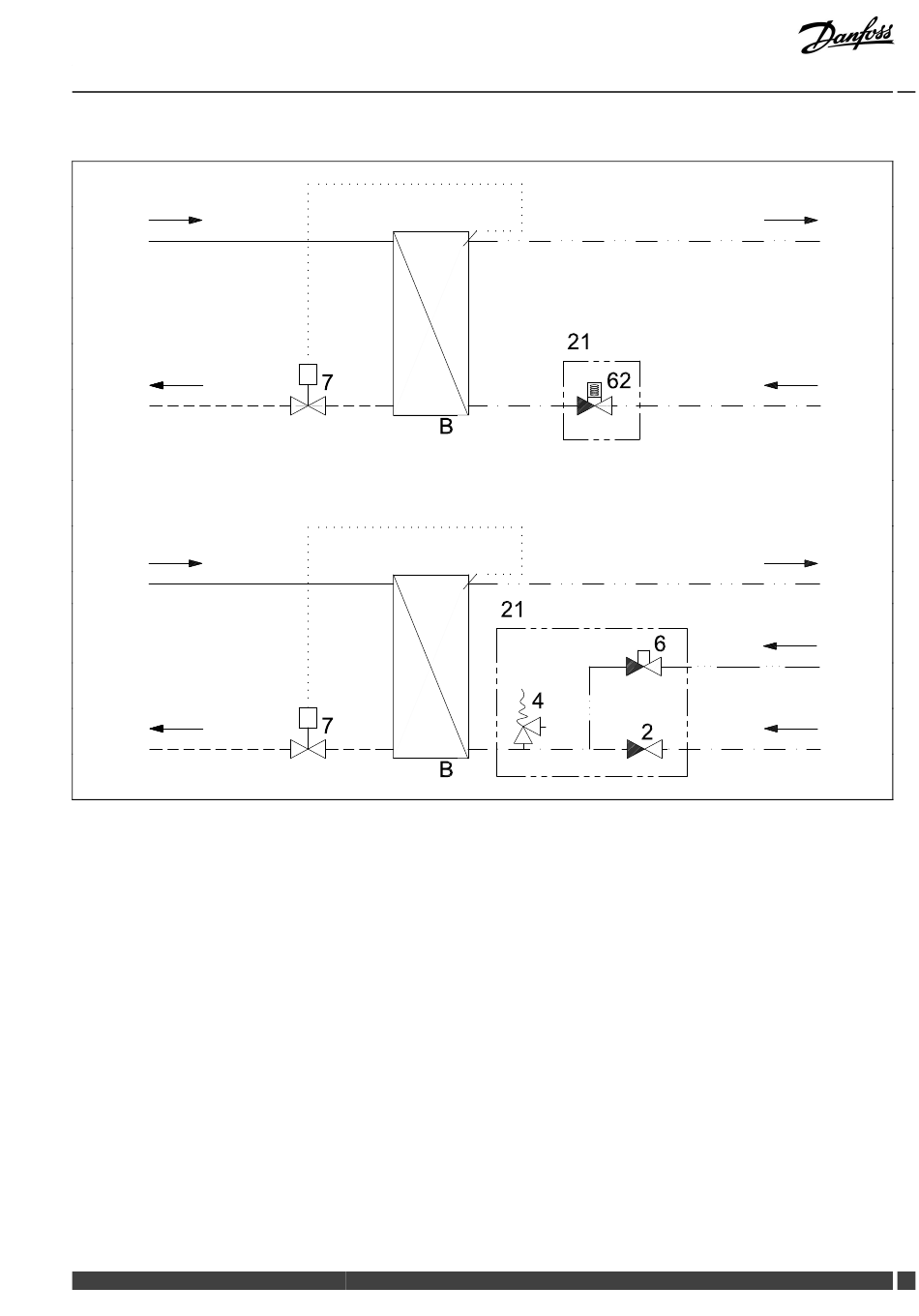

5.2 Schematic diagram
DH
Supply
DH
Return
DH
Supply
DH
Return
Your substation might look different than the schematic diagram shown.
First diagram: Termix One-B – with GTU.
Second diagram: Termix One-B – with safety valve.
Schematic description
B Heat exchanger, DHW
2
Single check valve
4
Safety valve
6
Thermostatic/non-return valve
DHW:
Domestic Hot Water
DCW:
Domestic Cold Water
HWC:
Hot Water Circulation
DH Supply:
District Heating Supply
DH Return:
District Heating Return
Termix One-B – 1 Series BS
7
Thermostatic valve
21 To be ordered separately
62 GTU Pressure equalizer
LGB38000
DHW
DCW
DHW
HWC
DCW
DEN-GT
7
