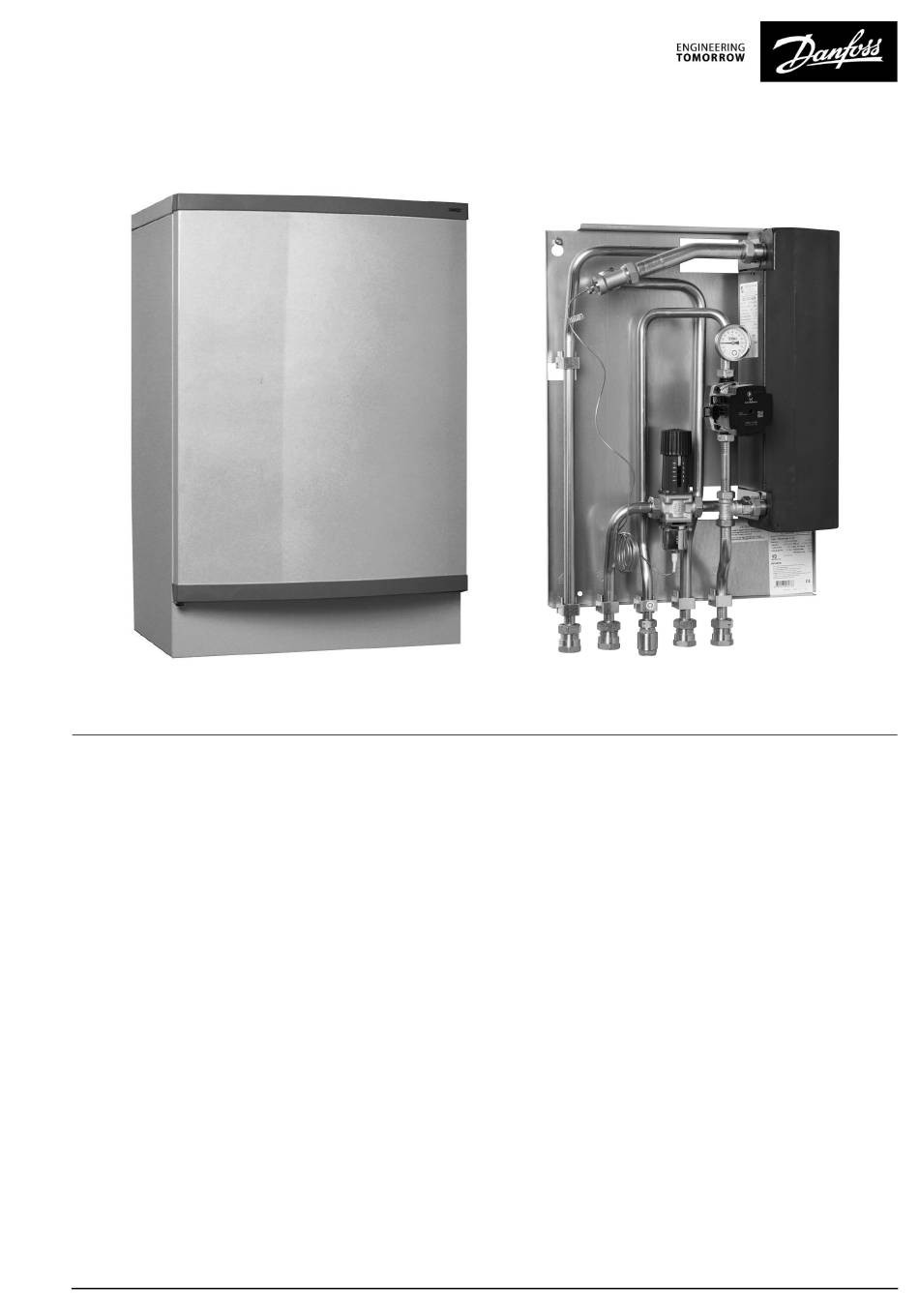

Operating Guide
Termix BV
1.0 Table of Contents
1.0 Table of Contents ............................................. 1
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
2.0 Functional description...................................... 3
3.0 Safety notes..................................................... 4
3.1
Safety Notes - general . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
4.0 Mounting ........................................................ 5
4.1
Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
4.2
Electrical connections. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
5.0 Design............................................................. 8
5.1
Design . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
5.2
Schematic diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
5.3
Design . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
5.4
Schematic diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
6.0 Controls .......................................................... 12
6.1
DHW temperature control. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
6.2
Other. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
6.3
Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
7.0 Troubleshooting .............................................. 17
7.1
Troubleshooting in general . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
7.2
Troubleshooting DHW . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
7.3
Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
© Danfoss | 2022.11
8.0 Declaration...................................................... 23
8.1
Declaration of conformity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
AQ110886477411en-020601/ LUK41500 | 1
Advertisement
Table of Contents
Troubleshooting
Related Manuals for Danfoss Termix BV
Summary of Contents for Danfoss Termix BV
-
Page 1: Table Of Contents
Disposal ............. 19 © Danfoss | 2022.11... - Page 2 Operating Guide Termix BV AQ110886477411en-020601/ LUK41500 2 | © Danfoss | 2022.11...
-
Page 3: Functional Description

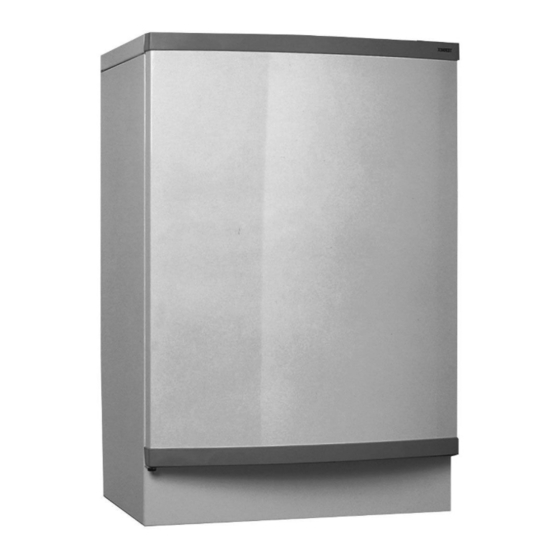

The hot water systems are available in 7 different sizes with an output from 77-265 kW. The Termix BV unit is supplied with PU insulated heat exchangers. Domestic hot water (DHW) -
Page 4: Safety Notes
REACH All Danfoss A/S products fulfill the requirements in REACH. One of the obligations in REACH is to inform customers about presence of Candidate list substances if any, we hereby inform... -
Page 5: Mounting
Assembly, start-up and maintenance work must be performed by primary supply to Danfoss substations. For the sake of simplicity, qualified and authorized personnel only. DH can be taken to mean the primary supply. - Page 6 If a strainer is supplied with the station it must be fitted according to schematic diagram. Please note that the strainer may be supplied loose. Connections Internal installation and district heating pipes connections must be made using threaded, flanged or welded connections. AQ110886477411en-020601/ LUK41500 6 | © Danfoss | 2022.11...
-
Page 7: Electrical Connections
Outdoor sensors should be mounted so as to avoid exposure to direct sunlight. They should not be placed close to doors, windows or ventilation outlets. The outdoor sensor must be connected to the station on the terminal block under the electronic control. AQ110886477411en-020601/ LUK41500 © Danfoss | 2022.11 | 7... -
Page 8: Design
5.0 Design 5.1 Design Your substation might look different than the substation shown. Design description B Heat exchanger, DHW Single check valve Thermostatic controller, DHW 11 Domestic hot water pump 18 Thermometer AQ110886477411en-020601/ LUK41500 8 | © Danfoss | 2022.11... -
Page 9: Schematic Diagram
Technical parameters Nominal pressure: PN 16 Max. DH supply temperature: 120 °C Min. DCW static pressure: 0.5 bar Copper Brazing material (HEX): Heat exchangers test pressure: 30 bar Sound level: ≤ 55 dB AQ110886477411en-020601/ LUK41500 © Danfoss | 2022.11 | 9... -
Page 10: Design
Your substation might look different than the substation shown. Design description 18 Thermometer B Heat exchanger, DHW 27 Actuator G Electronic controller, DHW 30 Flow control with control valve Single check valve 11 Domestic hot water pump AQ110886477411en-020601/ LUK41500 10 | © Danfoss | 2022.11... -
Page 11: Schematic Diagram
Technical parameters PN 16 Nominal pressure: 120 °C Max. DH supply temperature: Min. DCW static pressure: 0.5 bar Brazing material (HEX): Copper Heat exchangers test pressure: 30 bar Sound level: ≤ 55 dB AQ110886477411en-020601/ LUK41500 © Danfoss | 2022.11 | 11... -
Page 12: Controls
DHW temperature is adjusted as follows: To increase temperature, turn the handle on the thermostatic controller to select a higher number. To decrease temperature, turn the handle on the thermostatic controller to select a lower number. AQ110886477411en-020601/ LUK41500 12 | © Danfoss | 2022.11... - Page 13 The controller is a self-acting flow controller with integrated control valve. The controller closes when set max. flow is exceeded and can be used in combination with Danfoss electrical actuators with or with out safety function. Spring return motor can be used as safety function by power failure.
- Page 14 It is necessary to mount a domestic hot water circulation pump on the water heater to avoid regulation problems. The circulation pump can not be switched off, since this will result in regulation problems. (no flow at the sensor). AQ110886477411en-020601/ LUK41500 14 | © Danfoss | 2022.11...
-
Page 15: Other
It is recommended to check the operation of safety valves at intervals of 6 months. This is done by turning the valve head in direction indicated. AQ110886477411en-020601/ LUK41500 © Danfoss | 2022.11 | 15... -
Page 16: Maintenance
Venting Checking that the system is thoroughly vented. Inspections should be carried out minimum every two years. Spare parts can be ordered from Danfoss. Please ensure that any enquiry includes the substation serial number. AQ110886477411en-020601/ LUK41500 16 | © Danfoss | 2022.11... -
Page 17: Troubleshooting
(local) differential pressure in the DH network – if in doubt, ask the DH plant supervisor, • pressure on the system - check the HE pressure gauge. AQ110886477411en-020601/ LUK41500 © Danfoss | 2022.11 | 17... -
Page 18: Troubleshooting Dhw
Reduce DHW flow. been designed for. Thermostatic control valve does not close Temperature difference between DH Lower the set point temperature or increase supply and DHW set point too low. the DH supply temperature. AQ110886477411en-020601/ LUK41500 18 | © Danfoss | 2022.11... -
Page 19: Disposal
It must be handed over to the applicable take-back scheme for the recycling of electrical and electronic equipment. • Dispose of the product through channels provided for this purpose. • Comply with all local and currently applicable laws and regulations. AQ110886477411en-020601/ LUK41500 © Danfoss | 2022.11 | 19... - Page 20 Operating Guide Termix BV AQ110886477411en-020601/ LUK41500 20 | © Danfoss | 2022.11...
- Page 21 Operating Guide Termix BV AQ110886477411en-020601/ LUK41500 21 | © Danfoss | 2022.11...
- Page 22 Operating Guide Termix BV AQ110886477411en-020601/ LUK41500 22 | © Danfoss | 2022.11...
-
Page 23: Declaration
Operating Guide Termix BV 8.0 Declaration 8.1 Declaration of conformity AQ110886477411en-020601/ LUK41500 © Danfoss | 2022.11 | 23... - Page 24 Operating Guide Termix BV AQ110886477411en-020601/ LUK41500 24| © Danfoss | 2022.11...
