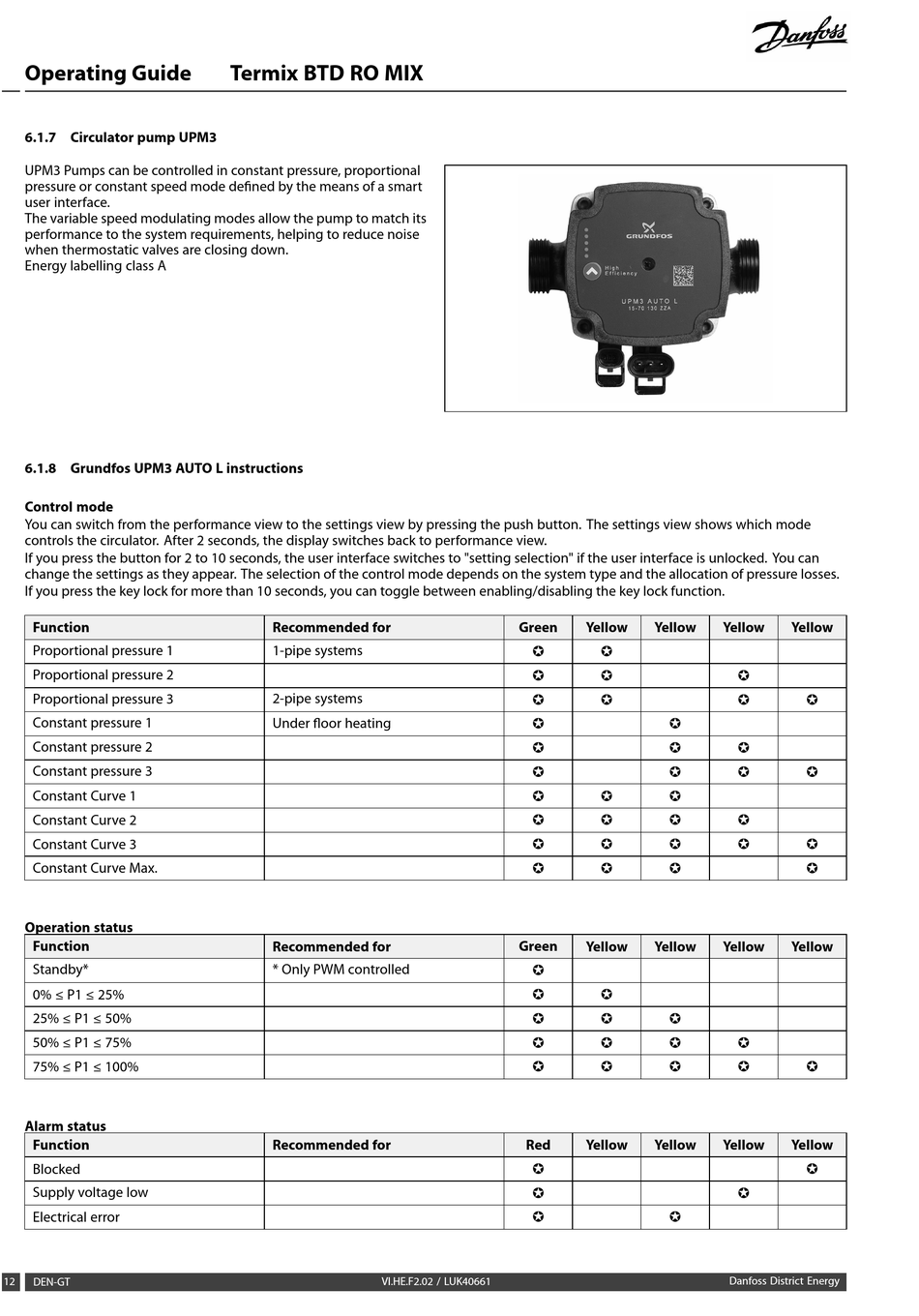

6.1.7 Circulator pump UPM3
UPM3 Pumps can be controlled in constant pressure, proportional
pressure or constant speed mode defined by the means of a smart
user interface.
The variable speed modulating modes allow the pump to match its
performance to the system requirements, helping to reduce noise
when thermostatic valves are closing down.
Energy labelling class A
6.1.8 Grundfos UPM3 AUTO L instructions
Control mode
You can switch from the performance view to the settings view by pressing the push button. The settings view shows which mode
controls the circulator. After 2 seconds, the display switches back to performance view.
If you press the button for 2 to 10 seconds, the user interface switches to "setting selection" if the user interface is unlocked. You can
change the settings as they appear. The selection of the control mode depends on the system type and the allocation of pressure losses.
If you press the key lock for more than 10 seconds, you can toggle between enabling/disabling the key lock function.
Function
Proportional pressure 1
Proportional pressure 2
Proportional pressure 3
Constant pressure 1
Constant pressure 2
Constant pressure 3
Constant Curve 1
Constant Curve 2
Constant Curve 3
Constant Curve Max.
Operation status
Function
Standby*
0% ≤ P1 ≤ 25%
25% ≤ P1 ≤ 50%
50% ≤ P1 ≤ 75%
75% ≤ P1 ≤ 100%
Alarm status
Function
Blocked
Supply voltage low
Electrical error
