Operating Guide Termix BV

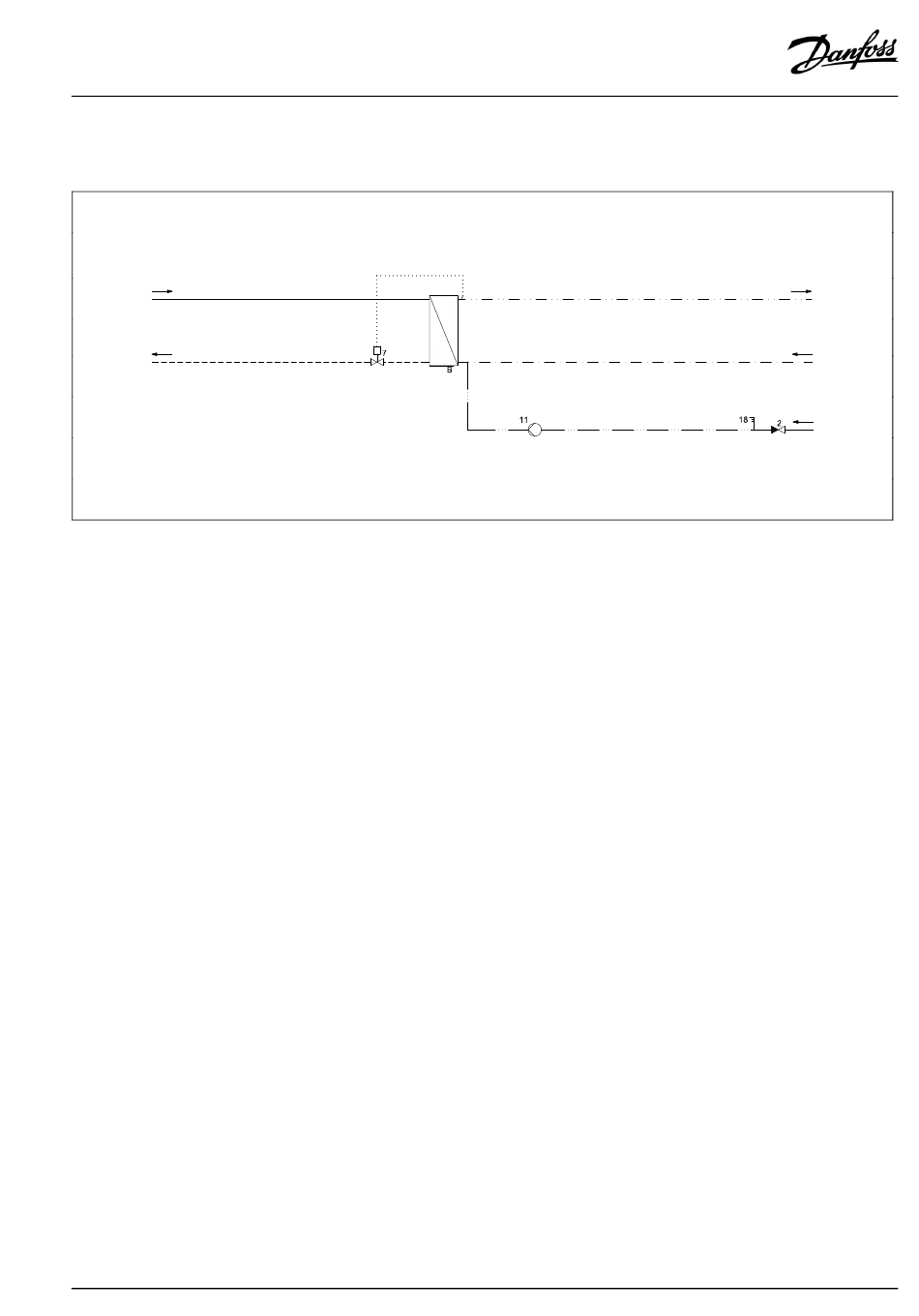

5.2 Schematic diagram

Schematic diagram type 2-5 (example)
DH
Supply
DH
Return
Your substation might look different than the schematic diagram shown.
Schematic description
B Heat exchanger, DHW
2
Single check valve
7
Thermostatic valve
DHW: Domestic Hot Water
DCW: Domestic Cold Water
HWC: Hot Water Circulation
DH Supply: District Heating Supply
District Heating Return
DH Return:
5.2.1 Technical parameters
Technical parameters
Nominal pressure:
Max. DH supply temperature:
Min. DCW static pressure:
Brazing material (HEX):
Heat exchangers test pressure:
Sound level:
AQ110886477411en-020601/ LUK41500
11 Domestic hot water pump
18 Thermometer
PN 16
120 °C
0.5 bar
Copper
30 bar
≤ 55 dB
DHW
DCW
HWC
