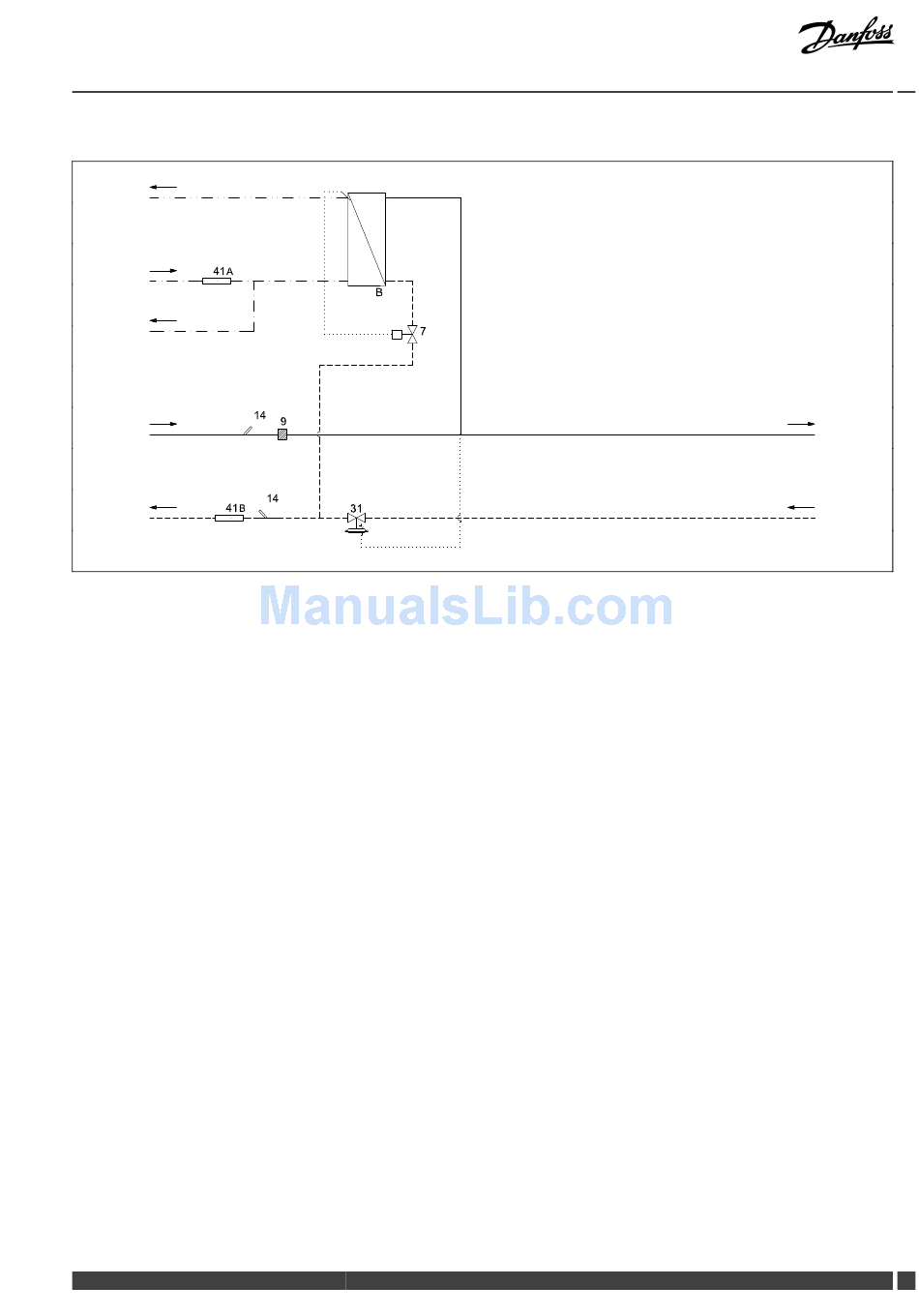

5.2 Schematic diagram

DHW
CWM
DCW
DH
Supply
DH
Return
Your substation might look different than the schematic diagram shown.
Schematic description
B Heat exchanger, DHW
7 Thermostatic valve, DHW
9 Strainer
14 Sensor pocket, energy meter
DHW: Domestic Hot Water
CWM: Cold Water Mains
DCW: Domestic Cold Water
DH Supply: District Heating Supply
DH Return: District Heating Return
HE Supply: Heating Supply
HE Return: Heating Return
5.2.1 Technical parameters
Technical parameters
Nominal pressure:
Max. DH supply temperature:
Min. DCW static pressure:
Brazing material (HEX):
Heat exchangers test pressure:
Sound level:
Danfoss District Energy
Termix VMTD-F-B
31
Differential pressure controller
41A Fitting piece, cold water mains
41B Fitting piece, energy meter
PN 10 (PN 16 versions are available on enquiry)
120 °C
0.5 bar
Copper
30 bar
≤ 55 dB
VI.CW.C3.02 / LUK40110
HE
Supply
HE
Return
DEN-GT 9
