Installation Guide

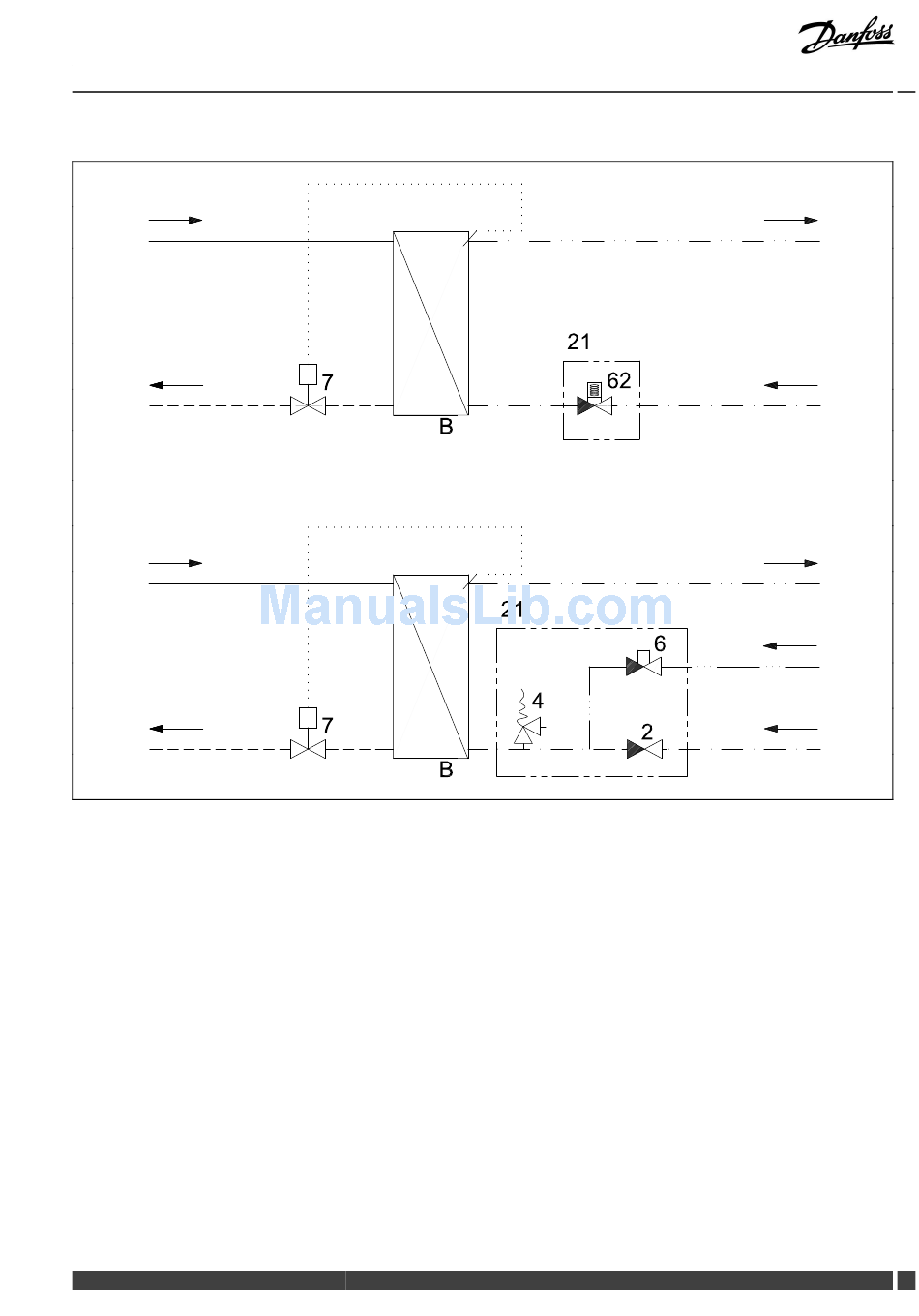

5.2 Schematic diagram

DH
Supply
DH
Return
DH
Supply
DH
Return
Your substation might look different than the schematic diagram shown.
First diagram: Termix One-Q - with GTU.
Second diagram: Termix One-Q - with safety valve.
Schematic description
B Heat exchanger, DHW
2
Single check valve
4
Safety valve
6
Thermostatic/non-return valve
DHW: Domestic Hot Water
DCW: Domestic Cold Water
HWC: Hot Water Circulation
DH Supply: District Heating Supply
DH Return: District Heating Return
Danfoss Heating
Termix One-B
7
Thermostatic valve
21 To be ordered separately
62 GTU Pressure equalizer
VI.CW.J3.02 / LUK38000
DHW
DCW
DHW
HWC
DCW
DEN-GT 7
