5.2 Schematic diagram

DHW
DCW
DH
Supply
DH
Return
Your substation might look different than the schematic diagram shown.

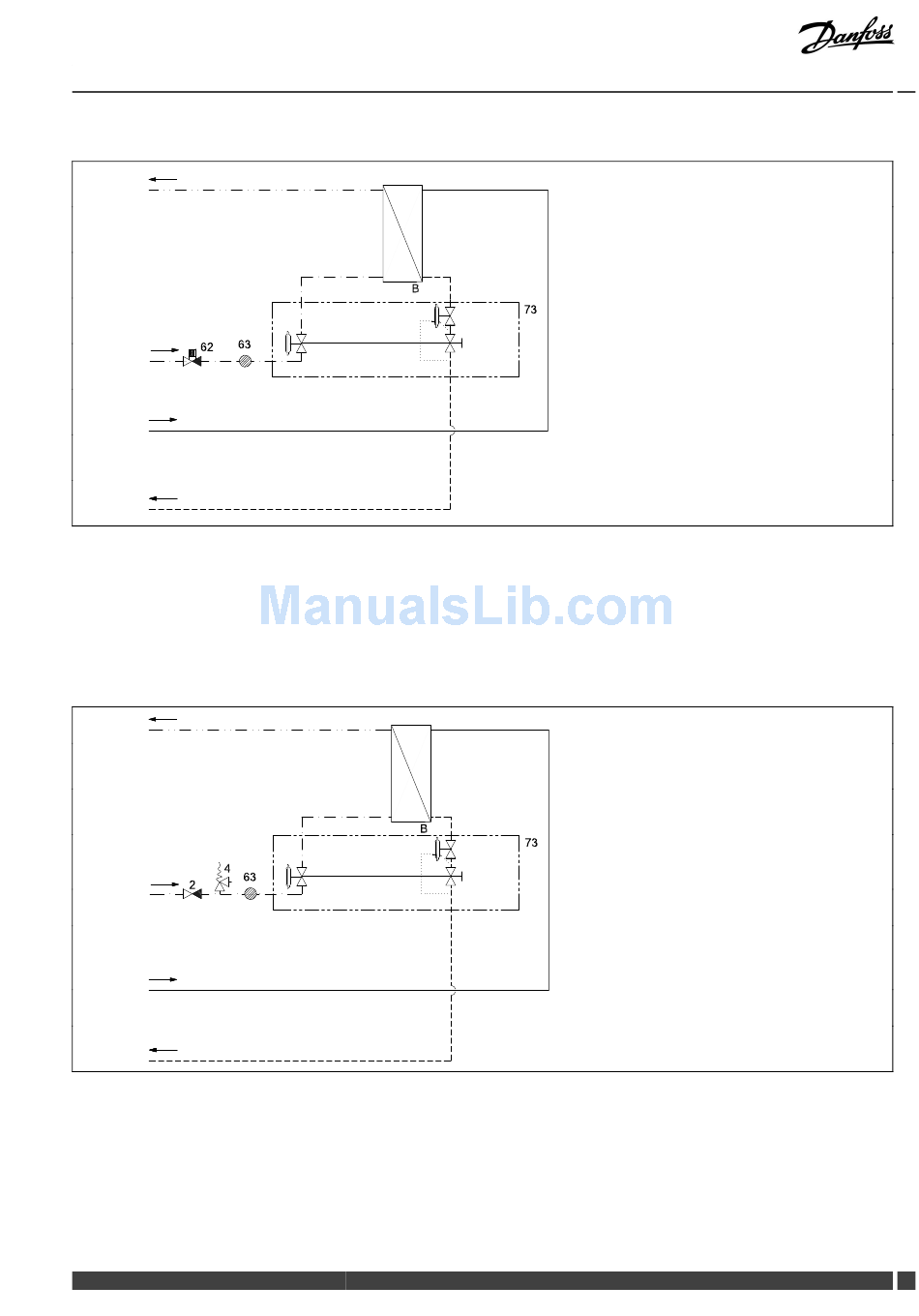

Schematic description with PM2+P – with GTU
B Heat exchanger, DHW
62 GTU Pressure equalizer
63 Sieve
73 PM2+P controller
DHW
DCW
DH
Supply
DH
Return
Your substation might look different than the schematic diagram shown.
Schematic description with PM2+P – with safety valve
B Heat exchanger, DHW
2
Single check valve
4
Safety valve
63 Sieve
73 PM2+P controller
Danfoss District Energy
Termix Water heater – PM2+P
VI.GE.O2.02 / LUK38042
GTU.
May not be applied to stations with hot water
circulation.
