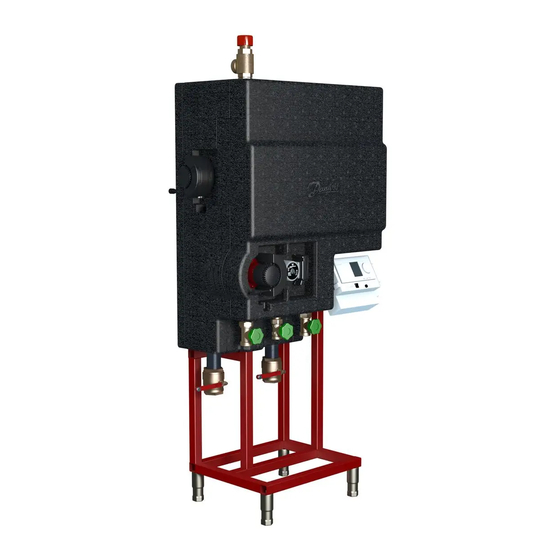

Danfoss ThermoDual-CM Quick Manual

Quick Guide

Transport / unpacking the system:

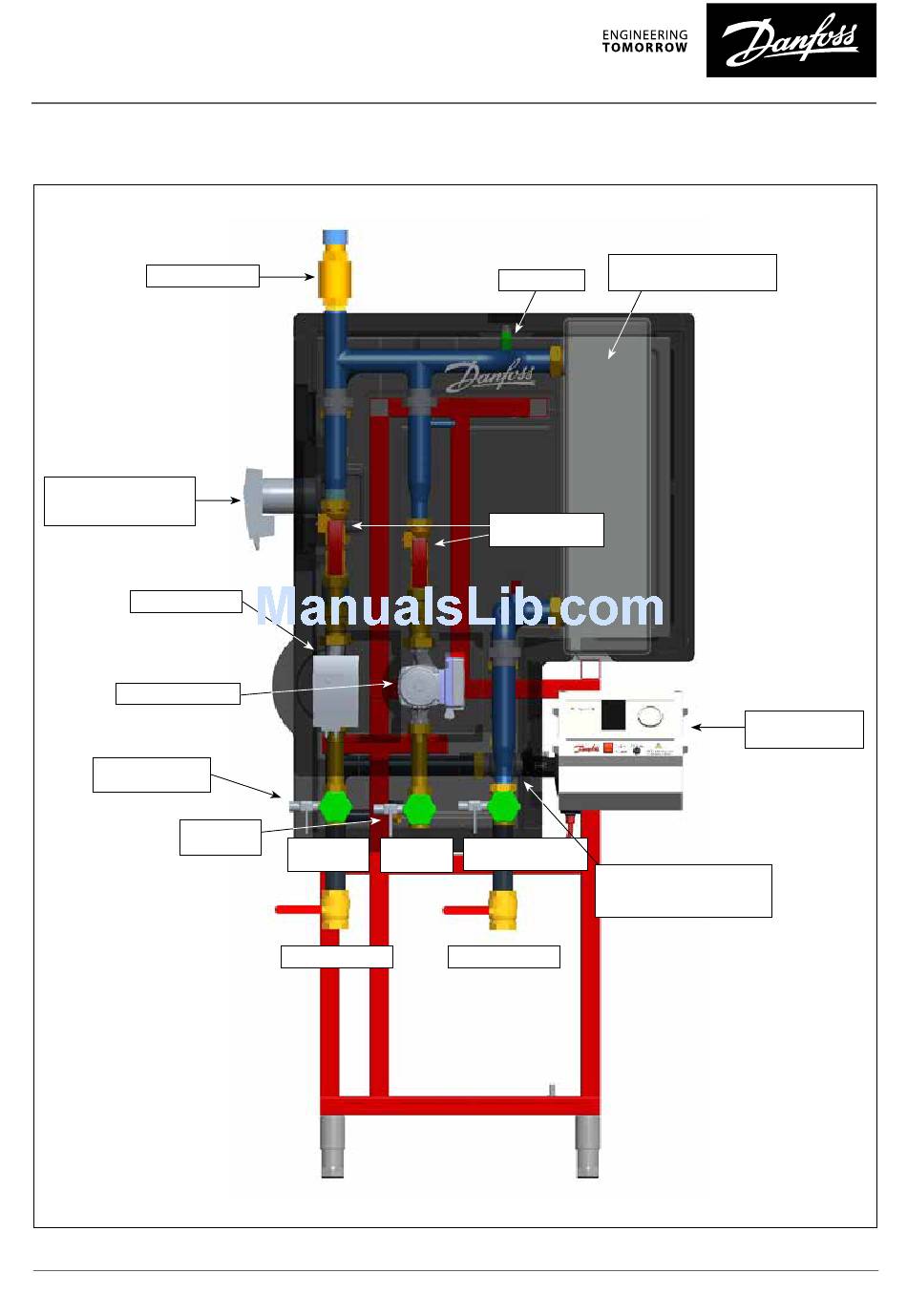

Safety valve

Heating pump

(only for 3-way-vale-

or pump control)

Charging pump

Circulation pump

Drain

(Domestic water)

(Heating)

DHS-SMTL / PL

ThermoDual®-CM

Drain

Domestic

water (cold)

Heating return

VQ.MP.A1.02 © Danfoss 09/2018

Air-vent

Balancing valves

(Taco-Setter)

Circulation

Domestic hot water

(Inlet)

(hot/network)

Heating supply

Heat exchanger

(brazed)

Electronic

Controller

Control valve

(only for 2-way-valve.

or 3-way-valve control)

Table of Contents

Need help?

Do you have a question about the ThermoDual-CM and is the answer not in the manual?

Page 1 (Taco-Setter) Charging pump Circulation pump Electronic Controller Drain (Domestic water) Drain (Heating) Domestic Circulation Domestic hot water water (cold) (Inlet) (hot/network) Control valve (only for 2-way-valve. or 3-way-valve control) Heating return Heating supply VQ.MP.A1.02 © Danfoss 09/2018 DHS-SMTL / PL...
Page 2 You can compensate for any unevenness of the installation area by up to 50 mm: For more uneven surfaces, it is first necessary to create a level surface on site, e.g. a boiler platform or similar. VQ.MP.A1.02 © Danfoss 09/2018 DHS-SMTL / PL...
Page 3 First remove the flexible pump covers by carefully pulling them out of the recesses of the insulating cover. These are flexible and can be easily dismantled by pressing them together. DHS-SMTL / PL VQ.MP.A1.02 © Danfoss 09/2018...
Page 4 The front insulation is installed in reverse order. Pay particular attention to the correct positioning of the connectors. Only when all tongue and groove connections are correctly positioned should the front and back be pressed together firmly. VQ.MP.A1.02 Produced by Danfoss A/S © 09/2018...
