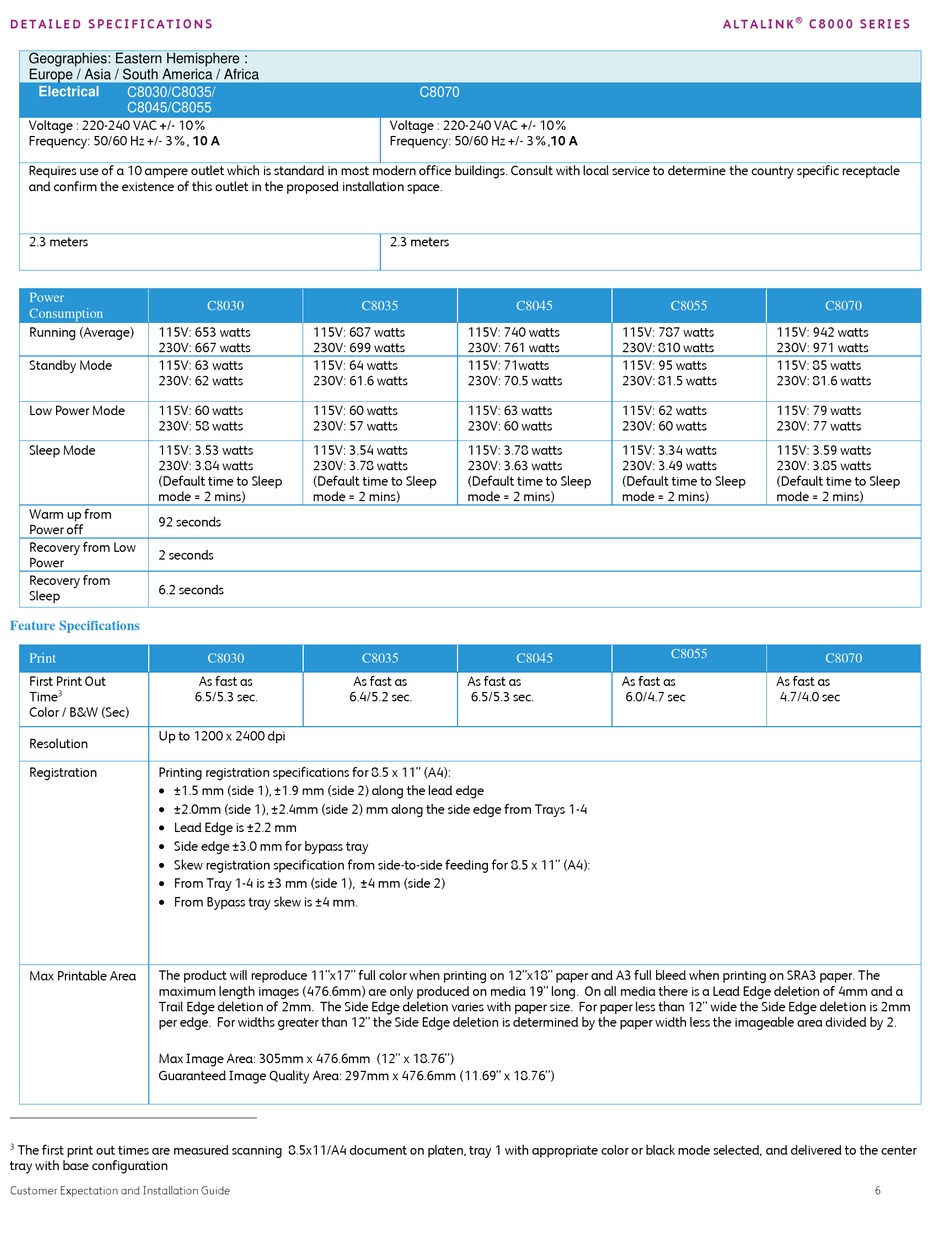

D E T A I L E D S P E C I F I C A T I O N S
Geographies: Eastern Hemisphere :
Europe / Asia / South America / Africa
Electrical C8030/C8035/
C8045/C8055
Voltage : 220-240 VAC +/- 10%
Frequency: 50/60 Hz +/- 3%, 10 A
Requires use of a 10 ampere outlet which is standard in most modern office buildings. Consult with local service to determine the country specific receptacle
and confirm the existence of this outlet in the proposed installation space.
2.3 meters
Power
Consumption
Running (Average) 115V: 653 watts
230V: 667 watts
Standby Mode 115V: 63 watts
230V: 62 watts
Low Power Mode 115V: 60 watts
230V: 58 watts
Sleep Mode 115V: 3.53 watts
230V: 3.84 watts
(Default time to Sleep
mode = 2 mins)
Warm up from
92 seconds
Power off
Recovery from Low
2 seconds
Power
Recovery from
6.2 seconds
Sleep

Feature Specifications

Print
First Print Out
Time 3
Color / B&W (Sec)
Up to 1200 x 2400 dpi
Resolution
Registration Printing registration specifications for 8.5 x 11" (A4):
 ±1.5 mm (side 1), ±1.9 mm (side 2) along the lead edge
 ±2.0mm (side 1), ±2.4mm (side 2) mm along the side edge from Trays 1-4
 Lead Edge is ±2.2 mm
 Side edge ±3.0 mm for bypass tray
 Skew registration specification from side-to-side feeding for 8.5 x 11" (A4):
 From Tray 1-4 is ±3 mm (side 1), ±4 mm (side 2)
 From Bypass tray skew is ±4 mm.
Max Printable Area The product will reproduce 11"x17" full color when printing on 12"x18" paper and A3 full bleed when printing on SRA3 paper. The
maximum length images (476.6mm) are only produced on media 19" long. On all media there is a Lead Edge deletion of 4mm and a
Trail Edge deletion of 2mm. The Side Edge deletion varies with paper size. For paper less than 12" wide the Side Edge deletion is 2mm
per edge. For widths greater than 12" the Side Edge deletion is determined by the paper width less the imageable area divided by 2.
Max Image Area: 305mm x 476.6mm (12" x 18.76")
Guaranteed Image Quality Area: 297mm x 476.6mm (11.69" x 18.76")
3 The first print out times are measured scanning 8.5x11/A4 document on platen, tray 1 with appropriate color or black mode selected, and delivered to the center
tray with base configuration
Customer Expectation and Installation Guide
C8030 C8035
115V: 687 watts
230V: 699 watts
115V: 64 watts
230V: 61.6 watts
115V: 60 watts
230V: 57 watts
115V: 3.54 watts
230V: 3.78 watts
(Default time to Sleep
mode = 2 mins)
C8030 C8035
As fast as As fast as
6.5/5.3 sec. 6.4/5.2 sec.
C8070
Voltage : 220-240 VAC +/- 10%
Frequency: 50/60 Hz +/- 3%,10 A
2.3 meters
C8045
115V: 740 watts
230V: 761 watts
115V: 71watts
230V: 70.5 watts
115V: 63 watts
230V: 60 watts
115V: 3.78 watts
230V: 3.63 watts
(Default time to Sleep
mode = 2 mins)
C8045
As fast as
6.5/5.3 sec.
A L T A L I N K
®
C8055
115V: 787 watts 115V: 942 watts
230V: 810 watts 230V: 971 watts
115V: 95 watts 115V: 85 watts
230V: 81.5 watts 230V: 81.6 watts
115V: 62 watts 115V: 79 watts
230V: 60 watts 230V: 77 watts
115V: 3.34 watts 115V: 3.59 watts
230V: 3.49 watts 230V: 3.85 watts
(Default time to Sleep (Default time to Sleep
mode = 2 mins) mode = 2 mins)
C8055
As fast as As fast as
6.0/4.7 sec 4.7/4.0 sec
C 8 0 0 0 S E R I E S
C8070
C8070
