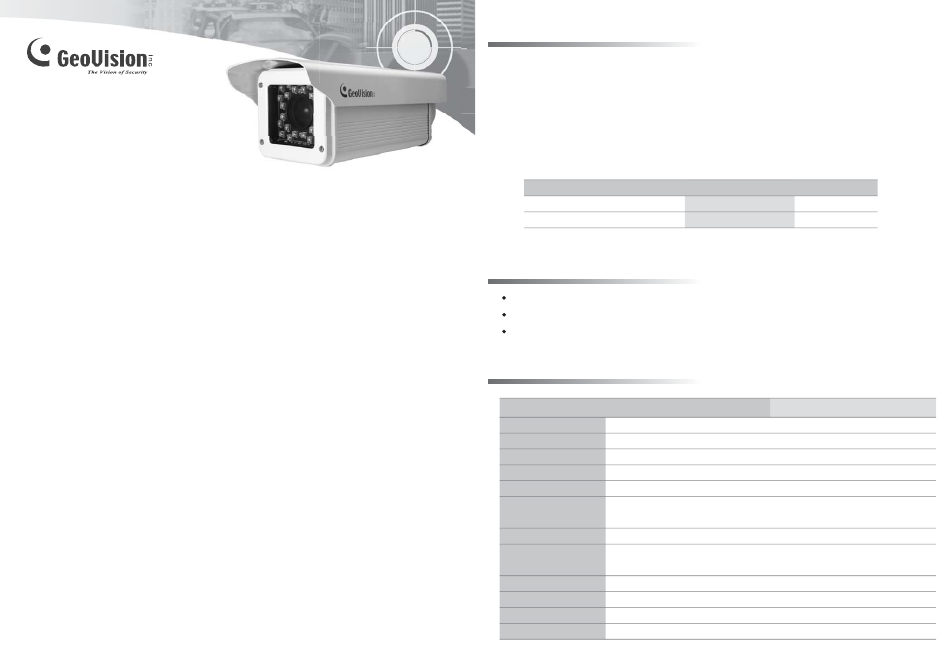

GeoVision GV-LPR CAM V2.0 Series Installation Manual

GV-LPR CAM V2.0
Installation Guide
Before attempting to connect or operate this product,
please read these instructions carefully and save this manual for future use.
© 2010 April GeoVision Inc. All rights reserved.
Models
The GV-LPR CAM gives a 570TVL high-contrast license plate recognition video to the GV-LPR
software that identifies license plates. The camera features 24 high-efficient LEDs for an
illumination range of 30 meters. The camera also features a weather-sealed IP66-compliant
housing with the heater and blower inside. This installation guide will take you through the
functionality and use of the GV-LPR CAM.
List of Models
Model
GV-LPR CAM 20M EIA DC12V
GV-LPR CAM 20M CCIR DC12V
Packing List
AC Power Cable (110-125V, 10A) x 1
Power Adapter (100-240V, 12V/5A) x 1
Outdoor Mounting Bracket x 1
Specifications
Model
Sensor
Heater
Resolution
Construction
Protection classification
Temperature
LED Quantity
IR Distance
Illumination View Angle
Illuminator Life
Power Supply
Power Consumption
LPRCAMV20-A
IR Optimal Distance Video Format
20 m / 65.61 ft
20 m / 65.61 ft
GV-LPR CAM 20M EIA DC12V GV-LPR CAM 20M CCIR DC12V
1/3" B/W EXview CCD
≤ 5˚C (ON) , > 5˚C (OFF) ; 20W
570 TVL
Robust aluminum with weatherproof sun-shield
IP 66
Operation: -30˚C ~ 50˚C / -22˚F ~ 122˚F
Storage: -30˚C ~ 70˚C / -22˚F ~ 158˚F
24 high-efficient LEDs
30 m / 98.43 ft
20 ± 5 m / 65.62 ± 16.4 ft (optimal)
30°
25,000 hrs
DC 12V
30W (normal), 50W (heater on)
NTSC
PAL
