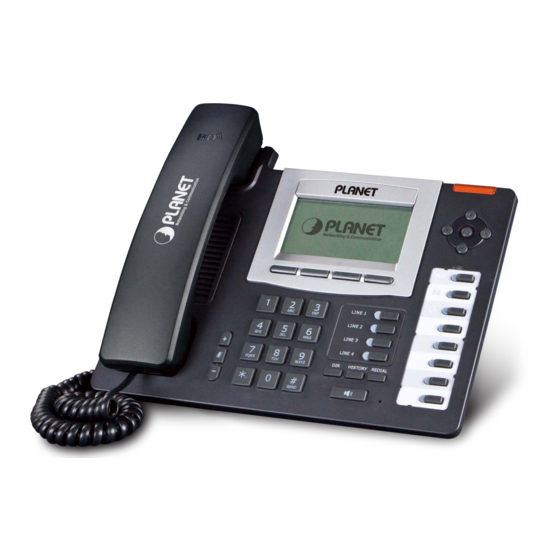

Planet VIP-5060PT Quick Manual

VERIFY THE CONTENTS INSIDE THE PACKAGE BOX

The package should contain the following items plus VIP-5060PT. If any item is missing or damaged, please contact the seller immediately.

Quick Guide

CD-ROM

Plug one end of the handset cord into the handset and the other end into the handset jack

The VIP-5060PT can be powered either by external AC/DC adapter or by connecting to an IEEE802.3af/at PSE device such as 802.3af Injector /

Hub or 802.3af/at POE switch.

Once the VIP-5060PT is powered, the LCD screen will prompt for POST.

NOTE :

1. Use only the power adapter shipped with the unit to ensure correct functionality

2. Only WAN supports POE.

Quick Guide

Handset

Handset Cord

RJ-45 cable

Power Adapter

Handset

VIP-5060PT

Stand

PoE Switch

Table of Contents

Do you have a question about the VIP-5060PT and is the answer not in the manual?

Page 1 Handset Step 2. Connecting Power System The VIP-5060PT can be powered either by external AC/DC adapter or by connecting to an IEEE802.3af/at PSE device such as 802.3af Injector / Hub or 802.3af/at POE switch. Once the VIP-5060PT is powered, the LCD screen will prompt for POST.
Page 2: Further Configuration
Further Configuration For detailed configuration, please check user’s manual on the bundled CD. If you have any other question, please contact the dealer where you purchased this product or you can contact PLANET directly at the following: Email address: support@planet.com.tw...
