Summary of Contents for Shark NV500REF

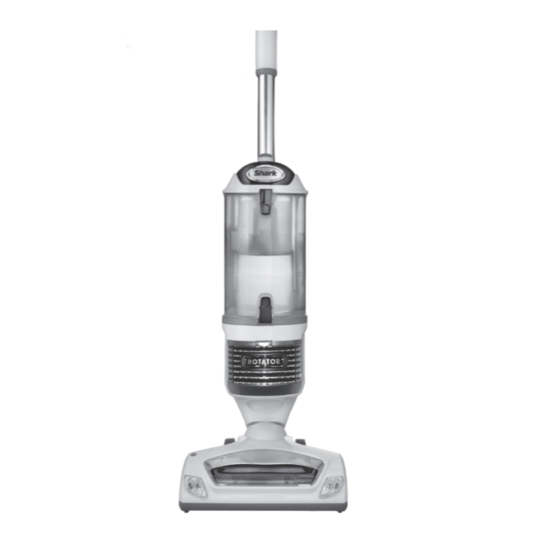

- Page 1 OWNER’S GUIDE NV500REF ® 8 0 0 . 7 9 8 . 7 3 9 8 w w w . s h a r k r o c k e t . c o m...
-
Page 2: Register Your Purchase
Thank you for purchasing the Shark Rotator LIft-Away If you should have a question about your Shark Rotator LIft- ® ® ® Professional. Away Professional, please call the Shark Customer service line at 800-798-7398. This Owner’s Guide is designed to help you get a complete understanding of your new vacuum cleaner. -
Page 3: Important Safeguards
READ ALL INSTRUCTIONS BEFORE USE IMPORTANT SAFEGUARDS When using an electrical appliance, basic safety 19 DO NOT allow young children to operate the vacuum precautions should always be observed, including the cleaner or use as a toy. Close attention is necessary when used near children. - Page 4 ASSEMBLY Place the vacuum pod onto floor nozzle. Slide wand into base of the pod. Insert handle into the top of the wand. Attach flex hose into base of the pod. Insert the crevice tool and dusting brush into the accessory clips as shown. Tuck the hose between the two accessory clips.
-
Page 5: Upright Cleaning
UPRIGHT CLEANING Press POWER to clean bare floor surfaces, area rugs or areas above-floor. The brushroll will not spin in this mode. Press POWER and BRUSHROLL to clean carpets. The brushroll indicator lights will illuminate GREEN. If there is a jam, the indicator light on floor nozzle will illuminate RED. -
Page 6: Lift-Away ™ Cleaning
LIFT-AWAY CLEANING ™ Use for portable cleaning on stairs or anywhere Press LIFT-AWAY to lift the pod off the floor nozzle. To clean with hose, press the WAND or HANDLE release button then lift handle up. Attach desired cleaning tool. Should you need to increase or decrease the amount of suction, refer to Helpful Tips (P8), SUCTION RELEASE. - Page 7 ACCESSORIES NOTE: Select cleaning accessories are included. Others are available for purchase at www.sharkrocket.com or by calling 800.798.7398. Crevice Tools Multi-Tool 12” - X11FC500 X10FC500 18” Flexi - X12FC500* 3-in-1 wide mouth combo tool cleans hard surfaces 24”Flexi - X24FLI500* and upholstery.
-
Page 8: Helpful Tips
HELPFUL TIPS SUCTION CONTROL This unit is equipped with a suction control collar to help with push and pull on high pile carpets, area rugs and to release suction when dusting delicate objects or drapery. Located at base of top handle, rotate the collar 90° to minimize suction. Be sure to close again for maximum suction. -
Page 9: Maintenance
MAINTENANCE EMPTY THE DUST CUP Pull up on the dust cup release latch and lift the dustcup off the pod. Holding the dust cup over a garbage bag or can, press the bottom empty release latch. Press the top dust cup release latch to access the dust screen and remove built-up debris as required. With the dust screen removed, turn the dust cup over and empty the upper chamber by holding it by the recessed handle underneath the dust cup. -
Page 10: Bottom Of Floor Nozzle
MAINTENANCE CHECK FOR BLOCKAGES REMOVE AND INSPECT: HOSE AND TUBES Remove floor nozzle, dustcup and hose and shine a flashlight in all the intake openings to check for possible blockage. BOTTOM OF FLOOR NOZZLE Using a coin, turn the locking screws to the unlock position and pull up to expose the airway. Remove any obstructions, close and relock. -
Page 11: Troubleshooting Guide
TROUBLE-SHOOTING GUIDE Vacuum is not picking up dirt. No suction or light suction • Check filters to see if they need cleaning. Follow instructions for rinsing and drying the filters before re-inserting back into the vacuum. • Dust cup may be full; empty dust cup. •... - Page 12 NOTES w w w . s h a r k r o c k e t . c o m...
- Page 13 NOTES 8 0 0 . 7 9 8 . 7 3 9 8...
- Page 14 NOTES w w w . s h a r k r o c k e t . c o m...
- Page 15 ONE HUNDRED EIGHTY (180) DAY REFURBISHED PRODUCT LIMITED WARRANTY SharkNinja Operating LLC warrants this product to be free from material defects and workmanship for a period of one hundred eighty (180) days from the date of purchase when utilized for normal household use, subject to the following conditions, exclusions and exceptions.
-
Page 16: Join The Conversation
Newton, MA USA 02459 Ville St. Laurent, Québec Canada H4S 1A7 NV500REF_26_IB_E_160518_8 Illustrations may differ from actual product. We Shark and Rotator are registered trademarks of are constantly striving to improve our products, SharkNinja Operating LLC. © 2016 SharkNinja Operating LLC therefore the specifications contained herein are subject to change without notice.
