NV500
Series
INSTRUCTIONS
sharkclean.com
1-800-798-7398
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NV500 Series and is the answer not in the manual?

Questions and answers

Nancy Needham
March 16, 2025

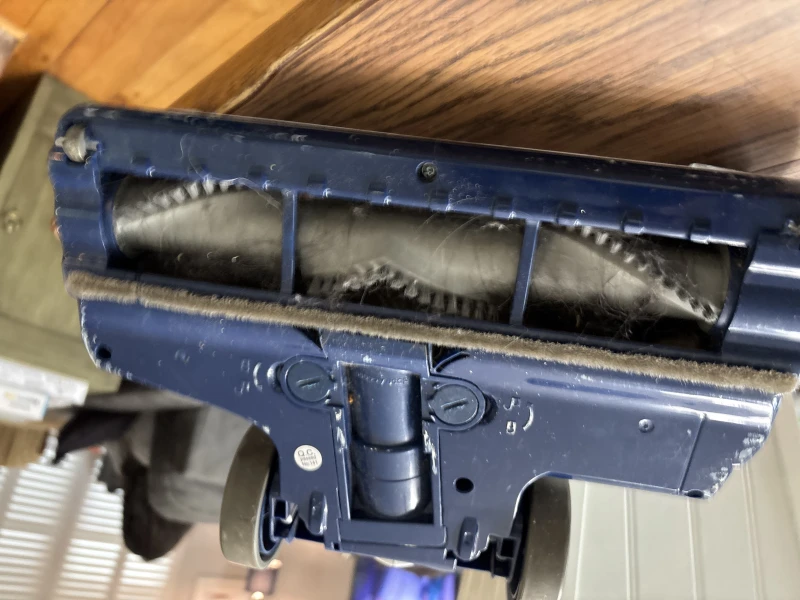

Remove roller

User image 67d703f8078a9
1 comments:
Mr. Anderson
May 14, 2025

To remove the roller (brushroll) on a Shark NV500 Series vacuum, follow these steps:

1. Turn off and unplug the vacuum.
2. If the Brushroll Indicator Light is red, remove any blockage first.
3. Turn the vacuum over to access the bottom of the floor nozzle.
4. Clear any string, carpet fibers, or hair wrapped around the brushroll.
5. Use the release latch to open or remove the bottom cover if necessary (specific latch location not detailed).
6. Remove the brushroll carefully.

Note: The exact method to detach the brushroll is not fully detailed in the provided context.

This answer is automatically generated

Summary of Contents for Shark NV500 Series

  • Page 1 ® NV500 Series INSTRUCTIONS sharkclean.com 1-800-798-7398...
  • Page 2: Specifications

    PLEASE READ CAREFULLY AND KEEP FOR FUTURE REFERENCE. This Owner’s Guide is designed to help you get a complete understanding of your new Shark Rotator Professional Lift-Away. If you have any questions, please call the customer service line at 1-800-798-7398.
  • Page 3: Table Of Contents

    CONTENTS Important Safety Instructions ......3 Getting to Know Your Shark Rotator ® ®...
  • Page 4: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS FOR HOUSEHOLD USE ONLY WARNING To reduce the risk of injury, fire, electric shock, and property damage resulting from improper use of the appliance, carefully observe the following instructions. This unit contains electrical connections and moving parts that potentially present risk to the user.
  • Page 5: Save These Instructions

    33 DO NOT vacuum up flammable or blockages. combustible materials (e.g., lighter fluid, gasoline, or kerosene) or use vacuum in 24 Only use Shark -brand filters and ® areas where they may be present. accessories (failure to do so will void the warranty).
  • Page 6: Getting To Know Your Shark

    GETTING TO KNOW YOUR SHARK ® ROTATOR PROFESSIONAL LIFT-AWAY ® ® WELCOME! Congratulations on your purchase. Use this Owner’s Guide to learn about your new vacuum’s great features. From assembly to use to maintenance, you will find it all in here.
  • Page 7 s h a r kc l e a n . c o m...
  • Page 8: Assembling Your Vacuum

    ASSEMBLING YOUR VACUUM TIP: For quick cord STEP 1 STEP 2 access, rotate upper hook down and remove cord. TIP: To store your vacuum, wrap cord around cord hooks. TIP: Use cord clip located on the back of wand to hold cord in place while vacuuming.
  • Page 9 STEP 3 STEP 4 3 Insert handle into top of wand. Then attach 4 Insert tools into accessory clips, then hose to hose connector on base of pod. secure the hose to the hose clip by pushing the knob into its socket. s h a r kc l e a n .
  • Page 10: Using Your Vacuum In Upright Mode

    USING YOUR VACUUM IN UPRIGHT MODE WARNING: DO STEP 1 NOT use to vacuum up drywall dust, fireplace ash, or embers. DO NOT use as an attachment to power tools for dust collection. WHAT DOES THE BRUSHROLL INDICATOR LIGHT MEAN? Solid Green The brushroll is on and working as it should.
  • Page 11 STEP 2 STEP 3 2 Press POWER to clean hard-floor surfaces, 3 Press POWER and BRUSHROLL to clean area rugs, or above floor. The brushroll will carpets. The Brushroll Indicator Light will not spin in this mode. illuminate green. The brushroll will spin only when the vacuum is reclined and the Brushroll Indicator Light is green.
  • Page 12: Using Your Vacuum In Above-Floor Mode

    USING YOUR VACUUM IN ABOVE-FLOOR MODE THE BENEFITS OF STEP 1 SUCTION CONTROL Suction Control is a way for you to adjust suction power when you are using different tools or vacuuming different surfaces. For example, if you are feeling resistance while vacuuming thick carpet or upholstery, slide the Suction Control to the left to MIN to...
  • Page 13: Suction Control

    STEP 2 STEP 3 Suction Control 2 Insert wand or handle directly into desired 3 The Suction Control collar is located tool and pivot back to release tool from clip. at the base of the top handle. Suction Control offers variable suction based on your needs.
  • Page 14: Using Your Vacuum In Lift-Away Mode

    USING YOUR VACUUM IN LIFT-AWAY MODE ® WARNING: Lift-Away mode requires stable footing. Using Lift- Away mode without stable footing may result in personal injury. TIP: Hold pod in hand when cleaning in Lift-Away mode. WHAT IS LIFT-AWAY? Our Lift-Away feature allows you to remove the pod from the floor nozzle to easily clean stairs, above-floor areas with...
  • Page 15 3 Or you can press Wand Release button 4 Attach desired cleaning tool to the end of on pod when you need to clean with a handle or wand. longer reach. s h a r kc l e a n . c o m...
  • Page 16: Compatible Accessories

    COMPATIBLE ACCESSORIES There are a variety of Crevice Tool accessories that are compatible Gives you extended cleaning reach for small spaces. with this vacuum series. The Quick Start Guide shows the select accessories that are included with your model. Dusting Brush Cleans hard surfaces and upholstery.
  • Page 17 s h a r kc l e a n . c o m...
  • Page 18: Maintenance

    MAINTENANCE To keep your vacuum’s suction power optimal, follow STEP 1 STEP 2 these instructions. Make sure unit is off and cord is unplugged. WARNING: To reduce the risk of shock and unintended operation, turn power off and unplug unit before servicing.
  • Page 19: Cleaning The Filters

    STEP 3 FOAM FILTER FILTER FRAME FELT FILTER HEPA CLEANING THE FILTERS Pre-Motor 3 Press top dust-cup Post-Motor (HEPA): (foam and felt): release latch to access To access the HEPA With the dust cup dust screen and remove filter, press the button on removed, take out the built-up debris as required.
  • Page 20: Bottom Of Floor Nozzle

    MAINTENANCE WARNING: To reduce the risk of shock and STEP 1 STEP 2 unintended operation, turn power off and unplug unit before servicing. TIP: You can also check for blockages in the hose and tubes. Just remove floor nozzle, dust cup, wand, and hose and shine a flashlight in the openings.
  • Page 21: Hose Cuff At Base Of Pod

    STEP 1 STEP 2 HOSE CUFF AT BASE OF POD Squeeze tabs and remove hose. 2 Open the clog access knob on the side of the pod. s h a r kc l e a n . c o m...
  • Page 22: Troubleshooting Guide

    TROUBLESHOOTING GUIDE WARNING: To reduce the risk of shock and unintended operation, turn power off and unplug unit before servicing. Vacuum is not picking up debris. No suction or light suction. (Refer to Maintenance section for more information.) • Check filters to see if they need cleaning. Follow instructions for rinsing and drying the filters before re-inserting in the vacuum.
  • Page 23: Warranty

    FIVE (5) YEAR LIMITED WARRANTY The 5-Year Limited Warranty applies to purchases made from authorized retailers of SharkNinja Operating LLC. Warranty coverage applies to the original owner and to the original product only and is not transferable. SharkNinja warrants that the unit shall be free from defects in material and workmanship for a period of 5 years from the date of purchase when it is used under normal household conditions and maintained according to the requirements outlined in this instruction manual, subject to the following conditions and exclusions.
  • Page 24 Illustrations may differ from actual product. We are constantly striving to improve our products; therefore the specifications contained herein are subject to change without notice. Lift-Away, Rotator, and Shark are registered trademarks of SharkNinja Operating LLC. For SharkNinja U.S. Patent information, visit www.sharkninja.com/USPatents © 2016 SharkNinja Operating LLC NV500�Series�IB�E�160627...
