OWNER'S GUIDE
NV500 SERIES
™

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NV500 Servise and is the answer not in the manual?

Questions and answers

Related Manuals for Shark NV500 Servise

Summary of Contents for Shark NV500 Servise

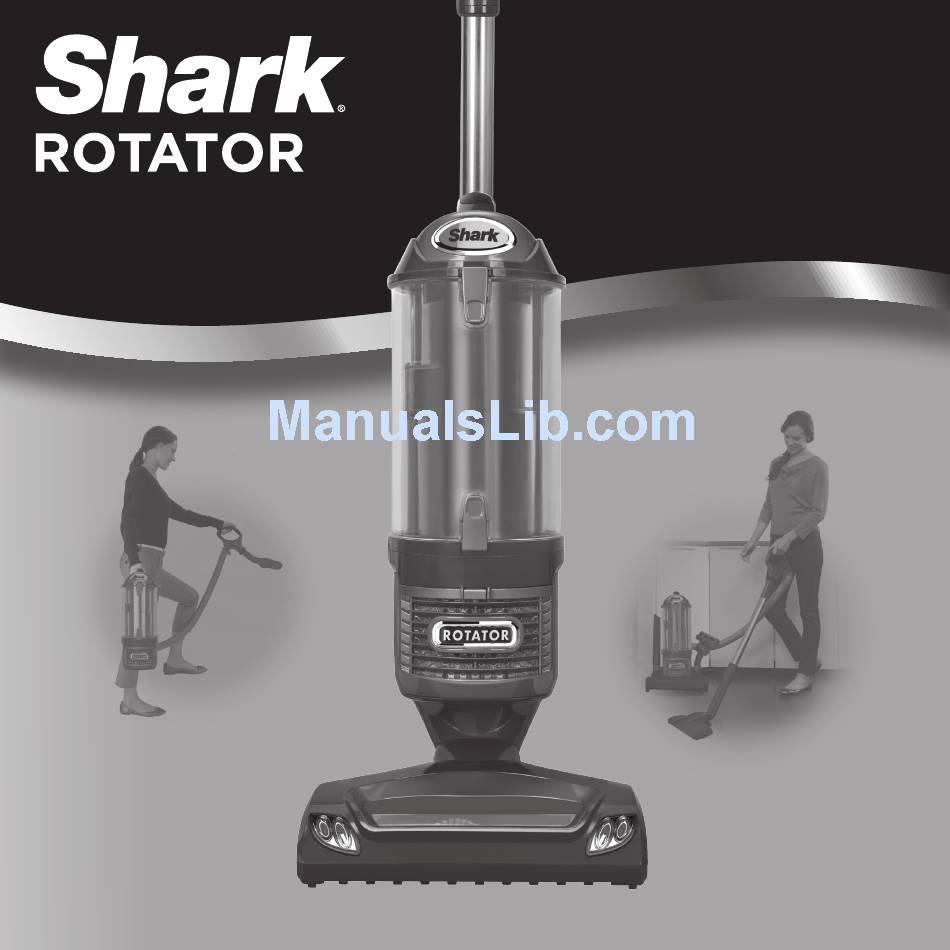

  • Page 1 OWNER’S GUIDE NV500 SERIES ™...

  • Page 2: Technical Specifications

    Thank you for purchasing the Shark Rotator Upright Vac. For a list of what is included with this model, refer to inside flap of box. ® This Owner’s Guide is designed to help you get a complete understanding of your new vacuum cleaner. Please read it carefully and keep it future reference.

  • Page 3: Important Safeguards

    READ ALL INSTRUCTIONS BEFORE USE IMPORTANT SAFEGUARDS When using an electrical appliance, basic safety precautions should 20 This appliance is not intended for use by persons (including children) with always be observed, including the following: reduced physical, sensory or mental capabilities, or lack of experience and knowledge.
  • Page 4 ASSEMBLY Place the vacuum pod onto Power nozzle. Slide wand into base of the pod. Insert handle into the top of the wand. Attach flex hose into base of the pod. Insert the crevice tool and multi-tool into the accessory clips as shown. Tuck the hose between the two accessory clips.

  • Page 5: Brush Roll

    UPRIGHT Press POWER to clean bare floor surfaces, area rugs or areas above-floor. The brushroll will not spin in this mode. CLEANING Press POWER and BRUSHROLL to clean carpets. The brushroll indicator lights will illuminate GREEN. If there is a jam, the indicator light on Power nozzle will illuminate RED.
  • Page 6 LIFT-AWAY ™ Press LIFT-AWAY to lift the pod off the Power nozzle. CLEANING To clean with hose, press the WAND or HANDLE release button then lift handle up. Use for portable Attach desired cleaning tool. Should you need to increase or decrease the amount of suction, refer to Helpful Tips (P14), SUCTION RELEASE. cleaning on stairs NOTE: Select cleaning accessories are included with this model.
  • Page 7 CANISTER From the Lift-Away mode, place the pod onto the canister caddy. ™ CLEANING Press WAND release button then lift handle up. Convert your upright Attach straight suction floor nozzle or other accessory. to a convenient Use the posts on the caddy to store additional cleaning accessories while you clean. canister To release pod from caddy, press LIFT-AWAY and continue to use with cleaning wand or replace wand and pod on Power nozzle per assembly instructions.
  • Page 8 ACCESSORIES Crevice Tools Multi-Tool Dusting Brush 30 cm - 3002FC500GY 3006FC500GY 3000FC500GY NOTE: Select cleaning 45 cm Flexi - 3008FC500GY* 3-in-1 wide mouth combo Cleans hard surfaces and accessories are included. 60 cm Flexi - X24FLI500* tool cleans hard surfaces and upholstery.
  • Page 9 Appliance Wand Backsaver Wand 3003FC500GY 3005FC500GY Extend to access areas under under hard-to- move appliances and furniture. Home & Car Detail Kit Dust-Away™ Hard Floor Tool - See page 10 XDST500EU XCD500 Vacuums and dusts bare floors using washable or disposable pads. Extension tubes and micro-tools Washable Microfibre Pad P200W...

  • Page 10: Swivel Head

    ATTACHMENT & CLEANING PADS Use the Dust-Away ™ to clean dry bare floor surfaces. Do not use to clean damp floors or wet/sticky messes. Only use pads provided by Shark ® , which are designed to work with the Dust-Away attachment.
  • Page 11 HOME AND CAR Press the WAND release button to remove the floor nozzle and wand from the hand vac. DETAIL KIT Insert converter onto the hand vac. Insert micro-tool adaptor. Attach hose and desired extension tube and cleaning tool.
  • Page 12 BACKSAVER ASSEMBLY INSTRUCTIONS WAND Press button to release handle from vacuum. Align rib at top of bendable wand with groove inside vacuum handle and attach until it clicks in place. Insert desired floor attachment until it clicks in place. Press button while bending wand to activate backsaver.

  • Page 13: Helpful Tips

    HELPFUL TIPS SUCTION CONTROL This unit is equipped with a suction control collar to help with push and pull on high pile carpets, area rugs and to release suction when dusting delicate objects or drapery. Located at base of top handle, rotate the collar 90° to minimize suction. Be sure to close again for maximum suction. POWER BUTTONS The POWER button turns on suction only.

  • Page 14: Maintenance

    MAINTENANCE EMPTY THE DUST CUP Pull up on the dust cup release latch and lift the dustcup off the pod. Holding the dust cup over a garbage bag or can, press the bottom empty release latch. Press the top dust cup release latch to access the dust screen and remove built-up debris as required. With the dust screen removed, turn the dust cup over and empty the upper chamber by holding it by the recessed handle underneath the dust cup.

  • Page 15: Hose Cuff At Base Of Pod

    MAINTENANCE CHECK FOR BLOCKAGES REMOVE AND INSPECT: HOSE AND TUBES Remove Power nozzle, dustcup and hose and shine a flashlight in all the intake openings to check for possible blockage. BOTTOM OF POWER NOZZLE CAUTION: Nozzle contains live parts Using a coin, turn the locking screws to the unlock position and pull up to expose the airway. Remove any obstructions, close and relock. Remove any string, carpet fibers or hair that may be wrapped around the brushroll.
  • Page 16 6. Plug in the vacuum. 7. Restart the unit on using either the POWER or BRUSHROLL buttons. Euro-Pro, Shark, Rotator, Dust-Away and Lift-Away are trademarks of Euro-Pro Operating LLC. All other brand names may be trademarks of their respective owners.
  • Page 17 NOTES...
  • Page 18 NOTES...
  • Page 19 call 1-800-798-7398 or visit our website www.sharkninjamanuals.com. call 1-800-798-7398 or visit our website www.sharkninjamanuals.com.
  • Page 20 EURO-PRO Operating LLC Newton, MA USA 02459 Ville St. Laurent, Québec Canada H4S 1A7 NV500�INTL�IB�ENG�141121�6 Printed in China © 2014 Euro-Pro Operating LLC Illustrations may differ from actual product.
