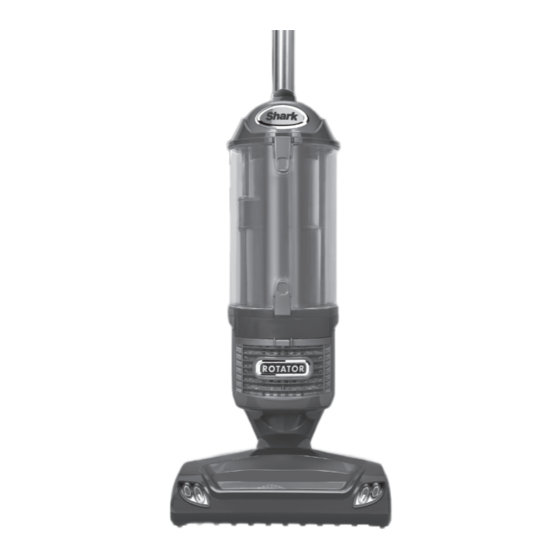

Shark Rotator NV500NZV2 Owner's Manual
  1. Manuals
  2. Brands
  3. Shark Manuals
  4. Vacuum Cleaner
  5. Rotator NV500NZV2
  6. Owner's manual
Shark Rotator NV500NZV2 Owner's Manual

Shark Rotator NV500NZV2 Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
OWNER'S GUIDE
NV500NZV2
™

Advertisement

Table of Contents
loading

Related Manuals for Shark Rotator NV500NZV2

Summary of Contents for Shark Rotator NV500NZV2

  • Page 1 OWNER’S GUIDE NV500NZV2 ™...

  • Page 2: Technical Specifications

    For a list of what is included with this model, refer to inside flap of box. ® ™ This Owner’s Guide is designed to help you get a complete understanding of your If you should have a question about your Shark Rotator , please call ®...

  • Page 3: Important Safeguards

    READ ALL INSTRUCTIONS BEFORE USE IMPORTANT SAFEGUARDS When using an electrical appliance, basic safety precautions should 17 DO NOT put any objects into openings. DO NOT use with any opening always be observed, including the following: blocked; keep free of dust, lint, hair, and anything that may reduce air flow. 18 Keep your work area well lit.
  • Page 4 ASSEMBLY Place the vacuum pod onto power nozzle. Slide wand into base of the pod. Insert handle into the top of the wand. Attach flex hose into base of the pod. Insert the crevice tool and dusting brush into the accessory clips as shown. Tuck the hose between the two accessory clips.

  • Page 5: Brush Roll

    WARNING: When vacuuming fine dust (sawdust, sand, flour, talcum powder, etc.) electrostatic charges build up naturally. Under certain conditions these electrostatic charges will be released. To avoid the unpleasant effects of static discharges, a metal strip has been incorporated into the right side of the handle.
  • Page 6 LIFT-AWAY ™ NOTE: When using the vacuum in Lift-Away mode, always make sure to hold onto the handle of the pod. ™ CLEANING Press LIFT-AWAY to lift the pod off the power nozzle. Use for portable To clean with hose, press the WAND or HANDLE release button then lift handle up. cleaning without Attach desired cleaning tool.
  • Page 7 ACCESSORIES 30 cm Crevice Tool Dusting Brush X11FC500 1185FC500 NOTE: Select cleaning Cleans hard surfaces and accessories are included. upholstery. Others are available for purchase. For a list of what is included with this model, refer to inside flap of box. Large Power Brush X13FC500 Designed for removal of...

  • Page 8: Helpful Tips

    HELPFUL TIPS SUCTION CONTROL This unit is equipped with a suction control collar to help with push and pull on high pile carpets, area rugs and to release suction when dusting delicate objects or drapery. Located at base of top handle, rotate the collar 90° to minimize suction. Be sure to close again for maximum suction. POWER BUTTONS The POWER button turns on suction only.

  • Page 9: Maintenance

    MAINTENANCE EMPTY THE DUST CUP Pull up on the dust cup release latch and lift the dustcup off the pod. Holding the dust cup over a garbage bag or can, press the bottom empty release latch. Press the top dust cup release latch to access the dust screen and remove built-up debris as required. With the dust screen removed, turn the dust cup over and empty the upper chamber by holding it by the recessed handle underneath the dust cup.

  • Page 10: Hose Cuff At Base Of Pod

    MAINTENANCE CHECK FOR BLOCKAGES REMOVE AND INSPECT: HOSE AND TUBES Remove power nozzle, dustcup and hose and shine a flashlight in all the intake openings to check for possible blockage. BOTTOM OF POWER NOZZLE CAUTION: Nozzle contains live parts Using a coin, turn the locking screws to the unlock position and pull up to expose the airway. Remove any obstructions, close and relock. Remove any string, carpet fibers or hair that may be wrapped around the brushroll.
  • Page 11 TROUBLE- Vacuum is not picking up dirt. No suction or light suction SHOOTING • C heck filters to see if they need cleaning. Follow instructions for rinsing and drying the filters before re-inserting back into the vacuum. GUIDE • Dust cup may be full; empty dust cup. • C heck hose, hose connections, nozzles and accessories for blockages; clear blockages if required.
  • Page 12 NOTES A U S T: 1 8 0 0 8 9 0 8 4 0...
  • Page 13 NOTES N Z : 0 8 0 0 0 0 2 9 9 9...
  • Page 14 NOTES Euro-Pro and Shark are registered trademarks of Euro-Pro Operating LLC. Rotator and Lift-Away are trademarks of Euro-Pro Operating LLC. A U S T: 1 8 0 0 8 9 0 8 4 0...
  • Page 15 FIVE (5) YEAR LIMITED REPLACEMENT WARRANTY STATEMENT If your product becomes defective due to faulty material or workmanship within a period of 5 year from the date of purchase, we warrant to do the following: • For New Zealand Consumers: We will replace the product with a new product, free of charge, or repair the product at our cost, at our discretion. • For Australian Consumers: Our goods come with guarantees that cannot be excluded under the Australian Consumer Law.
  • Page 16 SAA131168EA NV500NZV2�31�IB�ENG�150527�1 Printed in China © 2015 Euro-Pro Operating LLC Illustrations may differ from actual product.
