1 Identifying your stove

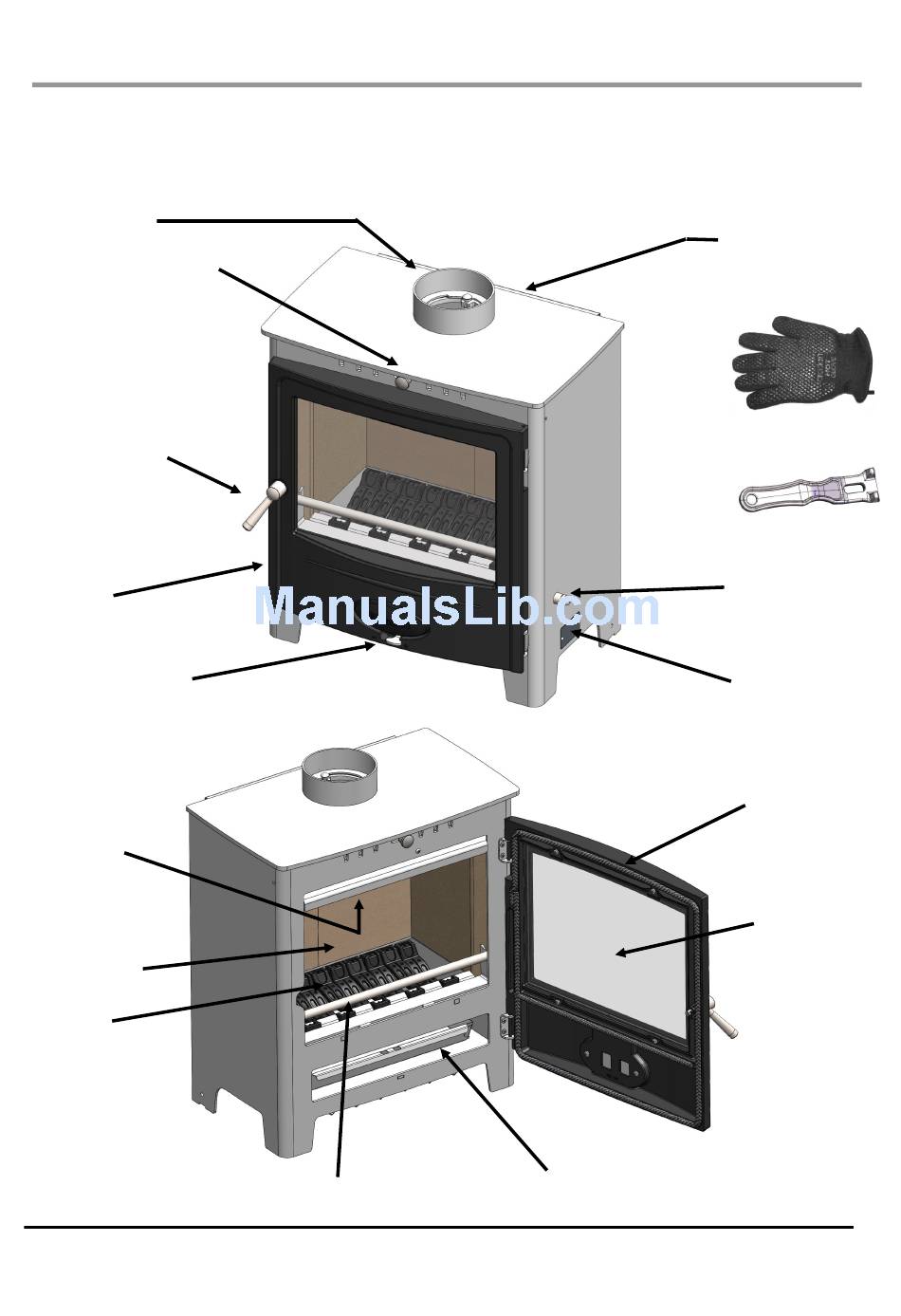

1.1 Identifying parts & terminology of your stove
Top Flue Outlet
Secondary Air Control
Fire Door Handle
Fire Door
Primary Air Control
Throat Plate
Firebox Liners
(Sides & Rear)
Grate Bars
BK 700 Specific
Fuel Retainer
SOLUTION Stove User Guide
Ash Pan
Rear Flue Outlet
(NOTE : Top &
Rear Flue Outlets
Are
Interchangeable &
Will Depend Upon
Installation.)
Hot Glove
Operating Tool
Grate Riddle Bar
Stove Data Plate
Fire Door Seal
Fire Door Glass
