Summary of Contents for Hamlet Hero Deluxe

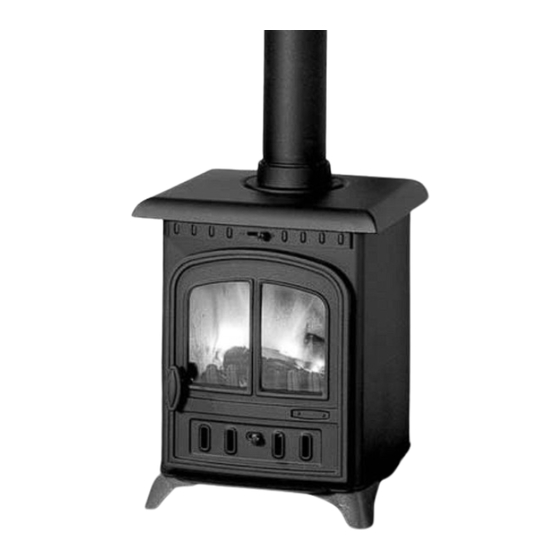

- Page 1 Operating & Installation Manual Hero Deluxe Multifuel Stoves Hero Deluxe Multifuel Stove PLEASE RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE Rev 1 September 2004 Part No. AFS1131...
- Page 2 Should you have any questions about our Hamlet Stoves that are not covered in this manual, please contact the local dealer in your area, or call our Technical support department on 01308 427234 ©...
-
Page 3: Table Of Contents
Parts List 23-25 Fitting the Feet GUARANTEE Fuel Types 1 Year Guarantee Lighting The Fire Customer Registration Extended Burning 11-12 SERVICE RECORD Ash Removal Service Record Over Firing Final Factory Check List SERVICING Cleaning Annual Maintenance Hamlet Hero Multifuel Stove... - Page 4 TO USE THESE FUELS WILL INVALIDATE THE APPLIANCE GUARANTEE IF IN DOUBT CONTACT THE SOLID FUEL ASSOCIATION TELEPHONE NUMBER 0800 600 000 www.solidfuel.co.uk THE USE OF SPARE PARTS OTHER THAN THOSE SUPPLIED BY ARADA LTD WILL INVALIDATE THE APPLIANCE GUARANTEE. Hamlet Hero Deluxe Multifuel Stove...
-
Page 5: Introduction
• Use gloves to provide additional grip. controlled by the air inlet mechanism. Hamlet Stoves are also fitted with an "air wash" so called because it provides a curtain of high speed THE PRINCIPLE OF THE FIRE preheated air behind the glass to help keep it clean and to provide secondary air/over draught. -
Page 6: Check List
10. Hot plate AFGS064 11. Feet & Fixings AFS1153 The model and Serial Number of your fire can be found stamped into the casing, centrally just below the bottom edge of the fire door aperture. Hamlet Hero Deluxe Multifuel Stove... -
Page 7: Technical Data
405 mm Depth (mm) over ashlip 345 mm Height to centre of rear flue 395 mm Depth from back to centre 105 mm of flue Unpacked 40Kg Weight Kg Packed 37Kg Flue diameter (mm) 102 (4”) Hamlet Hero Deluxe Multifuel Stove... -
Page 8: Operating Instructions
DISASSEMBLE AIRWASH specially shaped throat plate which sits on the The Hero Deluxe air wash may be disassembled for liners. If these are not in place please refer to page cleaning or adjustment. To achieve this, the 15 to install these. -
Page 9: Fire Door Glass
(Fig.8) Re-place the door carefully over the hinges and slot in place. Fig. 5 Removal of the Hero Deluxe door •Unscrew the two nuts, on the inside of the door securing the retaining clips. -
Page 10: Fitting The Feet
NEVER BURN PLASTICS OR WASTE IN FITTING THE FEET YOUR STOVE. The Hero Deluxe multifuel stoves must be fitted Coal - Household coal produces a large amount of with the feet supplied. ash and smoke. If used the appliance and chimney will require frequent cleaning. -
Page 11: Lighting The Fire
•Set the primary inlet to the fully open position glow brightly and place pieces of fuel on the fire •Light in the normal manner with paper and until it is well established. kindling, or use a fire lighter. Hamlet Hero Deluxe Multifuel Stove... -
Page 12: Ash Removal
Further de-ashing will cause heat build-up under the grate, which will considerably shorten its life. Hamlet Hero Deluxe Multifuel Stove... -
Page 13: Annual Maintenance
Hamlet dealer. With a wire brush clean inside OUTER FINISH the appliance paying particular attention to the... -
Page 14: Installation
Care should be taken to make sure that the hinges are not damaged during installation. Hamlet Hero Deluxe Multifuel Stove... -
Page 15: Firebox Liner Panels
•With the grate in place •Insert the side liner panels Fig. 11 Liners inserted in Hero Deluxe stove. •Set the small liners into the back of the fire resting onto the ledge behind the grate. -
Page 16: Flues & Chimneys
Factory made insulated chimney complying with BS 4543: Part 2 (often called "Class 1 prefabricated metal chimney"). These types of chimney should be installed in accordance with the Building Regulations and BS 7566: Parts 1 to 4. Hamlet Hero Deluxe Multifuel Stove... - Page 17 Engineer): telephone 0800 0924019 Bookshops also www.nace.org.uk viewed ODPM website www.safety.odpm.gov.uk/bregs/brads.htm NACS (National Association of Chimney Sweeps): telephone 01785 811732 Details on the relevant Building Regulations and www.chimneyworks.co.uk BS British Standards are given in the "General Hamlet Hero Deluxe Multifuel Stove...
- Page 18 INSTALLATION Hamlet Hero Deluxe Multifuel Stove...
- Page 19 WITH BUILDING REGULATIONS AND IEW OF REGISTER PLATE AND CLEARANCES FOR NON INSULATED FLUES A is minimum clearance for non-insulated flue = 1.5 x D to a non-combustible surface/material 3 x D to combustible surface/material Hamlet Hero Deluxe Multifuel Stove...
-
Page 20: Add In Boilers/Water Connections
In many cases your supplier will be able to offer advice and assistance. Hamlet Hero Deluxe multifuel stoves offer the option of a slab boiler, which occupies the position Direct Systems of the rear firebox liner panels. -
Page 21: Final Check
What is the height and distance of the hot water tank above the stove? A checklist (Pre-lighting Checks) appears in the Operating Instructions, but in addition to this the installer should: Hamlet Hero Deluxe Multifuel Stove... -
Page 22: Final Installation Check List
I/we the undersigned confirm that the above details are correct. In my opinion, these works comply with the relevant requirements in Part J of Schedule 1 to the Building regulations. Print name and title....................Profession................Capacity........................Telephone................Address................................Post code........Signed......................Date......... Registered membership of..(e.g. CORGI, OFTEC, HETAS, NACE, NACS)..........Hamlet Hero Deluxe Multifuel Stove... -
Page 23: Parts List
1. Main Door Assembly Complete with Handle,Glass, AFS1145 Gaskets,Clips and Seal. 2. Throat Plate AFS1018 3. Fuel Grate AFS1078 4. Flue Spigot AFS009A 5. Operating Tool AFS008 6. Fire Door Locking Assembly AFS1146 7. Ashpan AFS058 Hamlet Hero Deluxe Multifuel Stove... - Page 24 Gasket 12. Glass Clips with AFS1096 Gasket 13. Hinge kit Comprises 2 Hinges AFS047 & 4 Fixings Per Set. 14. Hamlet Hardy Airwash AFS1144 15. Fire Door Rope Kit Complete with AFS1021 Door Rope Glue. Hamlet Hero Deluxe Multifuel Stoves...
- Page 25 Hamlet Hero Visual Aid Part Description Deluxe (not to scale) Part No. 16. Feet & Fixings AFS1153 17. Hamlet Fire Gloves AFS998 18. Operating Manual AFS1131 19. Anthracite Spray Paint AFS101A 20. Hot Plate AFGS064 Hamlet Hero Deluxe Multifuel Stove...
-
Page 26: Guarantee
Hamlet fire. If you think your fire is not working correctly or in When you buy an Hamlet Stove, you are not only the case of a breakdown, please call your local buying a first class appliance - you are buying a... -
Page 27: Service Record
Work Carried Out Signature Date of Visit Should you have any questions about your Hero Deluxe Multifuel Stove that is not covered in this manual please contact your Hamlet retailer. Please keep all repair receipts safely. Please ensure you have this manual available when an engineer visits as they will complete the service record chart. -
Page 28: Final Factory Check List
FINAL FACTORY CHECK LIST Model........Serial No......QUALITY FINISH I’ve checked it PARTS and it’s O.K. FLUE OUTLET HOT PLATE FIREBOX LININGS GRATE Assembled by......THROAT PLATE AIR WASH Checked by ........ DOOR CATCHES FEET & FIXINGS ASH PAN OPERATING TOOL OPERATING INSTRUCTIONS Please ensure the enclosed registration card is completed and returned to Arada Ltd and the following information completed for your own information.
