9 How heat is delivered by your stove

Secondary
Air
Inlet
Radiant
Heat
Through
Glass
Primary
Air
Inlet

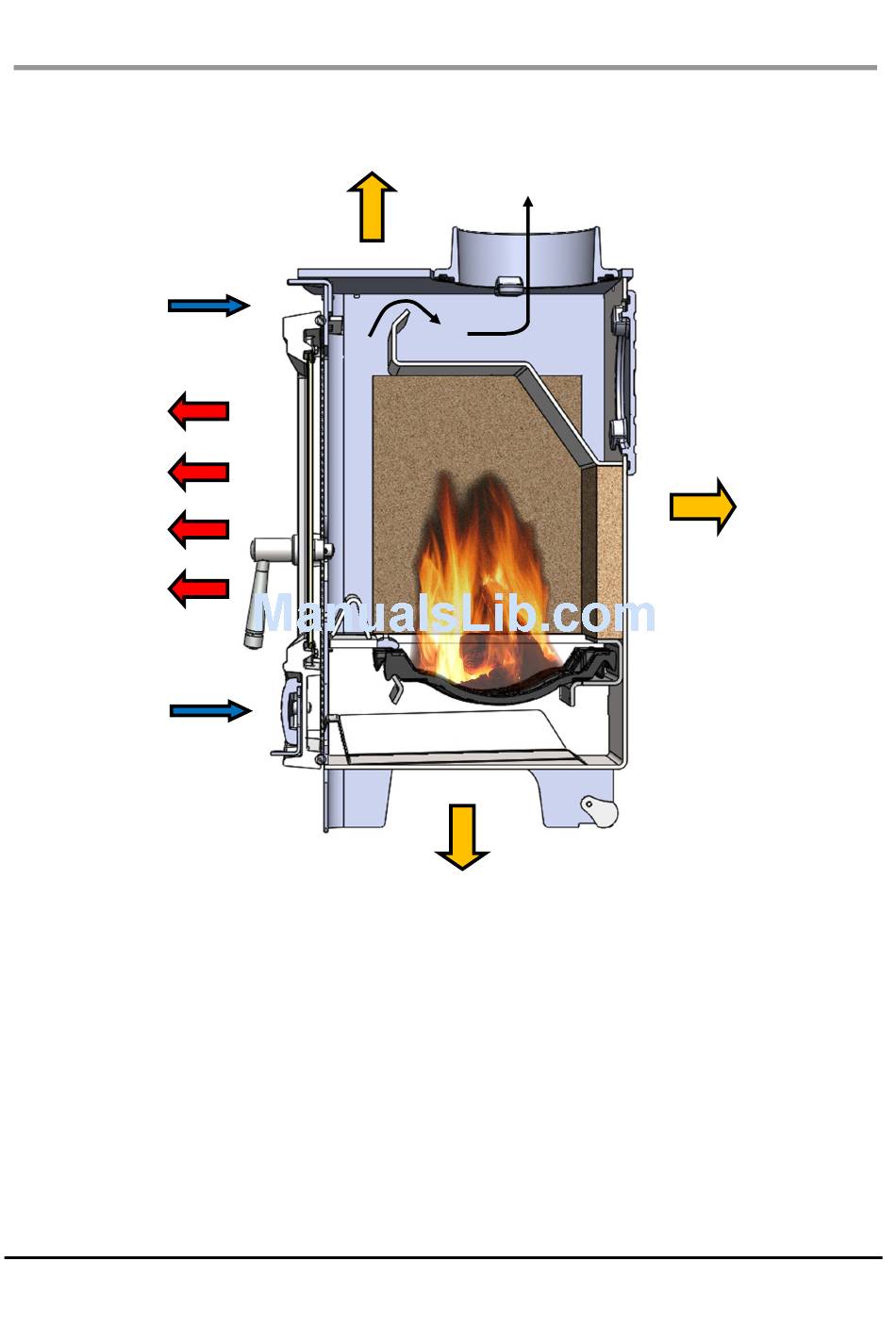

Section Through Stove

9.1 Radiant heat

All Hamlet stoves radiate heat into the room. The radiated heat is most intense at the front of
the stove, especially through the door glass and less intense the further you move away from
the stove.
This radiated heat is delivered as infrared rays which heat the objects they strike. It is then
these objects (such as the chimney breast, hearth etc.) which heat the surrounding air.
Please note, the Solution 5 Widescreen stove models have a heat shield fitted at the
base of the appliance to reduce under hearth temperatures and thus is permissible to be
used on a non constructional hearth.
BK 700 Specific
Radiant
Heat
From Top
Products Of
Combustion
Radiant
Heat
From Base
SOLUTION Stove User Guide
Radiant
Heat
From Rear
