SOLUTION Stove User Guide

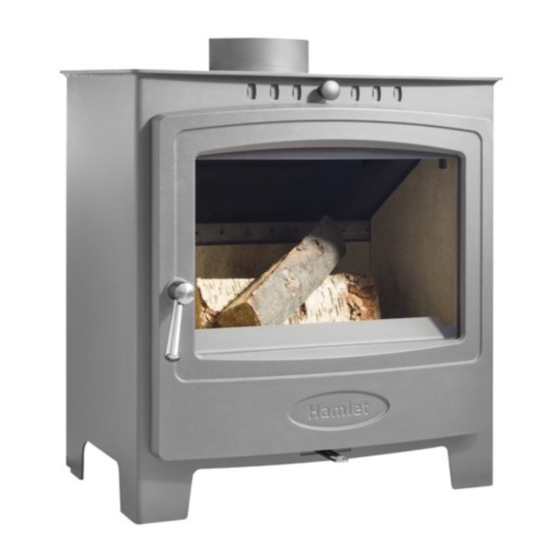

Hamlet Solution 5 Widescreen
PLEASE RETAIN THIS GUIDE FOR FUTURE REFERENCE
EN 13240:2011 +A2:2004
BK700
SPECIFIC Rev 02
ISSUE DATE : 09/11/2017

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Solution 5 Widescreen and is the answer not in the manual?

Questions and answers

Related Manuals for Hamlet Solution 5 Widescreen

Summary of Contents for Hamlet Solution 5 Widescreen

  • Page 1 SOLUTION Stove User Guide Hamlet Solution 5 Widescreen PLEASE RETAIN THIS GUIDE FOR FUTURE REFERENCE EN 13240:2011 +A2:2004 BK700 SPECIFIC Rev 02 ISSUE DATE : 09/11/2017...
  • Page 2 Your Hamlet stove is built to the highest standard of craftsmanship using the best materials and the most modern equipment available. It is a highly efficient and sophisticated piece of machinery and when properly installed and operated it should provide a lifetime of heating satisfaction.

  • Page 3: Table Of Contents

    SOLUTION Stove User Guide Contents 1 Identifying your stove 1.1 Identifying parts & terminology of your stove ………………….. 2 Warnings 2.1 Health and Safety ………………………………………………... 2.2 Smoke control areas …………………………………………….. 3 Advice on fuel types 3.1 Wood ………………………………………………………………. 3.2 Solid fuel ………………………………………………………….. 4 Before using your stove ………………………………………….
  • Page 4 8.1 Multi fuel or Flexifuel grates ……………………………………. 9 How heat is delivered by your stove 9.1 Radiant heat …………………………………………………….. 10 Care for your Hamlet stove 10.1 Adjusting the door hinges …………………………………….. 10.2 Liners / firebricks ………………………………………………. 10.3 Throat plate ……………………………………………………..

  • Page 5: Identifying Your Stove

    SOLUTION Stove User Guide 1 Identifying your stove Rear Flue Outlet (NOTE : Top & 1.1 Identifying parts & terminology of your stove Rear Flue Outlets Top Flue Outlet Interchangeable & Will Depend Upon Secondary Air Control Installation.) Hot Glove Fire Door Handle Operating Tool Grate Riddle Bar...

  • Page 6: Warnings

    Any manufacturer’s instructions must not be taken as overriding statutory requirements. All Hamlet Solution stoves MUST NOT be connected to a shared flue system. Please Note: Classification of these appliances is for intermittent use only. Do not use aerosol sprays or any other flammable materials near the appliance when in use.

  • Page 7: Health And Safety

    A factory fitted permanent stop mechanism has been incorporated in the above models, to prevent closure of the air control below acceptable limits. The stop for secondary air control on the Hamlet Solution 5 Widescreen is set at 50% open.

  • Page 8: Advice On Fuel Types

    SOLUTION Stove User Guide 3 Advice on fuel types 3.1 Wood As a natural and renewable fuel, wood is the first choice for burning, however burning wood requires a little effort and planning. Any type of wood is suitable (though hardwood is preferable) provided it is well seasoned and has a moisture content below 20%.

  • Page 9: Before Using Your Stove

    SOLUTION Stove User Guide 4 Before using your stove Hamlet stoves are designed to be operated with the fire door(s) closed at all times, apart from refuelling (when alight) or cleaning (when cold). Never leave the appliance unattended for an extended length of time with the door(s) open.

  • Page 10: Air Inlet Controls

    SOLUTION Stove User Guide 5 Air inlet controls 5.1 Location and operation of the controls Your stove has two air inlet controls. These are located either on the stove body or the stove door. Secondary Air Control (Airwash) Primary Air Control 5.1.1 Primary air The primary air inlet provides under draught to the base of the fire chamber.

  • Page 11: Airwash System / Secondary Air

    Fig. 3. Fully Open Position Fig. 4. Fully Closed Position NOTE : The Hamlet Solution 5 Widescreen models that are fitted with the mechanical stop for smoke control areas, then please note that the airwash will not fully close as in Fig.

  • Page 12: Smoke Exemption Permanent Stop

    SOLUTION Stove User Guide 5.1.3 Smoke Exemption Permanent Stop The position of this permanent stop has been determined during independent laboratory testing to PD 6434:1969 to enable the smoke particulate emissions to comply with the smoke exemption regulations. Part of the permanent stop mechanism comprises of a restriction (anti tamper) screw, that has been factory fitted to your stove, this acts as a limit stop for the sliding air wash control and thus prevents full closure, reducing smoke emissions.

  • Page 13: Lighting Your Stove

    SOLUTION Stove User Guide 6 Lighting your stove 6.1 Smoke Control Areas Please check whether your dwelling is located in a smoke control area before installation or use. Please check with your local authority or https://www.gov.uk/smoke-control-area-rules. 6.1.1 Fuel overloading The maximum amount of fuel specified in this manual should not be exceeded, overloading can cause excess smoke.

  • Page 14: Burning Solid Fuels

    SOLUTION Stove User Guide 6.3 Burning solid fuels Solid fuel burns best with its air supply for combustion coming from underneath the fuel. To achieve this the burn will be controlled by the primary air control (see Fig 1 & 2). This allows you to control the flow of air, underneath the grate.

  • Page 15: Warning - Fume / Smoke Emissions

    SOLUTION Stove User Guide 6.4 Warning - Fume / Smoke emissions Properly installed, with a suitable flue or chimney, operated and maintained correctly, this appliance will not emit fumes into the dwelling. Occasional fumes when de-ashing and refuelling may occur. However, persistent fume emission is potentially dangerous and must be investigated by a approved / registered installer.

  • Page 16: Further Information For All Stove Owners

    SOLUTION Stove User Guide 7 Further information for all stove owners 7.1 Door glass The door glass should remain clear during normal burning. However under certain conditions, such as burning at a low or slow rate, using damp wood or overnight burning, the glass may become somewhat blackened.

  • Page 17: Ash Removal

    SOLUTION Stove User Guide 7.5 Ash removal The ash pan should be emptied when the level of ash reaches the top of the ash pan. On no account should the ash be allowed to build up to touch the underside of the grate bars, as this will greatly reduce the life span of the grate.

  • Page 18: Replacement Parts

    8 Further information for multi fuel stove owners 8.1 Flexifuel grates The Patented grate system in your Hamlet stove comprises of a series of reciprocating cast iron bars seated on a pivoted comb. These should come pre-assembled in your new stove.

  • Page 19: How Heat Is Delivered By Your Stove

    From Base 9.1 Radiant heat All Hamlet stoves radiate heat into the room. The radiated heat is most intense at the front of the stove, especially through the door glass and less intense the further you move away from the stove.

  • Page 20: Care For Your Hamlet Stove

    SOLUTION Stove User Guide 10 Care for your Hamlet stove The need for regular maintenance on your stove will ensure, safe and efficient use of your appliance. The following item listing should be checked and inspected by a competent person or engineer on a regular basis.

  • Page 21: Chimney / Flue Sweeping

    SOLUTION Stove User Guide You should discontinue use of your stove until it has been repaired. You can source replacement glass kits from www.aradastovesandspares.com or your Arada dealer. 10.6 Chimney / Flue Sweeping Sweeping should be carried out with an appropriate sized bristle brush and rods to suit chimney size and type.

  • Page 22: Further Resources / Reading

    However if you have any queries, doubts or would like further advice please do not hesitate to speak to your Hamlet dealer or call us. You will find our contact details below, as well as a list of resources where you can discover more information about your stove and associated articles.

  • Page 23: Guarantee

    The following guarantee periods shall apply in respect of the following Arada stoves: Hamlet stoves come with a TEN year guarantee to the main body. The external paint finish carry a one-year guarantee only.
  • Page 24 SOLUTION Stove User Guide 5. Your stove must have been installed by a suitably qualified person and in accordance with the manufacturer’s installation instructions. Stoves not installed by a suitably qualified person or not installed in accordance with the manufacturer’s installation instructions will not be covered by this guarantee.

  • Page 25: General

    SOLUTION Stove User Guide 12.3 General Our guarantee is offered as an addition to your statutory rights and will not effect your statutory rights. You can obtain information about your legal rights from trading standards office's or a citizens’ advice bureau. If you believe your appliance is not working correctly or it has broken down, in the first instance please contact your local retailer or installer for assistance.

  • Page 26: Technical Data

    SOLUTION Stove User Guide 13 Technical specification SOLUTION 5 TECHNICAL DATA Widescreen Nominal Heat Output (Kw) 4.99 Efficiency Nett (%) 79.3 Mean Flue Gas Temperature (°C) 178.4 Mean CO Emission @ 13% O2 (%) 0.21 Flue Mass Gas Flow (g/s) 6.96 Rear = 300 Minimum Distance to Combustible...
  • Page 27 SOLUTION Stove User Guide 14 Notes : BK 700 Specific Page 27...
  • Page 28 SOLUTION Stove User Guide Hamlet is a brand name of Arada Ltd All Hamlet Solution Stoves are manufactured in the UK Arada Ltd The Fireworks, Weycroft Avenue - Axminster - Devon EX13 5HU United Kingdom www.aradastoves.com T: +44 (0)1297 632050 Email : info@aradastoves.com...
