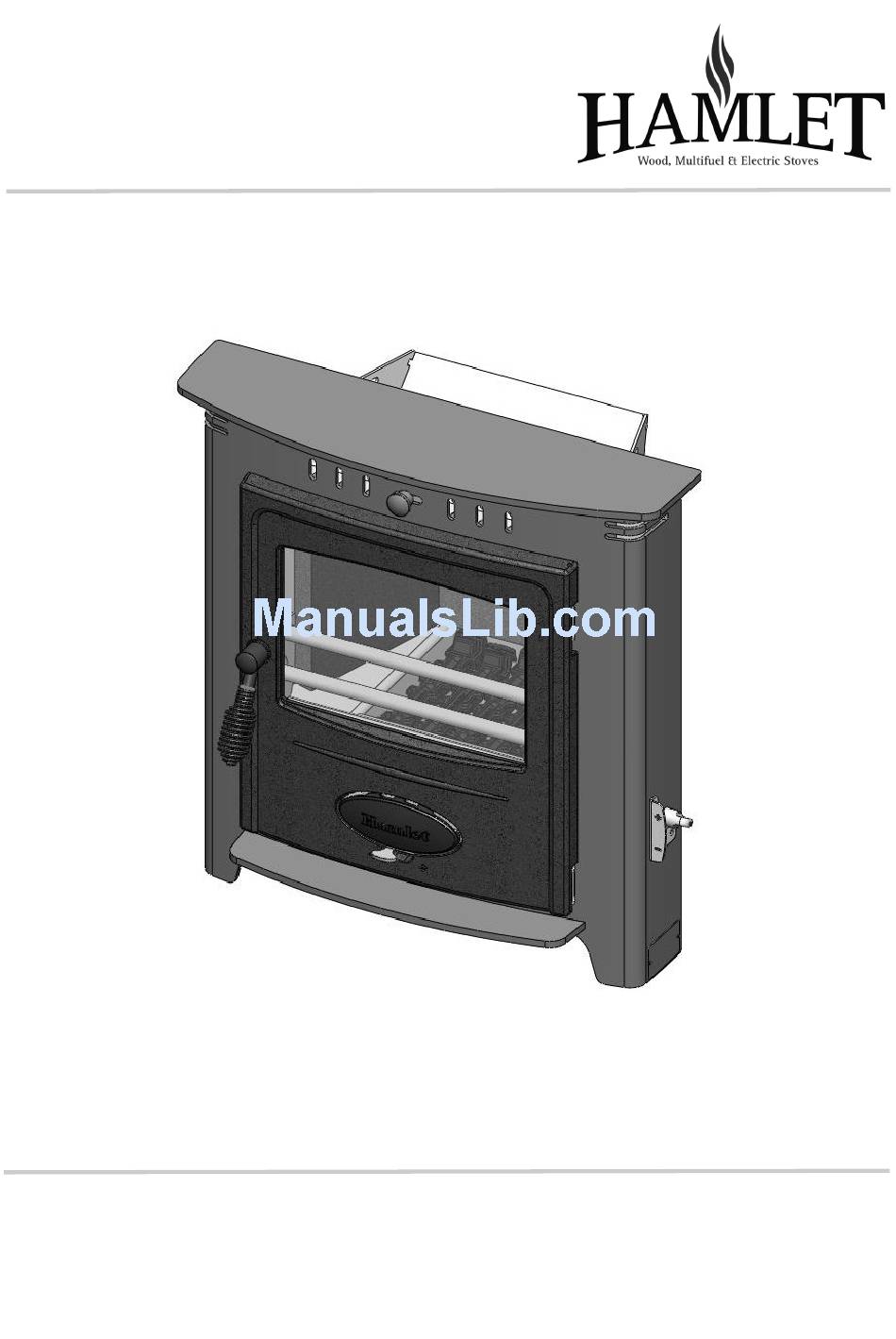

- Page 1 Multi-Fuel Grate Installation Instructions SOLUTION INSET Solution Inset Shown With Multi-Fuel Grate Fitted PLEASE RETAIN THIS GUIDE FOR FUTURE REFERENCE Rev. 01 BK096 September 2009 Part No. AFS1460 EN 13240:2004+ Amd. A2:2004...
- Page 2 Assembling the Grate Fitting the Grate Solid Fuel Burning Final Factor Check List Please note, if you require any further information or assistance, then please call the technical support department on - 0844 847 5107 Page 2 Hamlet Solution Inset...
- Page 3 (Includes Fixings ** Wood Burning Tray 1 x AFS1401 * components included in Multi-Fuel Kit ( MFKITINSET5 ) ** components standard with wood burning version of stove as despatched Not included in factory fitted multi-fuel version Hamlet Solution Inset Page 3...
- Page 4 FITTING THE GRATE Fig 1 The Grate The grate in the Hamlet Solution Inset stove, comprises of a series of reciprocating cast iron grate bars, seated on a pivoted ‘comb’. All bars in the grate are identical, but every other bar is...
- Page 5 Fig 4a Slot and hole aligned vertically Fig 4b Left and right end Fig 4d Fig 4c comb insertion Left hand end in left landing Right hand end inserted into comb extension Page 5 Hamlet Solution Inset...
- Page 6 Remove damaged grate bars and replace with castings of the same type, fitting as per the instructions on page 4. When re-ordering replacement grate bar, See page 3 of these instructions for the correct spare part code. Hamlet Solution Inset Page 6...
-
Page 7: Burning Solid Fuel
Air enters the appliance through the control on the door (s) bottom of the fire door. The Hamlet Solution has a single control knob which slide left to right. Sliding ANTHRACITE... -
Page 8: Final Factory Check List
Final Factory Check list Stove Model …………….……………… Serial No. ………………………………. I’ve checked it and its O.K ! Quality / Finish Grate Bars Rear Grate Bar Support Assembled By……………………. Comb Comb Extension Checked by……………………….. Plus / Minus Bracket Arada Ltd The Fire Works Weycroft Avenue Axminster Devon...
