Yale nexTouch Installation And Programming Instructions

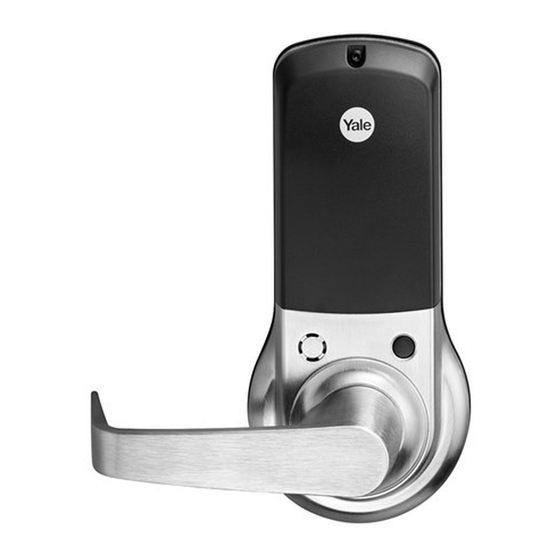

Touchscreen and push button keypad sectional mortise lock
Hide thumbs Also See for nexTouch:
Table of Contents

Advertisement

Quick Links

See also: Installation and Programming Instructions

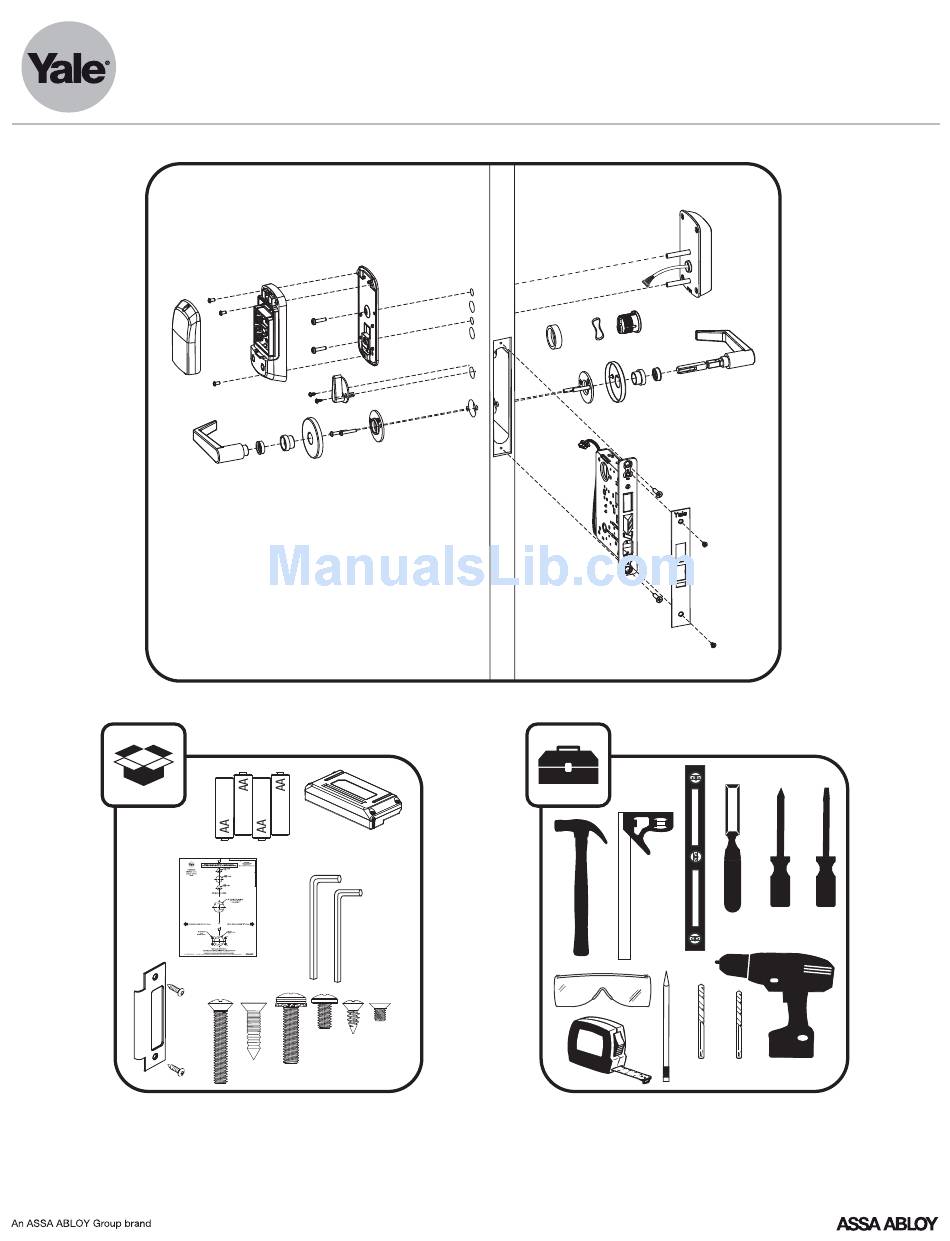

nexTouch
®
Touchscreen and Push Button Keypad Sectional Mortise Lock
Installation and Programming Instructions
Optional
1/8"
3/32"
#3 & #2
3/4"
1/2"
Retrofitting or modifying this product may impact fire rating, safety features and warranty.
Consult with code specifications to ensure compliance with all codes and ratings.
1
P/N 80-9086-0030-010 (03-18)

Advertisement

Table of Contents
loading

Related Manuals for Yale nexTouch

Summary of Contents for Yale nexTouch

  • Page 1 ® Touchscreen and Push Button Keypad Sectional Mortise Lock Installation and Programming Instructions Optional 1/8" 3/32" #3 & #2 3/4" 1/2" Retrofitting or modifying this product may impact fire rating, safety features and warranty. Consult with code specifications to ensure compliance with all codes and ratings.
  • Page 2 Determining Handing The hand of a door is determined from the secure side of the door. The term "secure" means the side from which you unlock and enter. Deadbolt Latchbolt - Beveled edge must face strike. (See step 1 to reverse latchbolt.) RED Locking Slide should face the secure...
  • Page 3 Handing Latchbolt & Hubs (If Necessary) Insert flat head screwdriver to pry latch head up. Rotate latch head to correct orientation. Locking Slide PUSH away from square hole to create gap. Check for free movement of locking slide. Continue to rotate locking slide from other side PUSH IN...
  • Page 4 Preparing Door Outside of Door Mortise Key Cylinder Hole: Drill only 1/2 way into door ONLY if lock is equipped with cylinder. Drill thru holes 1/2 way thru door then complete from other side to prevent splitting. Inside of Door Mortise Lock Cable Hole: Drill only 1/2 way into door (7/8"...
  • Page 5 Preparing Frame & Installing Strike #12-24x1" Flat Head Combo Screw Frame This prep is standard with or without deadbolt. Optional Strike Box Use #3 Philips head screwdriver P/N 80-9086-0030-010 (03-18)
  • Page 6 Installing Lockbody #12-24x1" Flat Head Combo Screw Inside of Door Mortise Lock Cable Hole Do not tighten screws until Step 10. Use #3 Philips head screwdriver Make sure mortise pocket is free from debris. P/N 80-9086-0030-010 (03-18)

  • Page 7: Test Operation

    Philips head screwdriver Outside of Door HAND TIGHTEN. Do not use powered First, tighten cylinder screw driver. until snug against door with the Yale logo horizontal. Then, use #2 Philips head screwdriver to tighten cylinder set screw. STOP Test Operation...
  • Page 8 Installing Rose Trim - all types Adjusting for 1-3/4" to 2-1/4" Door (if necessary) Use screw pack for thicker door at this step. Use appropriate fastener lengths to ensure proper installation. Outside of Door #8-32x1" Pan Head Screw with Thread Locker (For 1-3/4"...
  • Page 9 Preparing Levers Inside Correct Lever Assembly Orientation Inside Spindle Loosen Inside Spindle 1/2 to 1 turn until Correct Orientation. Outside Lever Assembly Installing Levers Pushing levers together, use hex wrench Outside to tighten set screw securely of Door against spindle. P/N 80-9086-0030-010 (03-18)
  • Page 10 Installing Thumbturn (if applicable) For Deadbolt Option ONLY #6x3/8" Oval H Screw Inside of Door Use #2 Philips head screwdriver STOP Test Operation P/N 80-9086-0030-010 (03-18)
  • Page 11 Once extended, it will also retract by lever. Latchbolt retracts and extends by levers and key. Installing Armor Front 8x32-1/4" Flat Head Screw Yale logo will be Outside at top and visible of Door when installed. Use #2 Philips head...
  • Page 12 Installing Exterior Escutcheon Inside of Door P/N 80-9086-0030-010 (03-18)
  • Page 13 Installing Interior Mounting Plate #10-32x3/4" Pan Head Screw with Washer (For 1-3/4" Door) 3/32" Hex Wrench Choose fasteners appropriate for your door thickness. Inside of Door Use #2 Philips head screwdriver P/N 80-9086-0030-010 (03-18)

  • Page 14: Attaching Cables

    Attaching Cables Inside of Door Cables must be clear of all fastener holes. P/N 80-9086-0030-010 (03-18)
  • Page 15 Installing Interior Escutcheon #8-32x3/8" Pan Head Screw (Black) Inside of Door Use #2 Philips head screwdriver P/N 80-9086-0030-010 (03-18)
  • Page 16 Installing Batteries & Cover "Welcome to Yale." Optional Network or Yale Accentra Key module must be installed BEFORE batteries. See Installation Options. Congratulations, you've installed ® the Yale nexTouch Sectional Mortise Lock! Continue to customize your product. P/N 80-9086-0030-010 (03-18)

  • Page 17: Installation Options

    Installation Options Network or Yale Accentra Key Module Module must be installed BEFORE batteries. Remove batteries if adding module to existing unit. P/N 80-9086-0030-010 (03-18)

  • Page 18: Programming Instructions

    Programming Instructions Indicator 9Volt Battery Light Override Terminal Low Battery Unlock Privacy Indicator Indicator Button Speaker Lockout Mode Indicator Exterior Escutcheon Interior Escutcheon Lock Activation Master Code must be created before any further programming. Max User Codes = 100 without Radio Module / 500 with Radio Module P/N 80-9086-0030-010 (03-18)
  • Page 19 Creating Master Code Creating a Master Code must be performed upon installation or after resetting the lock to factory default. Programming and use of lock is not possible until this step has been successfully completed. "Register Master Code. Press the gear key to continue."...

  • Page 20: Creating User

    Creating User Codes Master code must be created first. *Max User Codes = 100 without Radio Module / 500 with Radio Module "Menu Mode, enter number." Activate Enter Master Lock code Press "Register User code. "Register *User code. Press the gear key Press the gear key to continue."...
  • Page 21 Creating User Codes con't Enter 4-8 digit code followed by "Registered. Press the check key to complete. Press the gear key to continue." Adding more User Codes: To end programming: Press Press Enter 4-8 digit code "Completed." Press "Registered. Press the check key to complete.
  • Page 22 Locking & Unlocking Door with Registered Master or User Code With One Touch Locking Enabled: Enter Code Press Locking Door with Privacy Button Privacy Button pressed once will lock door. To activate Privacy Mode, press and hold Privacy Button. P/N 80-9086-0030-010 (03-18)

  • Page 23: Factory Settings

    7. Release reset button and wait approximately may stay connected. (See illustration at above 15 seconds. Speaker will announce "Welcome for location of the reset button.) to Yale." 3. Reinstall four (4) batteries. 8. Reassemble escutcheon by reversing steps 1-2.
  • Page 24 Definitions All Code Lockout Mode: This feature is enabled by the Master code. When enabled, it restricts all user (except Master) code access. When attempting to enter a code while the unit is in Lockout, the locked padlock will appear on the screen. (Main Menu selection #6.) Automatic Re-lock Time: After a successful unlock, the unit will re-lock automatically after 5 seconds or for a duration selected in the Advanced Lock Settings (Main Menu selection #3 then #1).
  • Page 25 *The Master code must be registered prior to any other Deadbolt Not Included programming of the lock. Escape Return Mode Enable **This function appears only with Network or Yale Accentra Disable Key module installed. Eco Mode Enable Disable Complete Volume Setting...

  • Page 26: Programming Troubleshooting

    Programming Troubleshooting Symptom Suggested Action Touchscreen becomes active when pressed w/whole hand. • Use a larger area of the hand or fingers and verify contact with at least 3 areas. Lock does not respond – door is open and accessible. If touchscreen numbers are visible, check to see if they respond when pressed.
  • Page 27 All rights reserved. Reproduction in whole or in part without the express written permission of Yale Security Inc. is prohibited. YALE, with its unique global reach and range of products, is the world's favorite lock – the preferred solution for securing your home, family and personal belongings.
