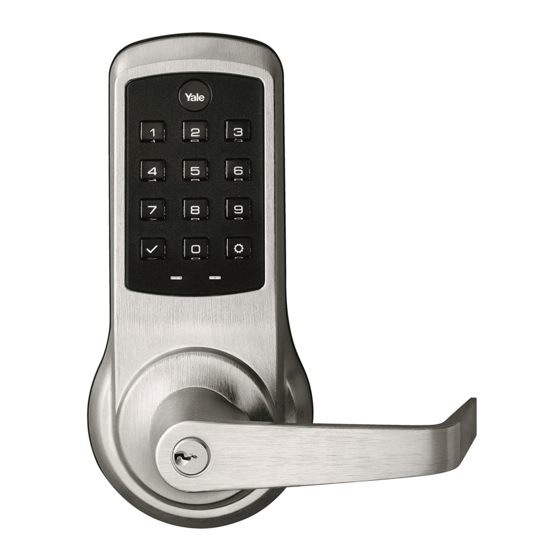

nexTouch
Keypad Access Cylindrical Lock
™
Touchscreen and Push Button
Installation and Programming Instructions
3/32"
Optional
Optional
Retrofitting or modifying this product may impact fire rating, safety features and warranty.
Consult with code specifications to ensure compliance with all codes and ratings.
80-9150-0080-010 04-21
Part of ASSA ABLOY

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the nexTouch and is the answer not in the manual?

Questions and answers

Related Manuals for Yale nexTouch

Summary of Contents for Yale nexTouch

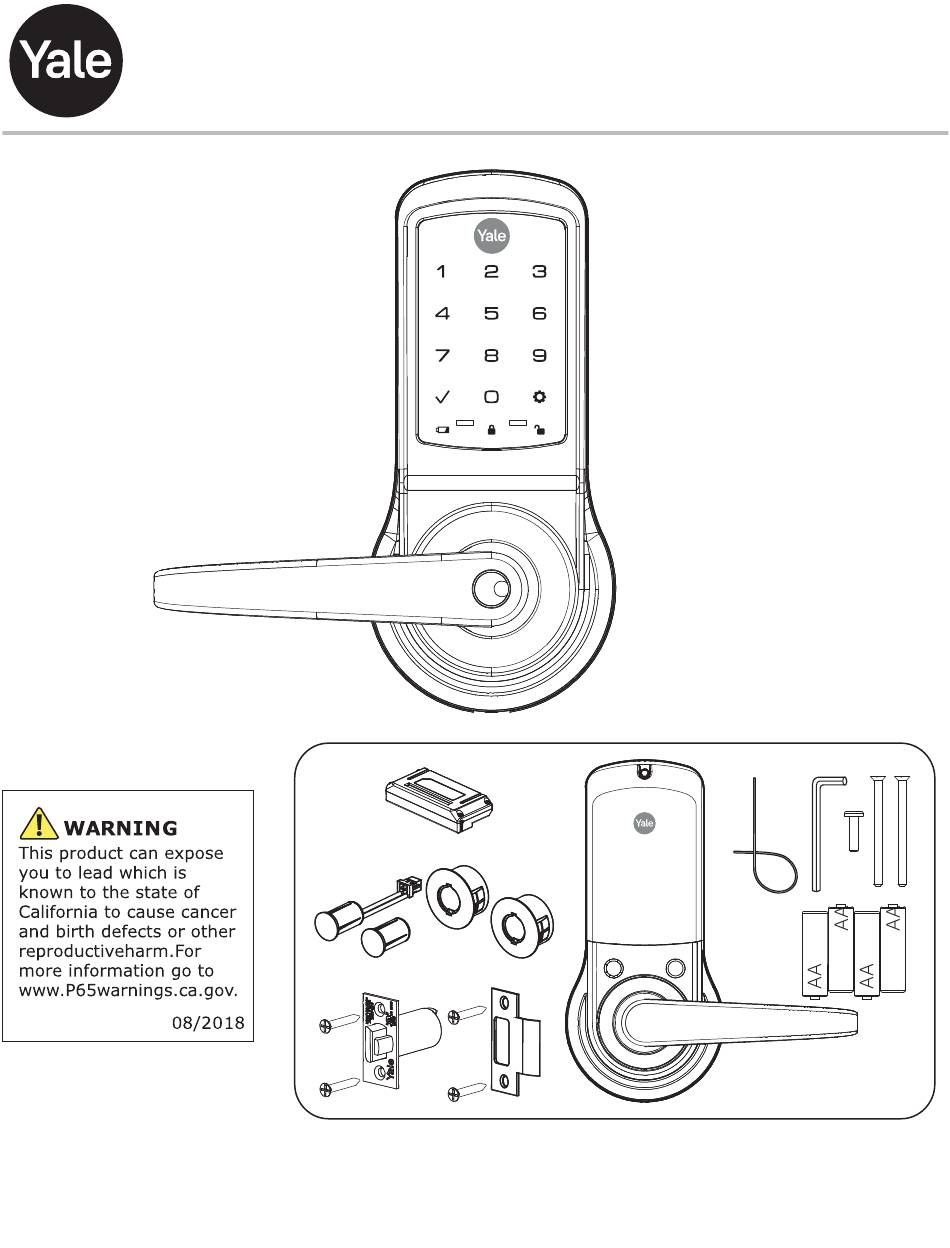

  • Page 1 Keypad Access Cylindrical Lock ™ Touchscreen and Push Button Installation and Programming Instructions 3/32" Optional Optional Retrofitting or modifying this product may impact fire rating, safety features and warranty. Consult with code specifications to ensure compliance with all codes and ratings.
  • Page 2 Determine Handing The hand of a door is determined from the secure side of the door. The term "secure" means the side from which you initially unlock and enter. Left Hand “LH”, Hinges Left. Left Hand Reverse "LHR", Hinges Left. Open Inward.
  • Page 3 Prepare Door DPS Option Wood Door: 3/8" Dia. Thru to Hole in Door Face *Metal Door: 3/4" Dia. Thru to Hole in Door Face Drill holes 1/2 way thru door then complete from other side to prevent splitting. *Metal Door Installations Supplied plastic collar MUST be installed for DPS to function properly.
  • Page 4 Prepare Frame DPS Option 7-16 / 8-32 x 1" UNCWS Frame Wood Frame: 3/8" Dia. x 1" *Metal Frame: 3/4" Dia. x 1" See Instruction Frame A7983B Inside 3-1/2" of Door 1" Dia. x 1/2" Deep *Metal Door Installations Supplied plastic collar MUST be installed for DPS to function properly.
  • Page 5 Prepare Inside Lock Do not take apart the keypad. 80-9150-0080-010 04-21 Part of ASSA ABLOY...

  • Page 6: Remove Battery Cover

    Install Latchbolt 2-3/8" Latchbolt for thin doors sold separately. See Installation Options. 7-16 / 8-32 x 1" UNCWS Inside of Door Curved edge of latchbolt faces direction door closes. Remove Battery Cover 80-9150-0080-010 04-21 Part of ASSA ABLOY...
  • Page 7 Install Keypad Thin door gaskets sold separately. See Installation Options. Inside of Door Optional DPS Inside of Door Two moving "T" tabs must be fully captured in retractor pocket. Mounting Flanges must be in Mounting Flange Pockets. View from Outside of Door Mounting Flange Mounting Flange Pocket "T"...
  • Page 8 Install Inside Support 10-32 x 2-1/2" PFHMS Inside of Door Optional DPS Do Not Overtighten Screws 80-9150-0080-010 04-21 Part of ASSA ABLOY...
  • Page 9 Attach Cables to Inside Lock Keypad Connection Optional Motor Connection Connection 80-9150-0080-010 04-21 Part of ASSA ABLOY...
  • Page 10 Install Inside Lock Thin door gaskets sold separately. See Installation Options. Avoid Crimping Cables Test Inside Lever Operation 80-9150-0080-010 04-21 Part of ASSA ABLOY...
  • Page 11 Install Batteries & Cover "Welcome to Yale." Optional Network or Yale Accentra Key module must be installed BEFORE batteries. See Installation Options. Congratulations, you've installed the Yale nexTouch™ Cylindrical Lock! 80-9150-0080-010 04-21 Part of ASSA ABLOY...

  • Page 12: Installation Options

    Adjusting for 1-3/8" Door (if necessary) Order 1-3/8" Thin Door Kit: 14-4761-0106 CAUTION: Cylinders furnished with nexTouch™ lock for use in 1-3/8" doors have a tailpiece that is 1/4" shorter than the standard cylinders that are furnished for 1-3/4" doors.

  • Page 13: Programming Instructions

    Programming Instructions Lock Activation On Touchscreen model touch Yale logo to wake lock Lock Activation On Push Button model touch check key to wake lock 9Volt Battery Unlock Indicator Override Terminal (Touchscreen) Lockout Mode Indicator Low Battery Indicator (Touchscreen) (Touchscreen)
  • Page 14 Creating Master PIN Code Creating a Master PIN Code must be performed upon installation or after resetting the lock to factory default. Programming and use of lock is not possible until this step has been successfully completed. Press (Touchscreen) Press (Push Button) "Register Master Code.
  • Page 15 Creating User PIN Codes Master PIN code must be created first. *Max User Codes = 500 The Yale Accentra Key module enables access with physical (cards and fobs) and mobile credentials ONLY. Creation and use of User PIN codes are disabled. Press...
  • Page 16 Creating User PIN Codes con't Enter 4-8 digit PIN code followed by "Registered. Press the check key to complete. Press the gear key to continue." To end programming: Adding more User Codes: Press Press Enter 4-8 digit PIN code "Completed." Press "Registered.
  • Page 17 Locking & Unlocking Door with Registered Master or User PIN Code The Yale Accentra Key module enables access with physical (cards and fobs) and mobile credentials ONLY. Creation and use of User PIN codes are disabled. Master PIN code is only used for programming and configuring lock with Yale Accentra Multi-Family configuration app and will not unlock door.
  • Page 18 Testing Outside Lever Operation Locking Door with Privacy Button 80-9150-0080-010 04-21 Part of ASSA ABLOY...
  • Page 19 15 seconds. 5. Remove the inside lock Speaker will announce from the door to access the "Welcome to Yale." reset button on back of 11. Reassemble inside lock and inside lock. Cables may stay lever. connected. (See illustration 12.
  • Page 20 Low Battery: When battery power is low, the Low Battery Warning indicator is a flashing red battery icon on the touchscreen keypad and the Yale logo will flash red on the push button keypad. If battery power is completely lost, use 9Volt battery override. To use 9V battery override apply 9V battery, in either direction, to terminals on the keypad for backup power option.

  • Page 21: Feature Programming Through Menu Mode Using Master Pin Code

    French **This function available only with DPS option installed. Enable All Code Lockout Disable ***This function appears only with Yale Z-Wave network module installed. Join the network ***Network Module Setting Exit the network ***Set-up Digital Keys 80-9150-0080-010 04-21 Part of ASSA ABLOY...

  • Page 22: Programming Troubleshooting

    Programming Troubleshooting Symptom Suggested Action Touchscreen models become active when Yale logo is pressed. Push Button models become active when key is pressed. Lock does not respond. • Check batteries are installed and oriented correctly (polarity). There are no lights or •...

  • Page 23: Hardware Troubleshooting

    Hardware Troubleshooting Cycle lock in both the locked and unlocked positions. If problems are found: Door is binding. a. Check that door and frame are properly aligned and door is free swinging. b. Check hinges: They should not be loose or have excessive wear on knuckles. Latchbolt will not deadlock.
  • Page 24 24/7 Support Email: Support@YaleLock.com Website: Yale Commercial is a business associated with ASSA ABLOY Access and Egress US.YaleHome.com Hardware Group, Inc., an ASSA ABLOY Group company. Copyright © 2017 - 2021, Email for orders: ASSA ABLOY Access and Egress Hardware Group, Inc.
