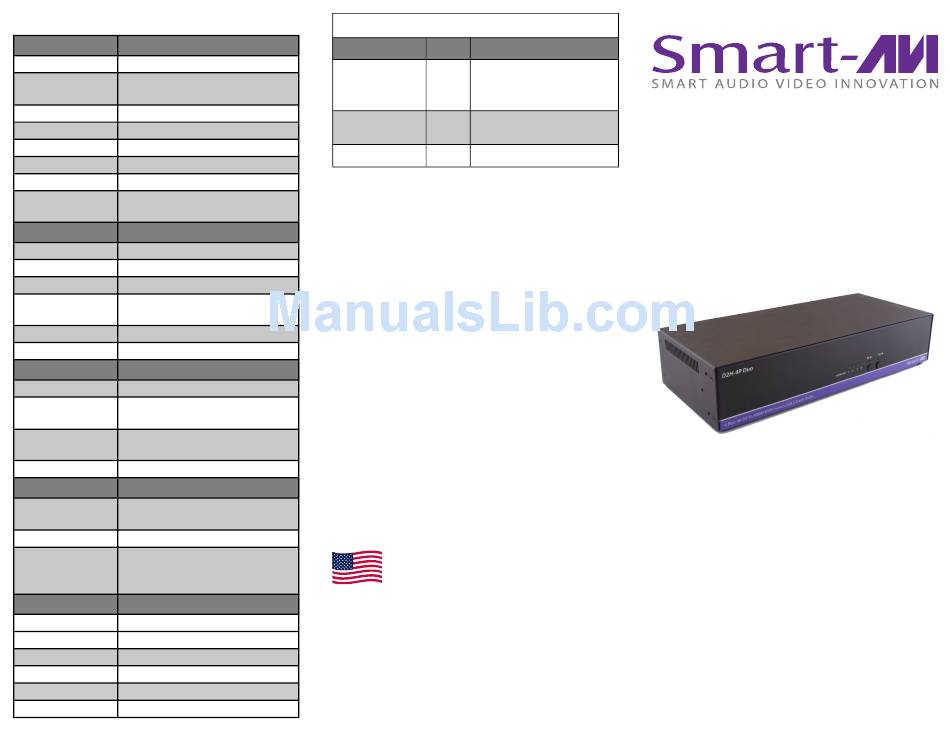

SMART-AVI D2H-4P Duo Quick Start Manual

TECHNICAL SPECIFICATIONS
VIDEO
Link Rate 5.4 Gbps
(8) DisplayPort (female) Version
Input Interface
1.2
Output Interface (2) HDMI (female) Version 1.4
Resolution Up to 4K (3840x2160 @ 30Hz)
Input Equalization Automatic
Video Bandwidth
Single-link 340MHz [10.2Gbps]
HDCP Compliant Yes
Input/Output Max
40 ft. (Cable Quality Dependant)
Cable Length
AUDIO
Input Interface
(4) 3.5 mm Stereo Audio
Output Interface
(1) 3.5 mm Stereo Audio
Impedance
600 Ohm
Frequency Re-
20Hz ~ 20KHz
sponse
Nominal Level 0-1.0 V
Common Mode Rejection at 60 dB
CONTROL
Front Panel
Buttons
DB9 Female - 9600 N,8,1, No flow
RS-232
control
Via Keyboard, Select/Switch be-
Hot Keys
tween Video & Audio sources
Emulation Keyboard, Video and Mouse
USB
USB 2.0, 1.1, and 1.0 w/ internal
Signal Type
hub
Input Interface (4) USB Type B (female)
(2) USB 1.1 Type A for keyboard
Output Interface and mouse;
(2) USB 2.0 Type A Transparent
OTHER
Power Adapter External 100-240 VAC/ 5VDC4A
Dimensions 3" H x 5.75" D x 12.75" W
Weight 4.3 lbs.
Operating Temp. +23 to +95°F (-5 to +35°C)
Operating Humidity 5 to 90% (No Condensation)
Storage Temp. -4 to 185°F (-20-85°C)
WHAT'S IN THE BOX?
PART NO. QTY DESCRIPTION
4-Port Duo DisplayPort KVM
Switch with Audio and USB
D2H-4P-Duo 1
2.0 Sharing
Power Adapter External 100
PS5VD4A
1
-240 VAC/5VDC4A
1

Quick Start Guide

Brackets for mounting this device in a standard 19"
rack may be optionally ordered from Smart-AVI.
NOTICE
The information contained in this document is
subject to change without notice. SmartAVI makes
no warranty of any kind with regard to this material,
including but not limited to, implied warranties of
merchantability and fitness for particular purpose.
SmartAVI will not be liable for errors contained
herein or for incidental or consequential damages
in connection with the furnishing, performance or
use of this material.
No part of this document may be photocopied,
reproduced, or translated into another language
without prior written consent from SmartAVI
Technologies, Inc.
20170118
Designed and Manufactured in the USA
800.AVI.2131
Tel: (818) 503-6200 | Fax: (818) 503-6208
11651 Vanowen St. North Hollywood, CA 91605
SmartAVI.com

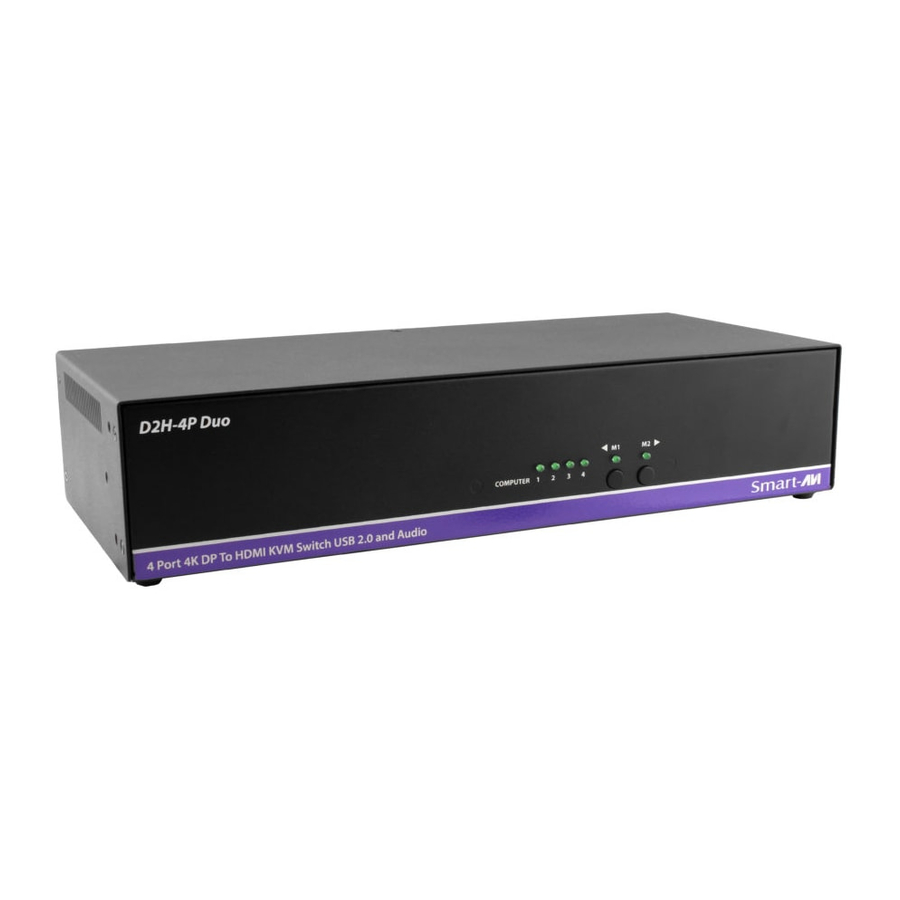

D2H‐4P Duo
8-Port DisplayPort in, 2-Port HDMI out,
4K Ultra-HD KVM Switch
with USB and Audio
Manage 4 computers with dual head,
screen displays from a single workstation
Quick Start Guide
