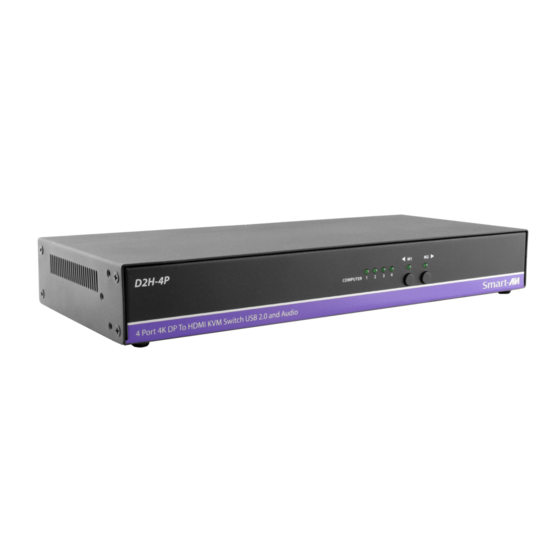

SMART-AVI D2H-4P User Manual
4-port displayport in, hdmi out, 4k ultra-hd kvm switch with usb and audio
Hide thumbs
Also See for D2H-4P:
- User manual (9 pages) ,
- Quick start manual (2 pages) ,
- Quick start manual (2 pages)
Related Manuals for SMART-AVI D2H-4P
Summary of Contents for SMART-AVI D2H-4P

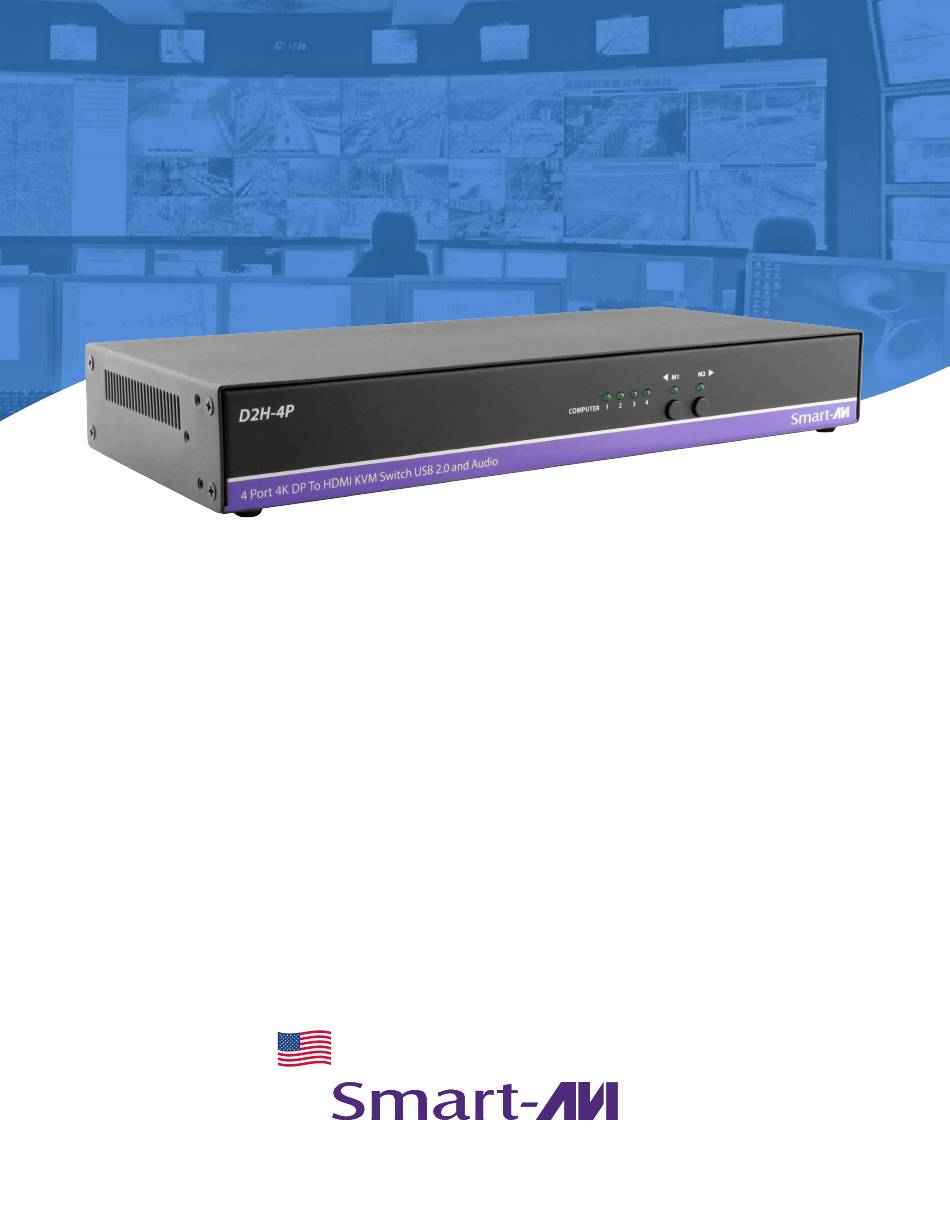

- Page 1 D2h-4p 4-Port DisplayPort in, HDMI out, 4K Ultra-HD KVM Switch with USB and Audio USER MANUAL Designed and Manufactured in the USA 1-800-284-2131 www.smartavi.com...
-
Page 2: Table Of Contents
OVERVIEW TECHNICAL SPECIFICATIONS___________________________________________________________________________ WHAT’S IN THE BOX?_____________________________________________________________________________________ FRONT AND BACK________________________________________________________________________________________ INSTALLATION____________________________________________________________________________________________ CONTROL_________________________________________________________________________________________________ DISABLE UNUSED PORTS________________________________________________________________________________ CUSTOM HOTKEY TRIGGERS____________________________________________________________________________ ESTABLISHING AN RS-232 CONNECTION______________________________________________________________ TROUBLESHOOTING_____________________________________________________________________________________ TECHNICAL SUPPORT____________________________________________________________________________________ LIMITED WARRANTY STATEMENT______________________________________________________________________ 4-Port DisplayPort in, HDMI out, 4K Ultra-HD KVM Switch with USB and Audio... -
Page 3: Technical Specifications
Technical Specifications VIDEO Format DisplayPort 1.2, HDMI 1.4 Link Rate 5.4 Gbps Input Interface (4) DisplayPort (female) Version 1.2 Output Interface (1) HDMI (female) Version 1.4 Resolution Up to 4K (3840x2160 @30Hz) Input Equalization Automatic Video Bandwidth Single-link 340MHz [10.2Gbps] HDCP Compliant Input Cable Length Up to 20 ft... -
Page 4: What's In The Box
PART NO. Q-TY DESCRIPTION D2H-4P-S 4-Port DisplayPort in, HDMI out, 4K Ultra-HD KVM Switch with USB and Audio PS5VDC2A Power Adapter User Manual D2H-4P FRONT D2H-4P BACK 4-Port DisplayPort in, HDMI out, 4K Ultra-HD KVM Switch with USB and Audio... -
Page 5: Installation
6. Connect the HDMI Display to the OUT connector on the D2H-4P. 7. Power on the displays, Computers and other devices. Power on the D2H-4P. Note: The 2 USB ports on the right are dedicated for keyboard and mouse with full emulation. The 2 on the left are for other USB peripherals (flash drives, printers, etc.) -
Page 6: Control
The numbered LED lights will indicate which computer is selected. HOTKEY COMMANDS A Hotkey command is a keyboard sequence used to trigger an action on the D2H-4P through the use of the keyboard connected on the USB port of the D2H-4P. To activate the hotkey sequence, press the CTRL key twice and then enter the desired hotkey commands. -
Page 7: Custom Hotkey Triggers
Check the device and your PC to determine if you need a male to male or a male to female cable and how long it needs to be. The Smart-AVI device requires a straight through cable. You can use a Null Modem Adapter to convert a crossed cable to a straight through cable. -
Page 8: Establishing An Rs-232 Connection
1. Connect an RS-232 cable to the RS-232 connector on the PC. 2. Connect the other end of the cable to the RS-232 port of the Smart-AVI device. 3. Use Windows Control Panel / Device Manager to identify the Com port number. See instructions and Figure 7-2 below. -
Page 9: Troubleshooting
Troubleshooting No Power • Make sure that the power adapter is securely connected to the power connector of the unit. • Check the output voltage of the power supply and make sure that the voltage value is around 12VDC. • Replace the power supply. No Video •... -
Page 10: Limited Warranty Statement
Limited warranty statement A. Extent of limited warranty SmartAVI, Inc. warrants to the end-user customers that the SmartAVI product specified above will be free from defects in materials and workmanship for the duration of 1 year, which duration begins on the date of purchase by the customer. Customer is responsible for maintaining proof of date of purchase. - Page 11 NOTICE The information contained in this document is subject to change without notice. SmartAVI makes no warranty of any kind with regard to this material, including but not limited to, implied warranties of merchantability and fitness for particular purpose. SmartAVI will not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance or use of this material.
