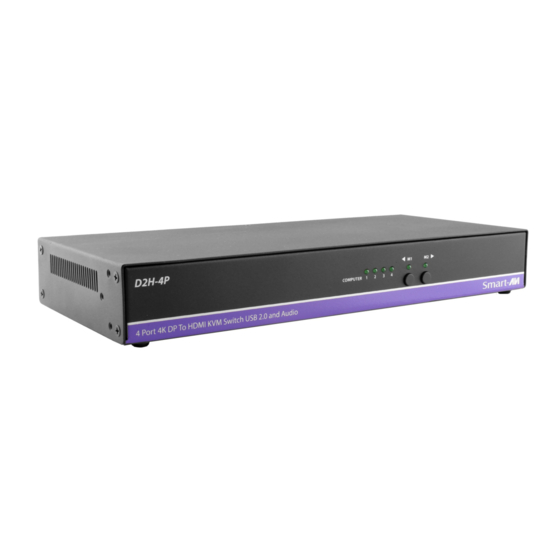

SMART-AVI D2H-4P User Manual
Ultra-hd 4k displayport to hdmi kvm switch with
usb 2.0 and audio sharing
Hide thumbs
Also See for D2H-4P:
- User manual (11 pages) ,
- Quick start manual (2 pages) ,
- Quick start manual (2 pages)
Related Manuals for SMART-AVI D2H-4P
Summary of Contents for SMART-AVI D2H-4P
-

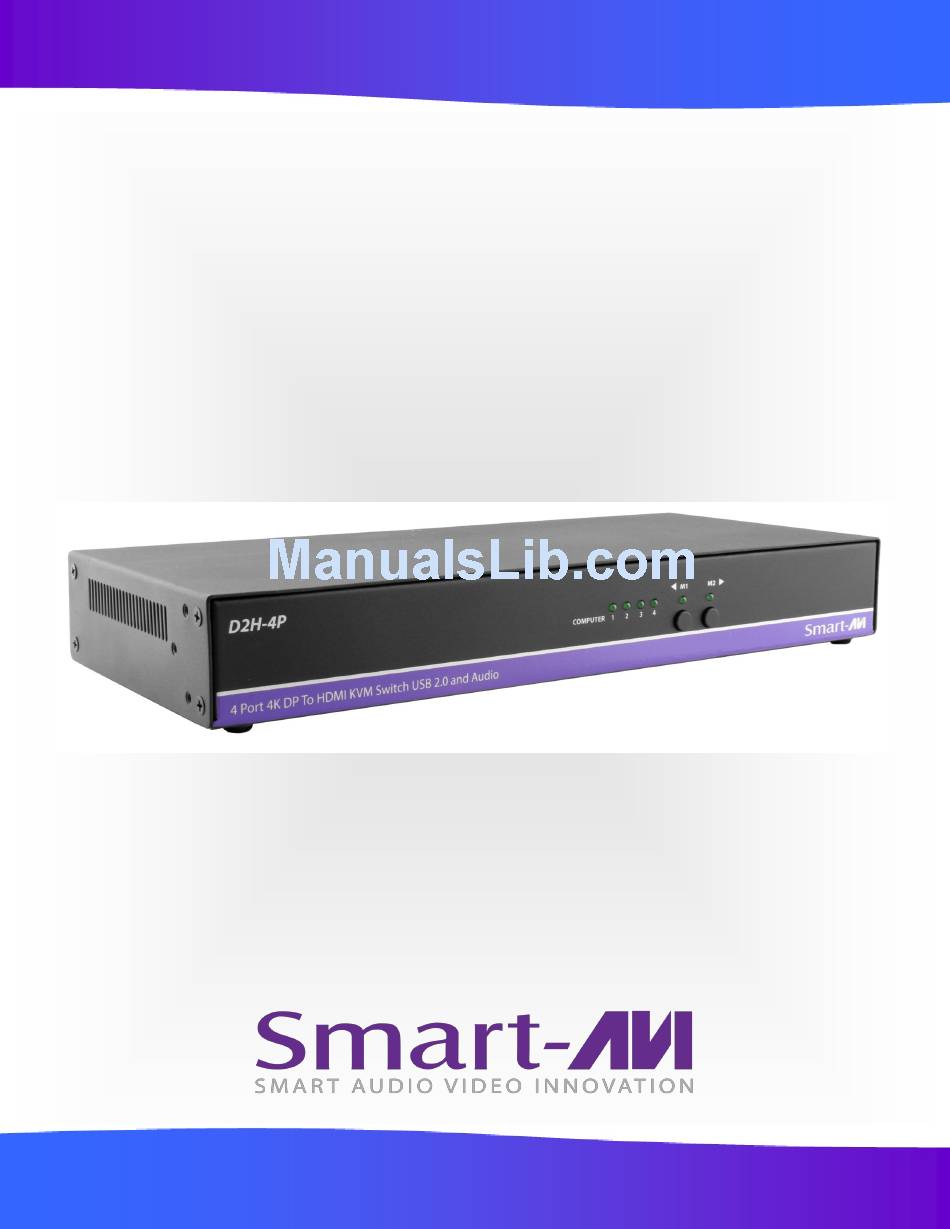

Page 1: User Manual
D2H-4P User Manual 4-Port DisplayPort to HDMI KVM Switch Ultra-HD 4K DisplayPort to HDMI KVM Switch with USB 2.0 and Audio Sharing Made in U.S.A. www.SmartAVI.com 1-800-AVI-2131... - Page 2 PS5VDC2A Power Supply/Adapter Quick Start Guide Brackets for mounting this device in a standard 19” rack may be optionally ordered from Smart-AVI. FEATURES Full EDID video emulation via HDMI output KVM control between four connected computers from a single workstation ...
- Page 3 REAL-WORLD APPLICATIONS The D2H-4P has a broad range of applications, but the main function is to centralize the access of up to four com- puters that support DisplayPort displays in a single workstation. Not only does it function as a KVM console, but it also supports USB 2.0 functionality.
-
Page 4: Technical Specifications
TECHNICAL SPECIFICATIONS VIDEO Link Rate 5.4 Gbps Input Interface (4) DisplayPort (female) Version 1.2 Output Interface (1) HDMI (female) Version 1.4 Resolution Up to 4K (3840x2160 @ 30Hz) Input Equalization Automatic Video Bandwidth Single-link 340MHz [10.2Gbps] HDCP Compliant Input/Output Max Cable Length 40 ft. (Cable Quality Dependant) AUDIO Input Interface (4) 3.5 mm Stereo Audio... -
Page 5: Hardware Installation
USB peripherals (flash drives, printers, etc.) 5. Connect speakers to the out connector on the D2H-4P. 6. Connect the HDMI Display to the OUT connector on the D2H-4P. 7. Power on the displays, Computers and other devices. Power on the D2H-4P. Figure 5-1 Figure 5-2... -
Page 6: Hotkey Commands
Figure 6-1 HOTKEY COMMANDS The Hotkey command is a keyboard sequence used to trigger an action on the D2H-4P through the use of the keyboard connected on the USB port of the D2H-4P. To activate the hotkey sequence, press the CTRL key twice and then enter the desired hotkey commands. - Page 7 Controlling the D2H-4P via RS-232 requires an RS-232 card in- stalled on your computer or a USB to RS-232 adapter. Check the D2H-4P and your Computer to determine if you need a male to male or a male to female cable and how long it needs to be. The D2H-4P requires a straight through cable.
-
Page 8: Limited Warranty Statement
Smart-AVI limited warranty is valid in any country where the covered product is distributed by Smart-AVI. Limitations of warranty To the extant allowed by local law, neither Smart-AVI nor its third party suppliers make any other warranty or condition of any kind whether expressed or implied with respect to the Smart-AVI product, and specifically disclaim implied warranties or conditions of merchantability, satisfactory quality, and fitness for a particular purpose. - Page 9 NOTICE The information contained in this document is subject to change without notice. SmartAVI makes no war- ranty of any kind with regard to this material, including but not limited to, implied warranties of merchant- ability and fitness for particular purpose. SmartAVI will not be liable for errors contained herein or for inci- dental or consequential damages in connection with the furnishing, performance or use of this material.
