SMART-AVI D2H-4P Quick Start Manual

TECHNICAL SPECIFICATION
VIDEO
Link Rate 5.4 Gbps/lane
Input Interface (4) DisplayPort (female) Version 1.2
Output Interface (1) HDMI (female) Version 1.4
Resolution Up to 4K (3840x2160 @30Hz)
Input Equalization Automatic
Video Bandwidth 10.2 Gbps
HDCP Compliant Yes
Input/Output
40 ft (depending on cable quality)
Max Cable Length
AUDIO
Input Interface (4) 3.5 mm Stereo Audio
Output Interface (1) 3.5 mm Stereo Audio
Frequency Response 20Hz ~ 20KHz
Common Mode Rejection @ 60dB
Nominal Level 0.0 to 1.0 V
USB
USB 2.0, 1.1, and 1.0
Signal Type
w/ internal hub
Input Interface (4) USB Type B
(2) USB 1.1 Type A for K/M
Output Interface
(2) USB 2.0 Type A Transparent
CONTROL
Buttons (SELECT audio/video
Front Panel
source)
DB9 Female - 9600 N,8,1,
RS-232
No flow control
Hot Keys Via Keyboard
Emulation Keyboard, Video and Mouse
OTHER
Power External 100-240 VAC/ 5VDC2A
Dimensions 2" H x 5.75" D x 12.75" W
Weight 3.55 lbs
Approvals UL, CE, ROHS Compliant
Operating Temp. 32-131°F (0-55 °C)
Storage Temp. -4-185 °F (-20-85 °C)
Humidity Up to 95%
WHAT'S IN THE BOX
PART NO. Q-TY DESCRIPTION
4-Port DisplayPort In and
D2H-4P-S 1
HDMI Out KVM Switch
PS5VD2A 1 PS5VD2A Power Supply
Quick Start Guide 1
NOTICE
The information contained in this document is
subject to change without notice. SmartAVI makes
no warranty of any kind with regard to this material,
including but not limited to, implied warranties of
merchantability and fitness for particular purpose.
SmartAVI will not be liable for errors contained
herein or for incidental or consequential damages in
connection with the furnishing, performance or use of
this material.
No part of this document may be photocopied,
reproduced, or translated into another language
without prior written consent from SmartAVI
Technologies, Inc.
800.AVI.2131, 702.800.0005
2455 W Cheyenne Ave, Suite 112
North Las Vegas, NV 89032
SmartAVI.com

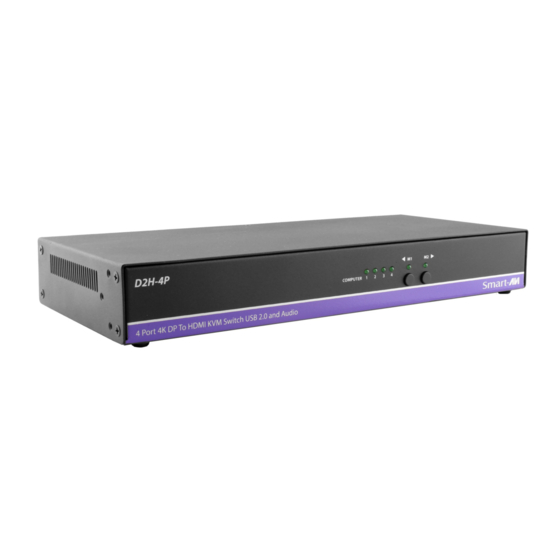

D2H-4P
4-Port DisplayPort IN and
HDMI Out KVM Switch
4K ULTRA-HD DISPLAYPORT TO
HDMI KVM SWITCH WITH
USB 2.0 KEYBOARD-MOUSE
AND AUDIO SHARING
Quick Start Guide
