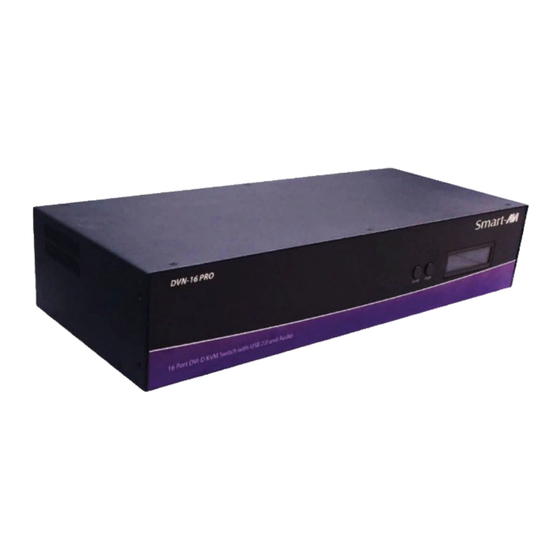

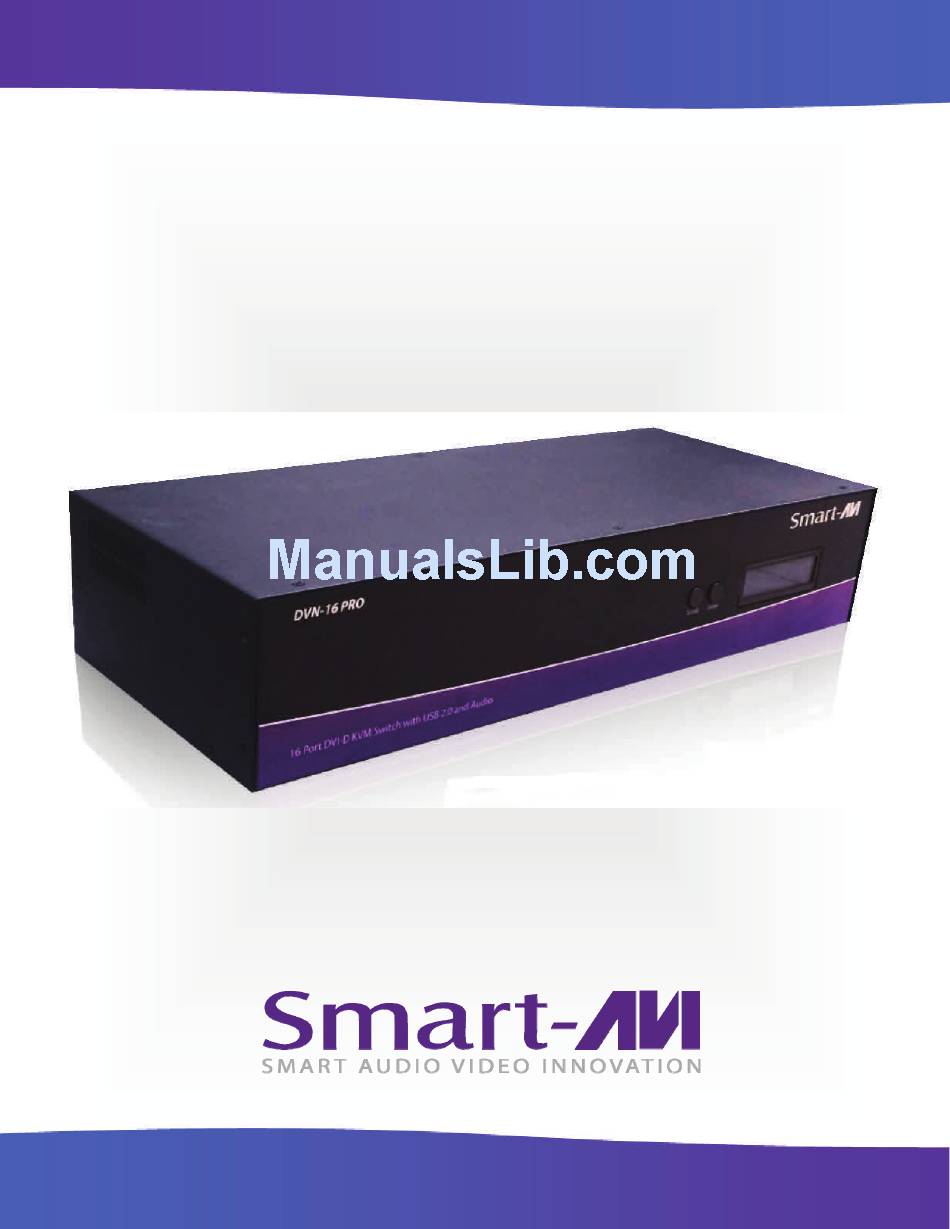

- Page 1 DVN‐16Pro User Manual 16-Port DVI-D KVM Switch with Audio and USB 2.0 Sharing Access and Control 16 Computers with One USB keyboard, USB Mouse and DVI-D Monitor Made in U.S.A. www.SmartAVI.com 1-800-AVI-2131...
-
Page 2: Table Of Contents
FRONT PANEL CONTROL RS-232 COMMANDS HOTPLUG COMMANDS LIMITED WARRANTY STATEMENT WHAT'S IN THE BOX? PART NO. QTY DESCRIPTION DVN-16PROS DVN-16Pro, 16x1 DVI-D, USB 2.0, Audio Switch PS5VDC4A Power Supply/Adapter Mounting Brackets EN-DVN16P-EAR-P Quick Start Guide Figure 2-1 Figure 2-2... -
Page 3: Introduction
SOURCE SWITCHING MADE EASY The DVN-16Pro provides simplified control of up to 16 computers with DVI-D, audio, and USB 2.0 outputs. This dynamic KVM console can be controlled remotely from easily accessible keyboard hotkeys or RS-232 communication channel commands, as well as directly through the console’s easy to read front panel. -
Page 4: Technical Specifications
TECHNICAL SPECIFICATIONS VIDEO Format DVI-D Single Link Maximum Pixel Clock 165 MHz Input Interface (16) DVI-D 29-pin (female) Output Interface (1) DVI-D 29-pin (female) Resolution Up to 1920 x 1200 @60Hz 5 volts p-p (TTL) Input Equalization Automatic Input Cable Length Up to 20 ft. -
Page 5: Hardware Installation
5. Optionally connect USB peripherals (flash drives, printers, etc.) to the “USB 2.0 OUT” ports. 6. Connect speakers to the Audio Out ports. 7. Connect the display monitor to the OUT DVI connector on the DVN-16Pro. 8. Power on the DVN-16Pro. -
Page 6: Front Panel Control
Press the Scroll button to move between the selections and the Enter button to execute the selection. The selections are: Learn Screen: Learn EDID from connected monitor. Hot Plug: Resets a pin on the DVI connector causing the DVN-16Pro to re-learn the connected monitor’s EDID settings. Exit: Exits Menu. Figure 6‐1 ... -
Page 7: Rs-232 Commands
The DVN-16Pro may also be controlled via RS-232 commands. This feature requires that an RS-232 card is installed in your computer or a USB to RS-232 adapter. Check the RS-232 connections on your com- puter and the DVN-16Pro to determine if you need a male to male, female to female or male to female cable. -
Page 8: Limited Warranty Statement
LIMITED WARRANTY STATEMENT A. Extent of limited warranty Smart‐AVI Technologies, Inc. warrants to the end‐user customers that the Smart‐AVI product specified above will be free from defects in materials and workmanship for the duration of 1 year, which duration begins on the date of purchase by the customer. Customer is responsible for maintaining proof of date of purchase. Smart‐AVI limited warranty covers only those defects which arise as a result of normal use of the product, and do not apply to any: a. Improper or inadequate maintenance or modifications b. Operations outside product specifications c. Mechanical abuse and exposure to severe conditions If Smart‐AVI receives, during applicable warranty period, a notice of defect, Smart‐AVI will at its discretion replace or repair defective product. If Smart‐AVI is unable to replace or repair defective product covered by the Smart‐AVI warranty within reasonable period of time, Smart‐AVI shall refund the cost of the product. Smart‐AVI shall have no obligation to repair, replace or refund unit until customer returns defective product to Smart‐AVI. Any replacement product could be new or like new, provided that it has functionality at least equal to that of the product being replaced. Smart‐AVI limited warranty is valid in any country where the covered product is distributed by Smart‐AVI. B. Limitations of warranty To the extant allowed by local law, neither Smart‐AVI nor its third party suppliers make any other warranty or condition of any kind whether expressed or implied with respect to the Smart‐AVI product, and specifically disclaim implied warranties or conditions of merchantability, satisfactory quality, and fitness for a particular purpose. C. Limitations of liability ... - Page 9 NOTICE The information contained in this document is subject to change without notice. SmartAVI makes no war‐ ranty of any kind with regard to this material, including but not limited to, implied warranties of merchant‐ ability and fitness for particular purpose. SmartAVI will not be liable for errors contained herein or for inci‐ dental or consequential damages in connection with the furnishing, performance or use of this material. No part of this document may be photocopied, reproduced, or translated into another language without prior written consent from SmartAVI Technologies, Inc. 20160825 ...
