SMART-AVI DPN-4P User Manual

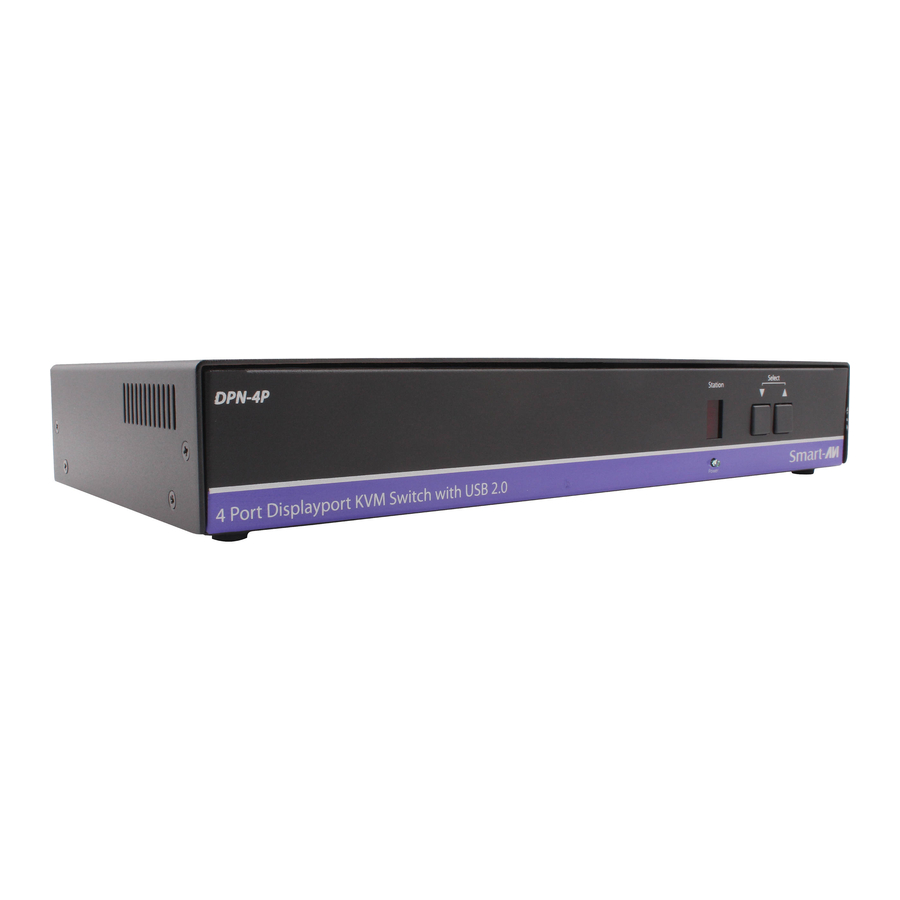

4-port displayport kvm switch/displayport 1.2 with usb 2.0, audio sharing and full keyboard / mouse emulation
Hide thumbs Also See for DPN-4P:
1
2
3
4
5
6
7
8
9

Advertisement

Table of Contents

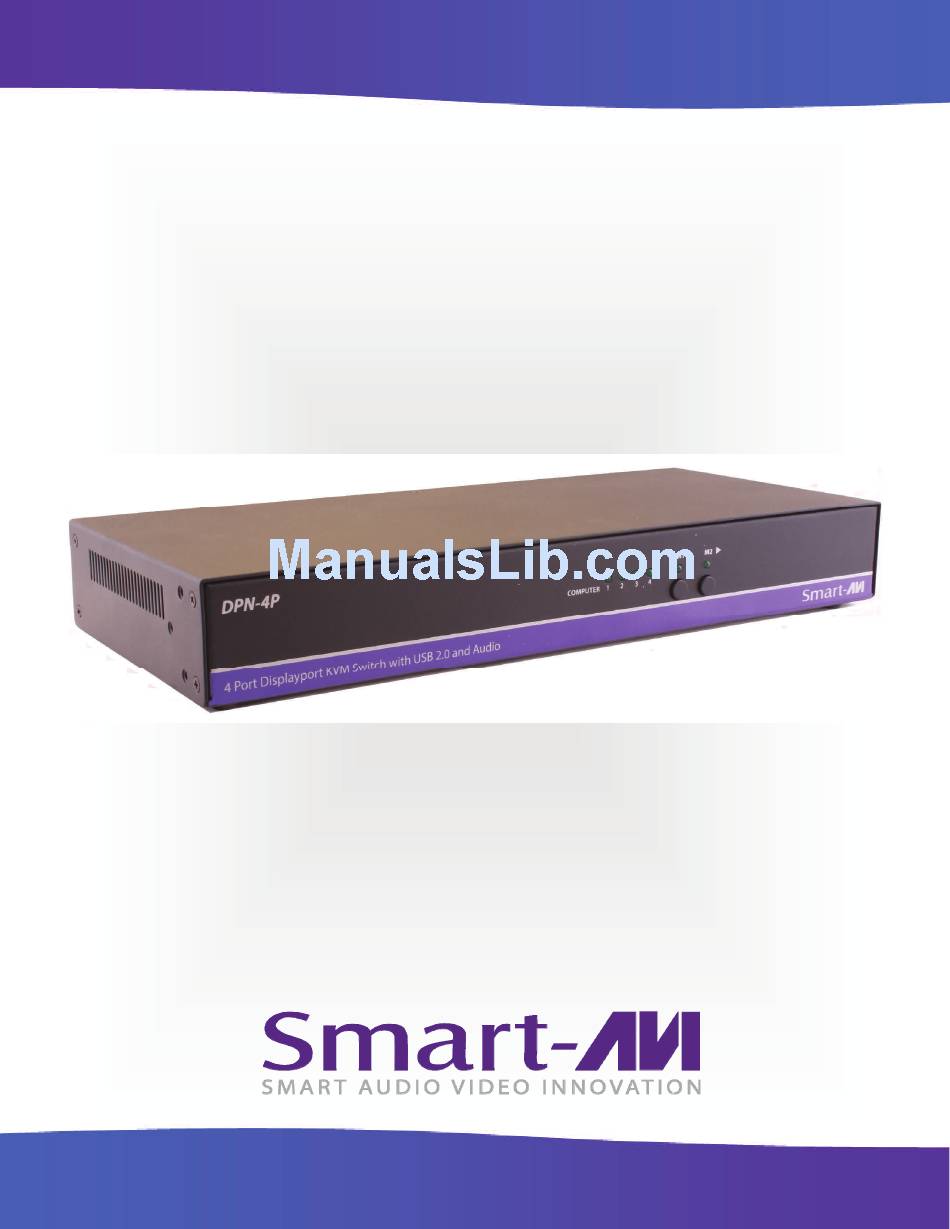

DPN‐4P
User Manual
4-Port DisplayPort KVM Switch
DisplayPort 1.2 with USB 2.0, Audio Sharing and
Full Keyboard / Mouse Emulation
Made in U.S.A.
www.SmartAVI.com
1
1-800-AVI-2131

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DPN-4P and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SMART-AVI DPN-4P

Summary of Contents for SMART-AVI DPN-4P

  • Page 1 DPN‐4P  User Manual  4-Port DisplayPort KVM Switch DisplayPort 1.2 with USB 2.0, Audio Sharing and Full Keyboard / Mouse Emulation Made in U.S.A. www.SmartAVI.com 1-800-AVI-2131...
  • Page 2 QTY DESCRIPTION 4-Port DisplayPort KVM Switch with USB 2.0, Audio and Front Panel Push DPN-4P-S Buttons. PS5VDC2A Power Adapter User Manual Brackets for mounting this device in a standard 19” rack may be optionally ordered from Smart-AVI. Figure 2-1 Figure 2-2...
  • Page 3 REAL-WORLD APPLICATIONS The DPN-4P has a broad range of applications, but the main function is to centralize the access of up to four computers that support DisplayPort displays in a single workstation. Not only does it function as a KVM console, but it also supports USB 2.0 functionality.

  • Page 4: Technical Specifications

    TECHNICAL SPECIFICATIONS VIDEO Format DisplayPort 1.2 Link Rate 5.4 Gbps/lane Input Interface (4) DisplayPort (female) Output Interface (1) DisplayPort (female) Resolution Up to 3840x2160 (@30Hz) Faux transaction mode option over Aux channel Input Equalization Automatic Bandwidth Frequency 10.2Gbps AUDIO Input Interface (4) 3.5 mm Stereo Audio Output Interface (1) 3.5 mm Stereo Audio...
  • Page 5 4. Connect the USB keyboard and mouse to the two USB ports marked for them on the right. 5. Connect the DisplayPort monitor to the OUT connector on the DPN-4P. 6. Connect Speakers to the audio OUT connector on the DPN-4P 7.

  • Page 6: Front Panel Control

    Figure 6-2 Hotkey Commands A Hotkey command is a keyboard sequence used to trigger an action on the DPN-4P through the use of the keyboard connected on the USB port of the DPN-4P. To activate the hotkey sequence, press the CTRL key twice and then enter the desired hotkey commands.
  • Page 7 Check the device and your PC to determine if you need a male to male or a male to female cable and how long it needs to be. The Smart-AVI device requires a straight through cable. You can use a Null Mo- dem Adapter to convert a crossed cable to a straight through cable.

  • Page 8: Limited Warranty Statement

    LIMITED WARRANTY STATEMENT   A.  Extent of limited warranty     Smart‐AVI Technologies, Inc. warrants to the end‐user customers that the Smart‐AVI product specified above  will be free from defects in materials and workmanship for the duration of 1 year, which duration begins on  the date of purchase by the customer. Customer is responsible for maintaining proof of date of purchase.    Smart‐AVI limited warranty covers only those defects which arise as a result of normal use of the product,  and do not apply to any:    a. Improper or inadequate maintenance or modifications    b. Operations outside product specifications    c. Mechanical abuse and exposure to severe conditions    If Smart‐AVI receives, during applicable warranty period, a notice of defect, Smart‐AVI will at its discretion  replace or repair defective product. If Smart‐AVI is unable to replace or repair defective product covered by  the Smart‐AVI warranty within reasonable period of time, Smart‐AVI shall refund the cost of the product.    Smart‐AVI shall have no obligation to repair, replace or refund unit until customer returns defective product  to Smart‐AVI.    Any replacement product could be new or like new, provided that it has functionality at least equal to that of  the product being replaced.    Smart‐AVI limited warranty is valid in any country where the covered product is distributed by Smart‐AVI.    B.   Limitations of warranty   To the extant allowed by local law, neither Smart‐AVI nor its third party suppliers make any other warranty or  condition of any kind whether expressed or implied with respect to the Smart‐AVI product, and specifically  disclaim implied warranties or conditions of merchantability, satisfactory quality, and fitness for a particular  purpose.    C.   Limitations of liability  ...
  • Page 9 NOTICE The information contained in this document is subject to change without notice. SmartAVI makes no war‐ ranty of any kind with regard to this material, including but not limited to, implied warranties of merchant‐ ability and fitness for particular purpose. SmartAVI will not be liable for errors contained herein or for inci‐ dental or consequential damages in connection with the furnishing, performance or use of this material. No  part of this document may be photocopied, reproduced, or translated into another language without prior  written consent from SmartAVI Technologies, Inc.    20160930 ...
