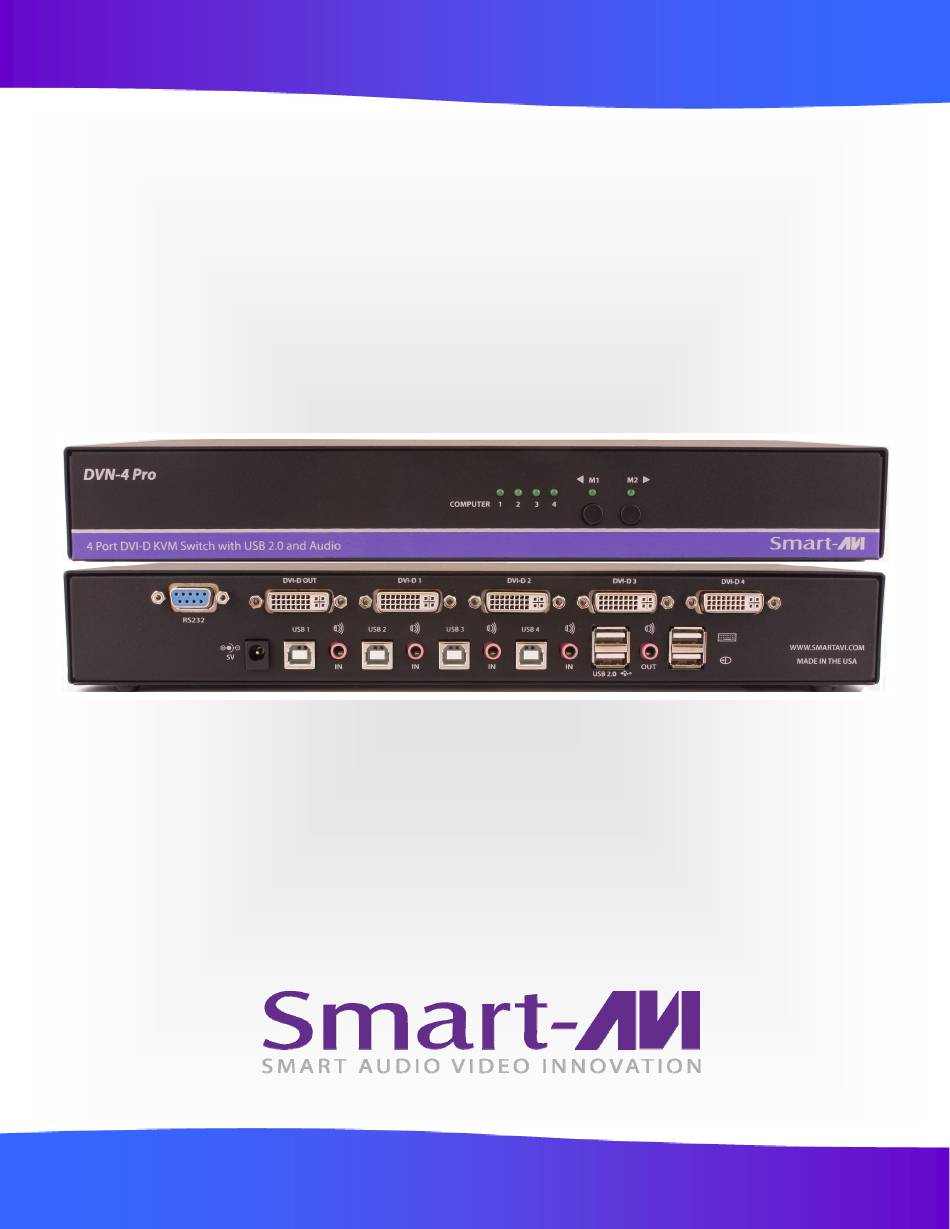

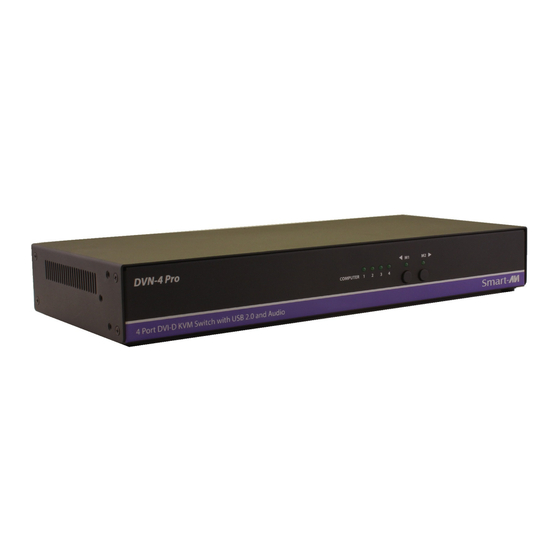

- Page 1 DVN‐4Pro User Manual 4-Port DVI-D KVM Switch with Audio and USB 2.0 Sharing Access and control up to 4 computers with one USB keyboard, one USB mouse and a DVI-D monitor Made in U.S.A. www.SmartAVI.com 1-800-AVI-2131...
- Page 2 FEATURES 3 APPLICATIONS 3 TECHNICAL SPECIFICATIONS 4 HARDWARE INSTALLATION 5 EDID LEARNING 5 CONTROL 6 LIMITED WARRANTY STATEMENT 7 WHAT'S IN THE BOX? PART NO. DESCRIPTION DVN-4ProS DVN-4Pro, 4x1 DVI-D, USB 2.0, Audio Switch PS5VDC4A Power Supply Quick Start Guide Figure 2-1 Figure 2-2...
- Page 3 INTRODUCTION DVN-4Pro is a dedicated multi-platform KVM switch capable of managing up to 4 different computers through a single DVI-D monitor, USB keyboard & mouse, a single set of speakers and USB 2.0 Devices. It features USB keyboard and mouse emulation for faster and reliable switching through the use of hotkey sequence commands.
- Page 4 TECHNICAL SPECIFICATIONS VIDEO DVI-D Single Link Format Maximum Pixel Clock 165 MHz Input Interface (4) DVI-D 29-pin (female) Output Interface DVI-D 29-pin (female) Resolution Up to 1920 x 1200 @60Hz 5 volts p-p (TTL) Input Equalization Automatic Input Cable Length Up to 20 ft.
- Page 5 Figure 5‐1 EDID LEARNING The DVN-4Pro is fully capable of “learning” and remembering what type of display monitor is connected to the unit. With its EDID learning feature, the DVN-4Pro provides plug-and-play capability to its display. Programming the EDID can be accomplished through the Front-Panel buttons, Hot Keys or through RS-...
- Page 6 Use a male-to-female serial cable to connect a computer to the RS-232 port of the DVN-4Pro. Use termi- nal client software such as the PuTTY to connect to the DVN-4Pro. Make sure to use the standard com- munication mode of 9600 bps, 8, N, 1 No flow control.
- Page 7 LIMITED WARRANTY STATEMENT A. Extent of limited warranty Smart‐AVI Technologies, Inc. warrants to the end‐user customers that the Smart‐AVI product specified above will be free from defects in materials and workmanship for the duration of 1 year, which duration begins on the date of purchase by the customer. Customer is responsible for maintaining proof of date of purchase. Smart‐AVI limited warranty covers only those defects which arise as a result of normal use of the product, and do not apply to any: a. Improper or inadequate maintenance or modifications b. Operations outside product specifications c. Mechanical abuse and exposure to severe conditions If Smart‐AVI receives, during applicable warranty period, a notice of defect, Smart‐AVI will at its discretion replace or repair defective product. If Smart‐AVI is unable to replace or repair defective product covered by the Smart‐AVI warranty within reasonable period of time, Smart‐AVI shall refund the cost of the product. Smart‐AVI shall have no obligation to repair, replace or refund unit until customer returns defective product to Smart‐AVI. Any replacement product could be new or like new, provided that it has functionality at least equal to that of the product being replaced. Smart‐AVI limited warranty is valid in any country where the covered product is distributed by Smart‐AVI. B. Limitations of warranty To the extant allowed by local law, neither Smart‐AVI nor its third party suppliers make any other warranty or condition of any kind whether expressed or implied with respect to the Smart‐AVI product, and specifically disclaim implied warranties or conditions of merchantability, satisfactory quality, and fitness for a particular purpose. C. Limitations of liability ...
- Page 8 NOTICE The information contained in this document is subject to change without notice. SmartAVI makes no war‐ ranty of any kind with regard to this material, including but not limited to, implied warranties of merchant‐ ability and fitness for particular purpose. SmartAVI will not be liable for errors contained herein or for inci‐ dental or consequential damages in connection with the furnishing, performance or use of this material. No part of this document may be photocopied, reproduced, or translated into another language without prior written consent from SmartAVI Technologies, Inc. 20170113 ...
