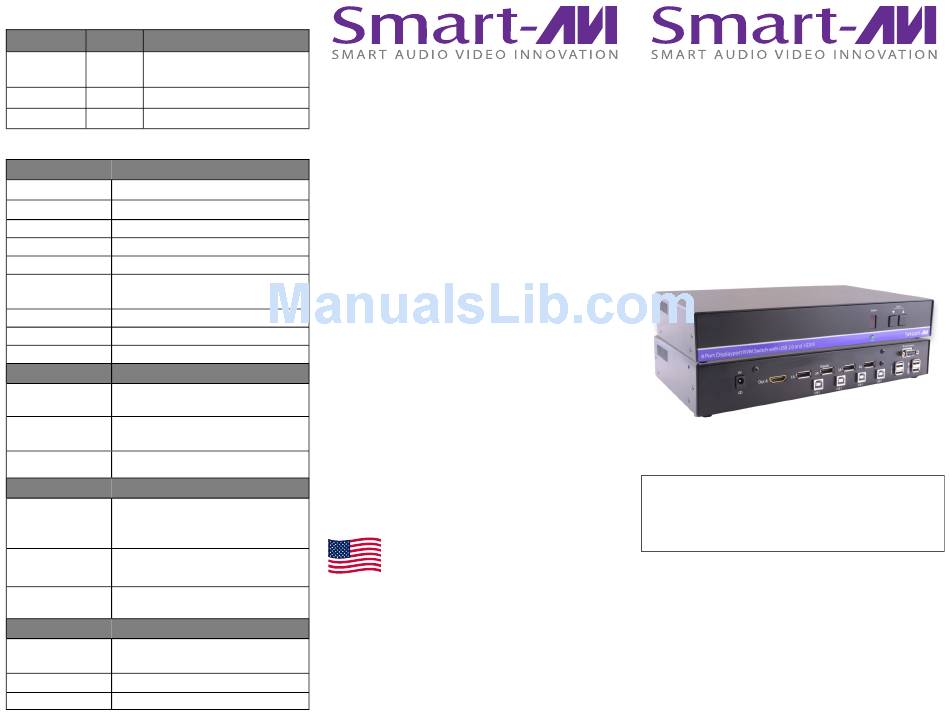

SMART-AVI D2H-4P Quick Start Manual

WHAT'S IN THE BOX
PART NO. QTY DESCRIPTION
4-Port DisplayPort In and
D2H-4P 1
HDMI Out KVM Switch.
PS5VDC4A 1 Power Supply/Adapter
1

Quick Start Guide

TECHNICAL SPECIFICATIONS
VIDEO
Resolution Up to 4K (3840x2160@30Hz)
HDTV Resolutions 480p, 720p, 1080i, 1080p, 2160i
HDCP Compliant Yes
Input Interface (4) DisplayPort Version 1.2
Output Interface (1) HDMI Version 1.4
Input/Output Max
40 ft.
Cable Length
Max data Rate 6.75 Gbps
Max Pixel Clock 225 MHz
Video Bandwidth Single-link 340MHz [10.2Gbps]
AUDIO (VIA HDMI & DisplayPort)
Frequency
20Hz ~ 20KHz
Response
Stereo Channel
>75dB@20Hz ~ 20KHz
Separation
Bandwidth
20Hz~ 25KHz
CONTROL
Select/Switch between Video &
Audio sources and view the current
Front Panel
selected channel.
DB9 Female - 115200, N, 8, 1, no
RS-232
flow control
Select/Switch between Video &
Hotkeys Keyboard
Audio sources
POWER
Power
10 W
Consumption
Power External 100-240 VAC
Power Supply 5VDC 4A
NOTICE
The information contained in this document
is subject to change without notice. SmartAVI
makes no warranty of any kind with regard to
this material, including but not limited to,
implied warranties of merchantability and
fitness for particular purpose.
SmartAVI will not be liable for errors con-
tained herein or for incidental or consequen-
tial damages in connection with the furnish-
ing, performance or use of this material.
No part of this document may be photocop-
ied, reproduced, or translated into another
language without prior written consent from
SmartAVI Technologies, Inc.
Designed and Manufactured in the USA
800.AVI.2131
Tel: (818) 503-6200 Fax: (818) 503-6208
11651 Vanowen St. North Hollywood, CA 91605
SmartAVI.com

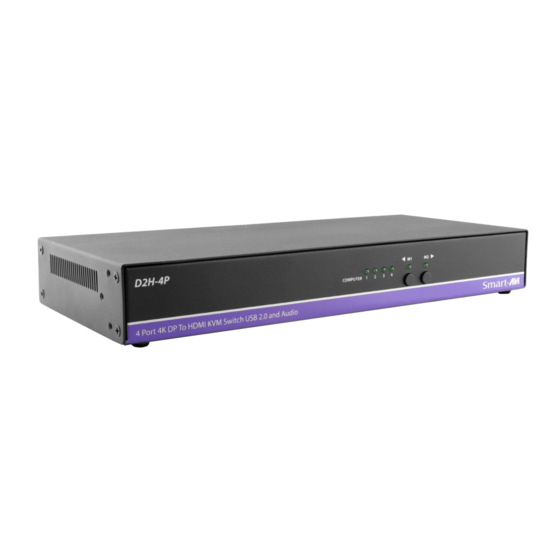

D2H-4P
4-Port DisplayPort & USB In and
HDMI Out KVM Switch
4-Port DisplayPort KVM switch
with 4K Ultra-HD HDMI
video output emulation.
Quick Start Guide
